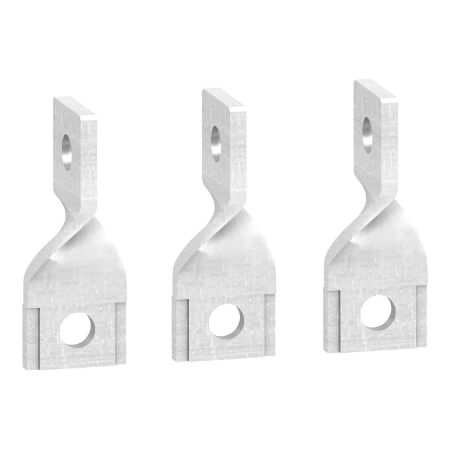

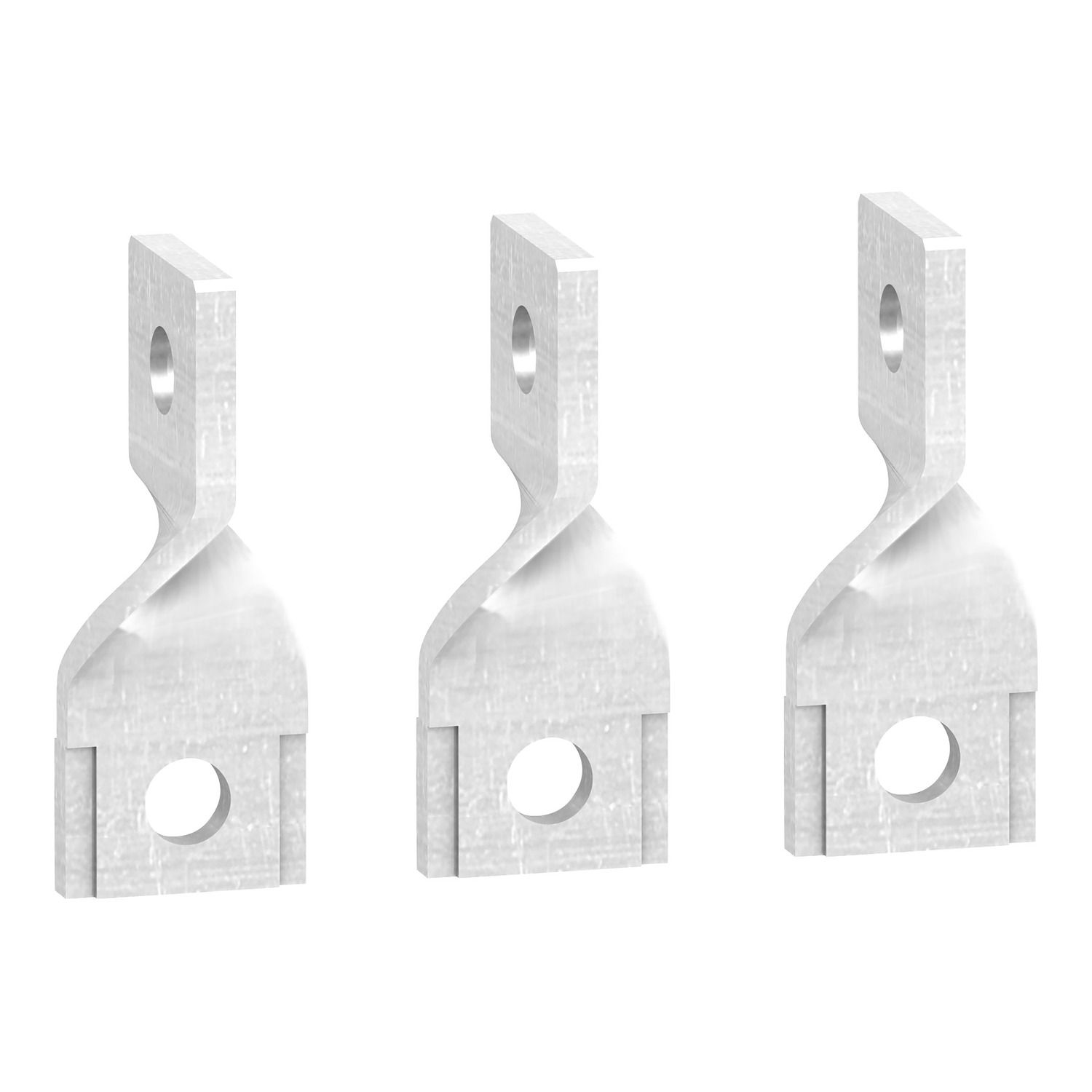

Picture of Terminal extensions, ComPacT NSX 100/160/250, edgewise, set of 3 parts
SKU:

LV429308

Terminal extensions, ComPacT NSX 100/160/250, edgewise, set of 3 parts

$67.74
Terminal extensions, ComPacT NSX 100/160/250, edgewise, set of 3 parts
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
  • Meet your needs with flexibility to achieve system efficiency during the design phase
  • ETA trip unit offers protect overload& short-circuit conditions, measurements, display and current maximeters
  • Samrt& Reliable: digital LCD screen can be set and display important currents parameters for protection
  • Multiple international standards certificated
  • Green Premium with recognized environmental claims
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
User guide
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
These accessories are edgewise terminal extensions for Compact NSX 100/160/250 and EasyPact CVS 100/160/250. These terminal extensions have anti-rotation ribs and can be attached to the standard terminals. The rated current is up to 250 A. These terminal extensions are supplied with flexible interphase barriers for insulation reinforcement. They are sold by set of 3 parts.

Products specifications

Attribute nameAttribute value
Main
Device short nameedgewise terminal extensions
Mounting positionedgewise
Quantity per set3
Poles description3P
RangeComPacT
Product or component typeterminal extension
Accessory / separate part categoryconnection accessory
Range compatibilityEasyPact EasyPact CVS250, EasyPact EasyPact CVS160, EasyPact EasyPact CVS100, ComPact Compact NSX250 DC, ComPact Compact NSX160 DC, ComPact Compact NSX100 DC, ComPact ComPact NSX250, ComPact ComPact NSX160, ComPact ComPact NSX100, ComPacT new generation ComPacT NSX DC new generation, ComPacT new generation ComPacT NSX250 new generation, ComPacT new generation ComPacT NSX160 new generation, ComPacT new generation ComPacT NSX100 new generation
Range of productComPact NSX100...250 DC, ComPact NSX100...250, ComPacT NSX100...250 DC new generation, ComPacT NSX100...250 new generation
Complementary
[In] rated current250-250 A
Connection pitch35 mm
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height4.0 cm
Package 1 Width16.5 cm
Package 1 Length33.0 cm
Package 1 Weight355.0 g
Unit Type of Package 22
Number of Units in Package 250
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight18.237 kg
