Picture of Compact NSX <630, Extended rotary handle, ComPact NSX 100/160/250, black handle, shaft length 185mm to 600mm, IP55
SKU:

LV429338

Compact NSX <630, Extended rotary handle, ComPact NSX 100/160/250, black handle, shaft length 185mm to 600mm, IP55

$328.69
Availability: Please contact our sales team on 1300 724 622.
Compact NSX <630, Extended rotary handle, ComPact NSX 100/160/250, black handle, shaft length 185mm to 600mm, IP55
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Instruction sheet
Product environmental
Catalogue
User guide
Product Page Link
Product Data Sheet

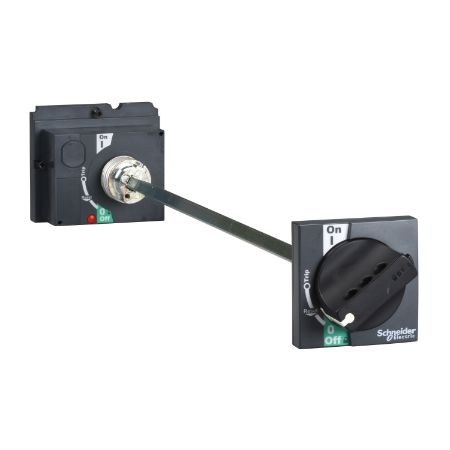

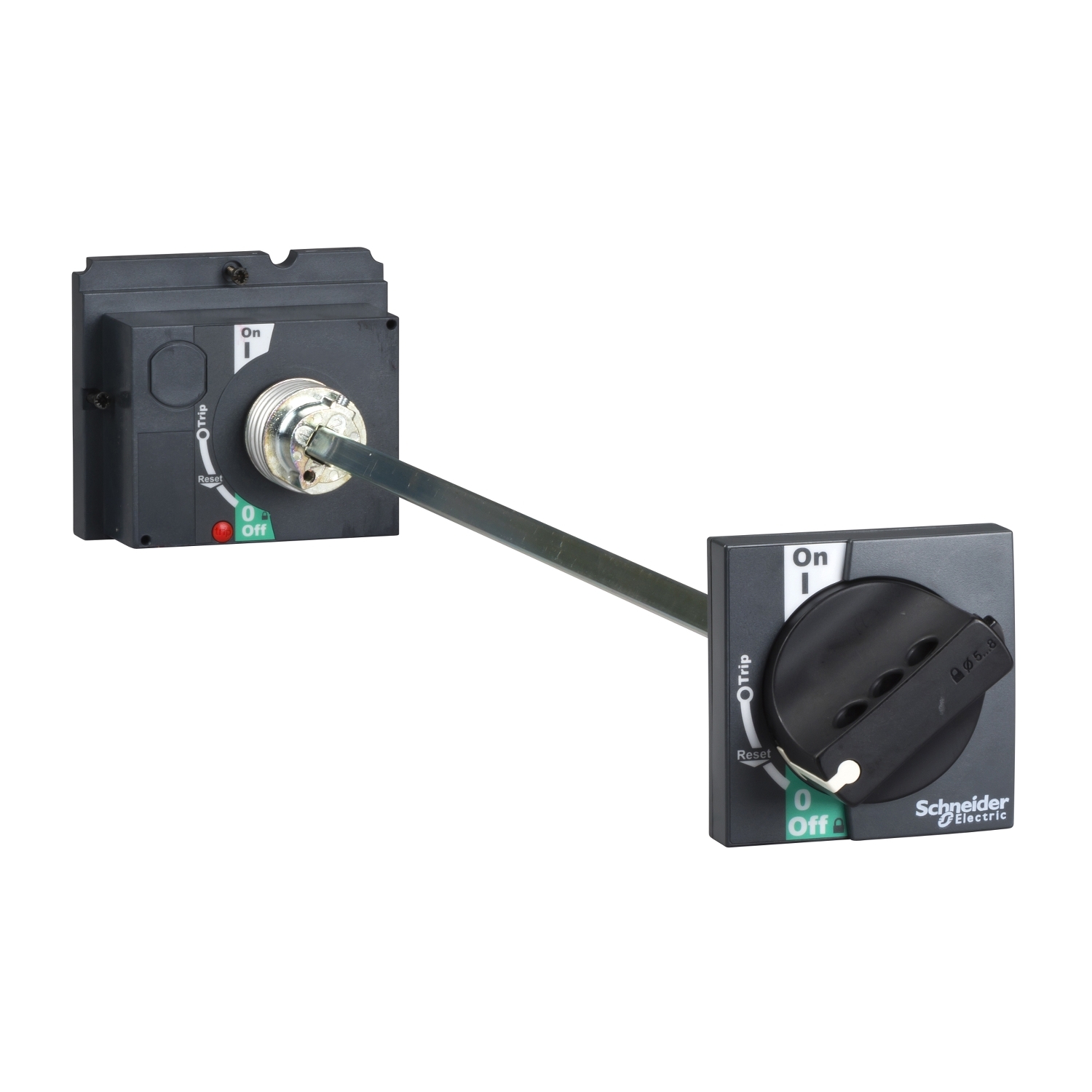

It is an extended rotary handle for Compact NSX 100/160/250, PowerPact Multistandard H/J frames and EasyPact CVS 100/160/250 devices. It is suitable for isolation and it is used for standard applications. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. This extended version makes possible to operate devices installed at back of switchboards, from the switchboard front. The distance between the back of the circuit breaker and the switchboard door is from 185mm to 600mm. The degrees of protection are IP55 and IK08. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.

Products specifications

Attribute name Attribute value
Main
Range of product ComPact NSX100...250
Rotary handle mounting style extended
Accessory / separate part type control accessories
Product or component type rotary handle
Handle colour black
Handle front plate colour black
Complementary
Rotary handle mounting location front
Rotary handle padlocking 1 to 3 padlocks, padlock in OFF position
Range compatibility PowerPact PowerPact Multistandard, EasyPact EasyPact CVS250, EasyPact EasyPact CVS160, EasyPact EasyPact CVS100, ComPact ComPact NSX250, ComPact ComPact NSX160, ComPact ComPact NSX100
Environment
IP degree of protection IP55
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.51 cm
Package 1 Width 10.18 cm
Package 1 Length 48.4 cm
Package 1 Weight 650.0 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 5.5 kg
Unit Type of Package 3 3
Number of Units in Package 3 72
Package 3 Height 90.0 cm
Package 3 Width 80.0 cm
Package 3 Length 120.0 cm
Package 3 Weight 50961.6 g
