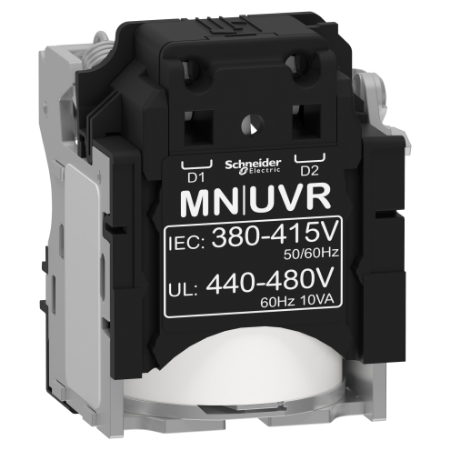

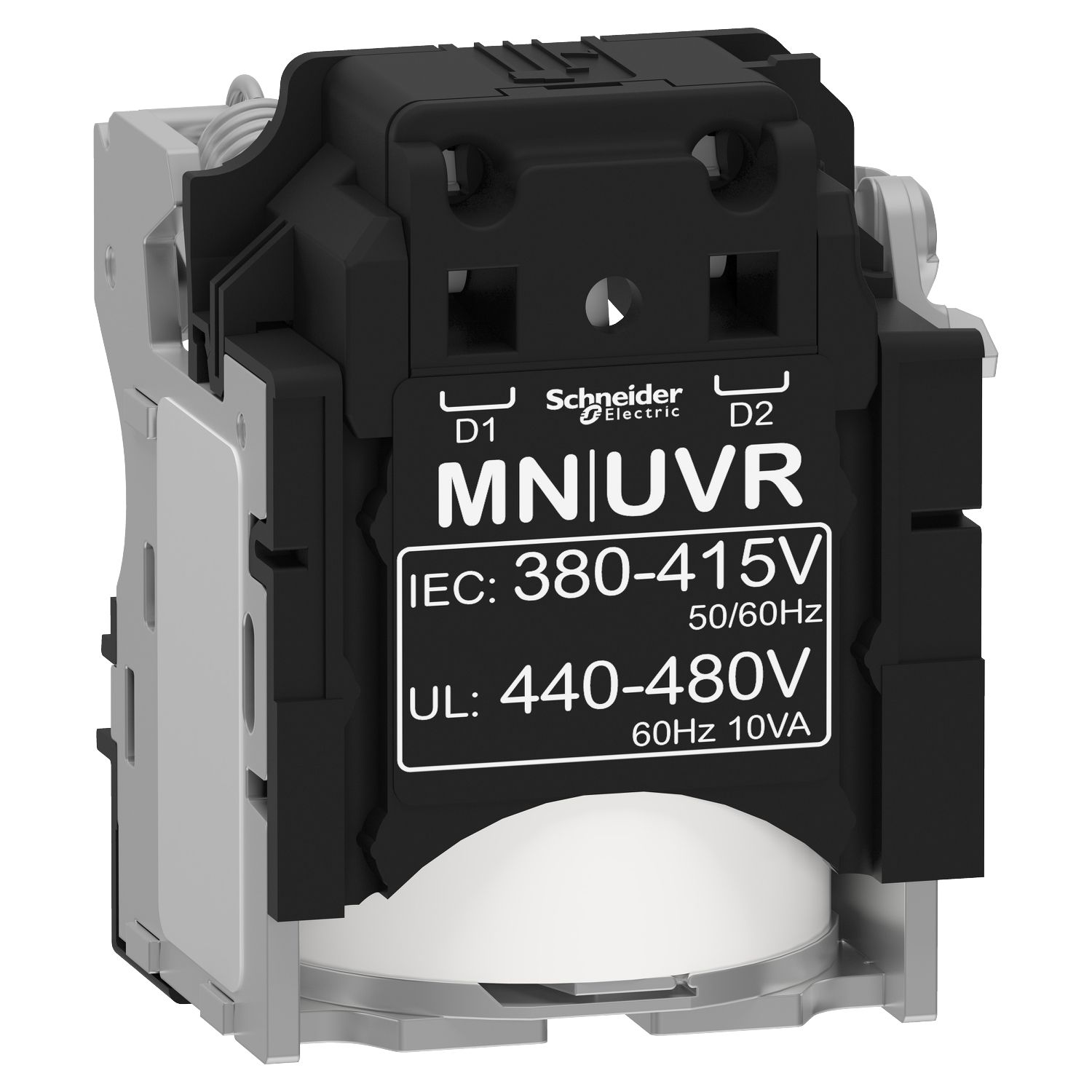

Picture of Undervoltage release MN, ComPacT NSX, 380/415VAC 50/60Hz, 440/480VAC 60Hz, screwless spring terminal connections
SKU:

LV429408

Undervoltage release MN, ComPacT NSX, 380/415VAC 50/60Hz, 440/480VAC 60Hz, screwless spring terminal connections

$430.42
Product Selector
Undervoltage release MN, ComPacT NSX, 380/415VAC 50/60Hz, 440/480VAC 60Hz, screwless spring terminal connections
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Instruction sheet
Catalogue
Declaration of conformity
Product environmental
User guide
Product Page Link
Product Data Sheet
This is a MN undervoltage release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 380 to 415 VAC 50/60 Hz, or 440 to 480 VAC 60 Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. It complies with IEC 60947-2 standard. This undervoltage release is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.

Products specifications

Attribute nameAttribute value
Main
Device short nameMN
Device applicationcontrol
RangeComPacT
Range of productComPacT NSX400...630 DC PV new generation, ComPact NSX400...630 DC PV, ComPacT NSX400...630 DC new generation, ComPact NSX400...630 DC, ComPacT NSX100...250 DC PV new generation, ComPact NSX100...250 DC PV, ComPacT NSX100...250 DC new generation, ComPact NSX100...250 DC, ComPacT NSX400...630 new generation, ComPact NSX400...630, ComPacT NSX100...250 new generation, ComPact NSX100...250
Voltage release typeundervoltage release, opening coil
Product or component typevoltage release
Range compatibilityPowerPact PowerPact Multistandard, EasyPact EasyPact CVS, ComPact ComPact NSX DC, ComPact ComPact NSX, ComPacT new generation ComPacT NSX DC new generation, ComPacT new generation ComPacT NSX new generation
[Uc] control circuit voltage440...480 V AC 60 Hz, 380...415 V AC 50 Hz
Complementary
Wire stripping length7 mm
Supply inrush power10 VA
Auxiliary connection terminalspring 0.5-1.5 mm² (AWG 20...AWG 16)
Supply holding power5 VA
Threshold tripping voltage0.85 x Un closing, 0.35...0.7 x Un opening
Response time50 ms
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height4.400 cm
Package 1 Width4.700 cm
Package 1 Length6.200 cm
Package 1 Weight112.000 g
Unit Type of Package 22
Number of Units in Package 210
Package 2 Height7.100 cm
Package 2 Width10.500 cm
Package 2 Length23.600 cm
Package 2 Weight1.850 kg
Unit Type of Package 33
Number of Units in Package 360
Package 3 Height30.000 cm
Package 3 Width30.000 cm
Package 3 Length40.000 cm
Package 3 Weight7.510 kg
