SKU:

LV432592

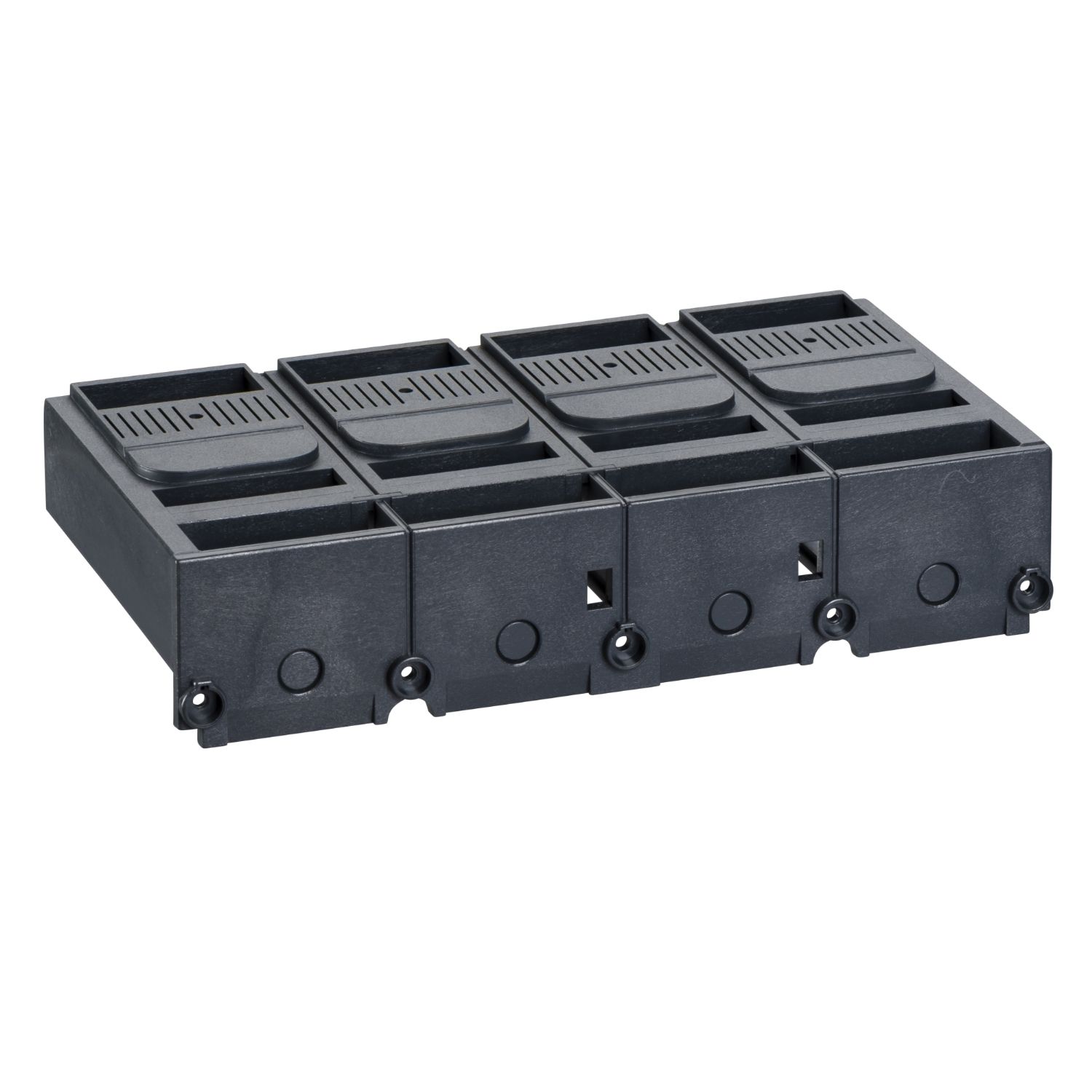

Short terminal shield, ComPacT NSX400/630, pitch 45mm, IP40, 4 poles

$119.02

Qty:

Available for Shipping : 24-Nov-2024

Short terminal shield, ComPacT NSX400/630, pitch 45mm, IP40, 4 poles

Schneider Electric green signature style for the entire ComPacT range

Estimated 40% reduction of wiring time for panel builders

Experience easier installation thanks to a new ergonomic front-plate design

Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating

Ergonomic new toggle for easier breaker manual operation

Meet your needs with flexibility to achieve system efficiency during the design phase

ETA trip unit offers protect overload& short-circuit conditions, measurements, display and current maximeters

Samrt& Reliable: digital LCD screen can be set and display important currents parameters for protection

Multiple international standards certificated

Green Premium with recognized environmental claims

Be the first to review this product

Manufacturer: Schneider Electric

User guide

Catalogue

Instruction sheet

Product Page Link

Product Data Sheet

This is an insulation accessory for 4 poles Compact NSX 400/630 or EasyPact CVS 400/630. This short terminal shield protects against direct contact with power circuit. It can be mounted upstream and downstream of fixed, plug-in or withdrawable devices. It allows to reach the clearance distance requested by IEC 60947-2 standard. The pitch is 45mm. It provides IP40 degree of protection and IK07 mechanical impact protection.

Products specifications

Attribute name	Attribute value
Main
Accessory / separate part type	insulation accessories
Quantity per set	1
Poles description	4P
Range	ComPacT
Product or component type	short terminal shield
Range compatibility	ComPact ComPacT INS, ComPact Compact INV, EasyPact EasyPact CVS630, EasyPact EasyPact CVS400, ComPact Compact NSX630 DC, ComPact Compact NSX400 DC, ComPacT new generation ComPacT NSX DC new generation NSX630 DC, ComPacT new generation ComPacT NSX DC new generation NSX400 DC, ComPact ComPact NSX630, ComPact ComPact NSX400, ComPacT new generation ComPacT NSX630 new generation, ComPacT new generation ComPacT NSX400 new generation
Range of product	ComPact NSX400...630 DC, ComPact NSX400...630, ComPacT NSX400...630 DC new generation, ComPacT NSX400...630 new generation
Complementary
Compatibility code	terminal shields
IP degree of protection	IP40 conforming to IEC 60529
Connection pitch	45 mm
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	4.600 cm
Package 1 Width	12.500 cm
Package 1 Length	27.400 cm
Package 1 Weight	147.000 g
Unit Type of Package 2	2
Number of Units in Package 2	15
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	2.646 kg
Unit Type of Package 3	3
Number of Units in Package 3	120
Package 3 Height	45.000 cm
Package 3 Width	80.000 cm
Package 3 Length	120.000 cm
Package 3 Weight	33.168 kg
