SKU:

LV432597T

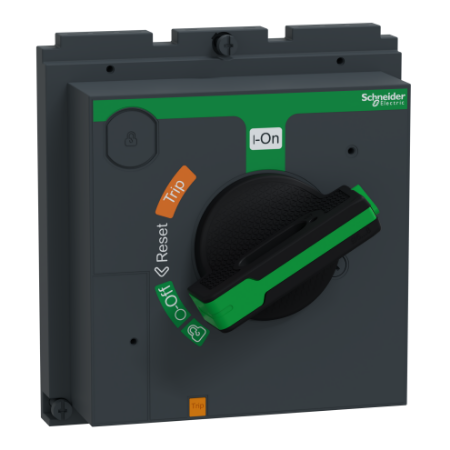

Direct rotary handle, ComPacT NSX400/630, black handle, IP40

$331.04

Qty:

Available for Shipping : 24-Nov-2024

Product Selector

Direct rotary handle, ComPacT NSX400/630, black handle, IP40

Schneider Electric green signature style for the entire ComPacT range

Estimated 40% reduction of wiring time for panel builders

Experience easier installation thanks to a new ergonomic front-plate design

Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating

Ergonomic new toggle for easier breaker manual operation

Be the first to review this product

Manufacturer: Schneider Electric

End of life manual

Product environmental

User guide

Instruction sheet

Catalogue

Product Page Link

Product Data Sheet

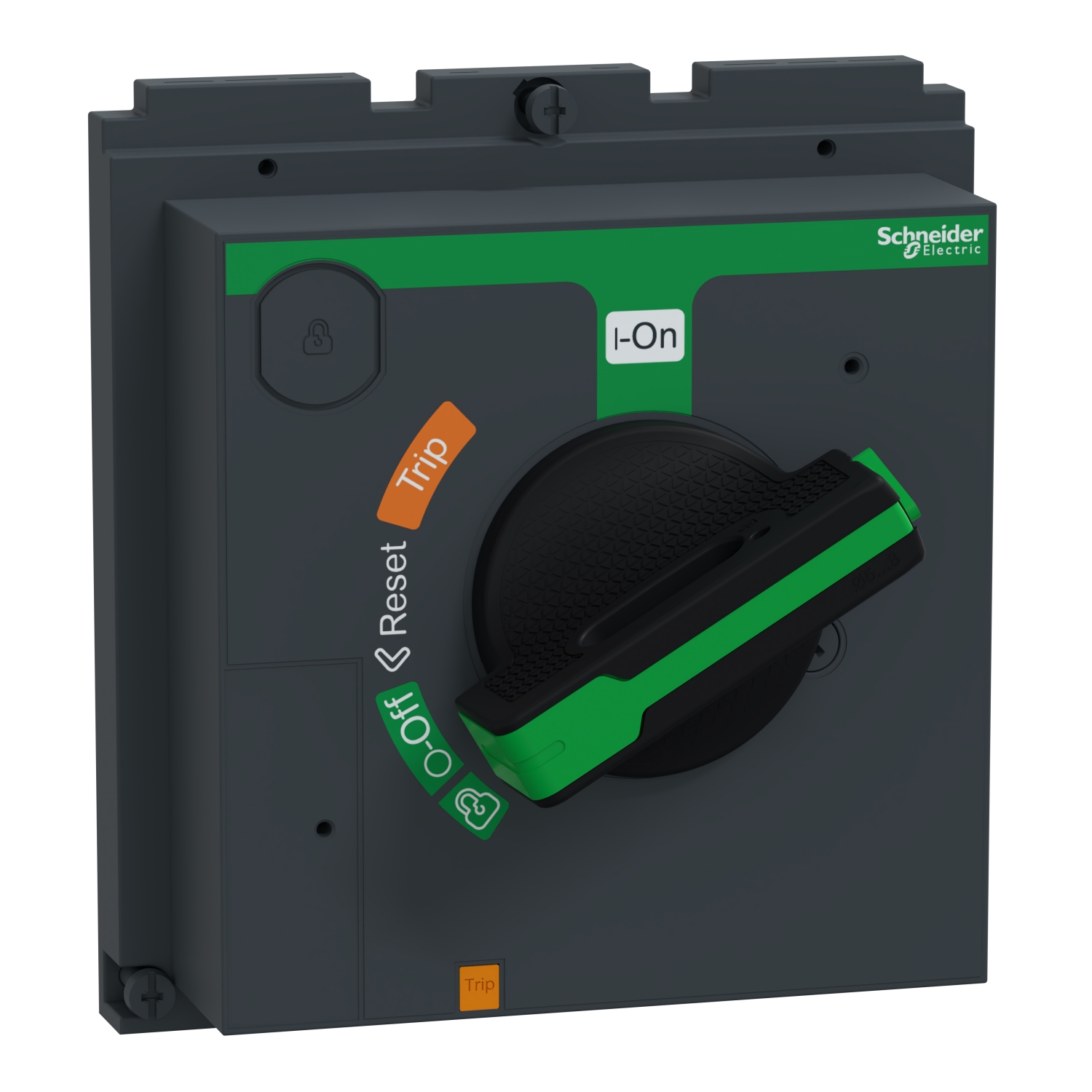

It is a direct rotary handle for ComPacT NSX 400/630, PowerPact Multistandard L frames and EasyPact CVS 400/630 devices. It is suitable for isolation and it is used for standard applications. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. The degrees of protection are IP40 and IK07. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.

Products specifications

Attribute name	Attribute value
Main
Range of product	ComPacT NSX400...630 new generation
Rotary handle mounting style	direct
Accessory / separate part type	control accessories
Product or component type	rotary handle
Handle colour	black
Handle front plate colour	black
Complementary
Rotary handle mounting location	front
Rotary handle padlocking	padlock in OFF position, 1 to 3 padlocks
Range compatibility	PowerPact PowerPact Multistandard, EasyPact EasyPact CVS630, EasyPact EasyPact CVS400, ComPacT new generation ComPacT NSX630 new generation, ComPacT new generation ComPacT NSX400 new generation
Environment
IP degree of protection	IP40
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	10.0 cm
Package 1 Width	15.5 cm
Package 1 Length	15.0 cm
Package 1 Weight	488.0 g
Unit Type of Package 2	2
Number of Units in Package 2	16
Package 2 Height	30 cm
Package 2 Width	40 cm
Package 2 Length	60 cm
Package 2 Weight	8.828 kg
