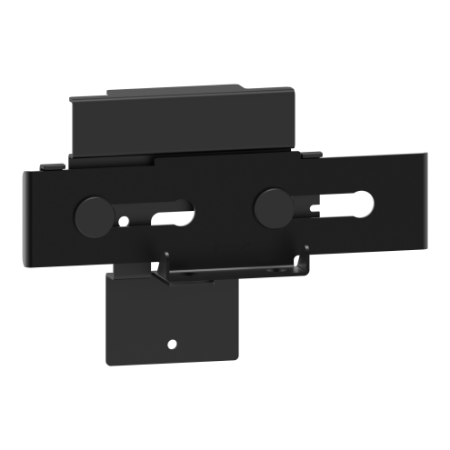

Picture of Mechanical interlocking system, ComPacT NSX400/630, devices with toggles
SKU:

LV432614T

Mechanical interlocking system, ComPacT NSX400/630, devices with toggles

$677.38
Available for Shipping : 10-Dec-2024
Mechanical interlocking system, ComPacT NSX400/630, devices with toggles
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
CAD
User guide
Catalogue
Product Page Link
Product Data Sheet

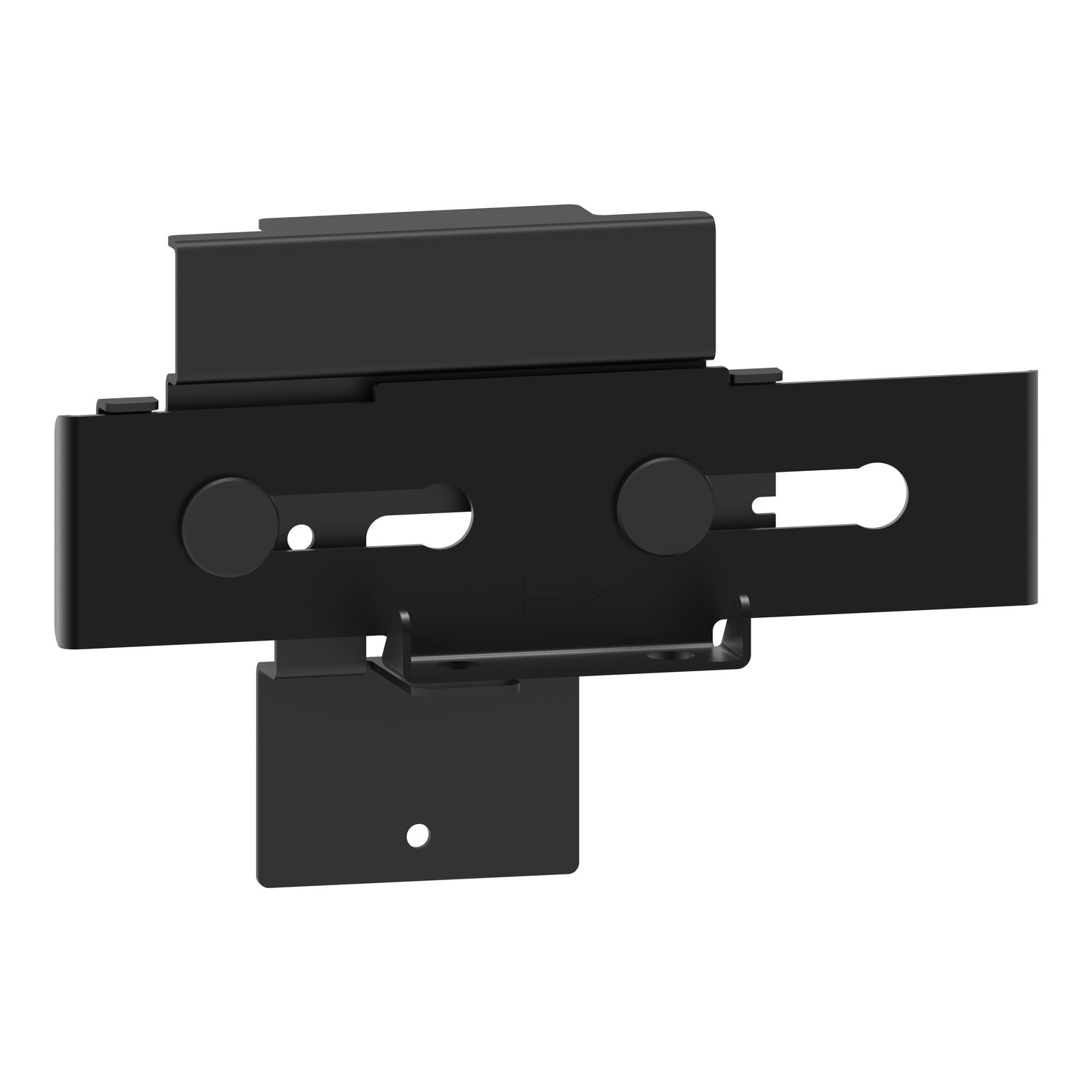

It is a mechanical interlocking system for two ComPacT NSX 400/630 devices with toggles. The authorized positions are one device OFF (closed) and the other ON (opened), or the two devices OFF (closed). The system is locked using one or two padlocks (shackle diameter from 5mm to 8mm). Two identical interlocking systems can be used to interlock three devices installed side by side.

Products specifications

Attribute name Attribute value
Main
Mounting mode fixed
Range ComPacT new generation
Product or component type mechanical interlock
Accessory / separate part category interlocking accessory
Range compatibility ComPact ComPacT NSX DC new generation, ComPacT new generation ComPacT NSX new generation
Range of product ComPacT NSX400...630 new generation, ComPacT NSX400...630 DC new generation
Complementary
Product compatibility Compact NSX400...630
Control type toggle
Source-changeover interlock mechanical interlocking
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4 cm
Package 1 Width 12 cm
Package 1 Length 20 cm
Package 1 Weight 378 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 8.026 kg
