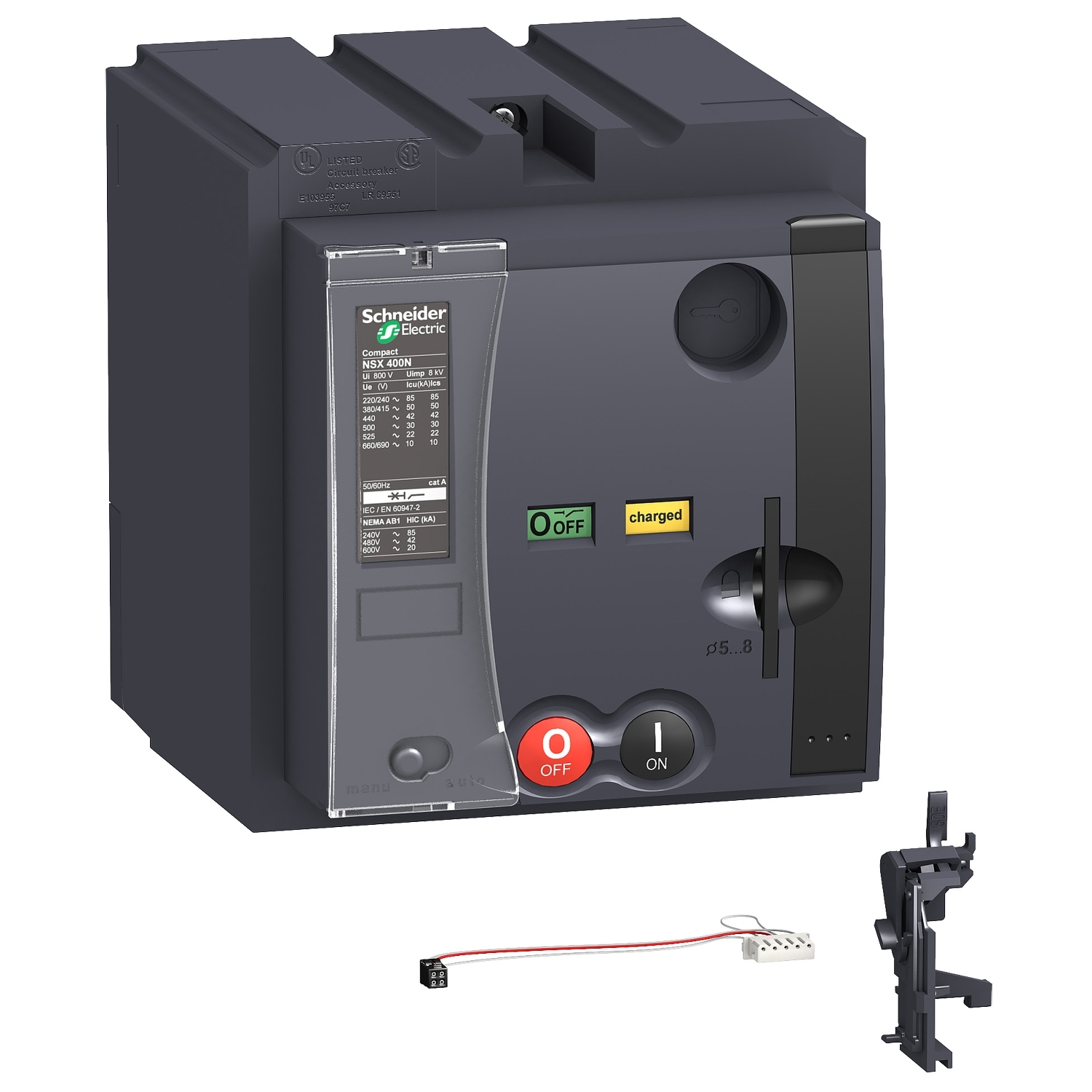

Picture of Communicating motor mechanism module MTc 400/630, ComPacT NSX400/630, 220/240VAC 50/60Hz
SKU:

LV432652

Communicating motor mechanism module MTc 400/630, ComPacT NSX400/630, 220/240VAC 50/60Hz

Old price: $3,858.80 INC GST
$3,156.50 INC GST
Available for Shipping : 08-Dec-2025
Communicating motor mechanism module MTc 400/630, ComPacT NSX400/630, 220/240VAC 50/60Hz
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog
Circularity Profile
User guide
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This is a communicating motor mechanism for Compact NSX 400/630 and PowerPact Multistandard L frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. This communicating motor mechanism can receive external opening and closing orders. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this communicating motor mechanism module is 220VAC to 240VAC 50/60Hz. The consumption is less than 500VA. Padlocking of the device remains possible.

Products specifications

Attribute name Attribute value
Main
Device short name MT400/630
Device application automatic spring charging
[In] rated current 400 A, 630 A
Mounting mode fixed
Control type communicating
Range ComPacT
Product or component type motor mechanism
Range compatibility ComPact ComPacT NSX DC new generation NSX630 DC, ComPact ComPacT NSX DC new generation NSX400 DC, ComPacT new generation ComPacT NSX630 new generation, ComPacT new generation ComPacT NSX400 new generation
Range of product ComPact NSX400...630 DC, ComPact NSX400...630, ComPacT NSX400...630 DC new generation, ComPacT NSX400...630 new generation
[Uc] control circuit voltage 220...240 V AC 50/60 Hz
Complementary
Maximum power consumption in VA 500 VA opening, 500 VA closing
Maximum operating frequency 4 per minute
Control signal type impulse, maintained
Response time < 80 ms closed, < 700 ms open
Locking options description padlocking in OFF position, 1 to 3 padlocks Ø 5 to Ø 8
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17.000 cm
Package 1 Width 17.000 cm
Package 1 Length 20.000 cm
Package 1 Weight 3.092 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 19.249 kg
