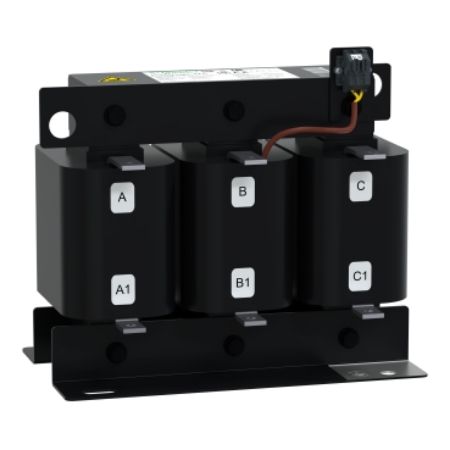

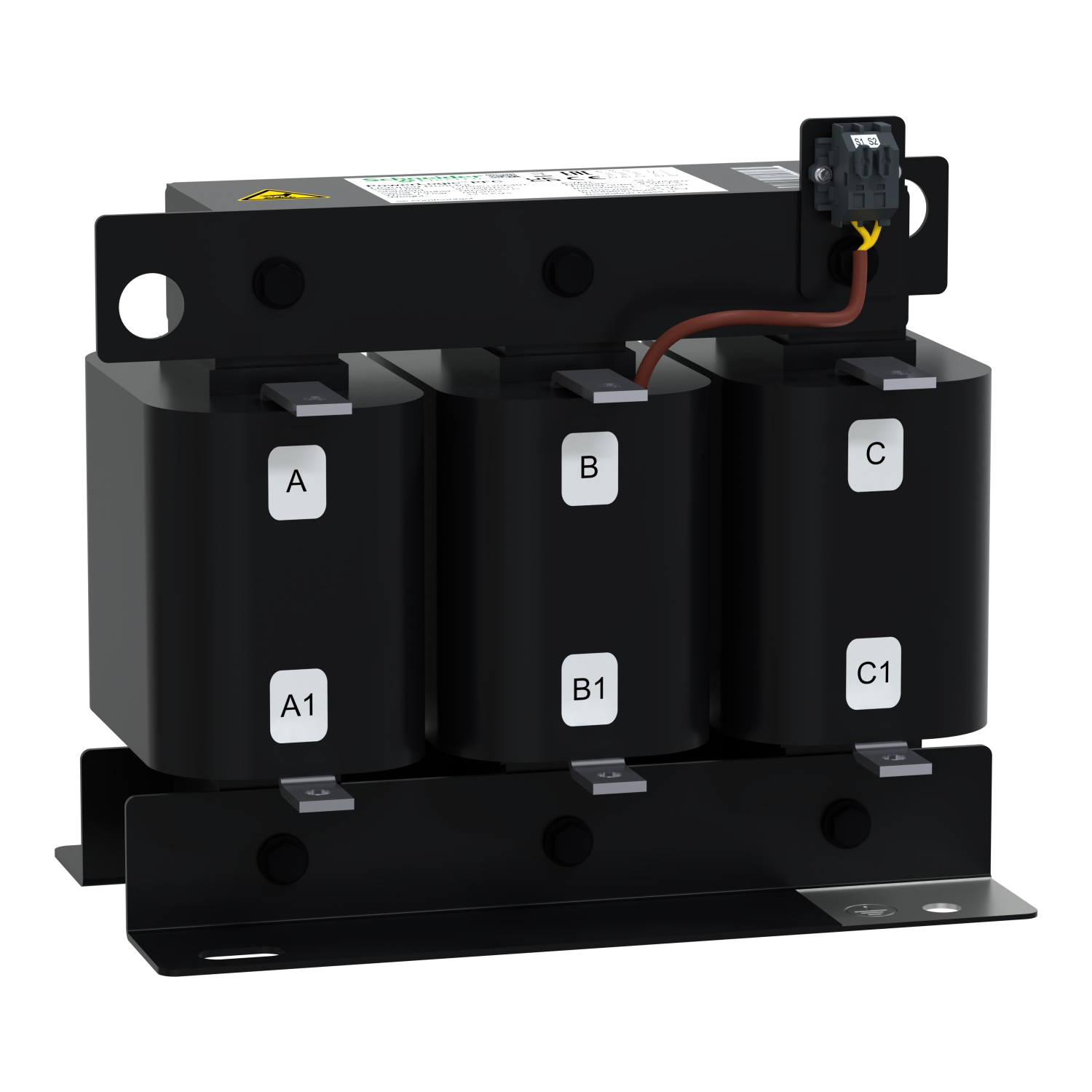

Picture of Anti Harmonic PowerLogic PFC detuned reactor, 12.5kvar 210Hz (4.2) 5.7% 50Hz 400V
SKU:

LVR05125A40T

Anti Harmonic PowerLogic PFC detuned reactor, 12.5kvar 210Hz (4.2) 5.7% 50Hz 400V

$2,832.56
Product Selector
Anti Harmonic PowerLogic PFC detuned reactor, 12.5kvar 210Hz (4.2) 5.7% 50Hz 400V
  • Low voltage PFC Detuned Reactor for stringent operating condition
  • Detuned reactor for harmonic attenuation
  • Best in class performance, safety and reliability
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Catalogue
User guide
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
The VarPlus detuned reactor are designed to protect the capacitor by preventing the amplification of the harmonics present in the system. Capacitors and Reactors are configured in Series resonant circuit. Tuned so that the series resonant frequency is below the lowest harmonic frequency present in the system. This reactor is rated for 12.5 kVar output power with 4.2/210 Hz tuning order at 400V AC at 50 Hz. Relative impedance, 5.7 %. This component meet the standards IEC 60068. This component require a forced convection, a fan need to be added. The case dimensions are 220mm in height, 240mm in width and 160mm in depth. For a product weight of 12.5 kg.

Products specifications

Attribute nameAttribute value
Main
Device short nameDR
Tuning order4.2 - 210 Hz - 5.7 % - 50 Hz
Network rated voltage400 V AC 50 Hz
RangePowerLogic
Product or component typedetuned reactor
Reactive power rating12.5 kvar for 400 V AC 50 Hz
Network frequency50 Hz
Complementary
[Imp] maximum permanent current1.3 x I1
Depth160 mm
Width240 mm
Inductance tolerance- 5 % to 5 % per phase
Type of coolingforced convection
Fundamental current rating18 A
Harmonic current spectrum6.2 % x I11, 18.6 % x I7, 67.8 % x I5, 2.9 % x I3
[Ui] rated insulation voltage1.1 kV
Dynamic withstand current2.2 x Isc
Electrical insulation classclass H
Value of inductance2.445 mH
Maximum current Irms22 A
Power losses150 W
Connections - terminalspad terminal
Type of installationindoor installation
Net weight12.5 kg
Fixing center200 x 125 mm
[Ith] conventional free air thermal current2 A at 250 V AC 50 Hz
Dielectric test voltage4 kV 50 Hz 1 minute
Height220 mm
Environment
Operating altitude<= 2000 m
IP degree of protectionIP00
Average ambient air temperature for operation35 °C at > 1000...2000 m (average over 1 year) , 45 °C at > 1000...2000 m (average over 24 hours) , 40 °C at <= 1000 m (average over 1 year) , 50 °C at <= 1000 m (average over 24 hours)
Ambient air temperature for operation0-50 °C at > 1000...2000 m, 0-55 °C at <= 1000 m
Climatic withstandsalt mist (400 V/50 Hz) : 250 hours, relative humidity: 20...80 %
StandardsIEC 60068
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height24.000 cm
Package 1 Width30.000 cm
Package 1 Length31.000 cm
Package 1 Weight13.500 kg
Unit Type of Package 22
Number of Units in Package 26
Package 2 Height50.000 cm
Package 2 Width80.000 cm
Package 2 Length60.000 cm
Package 2 Weight89.500 kg
