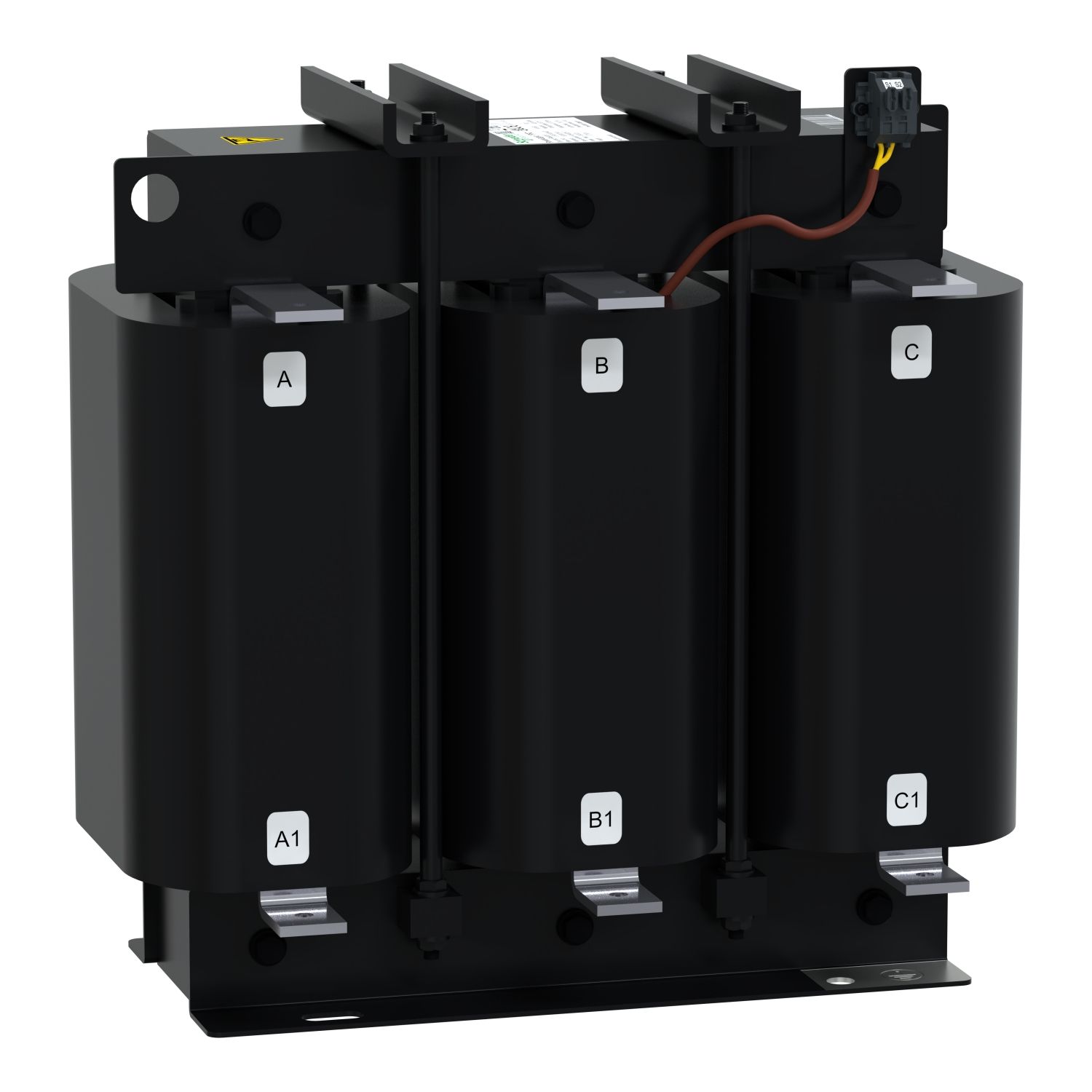

Picture of Anti Harmonic PowerLogic PFC detuned reactor, 100kvar 190Hz (3.8) 7% 50Hz 400V
SKU:

LVR07X00A40T

Anti Harmonic PowerLogic PFC detuned reactor, 100kvar 190Hz (3.8) 7% 50Hz 400V

$6,369.30
Available for Shipping : 10-Dec-2024
Product Selector
Anti Harmonic PowerLogic PFC detuned reactor, 100kvar 190Hz (3.8) 7% 50Hz 400V
  • Low voltage PFC Detuned Reactor for stringent operating condition
  • Detuned reactor for harmonic attenuation
  • Best in class performance, safety and reliability
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
User guide
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
The VarPlus detuned reactor are designed to protect the capacitor by preventing the amplification of the harmonics present in the system. Capacitors and Reactors are configured in Series resonant circuit. Tuned so that the series resonant frequency is below the lowest harmonic frequency present in the system. This reactor is rated for 100 kVar output power with 3.8/190 Hz tuning order at 400V AC at 50 Hz. Relative impedance, 7 %. This component meet the standards IEC 60068. This component require a forced convection, a fan need to be added. The case dimensions are 350mm in height, 350mm in width and 220mm in depth. For a product weight of 37 kg.

Products specifications

Attribute name Attribute value
Main
Device short name DR
Tuning order 3.8 - 190 Hz - 7 % - 50 Hz
Network rated voltage 400 V AC 50 Hz
Range PowerLogic
Product or component type detuned reactor
Reactive power rating 100 kvar for 400 V AC 50 Hz
Network frequency 50 Hz
Complementary
[Imp] maximum permanent current 1.2 x I1
Depth 220 mm
Width 350 mm
Inductance tolerance - 5 % to 5 % per phase
Type of cooling forced convection
Fundamental current rating 144.3 A
Harmonic current spectrum 4.9 % x I11, 13.6 % x I7, 38.2 % x I5, 3.7 % x I3
[Ui] rated insulation voltage 1.1 kV
Dynamic withstand current 2.2 x Isc
Electrical insulation class class H
Value of inductance 0.375 mH
Maximum current Irms 155.9 A
Power losses 480 W
Connections - terminals pad terminal
Type of installation indoor installation
Net weight 37 kg
Fixing center 200 x 125 mm
[Ith] conventional free air thermal current 2 A at 250 V AC 50 Hz
Dielectric test voltage 4 kV 50 Hz 1 minute
Height 350 mm
Environment
Operating altitude <= 2000 m
IP degree of protection IP00
Average ambient air temperature for operation 35 °C at > 1000...2000 m (average over 1 year) , 45 °C at > 1000...2000 m (average over 24 hours) , 40 °C at <= 1000 m (average over 1 year) , 50 °C at <= 1000 m (average over 24 hours)
Ambient air temperature for operation 0-50 °C at > 1000...2000 m, 0-55 °C at <= 1000 m
Climatic withstand salt mist (400 V/50 Hz) : 250 hours, relative humidity: 20...80 %
Standards IEC 60068
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 56.0 cm
Package 1 Width 40.0 cm
Package 1 Length 60.0 cm
Package 1 Weight 44.0 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 50.0 cm
Package 2 Width 80.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 96.5 kg
