SKU:

LXD3LE7

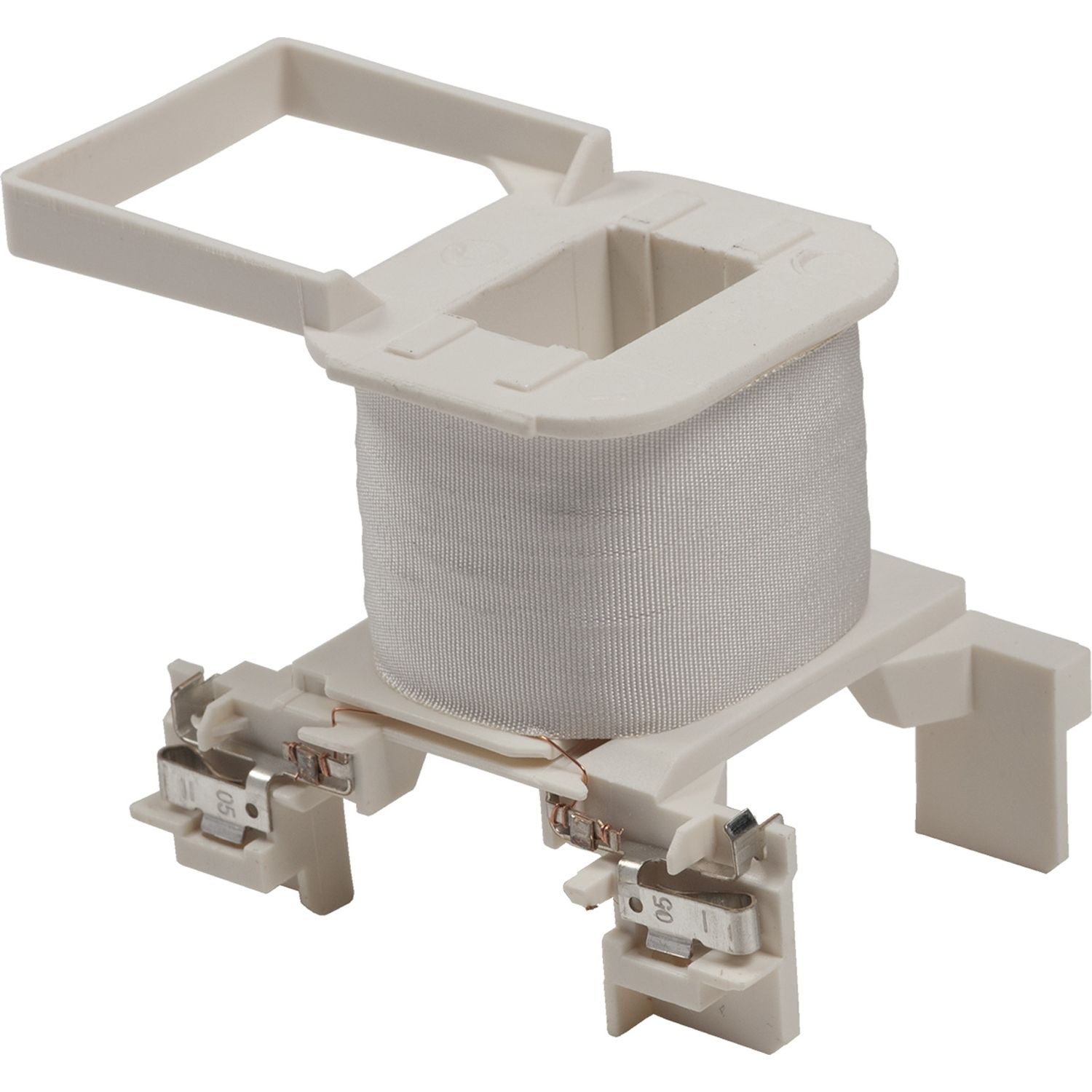

Contactor coil, TeSys Deca, 208V AC 60Hz for D40A-D80A DT60A-DT80A contactor

Old price: $124.30 INC GST

Price: $78.31 INC GST

Qty:

Available for Shipping : 28-Apr-2026

Contactor coil, TeSys Deca, 208V AC 60Hz for D40A-D80A DT60A-DT80A contactor

Manufacturer: Schneider Electric

Delivery date: 28-Apr-2026

Catalog

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device short name	LXD3
Product compatibility	LC1DT60A...DT80A, LC2D40A...D80A, LC1D40A...D80A
Mechanical durability	6 Mcycles
Maximum operating rate	3600 cyc/h 60 °C
Inductance of closed circuit	6.22 H
Range	TeSys
Product or component type	contactor coil
Control circuit type	AC at 60 Hz
Range of product	TeSys Deca
[Uc] control circuit voltage	208 V AC 60 Hz
Average resistance	105 Ohm at 20 °C
Complementary
Heat dissipation	4-5 W at 60 Hz
Hold-in power consumption in VA	15-15 VA 60 Hz cos phi 0.3 (at 20 °C)
Coil technology	without built-in suppressor module
Inrush power in VA	160-160 VA 60 Hz cos phi 0.75 (at 20 °C)
Control circuit voltage limits	operational: 0.85...1.1 Uc at 60 Hz (at <60 °C), drop-out: 0.3...0.6 Uc at 60 Hz (at <60 °C)
Environment
Net weight	0.07 kg
Ambient air temperature for operation	-5-60 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	5.600 cm
Package 1 Width	5.600 cm
Package 1 Length	9.600 cm
Package 1 Weight	124.000 g
Unit Type of Package 2	2
Number of Units in Package 2	12
Package 2 Height	15.000 cm
Package 2 Width	15.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	1.688 kg
Unit Type of Package 3	3
Number of Units in Package 3	384
Package 3 Height	75.000 cm
Package 3 Width	60.000 cm
Package 3 Length	80.000 cm
Package 3 Weight	62.016 kg
