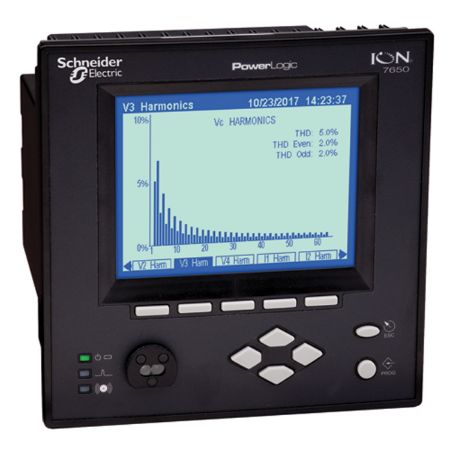

Picture of ION7650, wDispl, 5MB 512s, 5A 60VDC 50Hz - RS+T2+E - 8I+3R+4O
SKU:

M7650A0C0C5E0A0E

ION7650, wDispl, 5MB 512s, 5A 60VDC 50Hz - RS+T2+E - 8I+3R+4O

Please Contact Sales to buy this Product. click here
ION7650, wDispl, 5MB 512s, 5A 60VDC 50Hz - RS+T2+E - 8I+3R+4O
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 31-Oct-2024
User guide
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute nameAttribute value
Main
Device short nameION7650
RangePowerLogic
Product namePowerLogic ION7650
Product or component typeenergy and power quality meter
Range of productPowerLogic
Complementary
Maximum power consumption in VA20 VA at 20...60 V DC, 45 VA at 110...300 V DC, 45 VA at 85...240 V AC
Accuracy classclass 0.2S energy conforming to IEC 62053-22
Device applicationtariff metering, equipment monitoring and control, load curtailment, co-generation and IPP monitoring, energy pulsing and totalisation, demand and power factor control, instrument transformer correction
Transmission rate10/100 Mbit/s, 300...57600 bauds, <= 19200 bauds, 300...115200 bauds
Display typebacklit LCD
Web servicesweb server
Analogue input typecurrent 0.005...20 A (impedance 0.002 Ohm)
[In] rated current5 A
[Us] rated supply voltage85...240 V AC 47...63 Hz, 20...60 V DC, 110...300 V DC
Data recordingevent logs, time stamping, GPS synchronisation, sequence of event recording, min/max of instantaneous values, trending/forecasting, data logs
Compatibility codeION7650
Poles description3P, 3P + N, 1P + N
Measurement accuracyenergy 0.2 %, voltage 0.1 % 57...288 V, current 0.1 % 1...5 A
Measurement current0-5 A
Tamperproof of settingsprotected by access code
Number of inputs8 digital 120 V DC
Power consumption in VA15 VA at 20...60 V DC, 20 VA at 110...300 V DC, 20 VA at 85...240 V AC
Market segmentindustry network management: main incomer, healthcare network management: main incomer, data center network management: main incomer, buildings multi-site network management: main incomer, buildings large building network management: main incomer, utility: grid
Display resolution320 x 240 pixels QVGA
Frequency measurement range42-69 Hz
Communication port protocolTCP/IP, Modbus, DNP3, IEC 61850, Telnet, ION
Type of measurementreactive power per phase, reactive power total, active power per phase, active power total, power factor per phase, apparent power per phase, power factor total, apparent power total, frequency, voltage, current
Number of outputs4 solid state, 3 relay
Memory capacity5 MB
Sampling rate512 samples/cycle
Measurement voltage57-347 V AC phase to neutral, 100-600 V AC phase to phase
Power quality analysisconforming to EN 50160 compliance report,  conforming to IEC 61000-4-30: class A power quality measurement,  up to the 63rd harmonic,  setpoint learning,  programmablity (logic and math functions),  disturbance direction detection,  dip and swell, transient,  compliance monitoring,  waveform capture, voltage sag and swell detection, harmonic distortion
Communication port supportST: fiber optic, SUB-D 9: RS232, RJ11: modem, RS485, RJ45: ETHERNET
Network frequency50 Hz
Environment
Operating altitude0...2000 m
Depth174 mm
Overvoltage categoryIII
Width192 mm
IP degree of protectionIP50 front face: conforming to IEC 60529, IP30 back: conforming to IEC 60529
Mounting supportenclosure door
Relative humidity5-95 %
Ambient air temperature for storage-40-85 °C
Pollution degree2
Mounting modeflush-mounted
Type of installationindoor installation
Net weight1.9 kg
Electromagnetic compatibilityconducted and radiated emissions B conforming to CISPR 22, 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5, susceptibility to electromagnetic fields conforming to IEC 61000-4-3, electrostatic discharge conforming to IEC 61000-4-2, electrical fast transient/burst immunity test conforming to IEC 61000-4-4
StandardsIEC 61010-1
Height192 mm
Ambient air temperature for operation-20-70 °C
