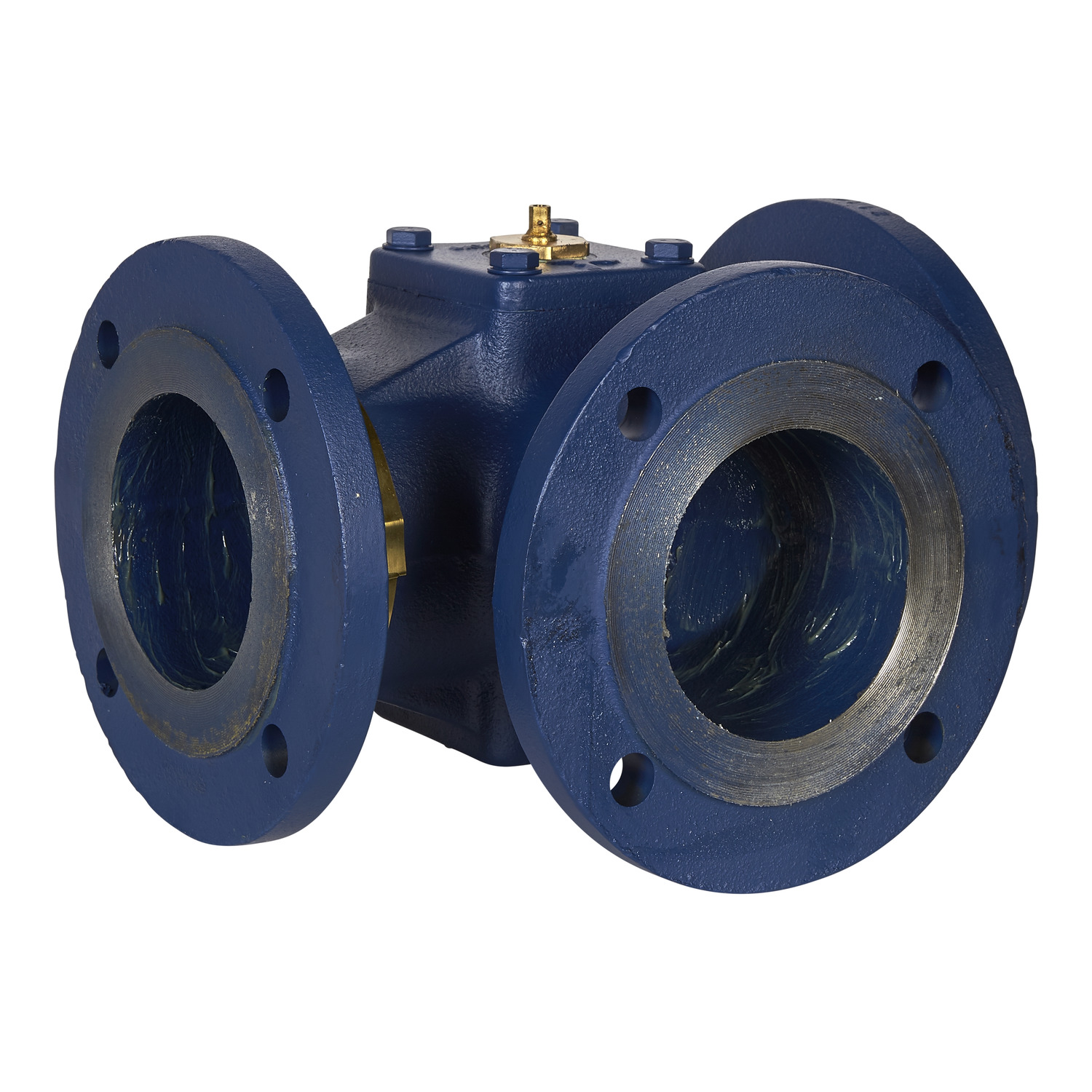

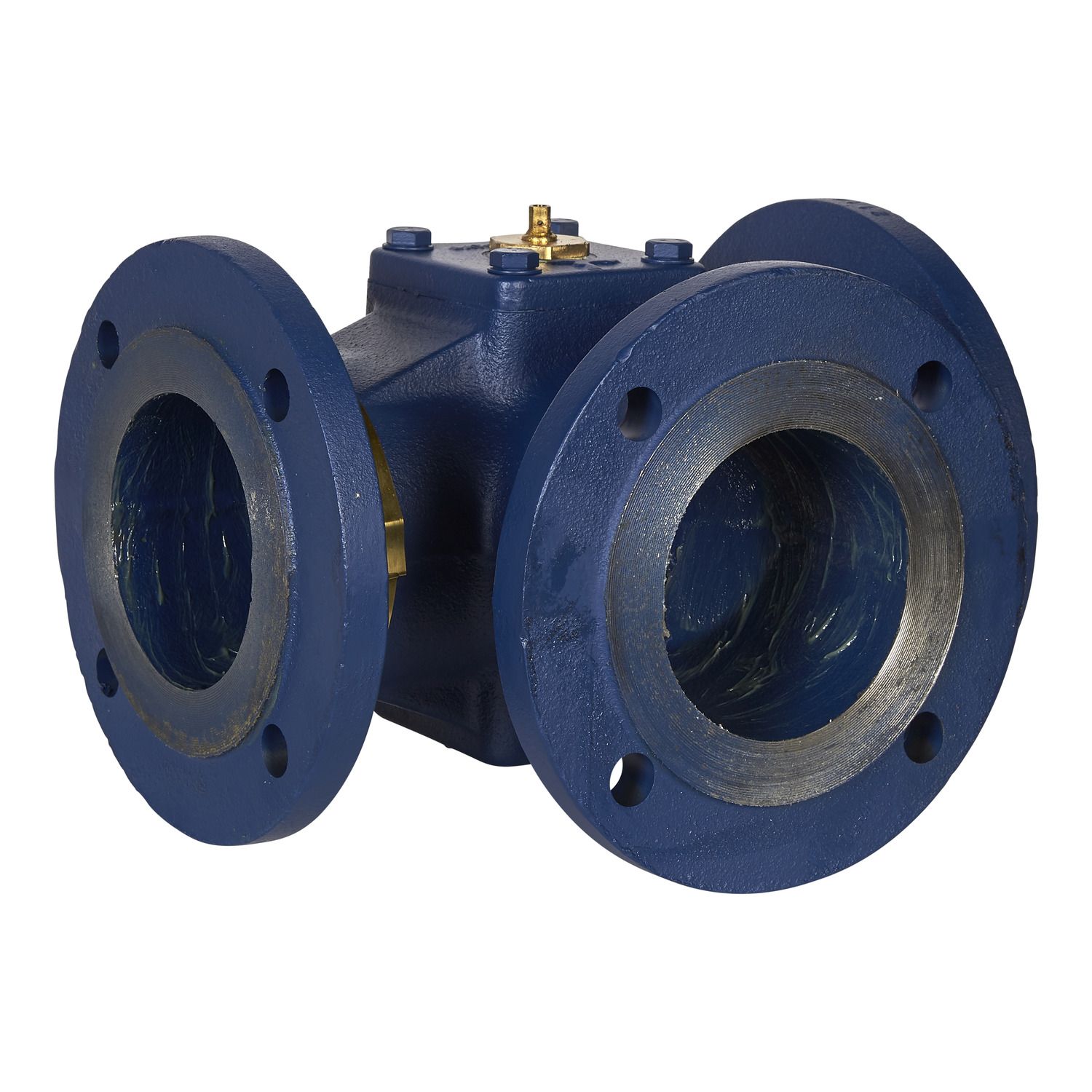

Picture of MBF 3-Way flanged Shoe valve, 2-1/2" (DN65) Kvs 65
SKU:

MBF4732

MBF 3-Way flanged Shoe valve, 2-1/2" (DN65) Kvs 65

$1,834.25 INC GST
Available for Shipping : 30-Apr-2026
MBF 3-Way flanged Shoe valve, 2-1/2" (DN65) Kvs 65
  • 3 Way Shoe Valve for Re-circulating Systems
  • Compact low duty applications
  • Suitable for mixing and diverting applications
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 30-Apr-2026
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
MBF is a 3 way Flanged Shoe Valve ideal for both diverting and mixing applications. The crown plug provides precise fluid control with a rangeability of 50:1. Valve size: DN65, modified linear, kvs: 65 m³/h. Constructed and flanged to a PN6 pressure class. The valve provide a working temperature range of 2 °C to 120 °C. 90 ° operating angle.

Products specifications

Attribute name Attribute value
Main
Operating fluid temperature 2-120 °C
Body material close grained cast iron BS1452 Grade 260 or 220
Seat leakage Port A: Class II (0.5 %)
Valve Rotation 90 °
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Medium compatibility Water, Glycol 25 %
Control valve rangeability 50:1
Valve product series MBF
Flow coefficient 65 kvs, 75.15 cv
Valve configuration 3-Way
Stem movement rotary
Valve type shoe
Valve connection type flanged
Flow characteristic equal percentage
Trim material brass
Pipe size 65 mm
Pressure class PN6
Body size 65 mm (2-1/2 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 29.4 cm
Package 1 Width 21 cm
Package 1 Length 17.6 cm
Package 1 Weight 13.74 kg
