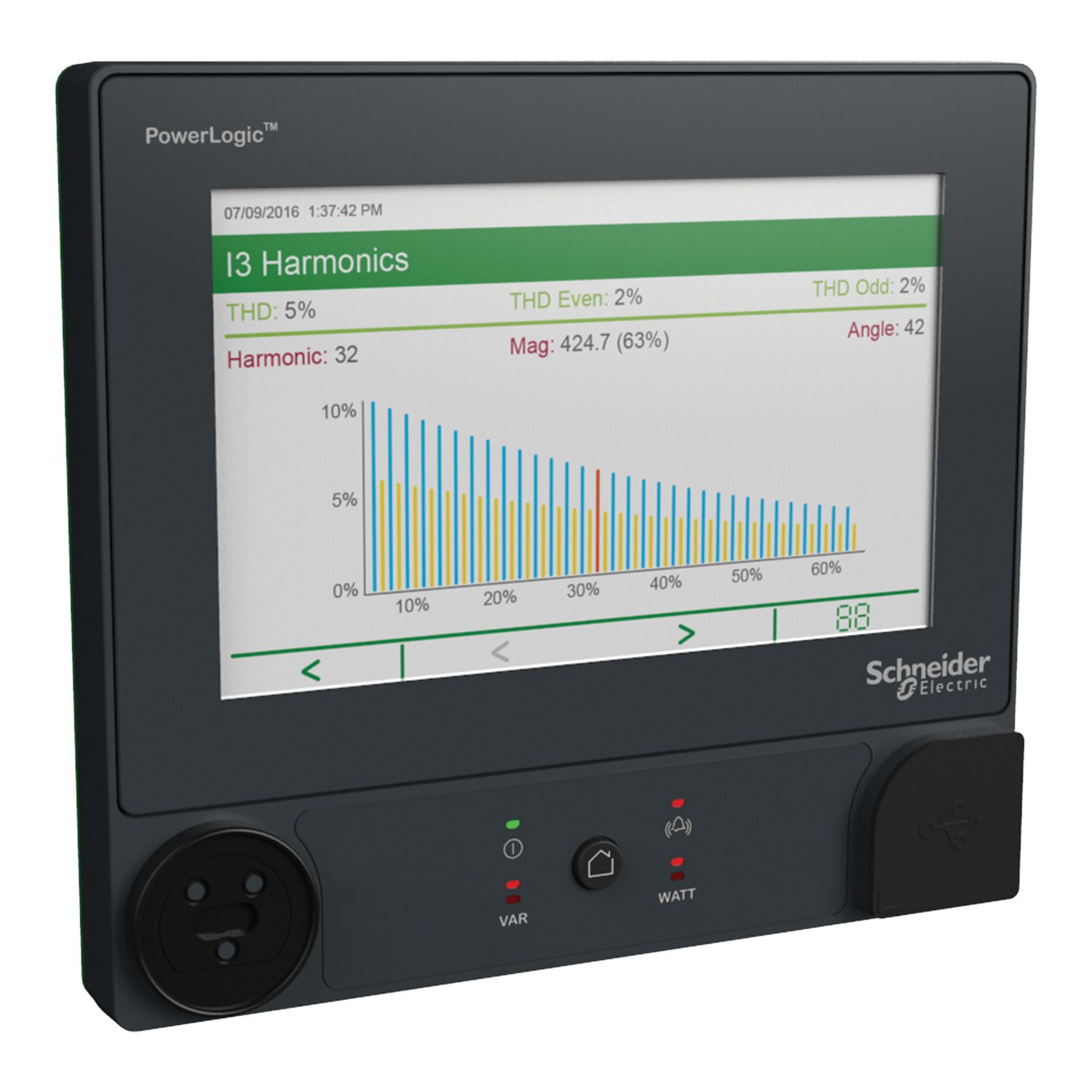

Picture of PowerLogic Remote display, color touchscreen, 192 x 192 mm for ION9200
SKU:

METSERD192

PowerLogic Remote display, color touchscreen, 192 x 192 mm for ION9200

$1,730.40
Available for Shipping : 02-Jan-2025
Product Selector
PowerLogic Remote display, color touchscreen, 192 x 192 mm for ION9200
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Product environmental
Catalogue
Instruction sheet
User guide
Product Page Link
Product Data Sheet
Display (RD192) compatible with PowerLogic ION9000 series. 192mm by 192mm color graphical LCD with touchscreen interface. Information avaiable from the display: power, energy consumption, harmonics, frequency, voltage, current, alarms and input output status. Viewable area: LCD touchscreen, 7 inches, 800 pixels by 480 pixels. Panel mounting using a 30 mm push-button hole or 1/4 DIN cutout. Ingress Protection IP65 (UL type 12) rating.

Products specifications

Attribute name Attribute value
Main
Device application human-machine dialogue application
Display type LCD touch screen
Range PowerLogic
Product or component type remote display
Range compatibility PowerLogic PowerLogic ION9000
Complementary
Projecting depth 27.5 mm
Width 197 mm
Display colour color
Display size 7 inch
Mounting support framework remote display
Local signalling alarm: LED (red), status: LED (green)
Mounting mode flush-mounted
Control type touch screen, 1 x push-button
Connector type RJ45
Messages display capacity graphic objects (bargraph, button, light...)
Provided equipment mounting hardware
Net weight 300 g
Display resolution 800 x 480 pixels
Height 175 mm
Information displayed I/O status, system alarm, current, frequency, harmonic distortion, power, voltage, energy consumption
Environment
Operating altitude 0...3000 m
IP degree of protection IP65 conforming to IEC 60529
Relative humidity 5-95 %
Ambient air temperature for storage -40-85 °C
Ambient air temperature for operation -25-60 °C
IK degree of protection IK08
Product certifications IEEE, IEC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.0 cm
Package 1 Width 24.0 cm
Package 1 Length 26.0 cm
Package 1 Weight 1.6 kg
