SKU:

NSYAEDH120S3D

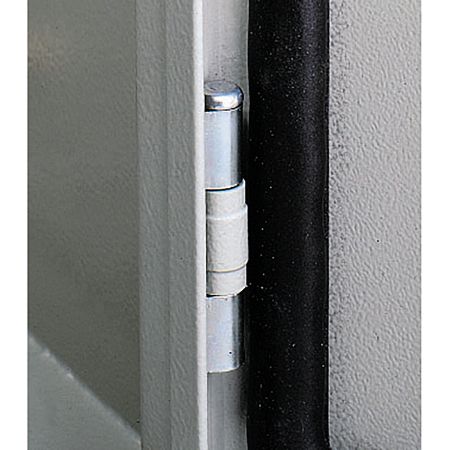

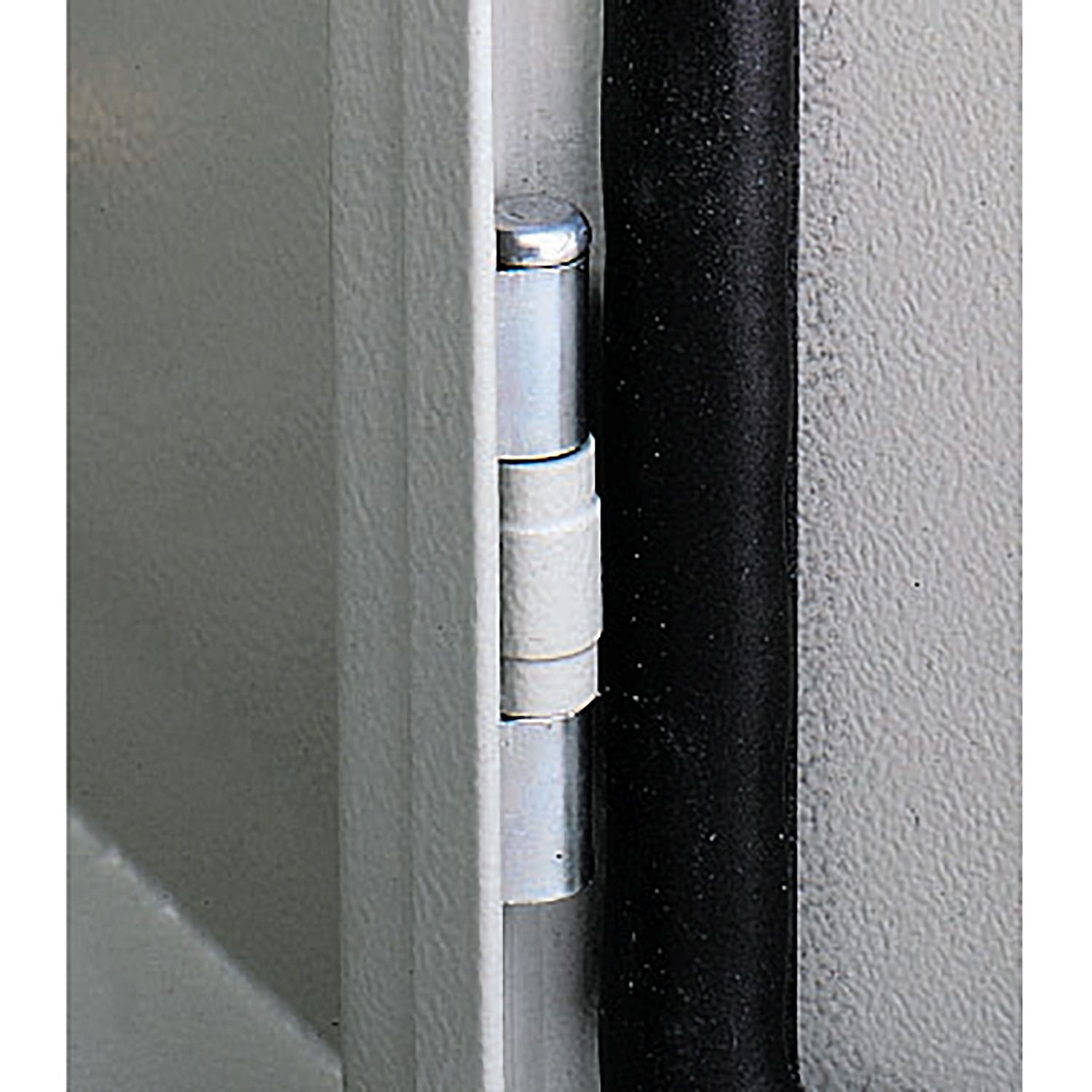

Door hinges for PanelSeT S3D encl. Set of 1 hinge, supplied with fixings.

$7.45
Available for Shipping : 05-Jan-2025
Door hinges for PanelSeT S3D encl. Set of 1 hinge, supplied with fixings.
Manufacturer: Schneider Electric

Products specifications

Attribute name Attribute value
Main
Device application multi-purpose
Quantity per set set of 1
Mounting location enclosure
Range Spacial
Device composition 1 x pin, 1 x hinge body, fixing elements
Product or component type hinge
Range compatibility Spacial S3D enclosure
Enclosure nominal dimensions -
Complementary
Maximum load 50 kg/m²
Material pin: aluminium, hinge body: treated sheet steel
Operating angle 120 °
Fixing mode by screws - on enclosure body location
Net weight 0.031 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1 cm
Package 1 Width 2 cm
Package 1 Length 8 cm
Package 1 Weight 32 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 20 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 1.3 kg
Unit Type of Package 3 3
Number of Units in Package 3 210
Package 3 Height 45 cm
Package 3 Width 60 cm
Package 3 Length 80 cm
Package 3 Weight 16.1 kg
