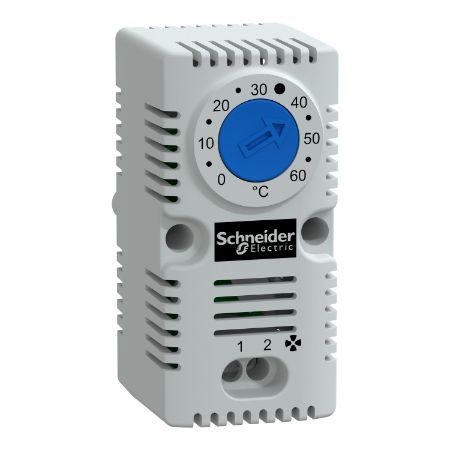

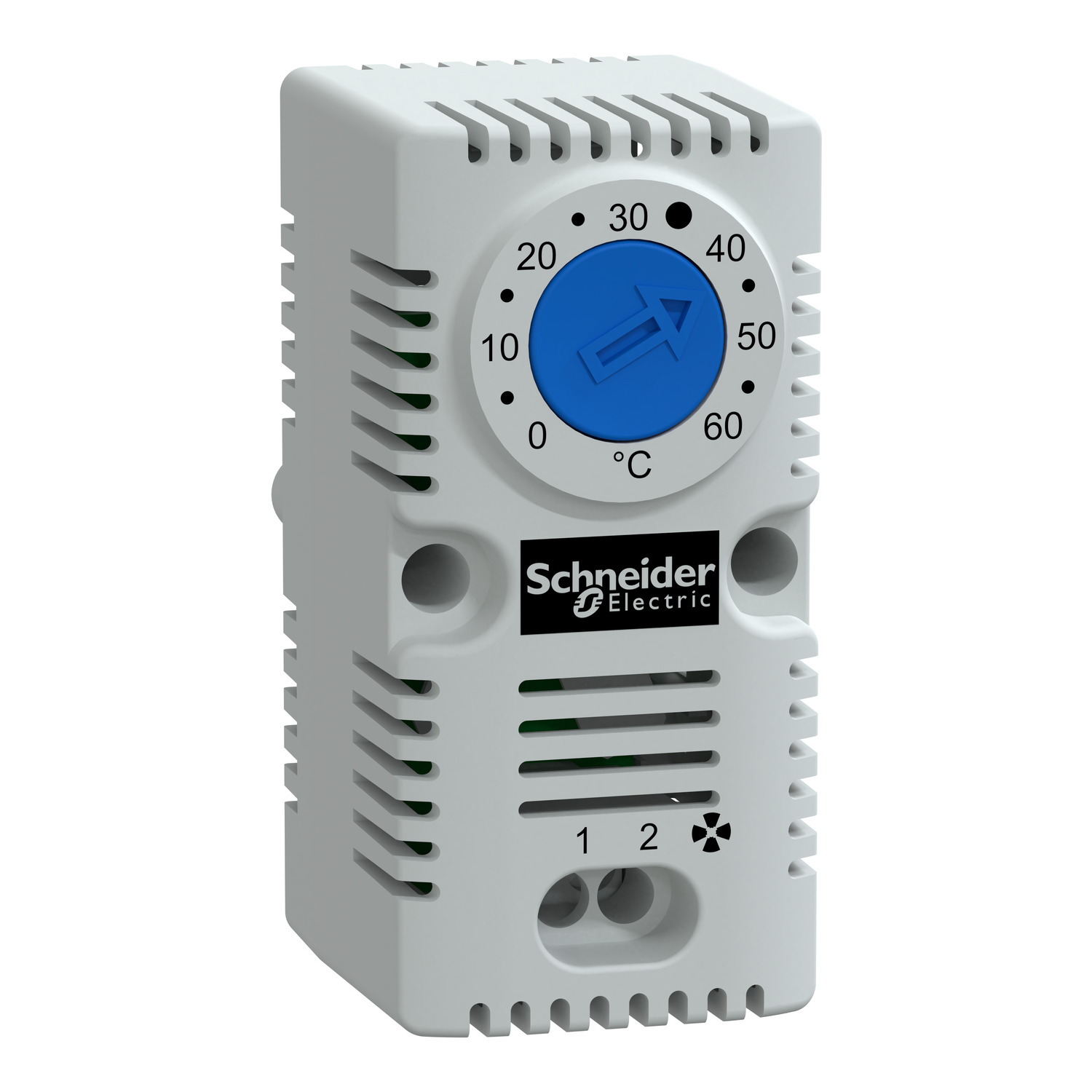

Picture of ClimaSys, ClimaSys CC - simple thermostat 250V - range of temperature 0…60°C - NO - °C
SKU:

NSYCCOTHO

ClimaSys, ClimaSys CC - simple thermostat 250V - range of temperature 0…60°C - NO - °C

$92.02
Available for Shipping : 24-Nov-2024
ClimaSys, ClimaSys CC - simple thermostat 250V - range of temperature 0…60°C - NO - °C
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
User guide
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
ClimaSys CC Simple thermostat. 250V AC. 68 x 33 x 44 mm. Sensor Bimetal with NO contact type. 1 ventilation function. Electrical connection by 4 terminals 2.5mm². Mounting mode by 35mm DIN rail, cross rails, on mounting plate Spacial upright. Made in PC. Light grey. Self-extinguishing UL94 (material V0). Protection IP20.

Products specifications

Attribute name Attribute value
Main
Temperature setting range 0-60 °C
Range ClimaSys
Product name ClimaSys CC
Product or component type simple thermostat
Information displayed temperature in °C
Complementary
Contact resistance 10 mOhm
IP degree of protection IP20
Sensor type bimetal
Height 68 mm external:
Width 33 mm external:
Colour light grey
Mounting mode clipped
Flame retardance self-extinguishing conforming to UL94 (material V0)
Contacts type and composition NO
Electrical connection 4 terminals, clamping capacity: 2.5 mm²
Input voltage 250 V
Mounting location Spacial upright, cross rails, on mounting plate, 35 mm DIN rail
Depth 44 mm external:
Net weight 40 g
Material PC
Service life in cycles 100000 cycles
Number of outputs 1 ventilation function
Ambient air temperature for operation -20-80 °C
Hysteresis 7 K +/- 0.4K
Maximum switching capacity 30 W DC, 15 A 120 V AC resistive, 10 A 250 V AC resistive, 2 A 120...250 V AC inductive pf: 0.6
Product certifications UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.5 cm
Package 1 Width 6.0 cm
Package 1 Length 8.0 cm
Package 1 Weight 64.0 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 24.0 cm
Package 2 Width 33.0 cm
Package 2 Length 41.0 cm
Package 2 Weight 7.588 kg
Unit Type of Package 3 3
Number of Units in Package 3 3600
Package 3 Height 166.0 cm
Package 3 Width 80.0 cm
Package 3 Length 120.0 cm
Package 3 Weight 280.0 kg
