SKU:

NSYMM64

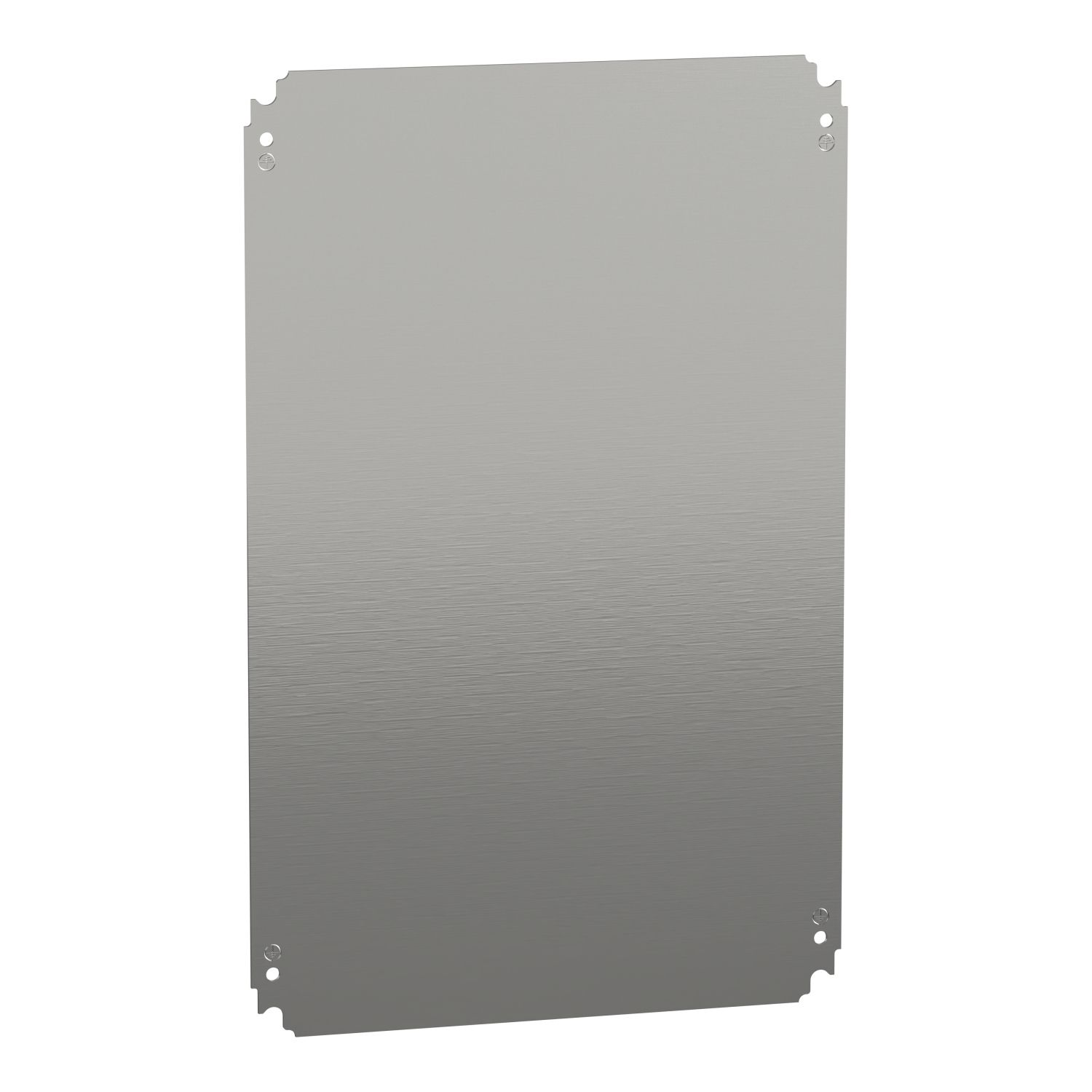

Plain mounting plate H600xW400mm made of galvanised sheet steel

$94.60
Available for Shipping : 24-Nov-2024
Plain mounting plate H600xW400mm made of galvanised sheet steel
Manufacturer: Schneider Electric
Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is600 x W is400 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 90 Kg permissible load. Galvanised steel. Set of 1. Reversible dimensions is Can be installed in enclosure with inverted dimensions.

Products specifications

Attribute name Attribute value
Main
Mounting plate description plain
Device application multi-purpose
Quantity per set set of 1
Material galvanised steel
Mounting location step slide, direct fixing on backstuds
Range Spacial
Product or component type mounting plate
Accessory / separate part category mounting accessory
Range compatibility Thalassa Thalassa PLM, Spacial Spacial S3X, Spacial Spacial CRN, Spacial Spacial S3D
Enclosure nominal dimensions - H: 600 mm W: 400 mm
Complementary
Height 550 mm
Width 350 mm
Permanent permissible load 90 kg
Fixing mode by fixing element, screwed on backstuds - screw type M8
Net weight 2.86 kg
Thickness 1.8 mm
Variant particularity installation in enclosures with inverted dimensions
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.4 cm
Package 1 Width 35.0 cm
Package 1 Length 55.0 cm
Package 1 Weight 2.86 kg
Unit Type of Package 2 2
Number of Units in Package 2 140
Package 2 Height 37.0 cm
Package 2 Width 80.0 cm
Package 2 Length 120.0 cm
Package 2 Weight 410.0 kg
