SKU:

NSYMR54

Monobloc perforated plates H500xW400mm with universal perforations 11x26mm

$153.02 INC GST
Available for Shipping : 11-Feb-2025

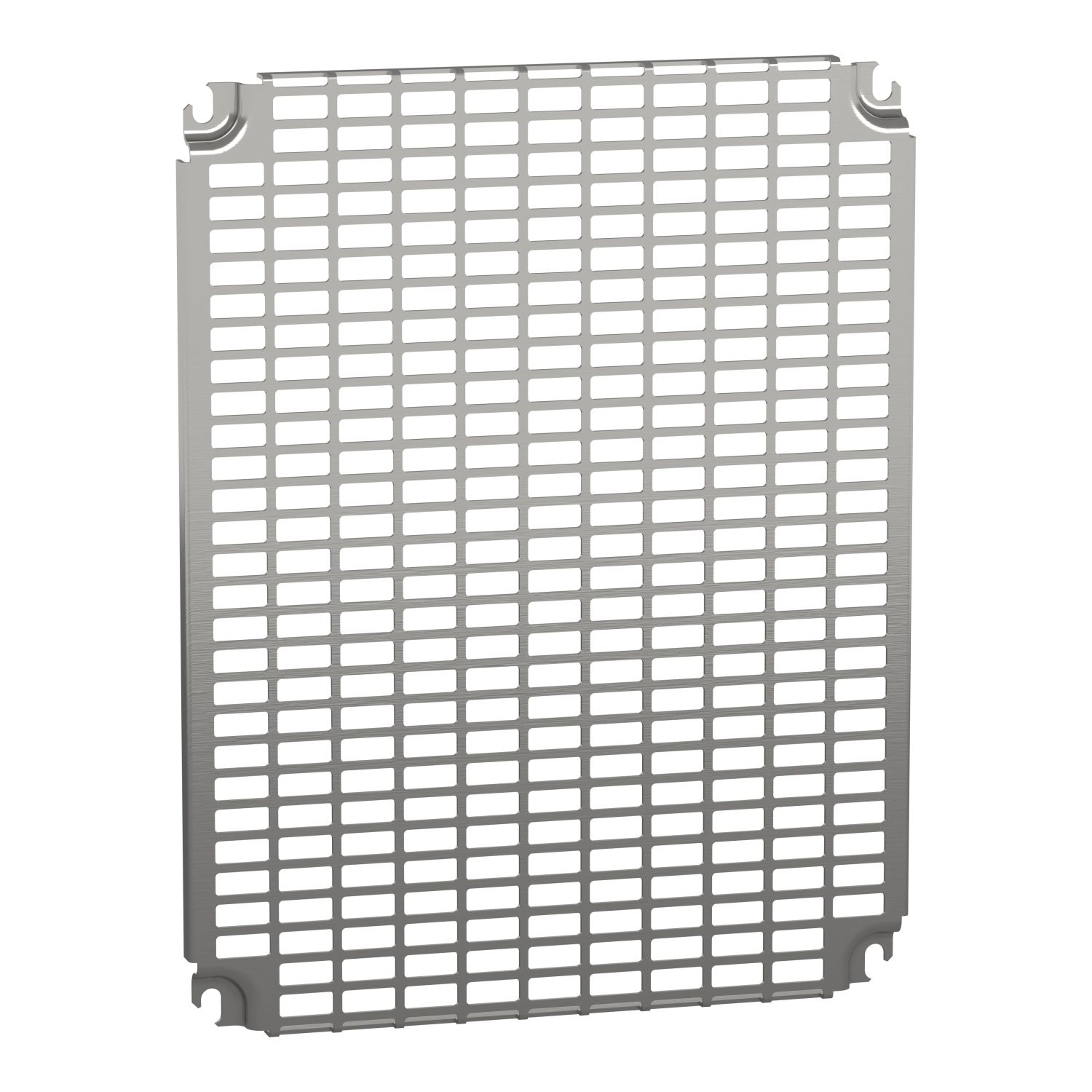

Monobloc perforated plates H500xW400mm with universal perforations 11x26mm
Manufacturer: Schneider Electric
Monobloc perforated plates with universal perforations for CRN, S3D, PLM. For enclosures H is500 x W is400 mm. Multi-purpose accessory. Step slide or direct fixing on back studs mounting (M8 screws). Telequick perforated. Cut-out dimensions is 11x26mm. Steel made, zinc coated surface finish. 341 slots. Variant particularity is Installation in rear of enclosure.

Products specifications

Attribute name Attribute value
Main
Mounting plate description Telequick perforated
Device application multi-purpose
Quantity per set set of 1
Material steel
Mounting location direct fixing on backstuds, step slide
Range Spacial
Product or component type mounting plate
Surface finish zinc coated
Accessory / separate part category mounting accessory
Range compatibility Thalassa Thalassa PLM, Spacial Spacial S3X, Spacial Spacial CRN, Spacial Spacial S3D
Enclosure nominal dimensions - H: 500 mm W: 400 mm
Complementary
Height 450 mm
Width 351 mm
Number of slots 341
Cut-out dimensions 11 x 26 mm
Depth 15 mm
Fixing mode by fixing element, screwed on backstuds - screw type M8
Net weight 1.3 kg
Thickness 2 mm
Variant particularity installation in rear of enclosure
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.5 cm
Package 1 Width 35.0 cm
Package 1 Length 45.0 cm
Package 1 Weight 1.263 kg
Unit Type of Package 2 2
Number of Units in Package 2 316
Package 2 Height 120 cm
Package 2 Width 100 cm
Package 2 Length 91 cm
Package 2 Weight 316 kg
