SKU:

NSYPLA1074G

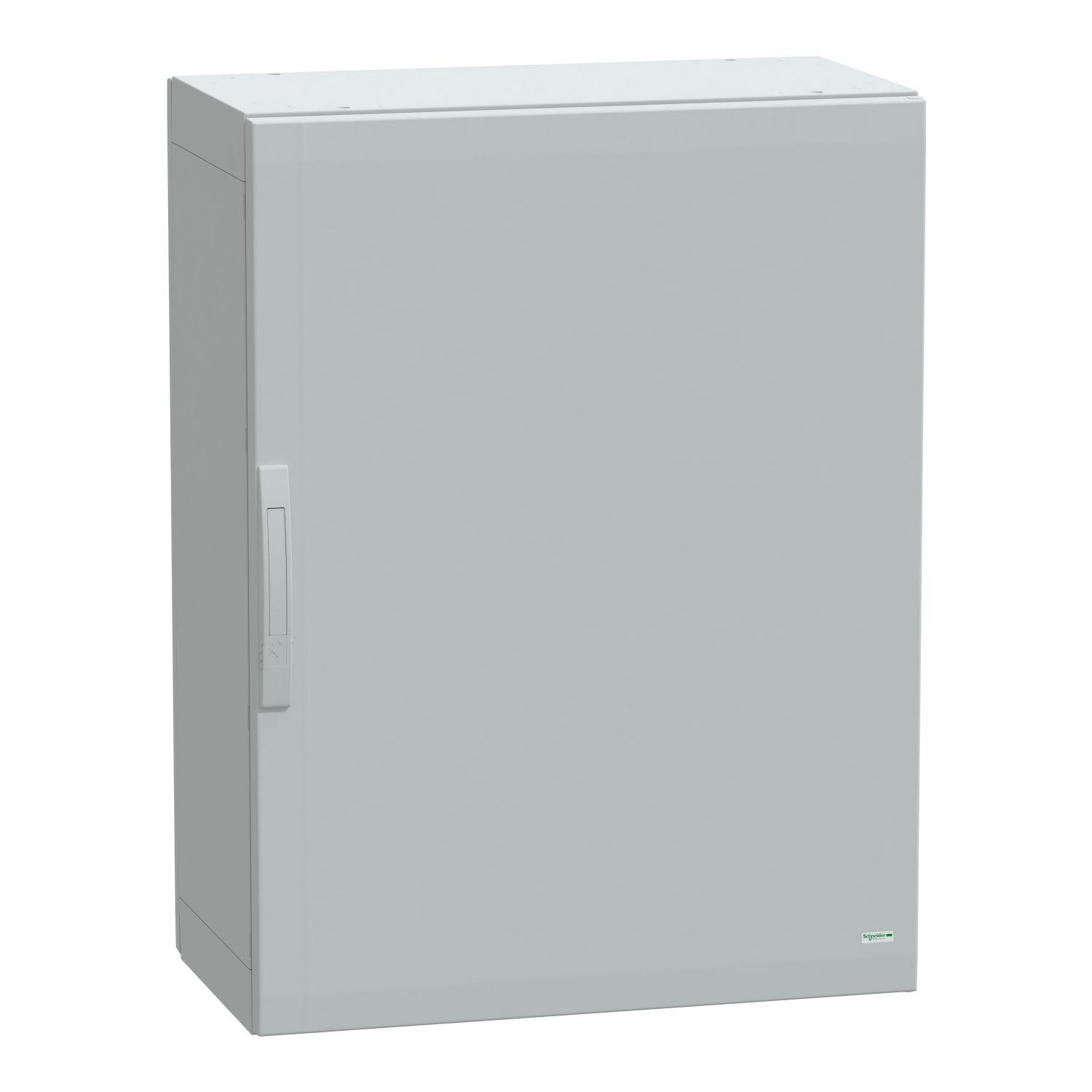

Thalassa, Floor standing polyester enclosure, Thalassa PLA, plain door, completely sealed, 1000x750x420mm, IP65, IK10

$1,064.94

Qty:

Available for Shipping : 24-Nov-2024

Product Selector

Thalassa, Floor standing polyester enclosure, Thalassa PLA, plain door, completely sealed, 1000x750x420mm, IP65, IK10

Be the first to review this product

Manufacturer: Schneider Electric

Instruction sheet

Catalogue

Product environmental

Product Page Link

Product Data Sheet

Thalassa PLA floor standing polyester enclosure. 1000x 750x 420 mm. Sealed top and bottom part, assembled with side parts. 4 points lock, 5 mm double-bar insert. 1 door. Accessible front and rear. Reversible 120° opening. Polyester reinforced with fibreglass. Grey RAL 7035. IP65, IK10, NEMA (1,2,12,13). 960°C fire resistance.

Products specifications

Attribute name	Attribute value
Main
Enclosure nominal width	750 mm
Device short name	PLA
Device application	multi-purpose
Enclosure nominal depth	420 mm
Enclosure mounting	floor-standing
Range	Thalassa
Enclosure nominal height	1000 mm
Device composition	1 door, 1 rear panel, 2 side part, 1 bottom part, 1 top part
Product name	Thalassa PLA
Product or component type	suitable enclosure
Complementary
Colour	grey (RAL 7035)
NEMA degree of protection	NEMA 3R, NEMA 3X, NEMA 3, NEMA 12, NEMA 13, NEMA 3S, NEMA 2, NEMA 1, NEMA 5
Electrical insulation class	class II
Lock type	4 points lock, 5 mm double-bar
Door type	plain front
Removable parts	rear panel by fixing element, door by hinges
Accessibility for operation	rear, front
Material	polyester reinforced with fibreglass
Body type	sealed top and bottom part assembled with side parts
Number of doors	1 door(s)
Door opening side	reversible (120 °)
Standards	UL 508 A, IEC 62208
Product certifications	DNV Marine, UL/cUL listed, Veritas
Environment
Fire resistance	960 °C conforming to IEC 62208
IP degree of protection	IP65 conforming to IEC 60529 (completely sealed)
Ambient air temperature for storage	-35-90 °C
IK degree of protection	IK10 conforming to IEC 62262 (plain door)
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	101.0 cm
Package 1 Width	78.0 cm
Package 1 Length	48.0 cm
Package 1 Weight	36.488 kg
Unit Type of Package 2	2
Number of Units in Package 2	2
Package 2 Height	120 cm
Package 2 Width	100 cm
Package 2 Length	115 cm
Package 2 Weight	73 kg
