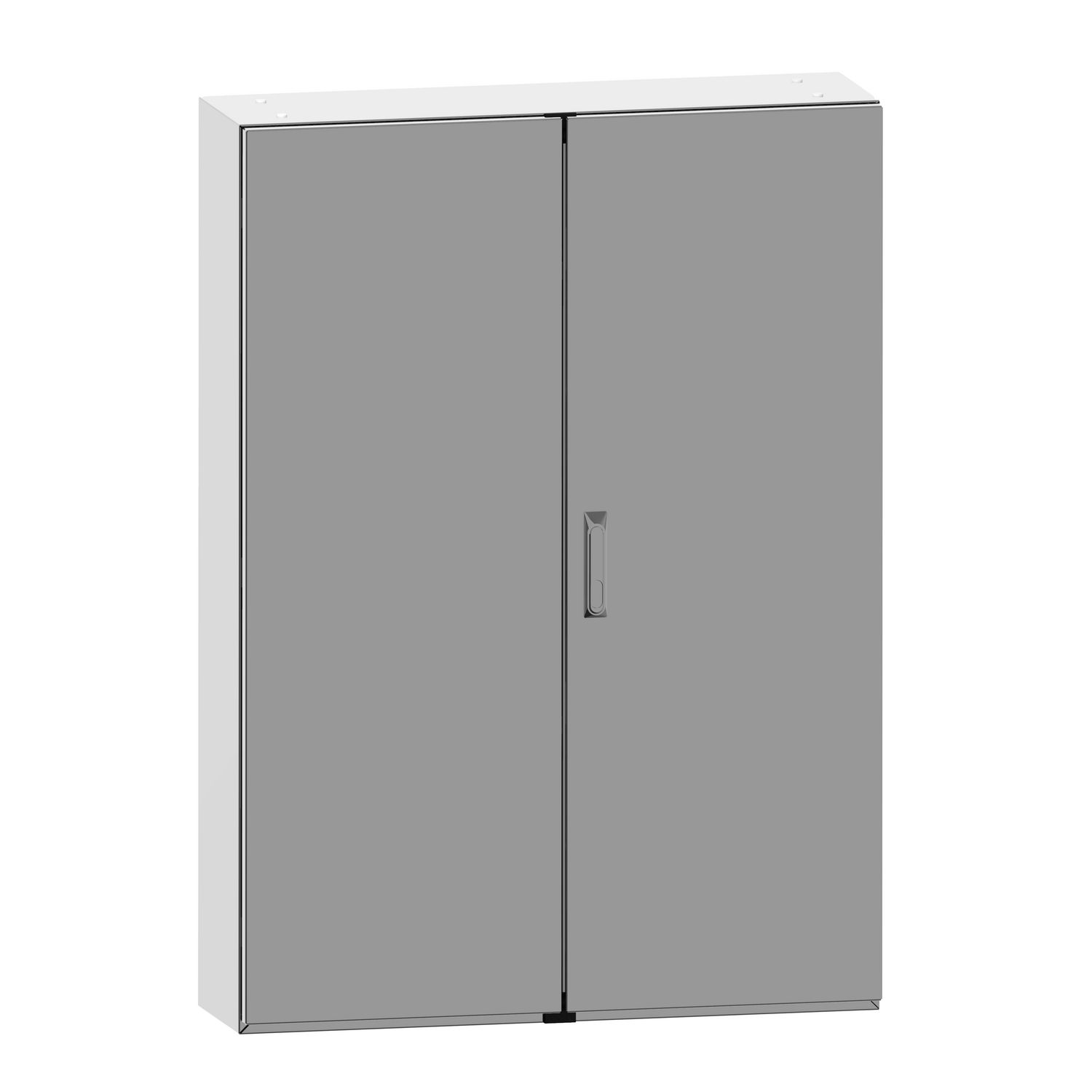

Picture of SMX 304L stainless monobloc enclosure, H2000xW1600xD600mm, Scotch Brite® finish.
SKU:

NSYSMX201660

SMX 304L stainless monobloc enclosure, H2000xW1600xD600mm, Scotch Brite® finish.

$6,914.34
Available for Shipping : 10-Mar-2025
Product Selector
SMX 304L stainless monobloc enclosure, H2000xW1600xD600mm, Scotch Brite® finish.
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
Spacial SMX is a stainless steel 304L floor-standing enclosure designed for multi-purpose applications and resistance to corrosion It is designed for use in harsh environments and has an IK10 rating (IEC 62262) for high impact resistance and an IP55 rating (IEC 60529) for dust and water resistance This enclosure has a nominal height, width and depth of 2000mm, 1600mm and 600mm respectively The enclosure is made with a Scotch-Brite® brushed surface finish and consists of a body, a cable gland plate, two plain doors, four mounting plate brackets, and a locking system with handle on the door The doors can be opened up to 120°, allowing easy access to the equipment inside The enclosure has a three-point lock with a handle with 5mm double-bar insert The doors and the mounting plate brackets can be removed for maintenance purposes The net weight of the enclosure is 200kg and it complies with IEC 62208 standards

Products specifications

Attribute name Attribute value
Main
Enclosure nominal width 1600 mm
Device application multi-purpose
Enclosure nominal depth 600 mm
Range Spacial
Enclosure nominal height 2000 mm
Device composition 4 mounting plate bracket, 1 locking system with handle: door, 1 cable gland plate, 2 door, 1 body
Product name Spacial SMX
Product or component type compact enclosure
Installation accessory type floor-standing
Complementary
Mounting plate description without mounting plate
Door type plain
Surface finish handle: painted, enclosure: Scotch-Brite® brushed
Material hinge: stainless steel, handle: zamak, body and door: stainless steel 304L
Body type single piece body folded and welded
Number of doors front face: 2 door(s)
Door opening side reversible (120 °)
Net weight 200 kg
Lock type 3 points lock, handle with 5 mm double-bar insert
Type of gland plate plain
Removable parts cable gland plate by clips, mounting plate bracket by screws, door by hinges
Accessibility for operation front
Environment
IP degree of protection IP55 conforming to IEC 60529
Environmental characteristic corrosive, specific hygiene
Standards IEC 62208
IK degree of protection IK10 conforming to IEC 62262
Product certifications UL 508, CAN/CSA 22
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 68.0 cm
Package 1 Width 165.0 cm
Package 1 Length 213.0 cm
Package 1 Weight 212.0 kg

Related products

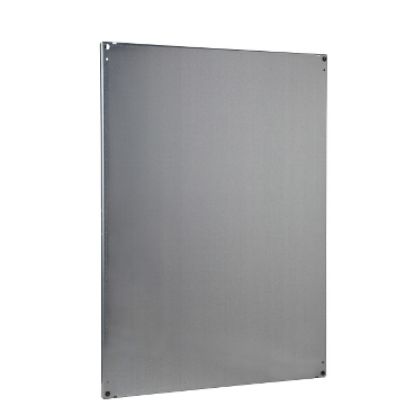

Picture of Plain mounting plate, PanelSeT SFN, Spacial SF, Spacial SM, for electrical enclosure H2000 W1600mm, galvanized steel
