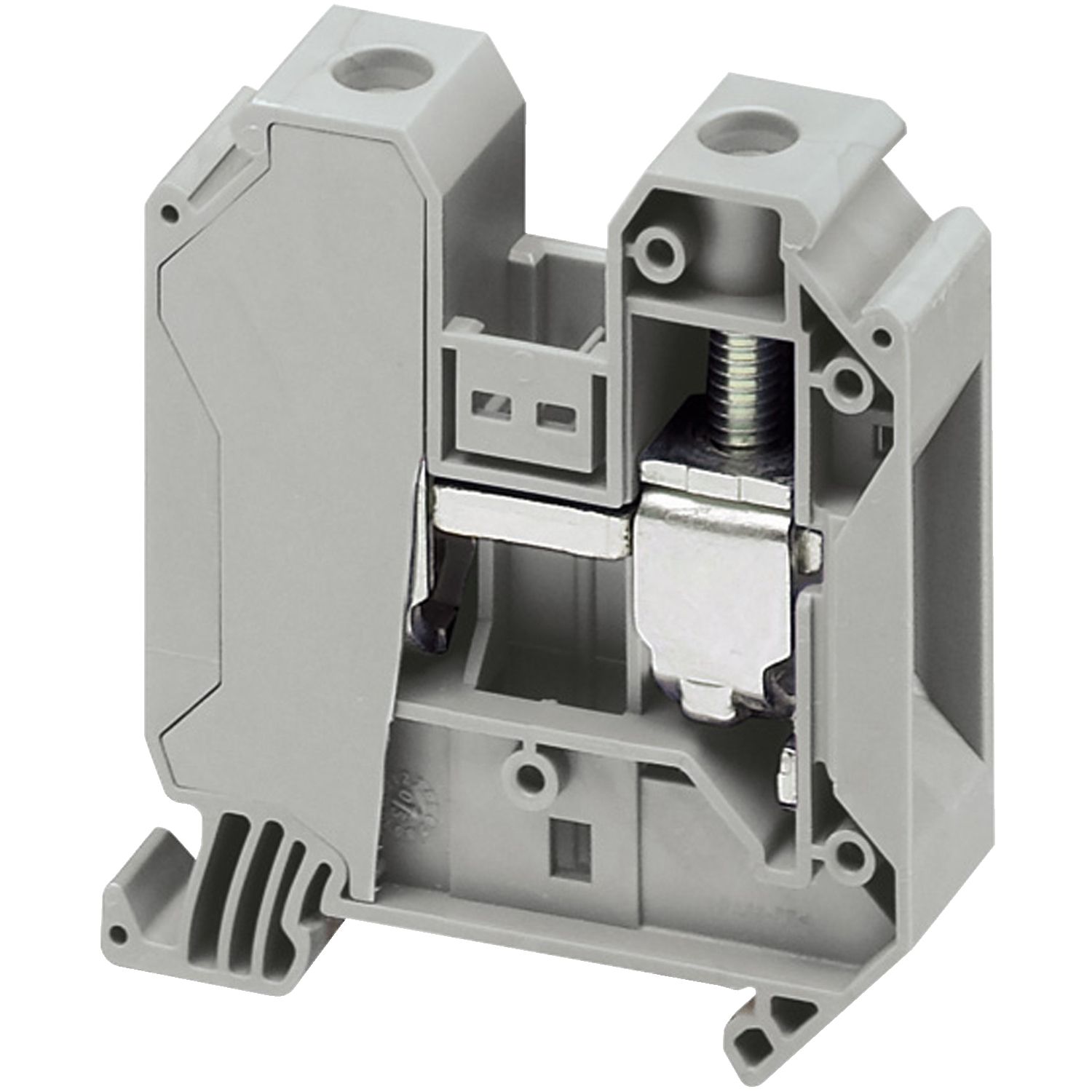

Picture of Linergy, Screw Terminal, Feed Through, 2 Points, 35mm² , Grey
SKU:

NSYTRV352

Linergy, Screw Terminal, Feed Through, 2 Points, 35mm² , Grey

$9.38
Available for Shipping : 24-Nov-2024
Linergy, Screw Terminal, Feed Through, 2 Points, 35mm² , Grey
  • It belongs to linergy passthrough terminal block with 35 mm² nominal cross section
  • Mounting by clip-on and sideways connection by single-level 1x1 screw terminals
  • Releasing pressure on the sides stops the flow of cable ends
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
Product Page Link
Product Data Sheet
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 35 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1 and 690V conforming to ATEX Exe II Ex II 2 GD. The rated current is 125A conforming to EN/IEC 60947-7-1, 150A conforming to CSA/cURus and 126A conforming to ATEX Exe II Ex II 2 GD. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, GL, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 50
Terminal block level 1
Length 60.2 mm
Device short name TRV
Colour grey
Mounting mode clip-on
Range Linergy
Range of product Linergy
Nominal cross section 35 mm²
Product name Linergy TR
Product or component type terminal block
Terminal block type passthrough
Complementary
Range compatibility TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Compatibility code terminal block
Wire stripping length 18 mm
Tool type disconnection: screwdriver, connection: screwdriver
Number of measurement input 2
Connection position sideways
Height 65.7 mm
[In] rated current 126-126 A conforming to ATEX Exe II Ex II 2 GD, 150-150 A CSA, 150-150 A cURus, 125-125 A conforming to EN/IEC 60947-7-1
Material polyamide 6/6: insulating case
Cable cross section 1.5-50 mm², solid cable , 1.5-50 mm², flexible cable without cable end
Dielectric constant 3.7 at 1 MHz
Net weight 61 g
Number of terminals 2
Product compatibility Spacial enclosures
Tightening torque 3.2-3.7 N.m
Surface resistance 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Resistivity 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Flame retardance V0, thickness0.8 mm conforming to UL 94
Dielectric loss 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
[Ue] rated operational voltage 600 V cURus, 690 V conforming to ATEX Exe II Ex II 2 GD, 600 V CSA, 1000 V conforming to EN/IEC 60947-7-1
Creep resistance 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width 16 mm
Connections - terminals 1 x screw terminal: downstream, 1 x screw terminal: upstream
Environment
Product certifications cURus, CSA, GL, EAC, VDE, IEC-Ex, ATEX
Ambient air temperature for operation -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength 1000 V conforming to IEC 60243-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.600 cm
Package 1 Width 17.700 cm
Package 1 Length 28.000 cm
Package 1 Weight 57.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 9.600 cm
Package 2 Width 17.700 cm
Package 2 Length 28.000 cm
Package 2 Weight 2.991 kg
Unit Type of Package 3 3
Number of Units in Package 3 2000
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 133.720 kg
