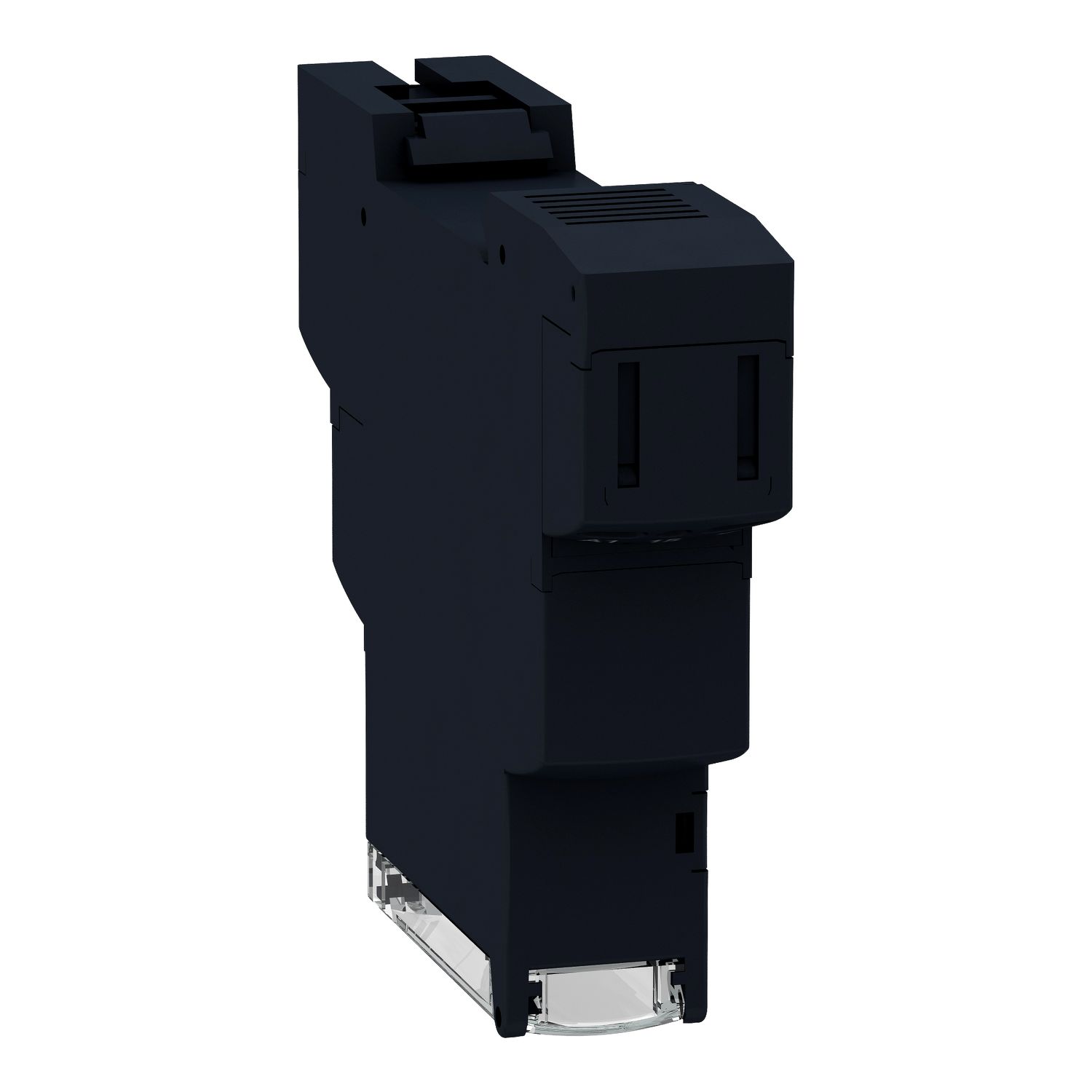

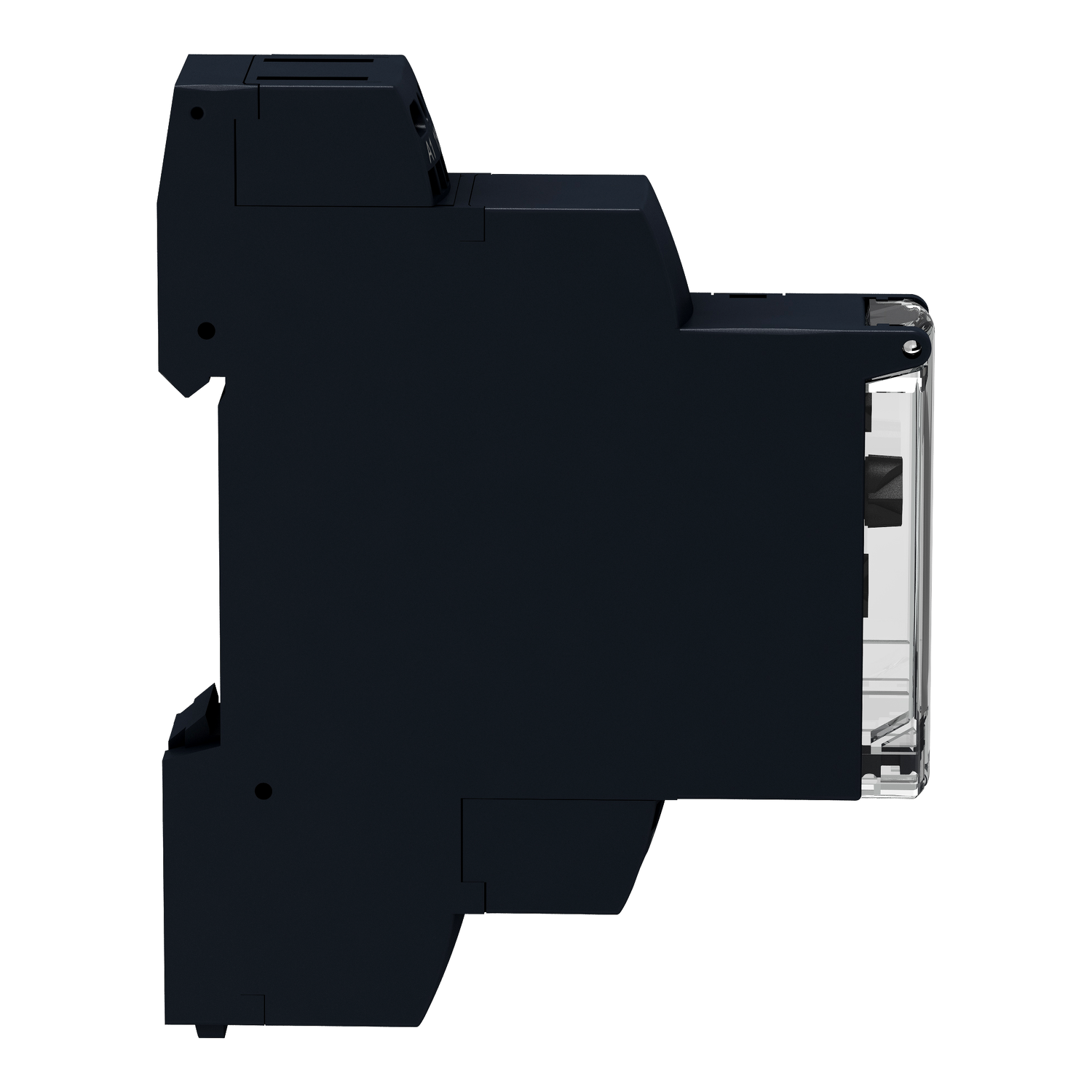

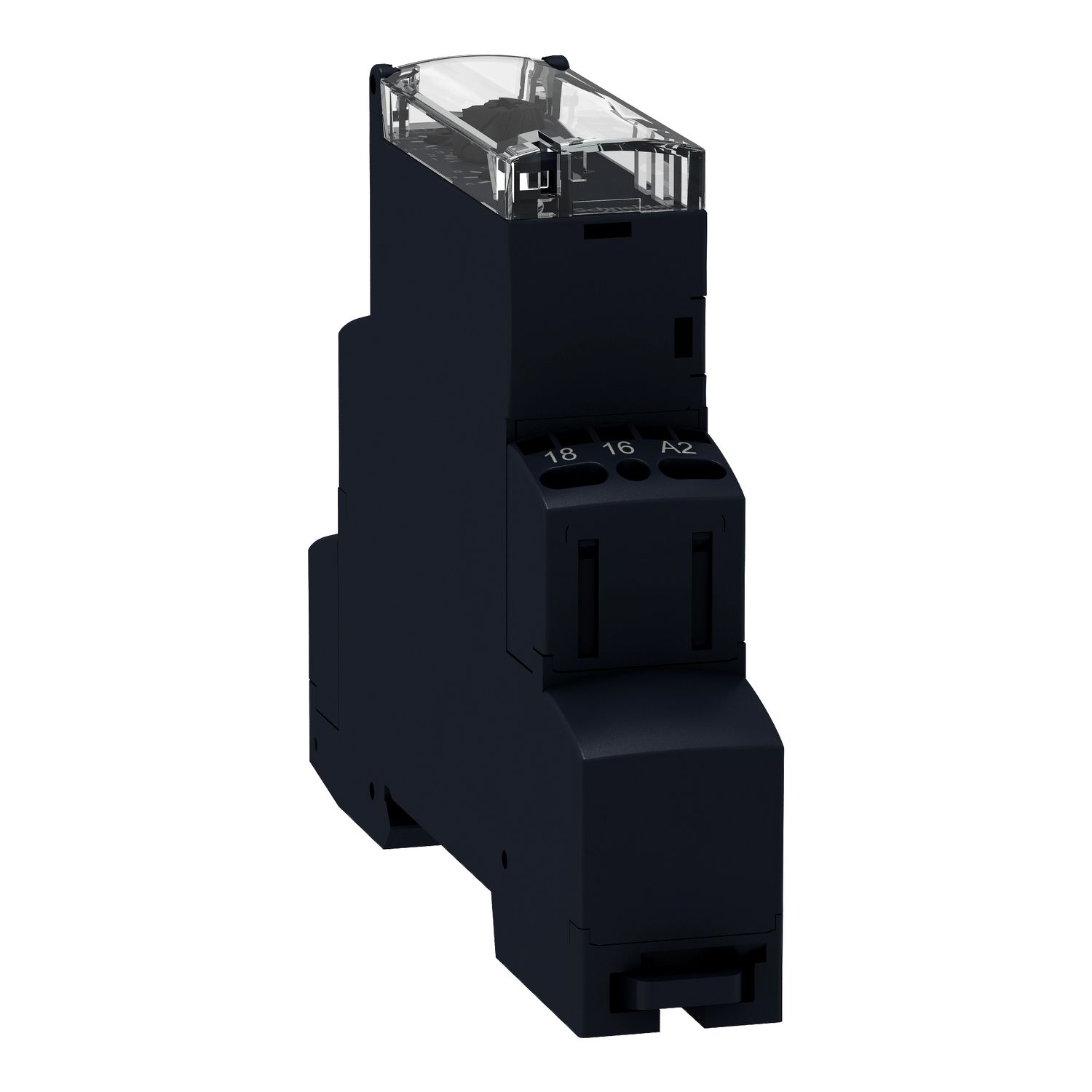

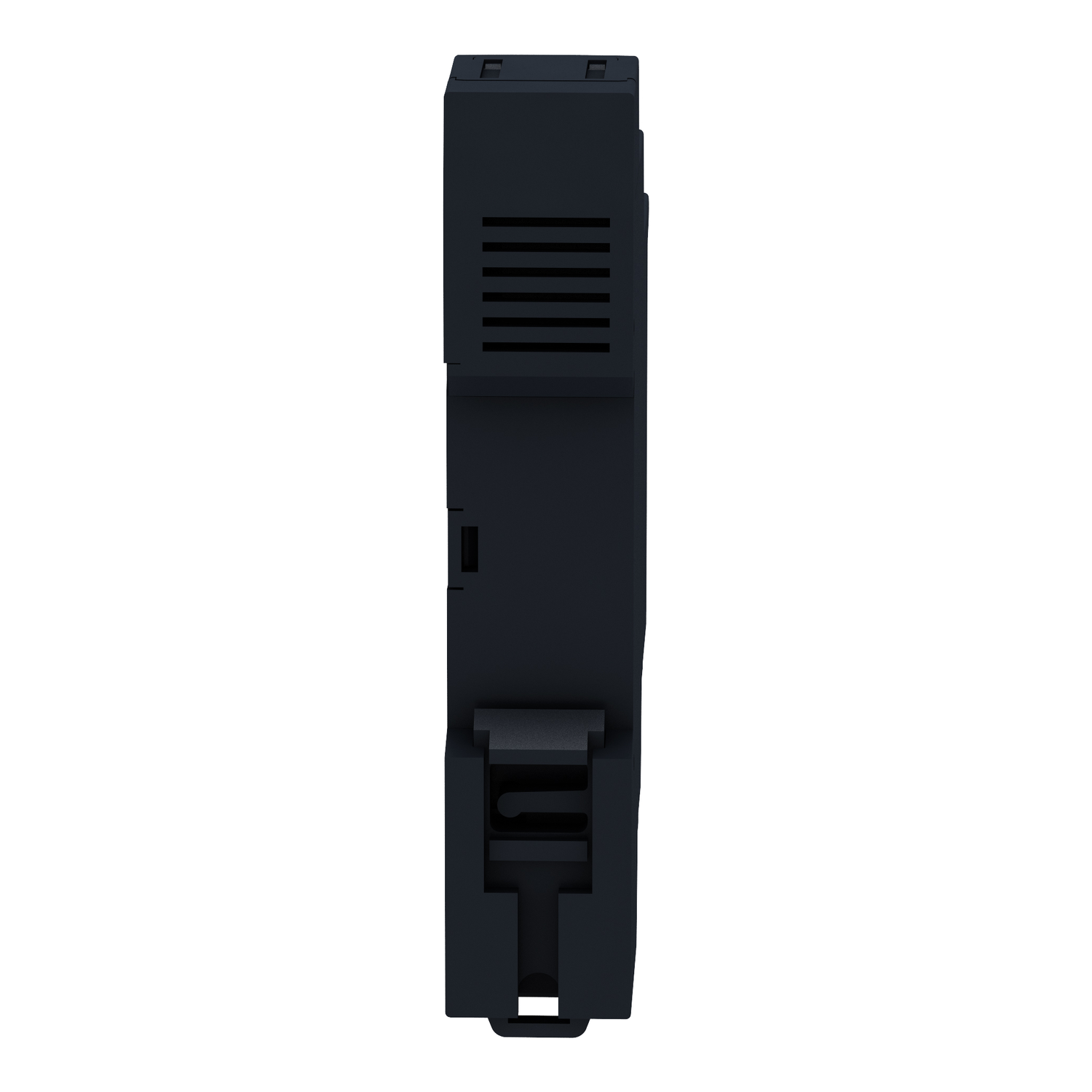

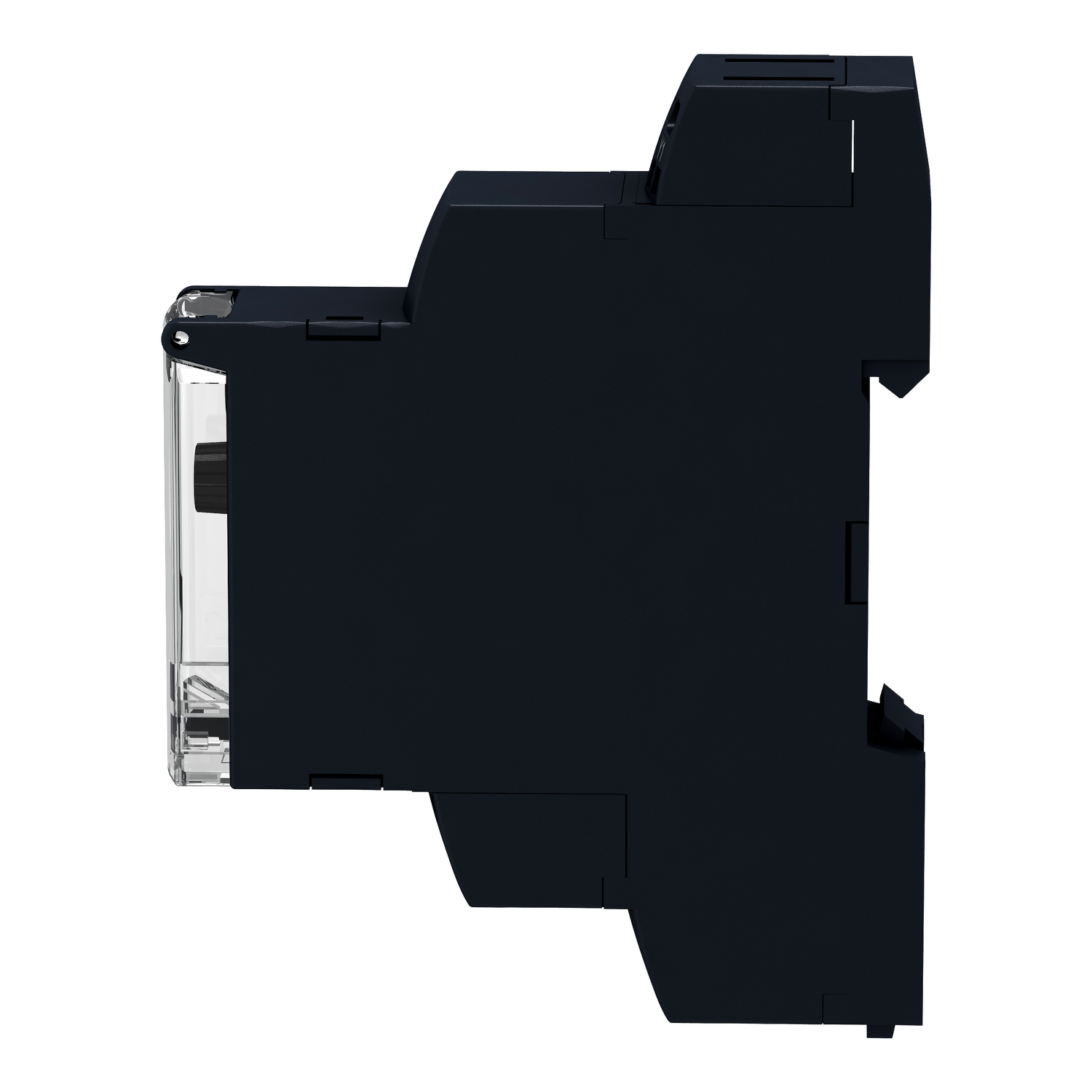

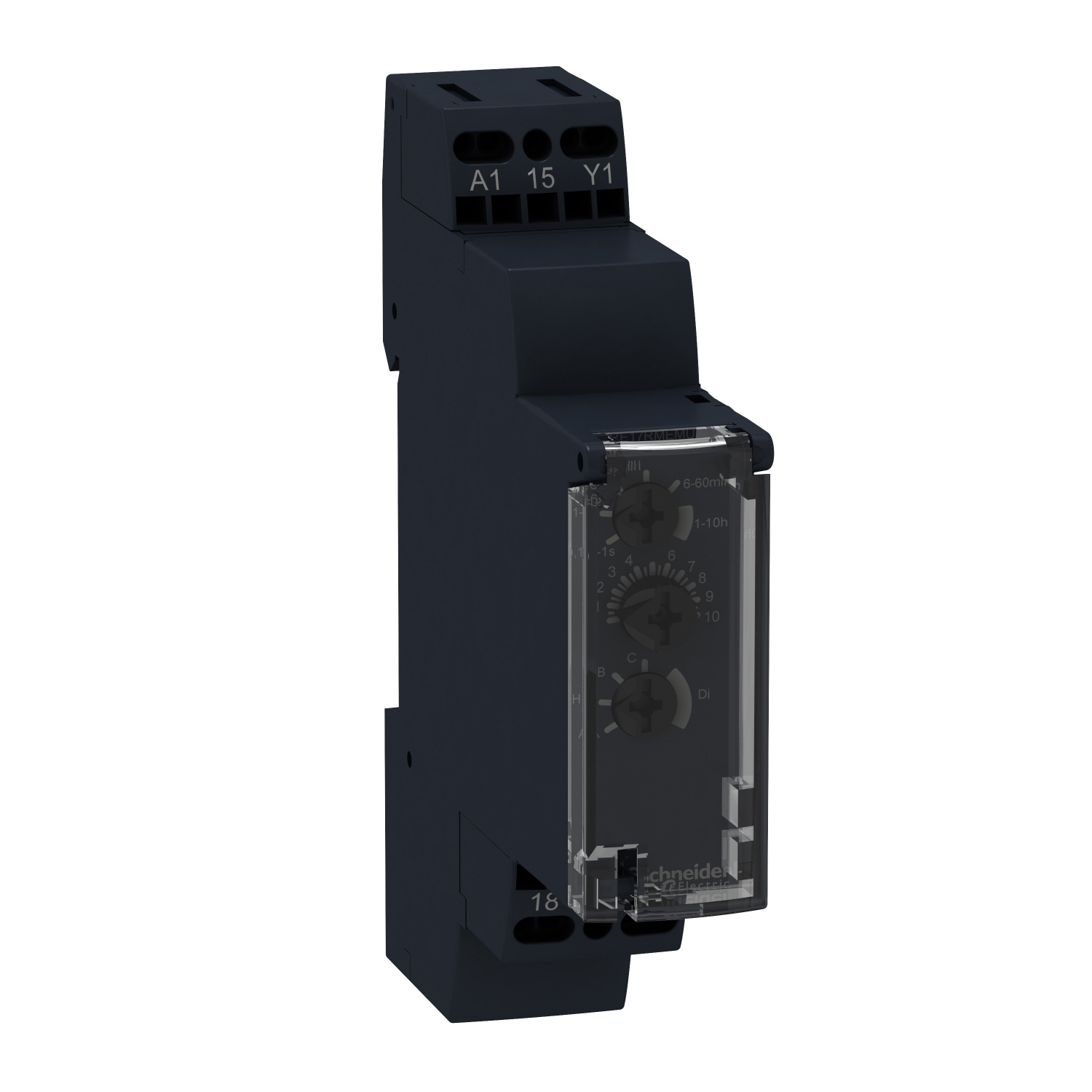

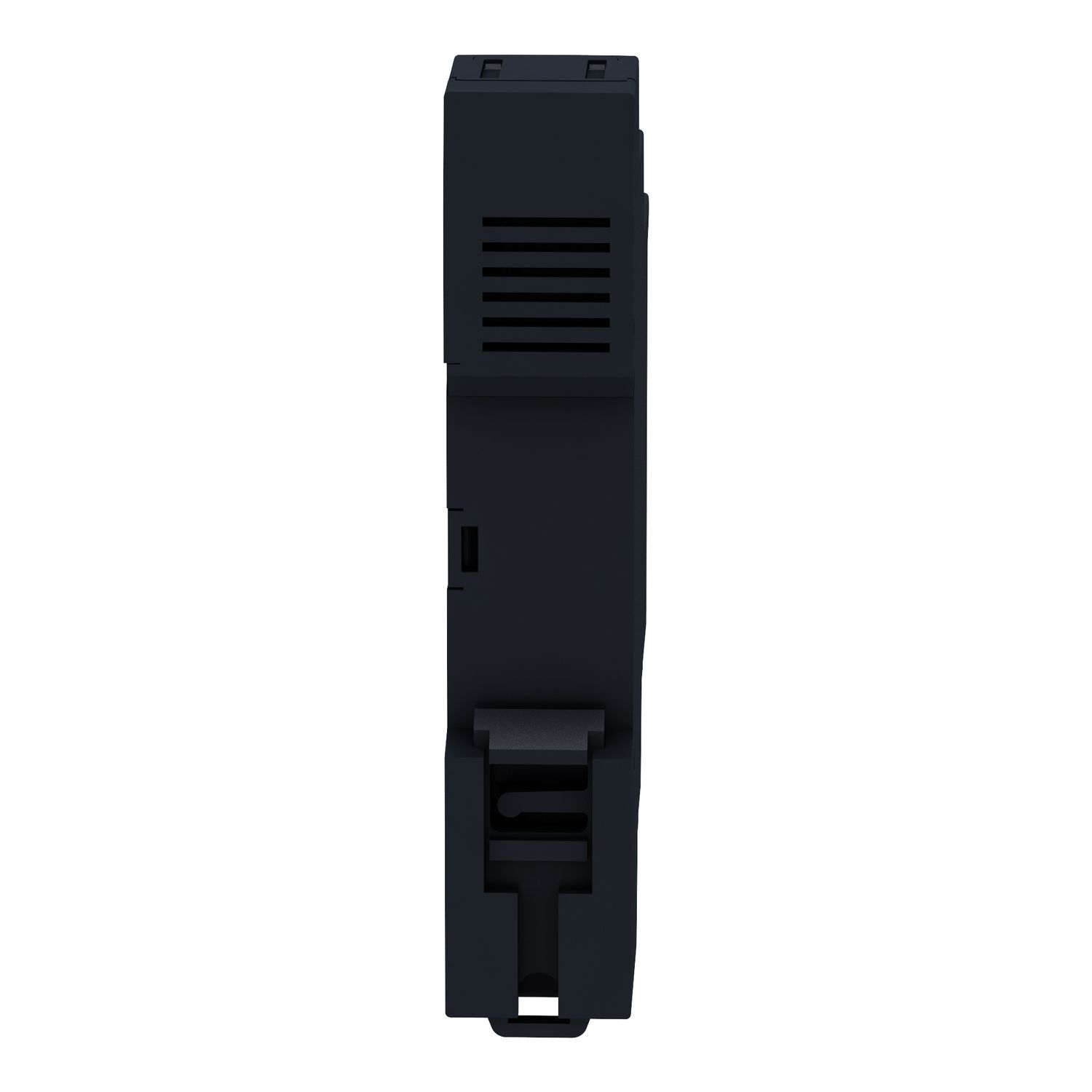

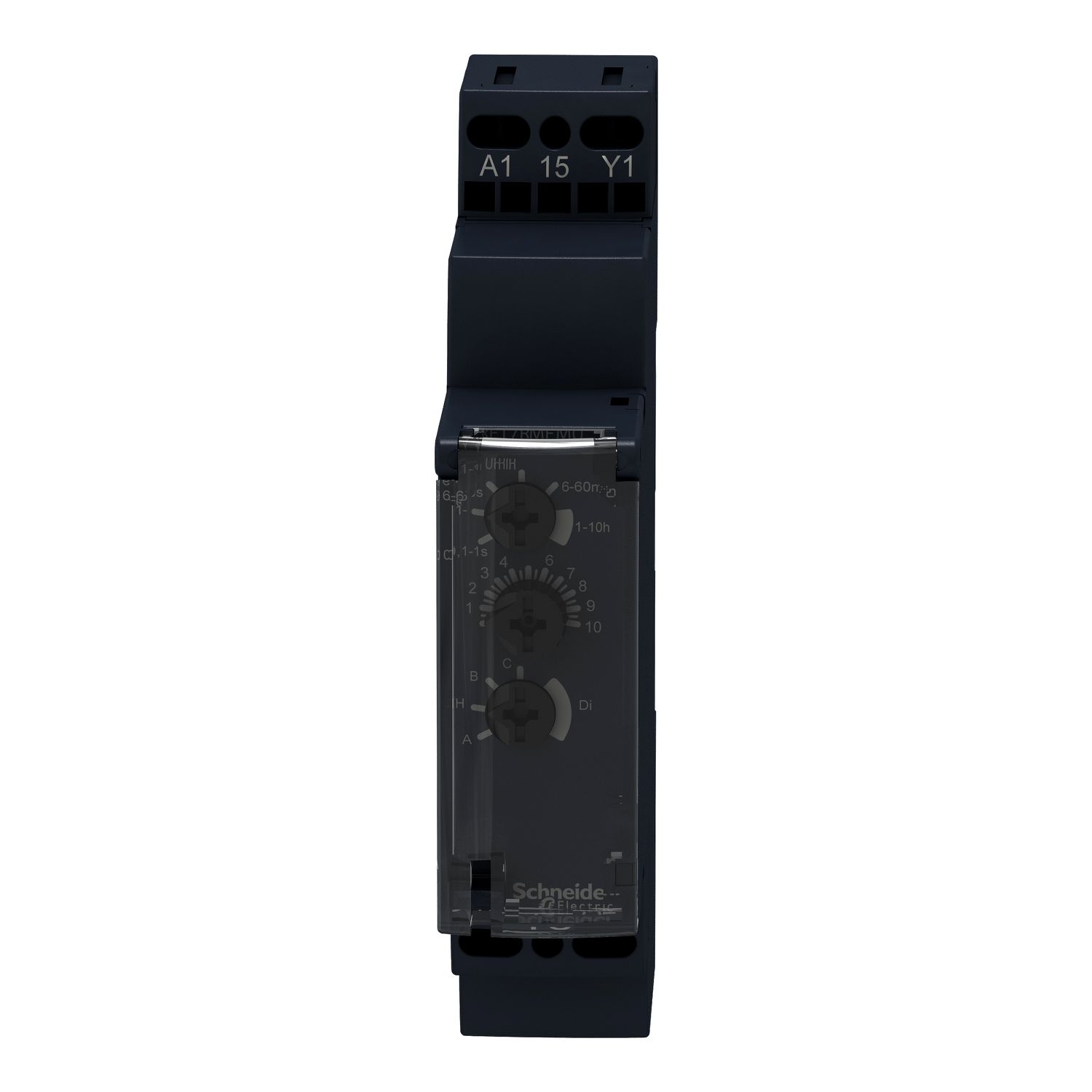

Picture of Harmony Timer Relays, Modular timing relay, 8A, 1CO, 0.1s..10 h, multifunction, 24V DC 24...240V AC DC
SKU:

RE17RMEMU

Harmony Timer Relays, Modular timing relay, 8A, 1CO, 0.1s..10 h, multifunction, 24V DC 24...240V AC DC

$141.46
Availability: Please contact our sales team on 1300 724 622.
Product Selector
Harmony Timer Relays, Modular timing relay, 8A, 1CO, 0.1s..10 h, multifunction, 24V DC 24...240V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Catalogue
Technical illustration
Declaration of conformity
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet
This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 24V DC, 24V to 240V AC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Time delay type symmetrical flashing, off-delay, interval, power on-delay
Output type relay
Nominal output current 8 A
Device short name RE17R
[Uc] control circuit voltage 24...240 V, 24 V
Range of product Harmony Timer Relays
Discrete output type relay
Width 17.5 mm
[In] rated current 5 A
Time delay range 0.1...1 s, 6...60 s, 1...10 h, 1...10 s, 1...10 min, 6...60 min
Product or component type multifunction relay
Connections - terminals screw connectors
Complementary
[Uimp] rated impulse withstand voltage 5 kV during 1.2/50 µs
On-load factor 100 %
Compatibility code RE17
Electrical durability 100000 cycles (8 A at 250 V AC maximum) for resistive load
Minimum switching current 10 mA at 5 V DC
[Us] rated supply voltage 24 V DC, 24...240 V AC 50/60 Hz
Temperature drift +/- 0.05 %/°C
Functionality multifunction
Maximum switching voltage 250 V AC
Voltage range 0.85...1.1 Us
Insulation resistance 100 MOhm at 500 V DC conforming to IEC 60664-1
Setting accuracy of time delay +/- 10 % of full scale at 25 °C conforming to IEC 61812-1
Height 90 mm
Safety reliability data B10d = 270000, MTTFd = 296.8 years
Repeat accuracy +/- 0.5 % conforming to IEC 61812-1
Impulse duration 30 ms typical, 100 ms with load in parallel typical
Housing material self-extinguishing
Mounting support 35 mm DIN rail conforming to IEC 60715
Contacts type and composition 1 C/O
Connections - terminals screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end
Mounting position any position in relation to normal vertical mounting plane
Net weight 0.07 kg
Operating rate in Hz 10 Hz
Reset time 120 ms on de-energisation typical
Creepage distance 4 kV/3 conforming to IEC 60664-1
Tightening torque 0.6-1 N.m conforming to IEC 60947-1
Mechanical durability 10000000 cycles
Marking CE
Power consumption in VA 0-32 VA at 240 V AC
Contacts material cadmium free
Control type selector switch front panel
Maximum delay response 100 ms
Supply frequency 50...60 Hz +/- 5 %
Depth 72 mm
Time delay type A, At, B, C, D, Di, H, Ht
Breaking capacity 2000 VA
Input voltage 10 V
Local signalling LED indicator for pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L) 5 % ON and 95 % OFF, LED indicator for flashing: timing in progress 80 % ON and 20 % OFF, LED indicator for on steady: relay energised, no timing in progress
Voltage drift +/- 0.2 %/V
Dielectric strength 2.5 kV 1 mA/1 minute 50 Hz conforming to IEC 61812-1
Maximum switching current 8 A AC/DC
Maximum power consumption in W 0.6 W at 24 V DC
Environment
Ambient air temperature for storage -30-60 °C
Immunity to microbreaks 20 ms
Product certifications cULus, CSA
Relative humidity 93-93 % without condensation conforming to IEC 60068-2-30
IP degree of protection IP50 (front panel) conforming to IEC 60529, IP40 (housing) conforming to IEC 60529, IP20 (terminal block) conforming to IEC 60529
Electromagnetic compatibility conducted and radiated emissions: , class B, conforming to EN 55022, voltage dips and interruptions immunity test: (25/30 cycles), 70 %, conforming to IEC 61000-4-11, voltage dips and interruptions immunity test: (1 cycle), 0 %, conforming to IEC 61000-4-11, conducted RF disturbances: (0.15...80 MHz), level 3, 10 V, conforming to IEC 61000-4-6, 1.2/50 µs shock waves immunity test: (common mode), level 3, 2 kV, conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test: (differential mode), level 3, 1 kV, conforming to IEC 61000-4-5, electrical fast transient/burst immunity test: (direct), level 3, 2 kV, conforming to IEC 61000-4-4, electrical fast transient/burst immunity test: (capacitive connecting clip), level 3, 1 kV, conforming to IEC 61000-4-4, susceptibility to electromagnetic fields: (80 MHz to 1 GHz), level 3, 10 V/m, conforming to IEC 61000-4-3, electrostatic discharge immunity test: (in air), level 3, 8 kV, conforming to IEC 61000-4-2, electrostatic discharge immunity test: (in contact), level 3, 6 kV, conforming to IEC 61000-4-2
Ambient air temperature for operation -20-60 °C
Vibration resistance 20 m/s² (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Standards IEC 61000-6-4, IEC 61812-1, 2006/95/EC, IEC 61000-6-1, IEC 61000-6-3, IEC 61000-6-2, 2004/108/EC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.800 cm
Package 1 Width 7.800 cm
Package 1 Length 9.600 cm
Package 1 Weight 78.000 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.700 kg
