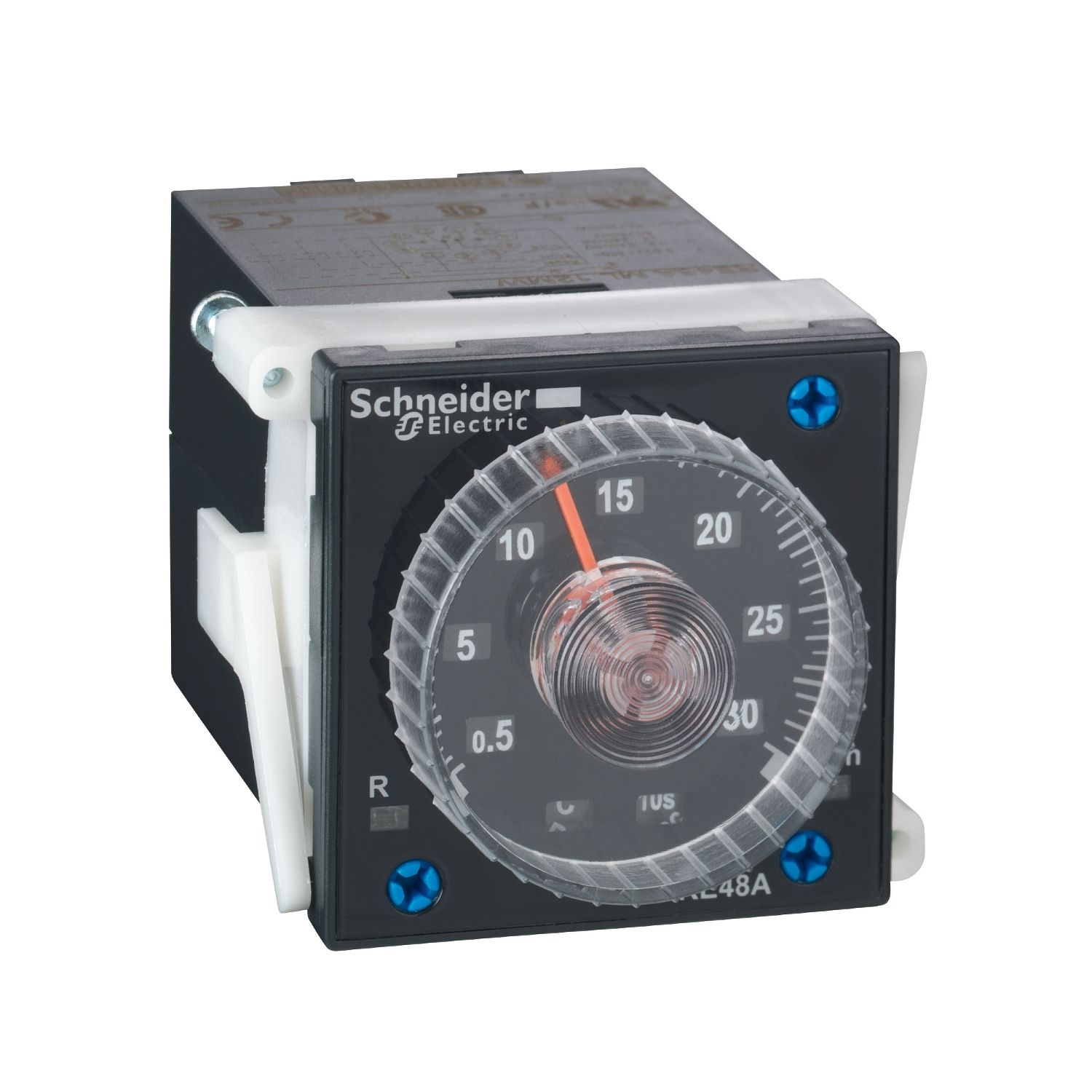

Picture of multifunction relay, Harmony Timer Relays, 5A, 1CO+1CO timed, 0.02s...300h, time delay, 24...240V AC DC
SKU:

RE48AMH13MW

multifunction relay, Harmony Timer Relays, 5A, 1CO+1CO timed, 0.02s...300h, time delay, 24...240V AC DC

$378.48
Available for Shipping : 05-Jan-2025
Product Selector
multifunction relay, Harmony Timer Relays, 5A, 1CO+1CO timed, 0.02s...300h, time delay, 24...240V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Technical illustration
End of life manual
Instruction sheet
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet
This Harmony RE48 timing relay can be set between 0.2 seconds and 300 hours, has an output rating of 5A, is 22.5mm wide. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for both panel mooting or socket plug in, this gives more flexibility in designing installations and stocking spares. Multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. Status display with 2 LEDs, visually inspect the status of you system without specialized tools. 0 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
Time delay type pulse-on energization, delay on energization
[Us] rated supply voltage 24...240 V AC/DC 50/60 Hz
Output type relay
Electrical connection plug-in sub-base 8 pin(s)
Contacts type and composition 2 C/O, 1 C/O + 1 C/O timed or instantaneous contact, AgNi (cadmium free)
Component name RE48
Range of product Harmony Timer Relays
Discrete output type relay
Width 48 mm
[In] rated current 5 A
Time delay range 0.5...30 min, 2...120 min, 5...300 s, 0.05...3 s, 0.5...30 s, 5...300 h, 0.2...12 s, 0.5...30 h, 0.02...1.2 s, 0.2...12 h, 2...120 s, 0.2...12 min, 5...300 min, 2...120 h
Product or component type multifunction relay
Connections - terminals screw connectors
Voltage range 0.9...1.1 Us DC, 0.85...1.1 Us AC
Complementary
On-load factor 100 %
Compatibility code RE48
Electrical durability 100000 cycles
Surge withstand 2 kV common mode conforming to IEC 61000-4-5 level 3, 1 kV differential mode conforming to IEC 61000-4-5 level 3
Functionality multifunction
Maximum switching voltage 250 V AC/DC
Setting accuracy of time delay +/- 5 % of full scale at 25 °C conforming to IEC 61812-1
Output voltage 240 V at 1.5 A AC-15, 30 V at 2 A DC-13, 240 V at 5 A AC-12
Repeat accuracy +/- 0.2 % of the maximum setting value conforming to IEC 61812-1
Housing material self-extinguishing
Minimum switching current 100 mA
Reset time 25 ms on de-energisation
Net weight 0.14 kg
Pick up duration 55 ms
Mechanical durability 30000000 cycles
Voltage drift +/- 1 %/V of the maximum setting value at 24...48 V, +/- 0.2 %/V of the maximum setting value at 48...240 V
Power consumption in VA 4.8 VA at 240 V, 1.1 VA at 24 V
Marking CE
Maximum switching current 5 A
Temperature drift +/- 0.02 %/°C of the maximum setting value conforming to IEC 61812-1
Control type selector switch front panel
Time delay type A1, A2, H1, H2
Breaking capacity 1250 VA
Local signalling LED indicator (green) for on steady: relay energised, no timing in progress, LED indicator (green) for flashing: relay energised timing in progress, 1 LED (yellow) for output relay state
Minimum pulse duration 20 ms
Product front plate size 48 x 48 mm
Mounting support panel mounted: system supplied with the product, base mounted: socket
Power consumption in W 1.7 W at 240 V, 0.5 W at 24 V
Environment
Resistance to fast transients 4 kV (direct) conforming to IEC 61000-4-4 level 4, 2 kV (capacitive connecting clip) conforming to IEC 61000-4-4 level 4
Resistance to electrostatic discharge 8 kV in air conforming to IEC 61000-4-2 level 3, 6 kV in contact conforming to IEC 61000-4-2 level 3
Ambient air temperature for storage -40-70 °C
Immunity to microbreaks 10 ms
Disturbance radiated/conducted class B 0.15...30 MHz conforming to EN 55022 (EN 55011 group 1)
Dielectric strength 1 kV 1 mA/1 minute conforming to IEC 61812-1
Product certifications C-Tick, CSA, UL, cULus
Relative humidity 93-93 % without condensation conforming to IEC 60068-2-3
IP degree of protection IP50 (front face) conforming to IEC 60529, IP40 (housing) conforming to IEC 60529
Immunity to voltage dips 95 % / 5 s conforming to IEC 61000-4-11, 60 % / 100 ms conforming to IEC 61000-4-11, 30 % / 10 ms conforming to IEC 61000-4-11
Protection against electric shocks 4 kV class III conforming to IEC 61812-1, 4 kV class III conforming to IEC 60664-1
Resistance to electromagnetic fields 10 V/m 26 MHz to 1 GHz conforming to IEC 61000-4-3 level 3
Ambient air temperature for operation -20-50 °C
Immunity to radioelectric fields 10 V (0.15...80 MHz) conforming to IEC 61000-4-6 level 3
Humidity drift +/- 0.05 %/%RH of the maximum setting value conforming to IEC 61812-1
Vibration resistance 0.35 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
Standards IEC 61812-1, IEC 60669-2-3, 89/336/EEC, 73/23/EEC, 93/68/EEC, EN 50081-1/2, EN 50082-1/2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.700 cm
Package 1 Width 10.500 cm
Package 1 Length 6.200 cm
Package 1 Weight 127.000 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.293 kg

Related products

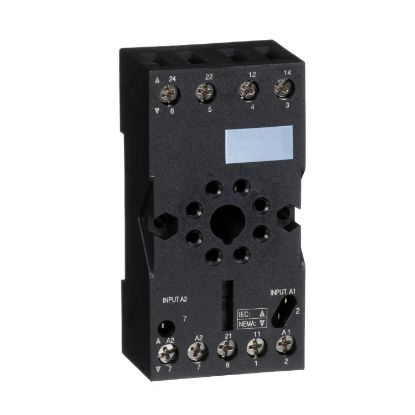

Picture of Harmony Timer Relays, Socket for RUMC2 relays, 10A, screw connectors, mixed contact
