SKU:

RM35TM50MW

Harmony Control Relays, Modular motor voltage and temperature control relay, 5 A , 2 NO, 24..240 V AC/DC

Old price: $555.50 INC GST
$527.72 INC GST
Available for Shipping : 13-Jan-2026
Product Selector
Harmony Control Relays, Modular motor voltage and temperature control relay, 5 A , 2 NO, 24..240 V AC/DC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 13-Jan-2026
Catalog
Declaration of conformity
Environmental Disclosure
Circularity Profile

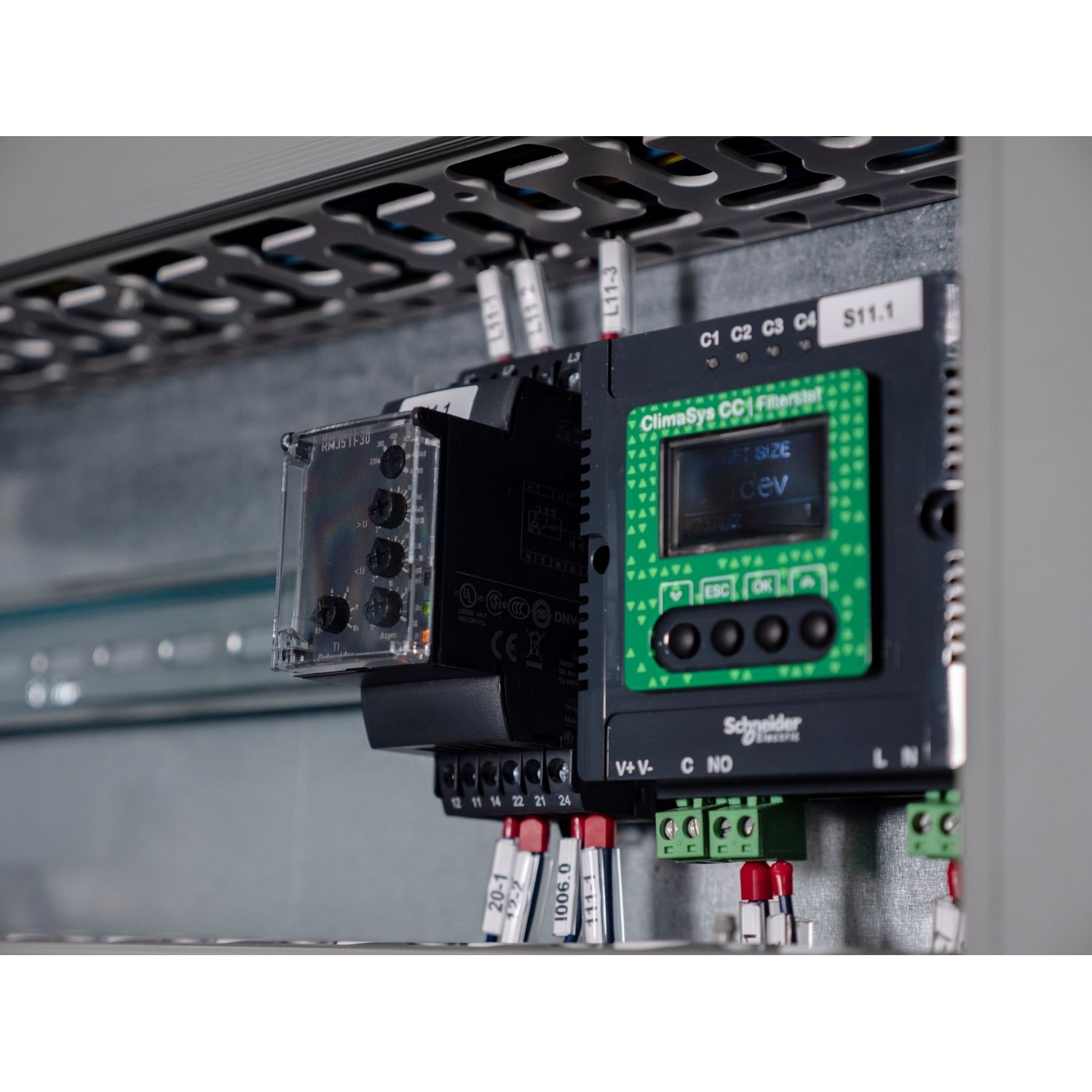

Image of product in real life situation
Instruction sheet
Image of product in real life situation
Product Page Link
Product Data Sheet
This Harmony RM35-T control relay allows monitoring of motor voltage and temperature control. This modular control relay is ideal for monitoring of electrical values with voltage and temperature variation in control of moving equipment's. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Products specifications

Attribute name Attribute value
Main
[Uc] control circuit voltage 24...240 V
Relay type motor temperature control relay
Relay name RM35TM
Measurement range 0...20 Ohm short-circuit detection, 208...480 V voltage AC
Range of product Harmony Control Relays
[In] rated current 5 A
Relay monitored parameters phase failure detection, motor temperature via PTC probe, phase sequence
Time delay type without
Product specific application for 3-phase supply
Contacts type and composition 2 NO
Product or component type motor temperature control relay
Switching capacity in VA 1250 VA
Connections - terminals screw connectors
Complementary
Supply frequency 50/60 Hz +/- 10 %
Run-up delay at power-up 500 ms
Tightening torque 0.6-1 N.m conforming to IEC 60947-1
Control circuit frequency 50...60 Hz +/- 10 %
Compatibility code RM3
Mechanical durability 30000000 cycles
Supply voltage limits 20.4-264 V DC, 20.4-264 V AC
Tripping threshold 3100 Ohm +/- 10 % for temperature control circuit
Maximum resistance 1500 Ohm for temperature sensor at 20 °C
Reset threshold 1650 Ohm +/- 10 % for temperature control circuit
Control type without test button
Short-circuit current 0.007 A temperature sensing circuit (T1-T2 terminals short circuited)
Marking CE
Power consumption in VA 0-4 VA at 24...240 V AC
Insulation resistance > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1, > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5, > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1, > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5, > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1, > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5
Maximum switching current 5 A DC, 5 A AC
Electrical durability 10000 cycles
Maximum power consumption in W 0.5 W DC
Width 35 mm
Housing material self-extinguishing plastic
Local signalling LED (yellow) for temperature of relay (R1), LED (yellow) for phase of relay (R2), LED (green) for power ON
Nominal output current 5 A
Mounting support 35 mm symmetrical DIN rail conforming to IEC 60715
Overvoltage category III conforming to IEC 60664-1
[Ui] rated insulation voltage 400 V conforming to IEC 60664-1
Connections - terminals screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end
Reset time 10000 ms output
Measurement voltage limits 176-528 V AC
Maximum switching voltage 250 V DC, 250 V AC
Net weight 0.13 kg
Utilisation category DC-13 conforming to IEC 60947-5-1, DC-12 conforming to IEC 60947-5-1, AC-15 conforming to IEC 60947-5-1, AC-14 conforming to IEC 60947-5-1, AC-13 conforming to IEC 60947-5-1, AC-12 conforming to IEC 60947-5-1
Resistance across terminals 602 mOhm
Operating position any position without derating
Response time > 50 ms (input Y1 (contact Y1-T1) and push-button)
Output contacts 2 NO
Operating rate <= 360 operations/hour full load
[Us] rated supply voltage AC/DC non self-powered
[Uc] control circuit voltage <= 3.6 V of temperature control circuit (T1-T2 terminals open)
Minimum switching current 10 mA at 5 V DC
Voltage range 176...528 V
Environment
Relative humidity 95-95 % at 55-55 °C conforming to IEC 60068-2-30
Ambient air temperature for storage -40-70 °C
Directives 89/336/EEC - electromagnetic compatibility, 73/23/EEC - low voltage directive
Pollution degree 3 conforming to IEC 60664-1
IP degree of protection IP30 (casing) conforming to IEC 60529, IP20 (terminals) conforming to IEC 60529
Ambient air temperature for operation -20-50 °C
Electromagnetic compatibility immunity for industrial environments conforming to IEC 61000-6-2, emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, emission standard for industrial environments conforming to IEC 61000-6-4
Non-dissipating shock wave 4 kV
Vibration resistance 1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1, 0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60255-21-1
Immunity to microbreaks 20 ms at 20.4 V
Dielectric test voltage 2 kV, 1 min AC 50 Hz
Standards IEC 60034-11-2, IEC 60255-6
Product certifications CSA, C-Tick, GOST, UL, GL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.300 cm
Package 1 Width 7.800 cm
Package 1 Length 9.500 cm
Package 1 Weight 127.000 g
Unit Type of Package 2 2
Number of Units in Package 2 48
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.900 kg
