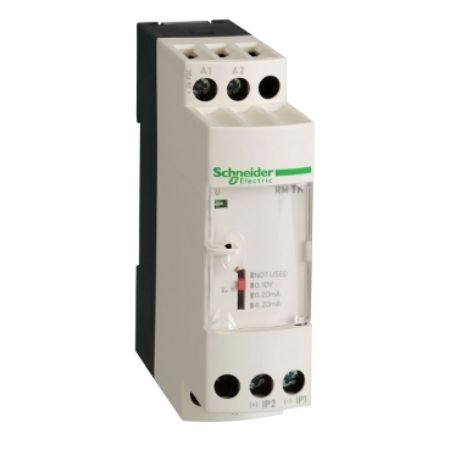

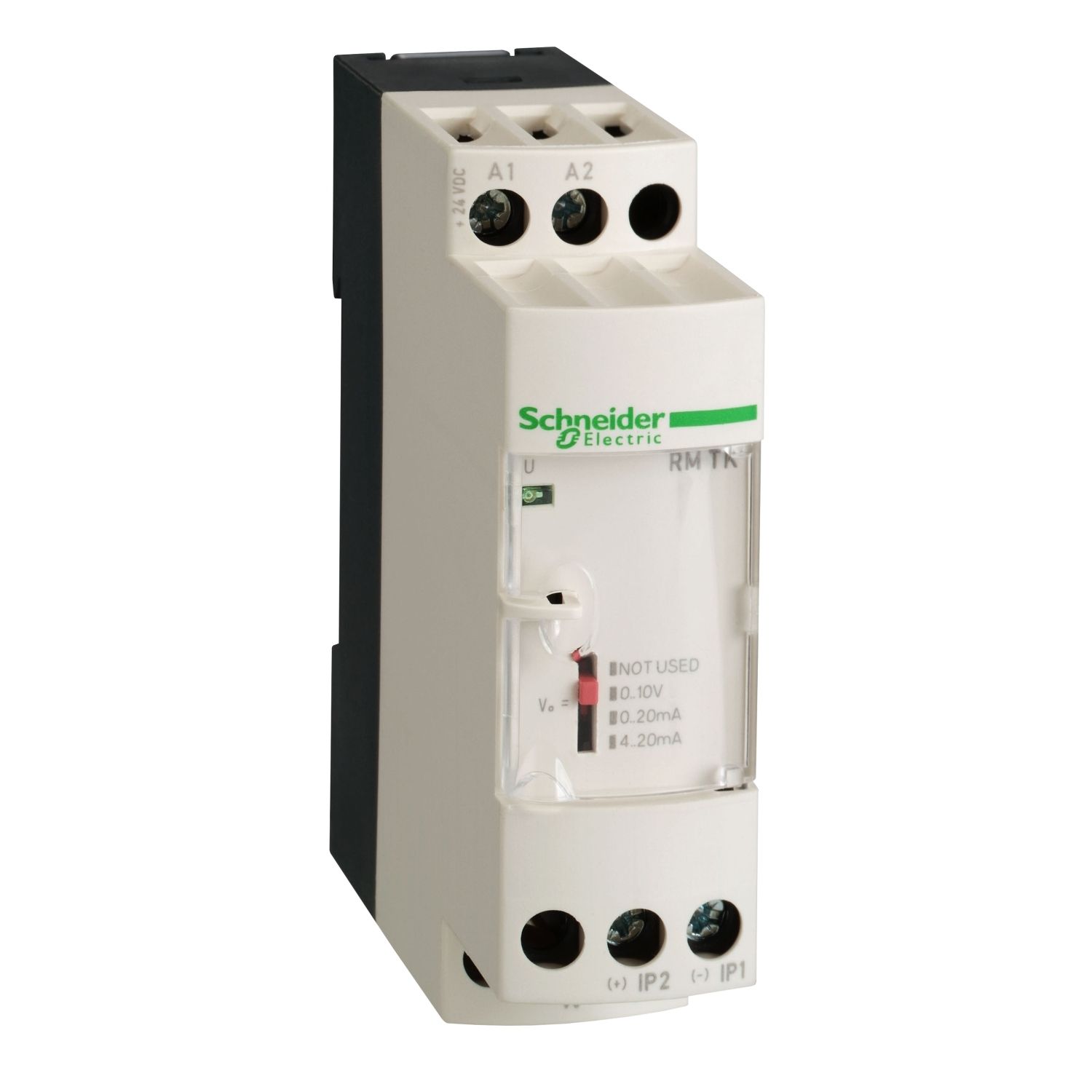

Picture of Converter for thermocouples, Harmony Analog, temperature transmitter, 0...600 degree COr 32...112 degree F
SKU:

RMTK80BD

Converter for thermocouples, Harmony Analog, temperature transmitter, 0...600 degree COr 32...112 degree F

$390.20
Available for Shipping : 10-Dec-2024
Converter for thermocouples, Harmony Analog, temperature transmitter, 0...600 degree COr 32...112 degree F
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
End of life manual
Catalogue
Technical illustration
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Range of product Harmony Analog
Analogue input type thermocouple 0...600 °C/32...1112 °F thermocouple K conforming to IEC 60584
Product or component type converter for thermocouples
Analogue output type voltage 0...10 V >= 100 kOhm, current 4...20 mA <= 500 Ohm, current 0...20 mA <= 500 Ohm
Complementary
Protection type short-circuit protection on output, reverse polarity protection on output, overvoltage protection on output (+/- 30 V)
Surge withstand 0.5 kV during 1.2/50 µs conforming to IEC 61000-4-5
Fixing mode clip-on (35 mm symmetrical DIN rail), by screws (mounting plate)
Marking CE
Clamping connection capacity 2 x 1.5 mm², 1 x 2.5 mm²
Measurement error +/- 1 % of full scale at 20 °C, +/- 10 % of full scale at 20 °C (electromagnetic interference of 10 V/m)
Safety reliability data B10d = 45447, MTTFd = 49.2 years
[Us] rated supply voltage 24 V DC +/- 20 %, non isolated
Repeat accuracy +/- 0.8 % full scale at 60 °C, +/- 0.25 % full scale at 20 °C
Analogue output current -30-0 mA when no input or input wire broken
Tightening torque 0.6-1.1 N.m
Temperature coefficient 200 ppm/°C
Local signalling LED (green) for power ON
Net weight 0.12 kg
Analogue output voltage 11...15 V when no input or input wire broken, -15...-11 V when no input or input wire broken
[Ui] rated insulation voltage 2 kV
Cold junction compensation built-in, measurement: between 0 and 60 °C
Current consumption <= 60 mA for current output, <= 40 mA for voltage output
Environment
Resistance to fast transients 2 kV (on power supply) conforming to IEC 61000-4-4, 1 kV (on input-output) conforming to IEC 61000-4-4
Fire resistance 850 °C conforming to UL, 850 °C conforming to IEC 60695-2-1
Resistance to electrostatic discharge 8 kV (in air) conforming to IEC 61000-4-2 level 3, 6 kV (in contact) conforming to IEC 61000-4-2 level 3
Ambient air temperature for storage -40-85 °C
Pollution degree 2 conforming to IEC 60664-1
Disturbance radiated/conducted CISPR 22 group 1 - class B, CISPR 11
IP degree of protection IP50 (housing), IP20 (terminal block)
Ambient air temperature for operation 0-60 °C 2 cm spacing, 0-50 °C mounting side by side
Vibration resistance 5 gn (f= 10-100 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27
Standards IEC 60947-1, IEC 60584-1
Product certifications GL, UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.7 cm
Package 1 Width 8.2 cm
Package 1 Length 8.5 cm
Package 1 Weight 101.0 g
Unit Type of Package 2 2
Number of Units in Package 2 47
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.245 kg
