SKU:

SEZ7260C5045B

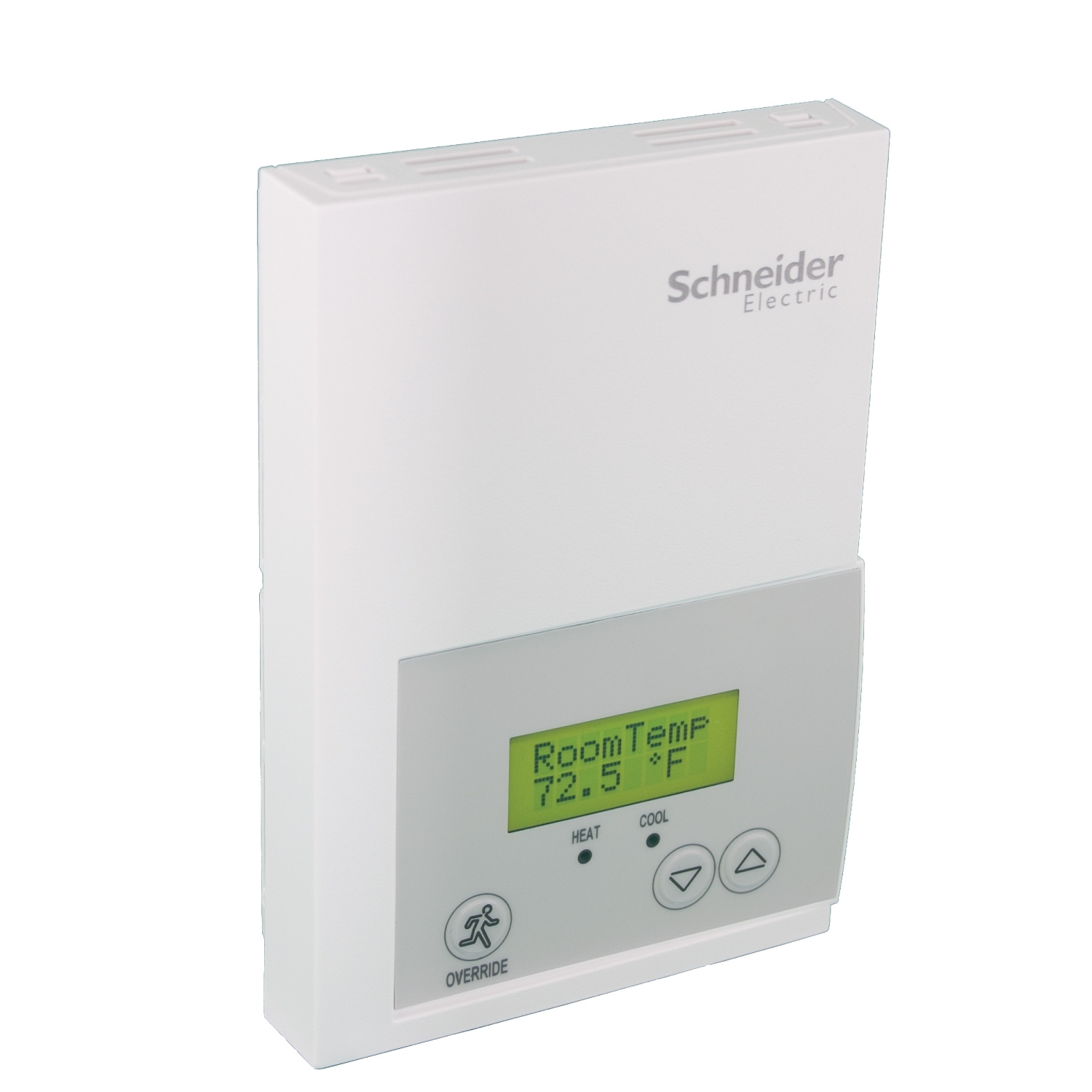

Zoning System Controller: BACnet, Floating Output

$685.63 INC GST

Qty:

Available for Shipping : 26-Jan-2026

Zoning System Controller: BACnet, Floating Output

Manufacturer: Schneider Electric

Delivery date: 26-Jan-2026

Brochure

Instruction sheet

Environmental Disclosure

Circularity Profile

Declaration of conformity

Product Page Link

Product Data Sheet

Zoning System Controller: BACnet, Floating Output

Attribute name	Attribute value
Main
Device short name	SEZ7000
Device application	zoning system
Depth	1.18 in
Market segment	residential
Width	3.42 in
Temperature setting range	54-100 °F cooling, 0.9-0.9 °F per step, 40-90 °F heating
Sensor type	10 kOhm T2 NTC thermistor
Relative humidity	0-95 % RH, non-condensing
Input voltage	0…10 V DC
Output current	3 A at 30 V (inrush), 1 A at 30 V (maximum)
Ambient air temperature for storage	-22-122 °F
AWG gauge	AWG 22...AWG 18
Directives	89/336/EEC - electromagnetic compatibility
Communication port protocol	BACnet MS/TP
Input type	1 x analog, 1 x universal, 2 x dry contact
Range	EcoStruxure Building Expert
Net weight	0.75 lb(US)
Product name	SE7000 Series
Output type	1 xintegrated damper actuator, 2 xtriac
Product or component type	zone controller
Output voltage	30 V AC
Standards	FCC part 15 Subpart B, CSA C22.2 No 24, UL 873, ICES-003
Ambient air temperature for operation	32-122 °F
Height	4.92 in
Storage Relative Humidity	0-95 % RH, non-condensing
Complementary
Device presentation	without cover
Rated operational power in VA	2 VA
Environment
Electrical insulation class	class II

Economizer	No
PIR cover	No
Humidity control	No
Scheduling	No
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	15.2 cm
Package 1 Width	10.1 cm
Package 1 Length	5.2 cm
Package 1 Weight	45.0 g
