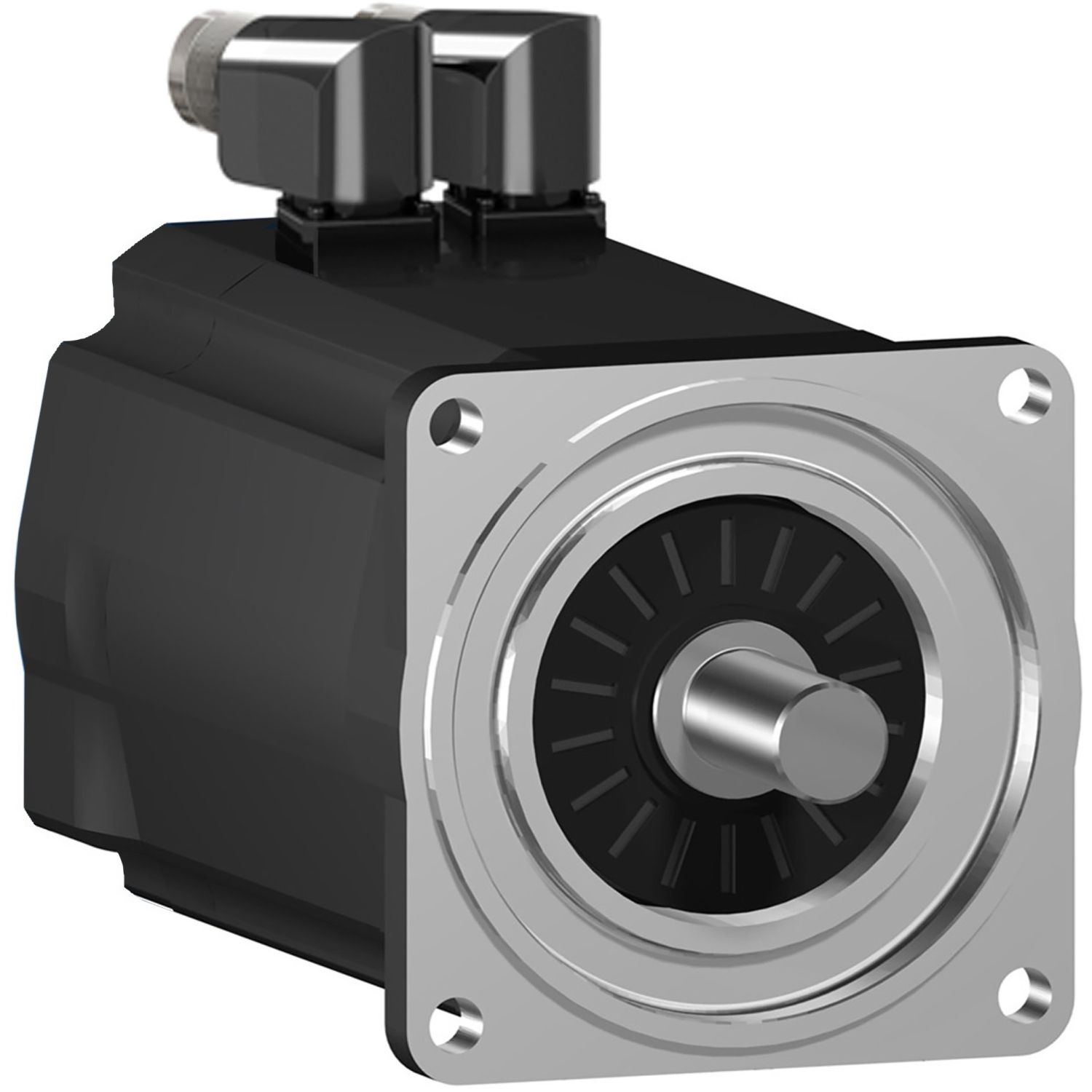

Picture of servo motor SH3 100 5,8Nm,key,single,nobrake,90°conn.IP54/IP65,6k RPM
SKU:

SH31002P11A2000

servo motor SH3 100 5,8Nm,key,single,nobrake,90°conn.IP54/IP65,6k RPM

$3,057.60
Available for Shipping : 05-Jan-2025
servo motor SH3 100 5,8Nm,key,single,nobrake,90°conn.IP54/IP65,6k RPM
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Catalogue
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Lexium 52 & Motors range, an offer of servo motors for PacDrive 3. The 4-pole servo motor features maximum mechanical speed of 6000RPM and parallel key shaft end without holding brake. It is an equipped with an absolute single-turn SinCos Hiperface® encoder with 128 periods speed feedback resolution. It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 4.8A and a continuous power of 1900W. The shaft dimensions are 19mm (diameter) x 40mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP54 and IP65 rated product. The length of this product is 204.5mm and the centering collar dimensions are 3.5mm (depth) x 95mm (diameter) with 115mm mounting hole. It weighs 5.8kg. This range is compatible with PacDrive 3 for motion centric machines. It supports 100mm international standard flange mount with a natural convection cooling system. Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.

Products specifications

Attribute name Attribute value
Main
Device short name SH3.....P
Range compatibility PacDrive 3
Product or component type servo motor
Complementary
Temperature copper hot 130 °C
Continuous stall torque 5.8 N.m at 115...480 V three phase
Torque constant 1.21 N.m/A at 120 °C
Network number of phases 3, three phase
Nominal torque 4.4 N.m at 480 V three phase, 4.6 N.m at 400 V three phase, 5.2 N.m at 230 V single phase, 5.5 N.m at 115 V single phase
Continuous stall current 4.8 A
Stator resistance 2.4 Ohm
Electrical connection rotatable right angled connector
Nominal speed 4800 rpm at 480 V three phase, 4000 rpm at 400 V three phase, 2000 rpm at 230 V single phase, 1000 rpm at 115 V single phase
IP degree of protection IP65 shaft bushing: conforming to EN/IEC 60034-5, IP65 motor: conforming to EN/IEC 60034-5, IP54 shaft bushing without shaft seal ring: conforming to EN/IEC 60034-5
Shaft end parallel key
Type of cooling natural convection
Mounting holes diameter 9.0 mm
Nominal output power 2210 W at 480 V three phase, 1930 W at 400 V three phase, 1090 W at 230 V single phase, 580 W at 115 V single phase
Shaft diameter 19 mm
Key width 6 mm
Peak stall torque 18.3 N.m at 115...480 V three phase
Number of mounting holes 4
[Us] rated supply voltage 115...480 V
Motor flange size 100 mm
Stator inductance 19.5 mH
Centring collar diameter 95 mm
Sizing reference SH31002P
Maximum current Irms 17.1 A
Net weight 5.8 kg
Length 204.5 mm
Output current 3s peak 2 15 A
Shaft length 40 mm
Speed feedback resolution 128 periods
Holding brake without
Centring collar depth 3.5 mm
Maximum axial force Fa 160 N
Back emf constant 77 V/krpm at 20 °C
Number of motor poles 4
Rotor inertia 2.31 kg.cm²
Mounting support international standard flange
Encoder type absolute single turn SinCos Hiperface
Maximum radial force Fr 620 N at 4000 rpm, 690 N at 3000 rpm, 790 N at 2000 rpm, 990 N at 1000 rpm
Maximum mechanical speed 6000 rpm
Continuous power 1900 W
Circle diameter of the mounting holes 115 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 30.0 cm
Package 1 Width 30.0 cm
Package 1 Length 40.0 cm
Package 1 Weight 6.6 kg
