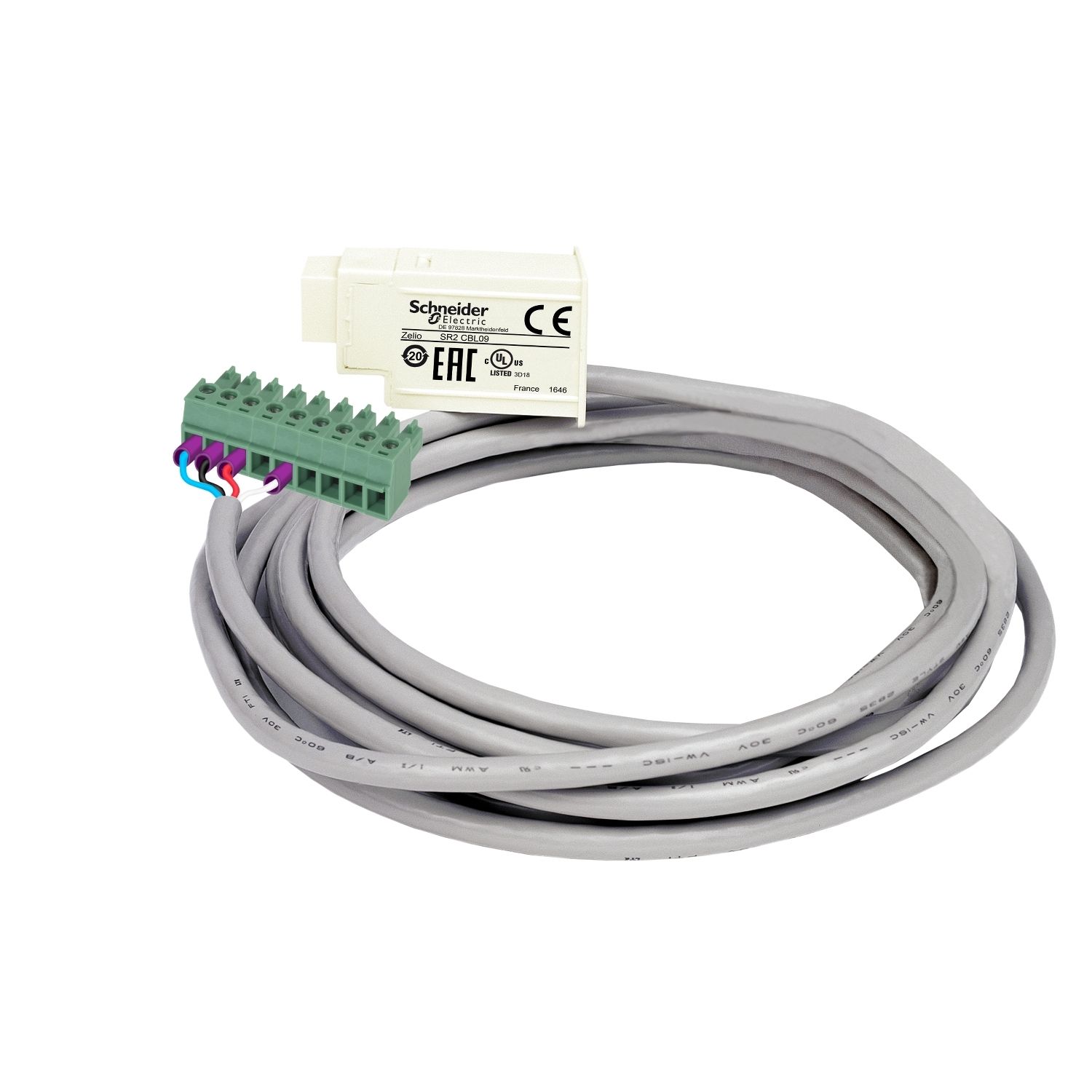

Picture of connecting cable, Zelio Logic Sr2 SR3, Magelis small panel, for smart relay
SKU:

SR2CBL09

connecting cable, Zelio Logic Sr2 SR3, Magelis small panel, for smart relay

$168.71
connecting cable, Zelio Logic Sr2 SR3, Magelis small panel, for smart relay
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Catalogue
Product environmental
End of life manual
User guide
Product Page Link
Product Data Sheet
This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. This connecting cable enables to link Magelis small panel to Zelio Logic smart relay. The length of this cable is 2.5m. This connecting cable is equipped with 3-pin connector and 9-pin terminal block. It offers RS232 physical interface. It is suitable for use with Vijeo Designer software and to link Magelis small panel to smart relay. This product is compatible with Zelio Logic compact and modular smart relay HMISTO501. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.

Products specifications

Attribute nameAttribute value
Main
Accessory / separate part destinationfor smart relay
Accessory / separate part typeconnecting cable
Product specific applicationto link Magelis small panel to smart relay, to be used with Vijeo Designer software
Accessory / separate part categoryconnection accessories
Range of productZelio Logic
Complementary
Product compatibilityHMISTO705, HMISTO501, Zelio Logic compact and modular smart relay
Physical interfaceRS232
Connector type9-pin terminal block, 3-pin for a programming terminal
Cable length2.5 m
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height1.0 cm
Package 1 Width14.0 cm
Package 1 Length15.0 cm
Package 1 Weight72.0 g
Unit Type of Package 22
Number of Units in Package 230
Package 2 Height15.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight2.466 kg
