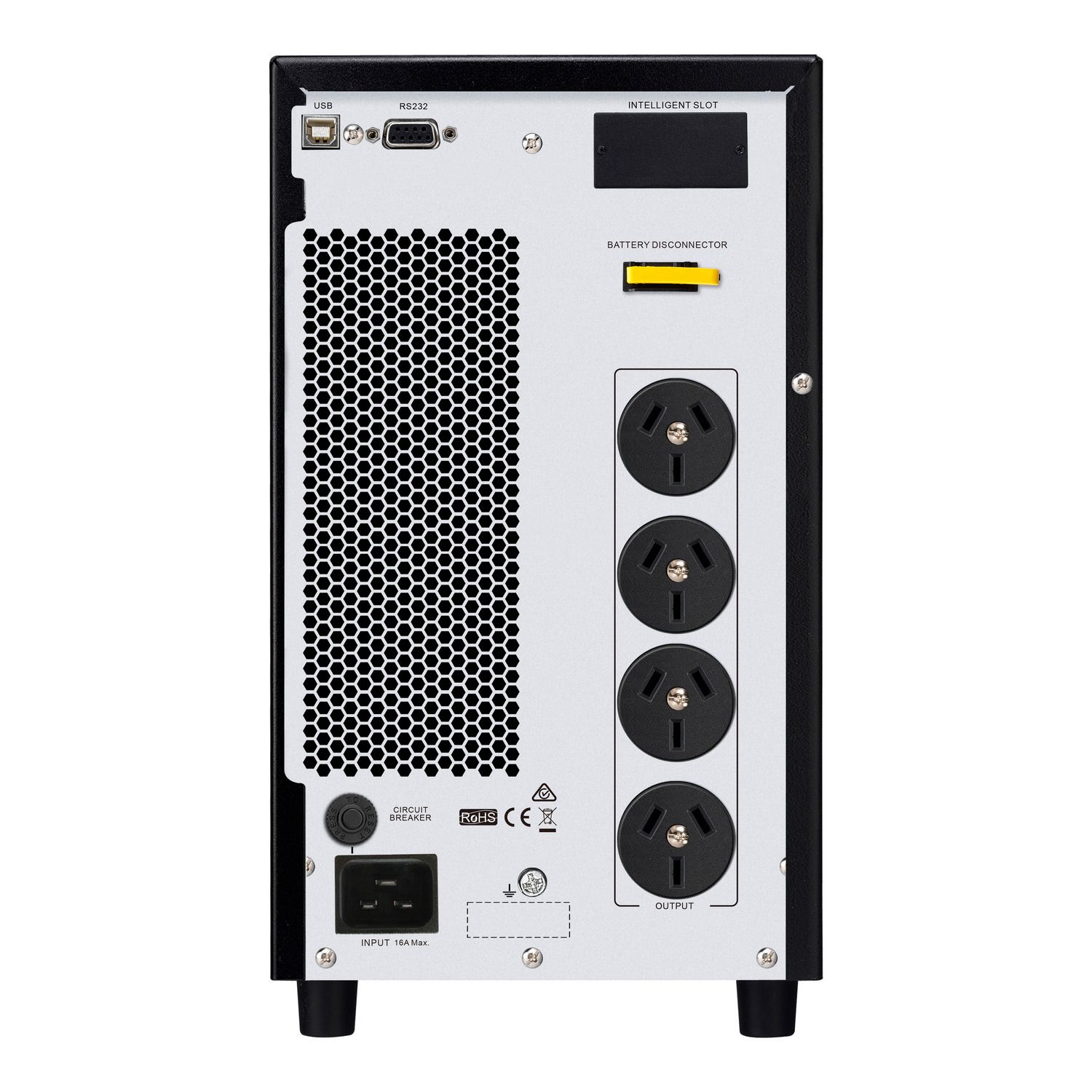

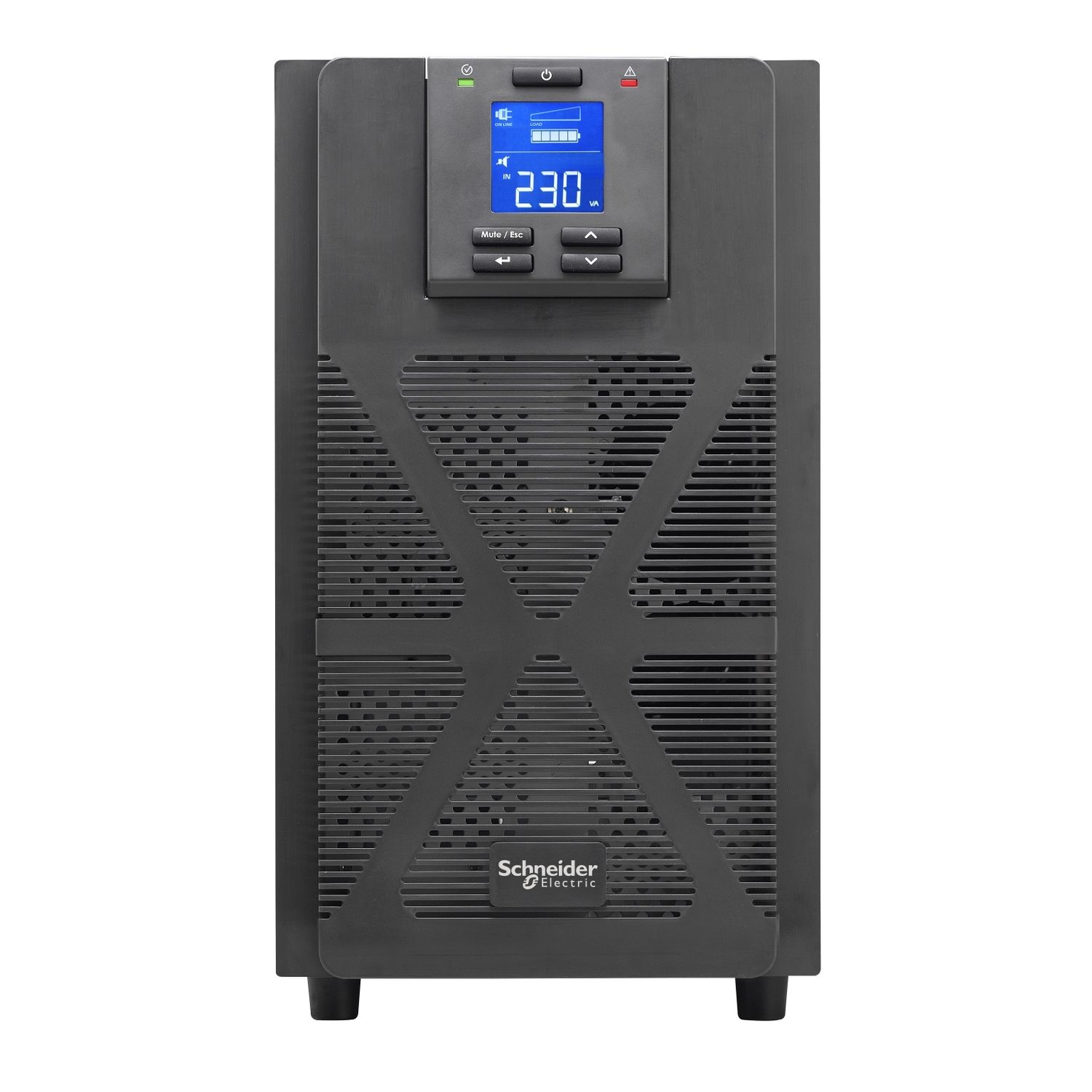

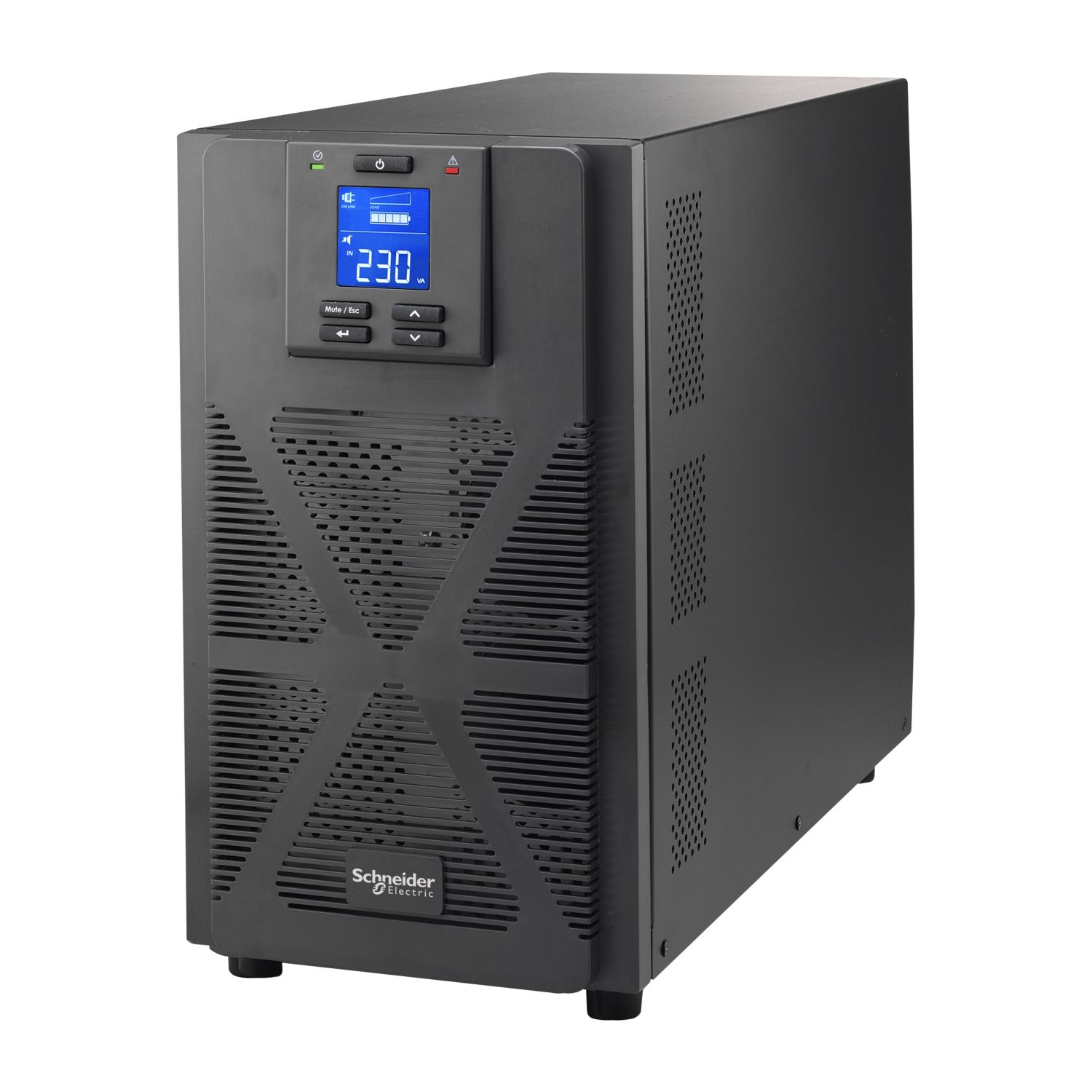

Picture of Easy UPS 1 Ph On-Line, Tower, 3kVA, 230V, 4x Australian outlets, Intelligent Card Slot, LCD
SKU:

SRVS3KI-AZ

Easy UPS 1 Ph On-Line, Tower, 3kVA, 230V, 4x Australian outlets, Intelligent Card Slot, LCD

Please Contact Sales to buy this Product. click here
Easy UPS 1 Ph On-Line, Tower, 3kVA, 230V, 4x Australian outlets, Intelligent Card Slot, LCD
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 07-Mar-2025
User guide
Catalogue
Product Page Link
Product Data Sheet
For small to medium businesses, Schneider Electric offers this single phase Easy UPS designed for essential power protection needs even in the most unstable power conditions. This 3kVA double-conversion on-line tower UPS provides pure sine wave power to handle a wide voltage range and inconsistent power conditions. The SRVS comes with IEC 320 C20 input and 4x Australian outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGLS9901I) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRVS UPS is compatible with replacement battery cartridge APCRBCV205. The Easy UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

Products specifications

Attribute nameAttribute value
Main
Output voltage240 V, 220 V
Provided equipmentuser manual, 1 RS-232 configuration cable, 1 USB cable, 1 IEC 60320 C19 to Australian power cable
Rated power in W2400 W
Main Input Voltage230 V
Rated power in VA3000 VA
Product or component typeuninterruptible power supply (UPS)
Cable length4.86 ft
Number of cables1
Input voltage240 V, 220 V
Curve proportional loss0.0341
UPS typedouble conversion online
Output voltage230 V
Number of tare power32 W
Curve load minimum2 %
Number of battery free slots0
Curve square loss0.0319
Curve X-axis titleload
Curve X-axis minimum0 %
Curve Y-axis maximum100 %
Curve Y-axis unitspercentage
Output connection type4 Australian
Liquid value0
Wave typesine wave
Mounting preferenceno preference
Battery charger power118 W rated
Output frequency50/60 Hz +/- 3 Hz sync to mains
Number of battery filled slots0
Surge energy rate600 J
Curve Y-axis minimum50 %
Battery power in VAH473 VAh runtime
Curve fixed loss0.0176
Curve X-axis maximum100 %
Curve X-axis unitspercentage
Curve load maximum100 %
Curve test cond IDCurve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced resistive load (PF = 1.0) output.
Battery recharge time4 h
UPS sizeWS
Number of power module filled slots0
Input Connection TypeIEC 60320 C20
RedundantNo
Battery curveD
Curve Y-axis titleefficiency
Show note OP temperatureNo
Maximum configurable power in VA3000 VA
Maximum configurable power in W2400 W
Curve equationefficiency
Number of power module free slots0
Environmental
Operating altitude0...3000 m
Acoustic level50 dBA
Relative humidity0-95 % non-condensing
Ambient air temperature for storage-20-50 °C
IP degree of protectionIP20
Storage altitude0-15000 m
Ambient air temperature for operation0-40 °C
Storage Relative Humidity0-95 % non-condensing
Physical
Depth42.5 cm
Width19 cm
Colourblack (RAL 7010)
Mounting positionvertical
Mounting modenot rack-mountable
Mounting locationfront
Net weight26.8 kg
USB compatibleNo
Height33.6 cm
Input
Input voltage limits160...280 V full load, 110...285 V half load
Network frequency40...70 Hz auto sensing
Output
Efficiency88 % (full load)
Crest factor3 : 1
Graph display1
Bypass typeinternal bypass (automatic and manual)
Conformance
StandardsEN/IEC 62040-2:2018, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-1:2019/A11:2021
Product certificationsCE
Batteries & Runtime
Battery design life2 year(s)
Battery typelead-acid battery
Battery voltage72 V
UPS design life3 year(s)
Battery life3-5 year(s)
Communications & Management
Control panelmultifunction LCD status and control console
Free slots1
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height46.5 cm
Package 1 Width32.5 cm
Package 1 Length56.5 cm
Package 1 Weight29 kg
