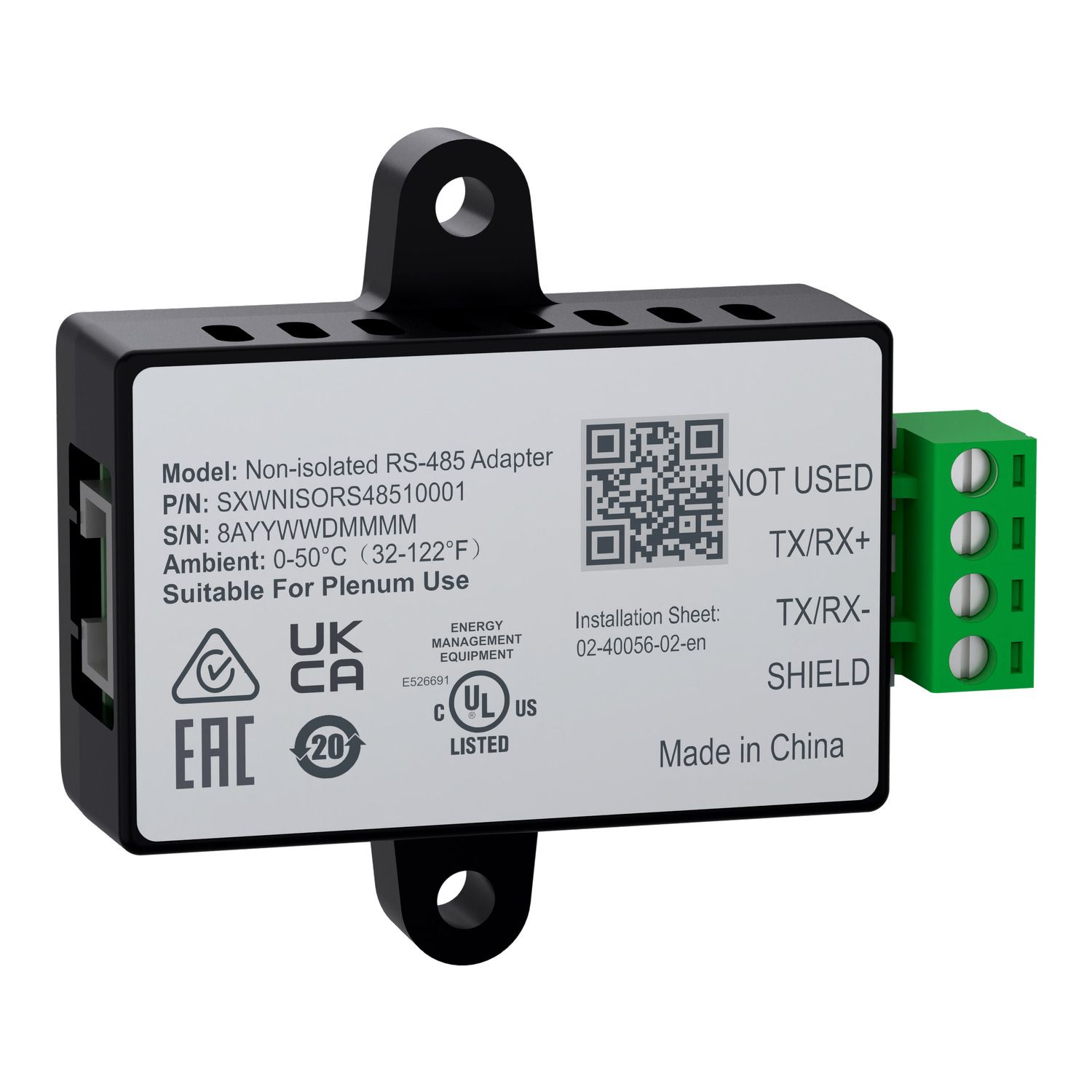

Picture of Non-isolated RS-485 adapter, SpaceLogic
SKU:

SXWNISORS48510001

Non-isolated RS-485 adapter, SpaceLogic

$64.68
Available for Shipping : 10-Dec-2024
Non-isolated RS-485 adapter, SpaceLogic
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Declaration of conformity
CAD
Product Page Link
Product Data Sheet
This SpaceLogic adapter is a non-isolated RJ45 to screw terminal adapter. It connects SpaceLogic controllers to a BACnet MS/TP network or for connecting BACnet MS/TP devices to the SpaceLogic controller. It can replace a failed MS/TP controller with IP controller using the same network infrastructure. The adapter has a 24 VDC input. Its dimensions are 2.63 inches in width, 0.85 inches in depth, 0.96 inches in height. The adapter is UL2043 certified and the ingress protecton rating is IP20. It can be mounted in the plenum. This adapter is compatible with SpaceLogic RP and MP controllers.

Products specifications

Attribute name Attribute value
Main
Range SpaceLogic
Product or component type RS485 converter
Complementary
Depth 24.5 mm
Width 66.8 mm
Net weight 0.040 kg
Height 74.3 mm
Environment
Ambient air temperature for operation 0-50 °C
Range SpaceLogic
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.35 cm
Package 1 Width 6.68 cm
Package 1 Length 6.3 cm
Package 1 Weight 48.5 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 4.85 kg
