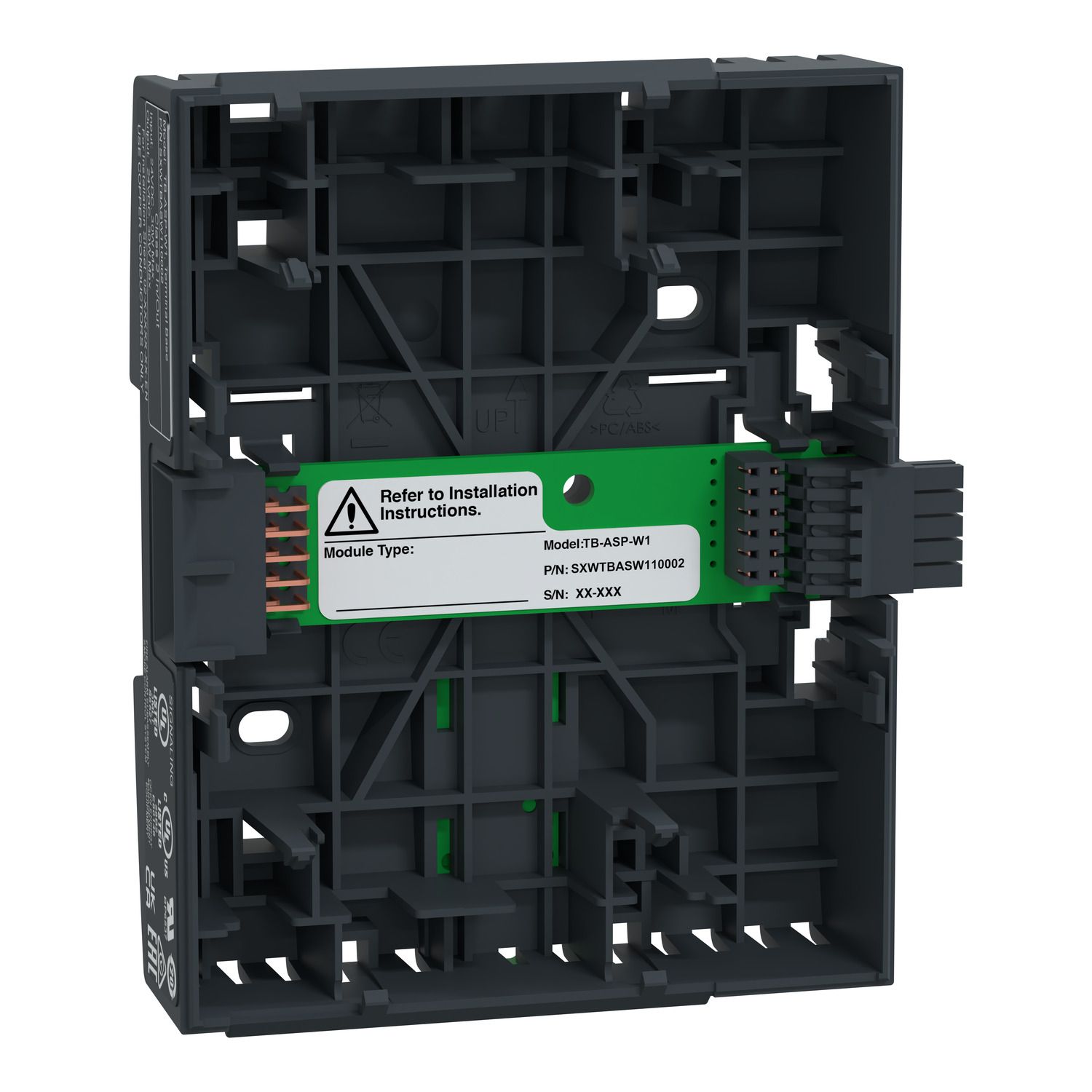

Picture of Terminal base, SpaceLogic, required for AS-P
SKU:

SXWTBASW110002

Terminal base, SpaceLogic, required for AS-P

Please Contact Sales to buy this Product. click here
Terminal base, SpaceLogic, required for AS-P
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 26-Sep-2024
Declaration of conformity
CAD
End of life manual
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet
The SpaceLogic TB-ASP-W1 is the terminal base for the AS-P Servers. Its dimensions are 114 mm (4.5 in.) in height, 90 mm (3.6 in.) in width and 64 mm (2.5 in.) in depth. Plastic flame rating is UL94-5VB and the ingress protecton rating is IP20. This terminal base is required for all SpaceLogic AS-P models.

Products specifications

Attribute nameAttribute value
Main
Device short nameTB-ASP-W1
Width90 mm
Electrical connectionconnector
RangeEcoStruxure Building Operation
Product or component typeterminal base
Fixing modeby claws
Height114 mm
Complementary
Quantity per set1
Number of slots1
Product brandSchneider Electric
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height4.2 cm
Package 1 Width10.5 cm
Package 1 Length11.8 cm
Package 1 Weight100.4 g
