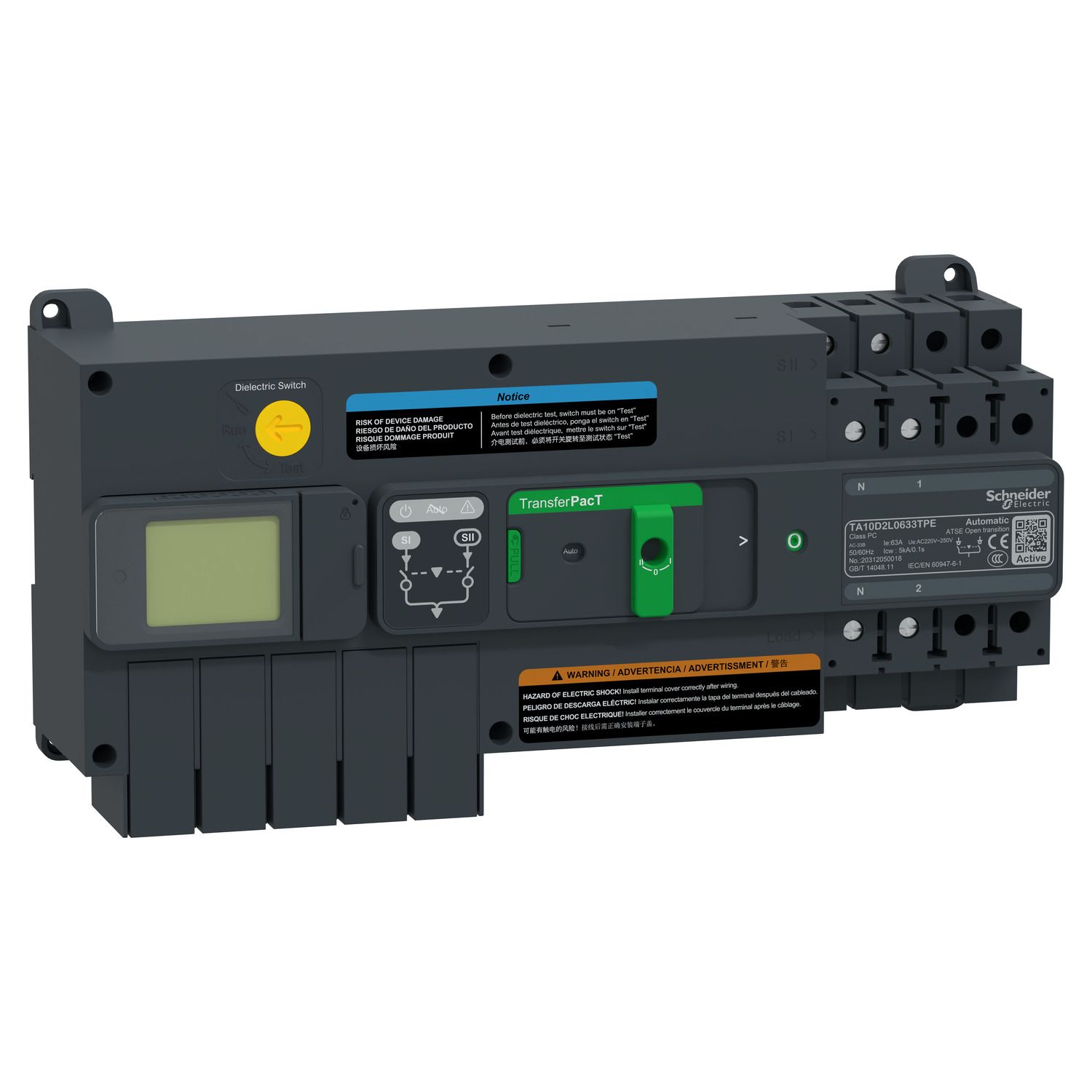

Picture of active automatic transfer switch, TransferPacT Active automatic, 63A, 2P, LCD, frame 100A
SKU:

TA10D2L0633TPE

active automatic transfer switch, TransferPacT Active automatic, 63A, 2P, LCD, frame 100A

$2,949.41 INC GST
Available for Shipping : 30-Jan-2025
Product Selector
active automatic transfer switch, TransferPacT Active automatic, 63A, 2P, LCD, frame 100A
  • Speedy transfer in under 500 ms, reducing blackout time.
  • Cybersecurity level SL1 per IEC62443-4-2 (TBC) ensures secure monitoring.
  • Modular design with multiple functions allows easy upgrades to digital features.
  • Compact structure saves space.
  • Broad threshold settings range for enhanced adaptability.
  • High AC-33B utilization category, with no derating required.
  • Rated short-time withstand current (Icw) of 5kA for 0.1s.
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Instruction sheet
Technical illustration
Catalogue
Declaration of conformity
End of life manual
User guide
Technical illustration
Product Page Link
Product Data Sheet

The TA10D2L0633TPE is a low-voltage power transfer switch designed for use in industrial and commercial buildings, data centers, healthcare facilities, and the transportation sector. It operates at a rated voltage (Ue) of 220VAC at 50/60Hz and belongs to the AC-33B utilization category. The switch supports a rated current (Ie) of 63A at 60℃, with a frame range of 32-100A.

An LCD display module is integrated into the front panel to show status information, set alarms, and allow control via push buttons. The transfer switch offers three contact positions, indicated both mechanically and electrically on the front panel. It can be mounted on a DIN rail or a plate and installed within a power distribution cabinet. Additionally, it comes with optional accessories to accommodate various application scenarios.

This two-pole version measures 306mm in width, 145mm in height, and 94.5mm in depth. It complies with the IEC 60947-6-1 standard and is certified by CE, CB, and CCC. The switch is ideal for power transfer applications involving life safety loads such as firefighting equipment, smoke extract fans, sprinkler pumps, emergency lighting, and similar systems.
