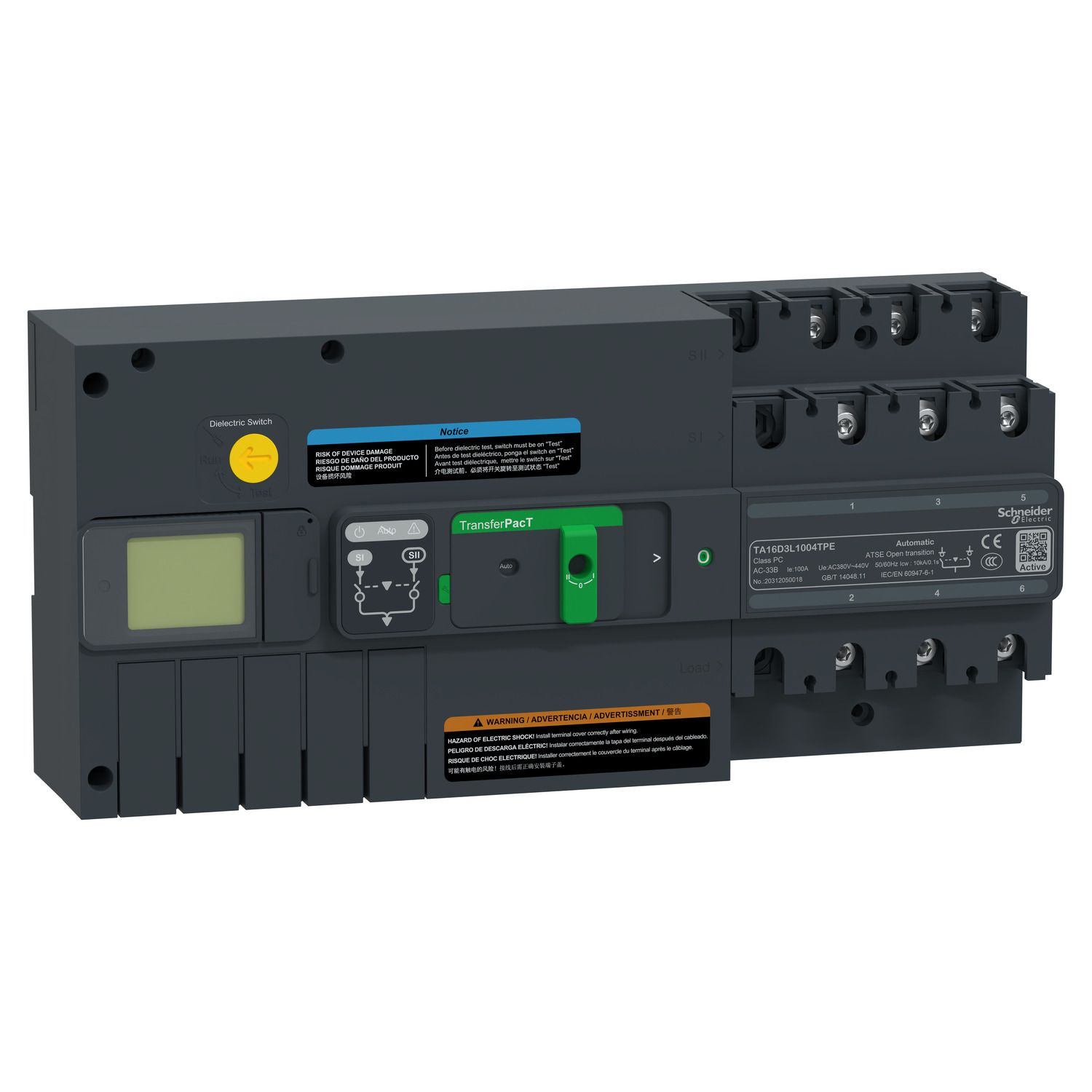

Picture of active automatic transfer switch, TransferPacT Active automatic, 100A, 3P, LCD, frame 160A
SKU:

TA16D3L1004TPE

active automatic transfer switch, TransferPacT Active automatic, 100A, 3P, LCD, frame 160A

$4,513.49
Available for Shipping : 10-Dec-2024
Product Selector
active automatic transfer switch, TransferPacT Active automatic, 100A, 3P, LCD, frame 160A
  • Speedy transfer in less than 500 ms,reduced black out time
  • Cybersecurity level SL1 as per IEC62443-4-2 (TBC),secured monitoring
  • Multiple function modules,easy upgrade with digital features
  • Space saving as compact design
  • Wide range to do threshold settings
  • High utilization category AC-33B full range without derating
  • High rated short time withstand current Icw=5kA/0.1s
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Instruction sheet
End of life manual
Catalogue
User guide
Technical illustration
Technical illustration
Declaration of conformity
Product Page Link
Product Data Sheet
This TA16D3L1004TPE is a low voltage power transfer switch used in industrial and commercial buildings, data centers, healthcare facilities and transportation industry. The rated operational voltage(Ue) is 400VAC@50/60Hz. This change source is AC-33B utilization category. The rated current(Ie) can be loaded 100A(Ie) at 60℃, with 80-160A frame. The front has a inbuit LCD display module which is used for displaying status and alarm setting, and control by push button. This transfer switch provided 3 contact postion to the front by mechanical and electrical indication. It can be fixed on the Din rail or plate and position it inside of power distribution cabinet. It also has some optional accessories in terms of different application scene. This 3poles version is 351mm(width)x164mm(height)x95mm(depth). It is compliance with standard IEC 60947-6-1, and certified by CE/CB/CCC. It is suitable for power transfer of life safety loads like Fire-fighting equipment, Smoke Extract Fans, Sprinkler pumps,emergency lights etc.
