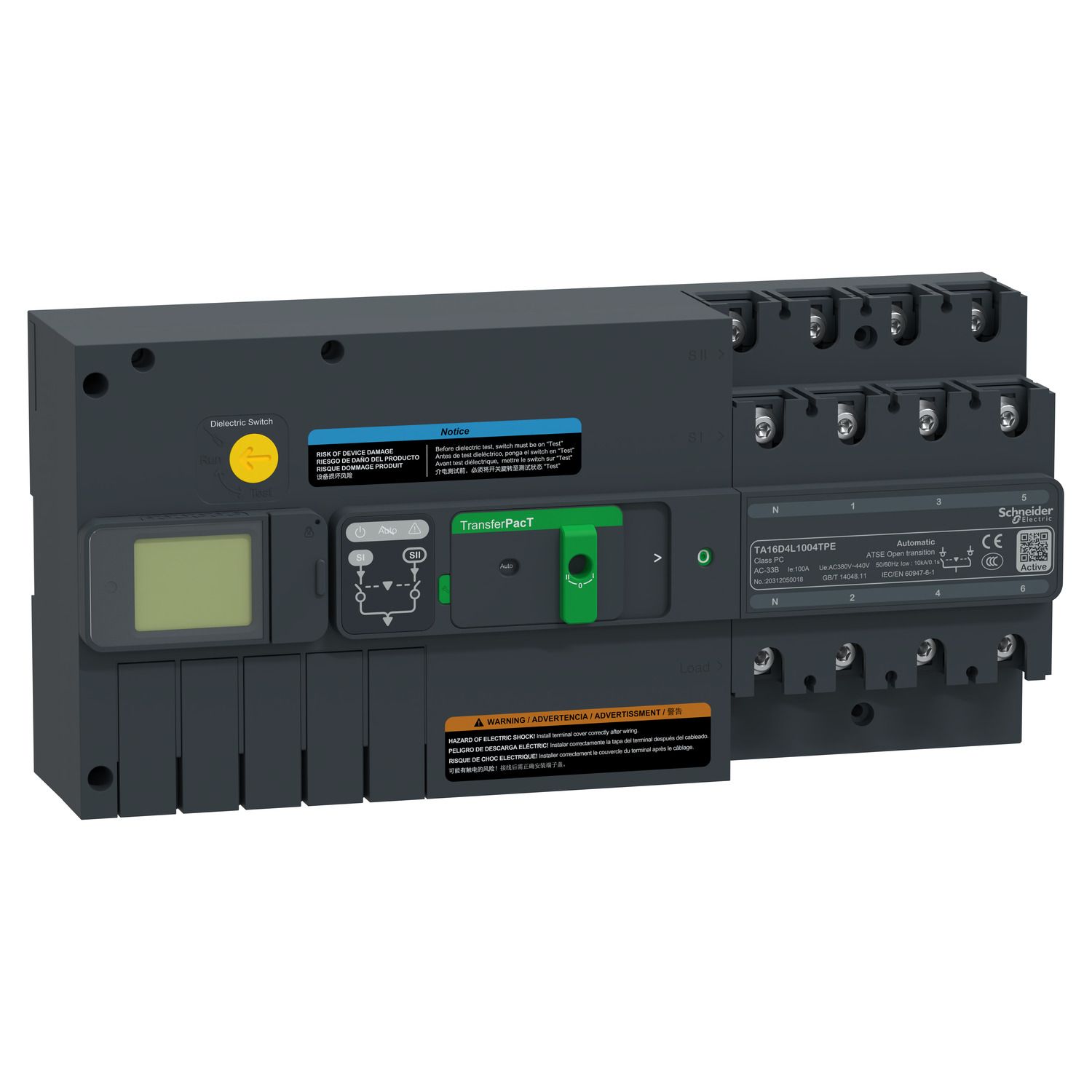

Picture of active automatic transfer switch, TransferPacT Active automatic, 100A, 4P, LCD, frame 160A
SKU:

TA16D4L1004TPE

active automatic transfer switch, TransferPacT Active automatic, 100A, 4P, LCD, frame 160A

$4,953.31
Available for Shipping : 10-Dec-2024
Product Selector
active automatic transfer switch, TransferPacT Active automatic, 100A, 4P, LCD, frame 160A
  • Speedy transfer in less than 500 ms,reduced black out time
  • Cybersecurity level SL1 as per IEC62443-4-2 (TBC),secured monitoring
  • Multiple function modules,easy upgrade with digital features
  • Space saving as compact design
  • Wide range to do threshold settings
  • High utilization category AC-33B full range without derating
  • High rated short time withstand current Icw=5kA/0.1s
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Instruction sheet
End of life manual
Catalogue
Declaration of conformity
User guide
Technical illustration
Technical illustration
Product Page Link
Product Data Sheet
This TA16D4L1004TPE is a low voltage power transfer switch used in industrial and commercial buildings, data centers, healthcare facilities and transportation industry. The rated operational voltage(Ue) is 400VAC@50/60Hz. This change source is AC-33B utilization category. The rated current(Ie) can be loaded 100A(Ie) at 60℃, with 80-160A frame. The front has a inbuit LCD display module which is used for displaying status and alarm setting, and control by push button. This transfer switch provided 3 contact postion to the front by mechanical and electrical indication. It can be fixed on the Din rail or plate and position it inside of power distribution cabinet. It also has some optional accessories in terms of different application scene. This 4poles version is 351mm(width)x164mm(height)x95mm(depth). It is compliance with standard IEC 60947-6-1, and certified by CE/CB/CCC. It is suitable for power transfer of life safety loads like Fire-fighting equipment, Smoke Extract Fans, Sprinkler pumps,emergency lights etc.

Products specifications

Attribute name Attribute value
Main
Device application change source of supply
Suitability for isolation yes
Mounting mode fixed
Upside connection screwed
Downside connection screwed
Range of product TransferPacT
Poles description 4P
[Icm] rated short-circuit making capacity 20 kA switch-disconnector alone 400 V AC at 50 Hz, 154 kA with upstream protection circuit breaker 400 V AC at 50 Hz
Product or component type automatic transfer switch
Network type AC
Contact position indicator yes
Network frequency 50/60 Hz
Complementary
Rated duty uninterrupted
[Icw] rated short-time withstand current 10 kA during 0.1 s
Display type LCD screen
[Uimp] rated impulse withstand voltage controller: 6 kV, switch: 8 kV
[Ie] rated operational current 100 A
Control type 4 push-buttons
Locking options description padlock in OFF position
[Ith] conventional free air thermal current 100 A at 60 °C
Connection pitch 30 mm
Height 164 mm
Number of contact position 3
Depth 95 mm
Transfer switch class PC
Width 351 mm
Mechanical interlocking with mechanical interlocking
Mechanical durability 10000 cycles
[Ui] rated insulation voltage controller: 500 V, switch: 800 V
Utilisation category AC-33B
Signal contacts composition 2 NO, 1 NC + 2 NO, 1 NO + 2 NC
Net weight 5.6 kg
Operating mode manual, automatic
Mounting support DIN rail, plate
[Ue] rated operational voltage 400 V AC 50/60 Hz
Environment
Ambient air temperature for storage -35-85 °C
Pollution degree 3
IP degree of protection inside the enclosure: IP20 manual mode, front face: IP40 auto mode
Ambient air temperature for operation -25-70 °C
Standards IEC 60947-6-1
Product certifications CCC, CB, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 30 cm
Package 1 Width 40 cm
Package 1 Length 60 cm
Package 1 Weight 7.204 kg
