SKU:

TCSECU3M3M2S4

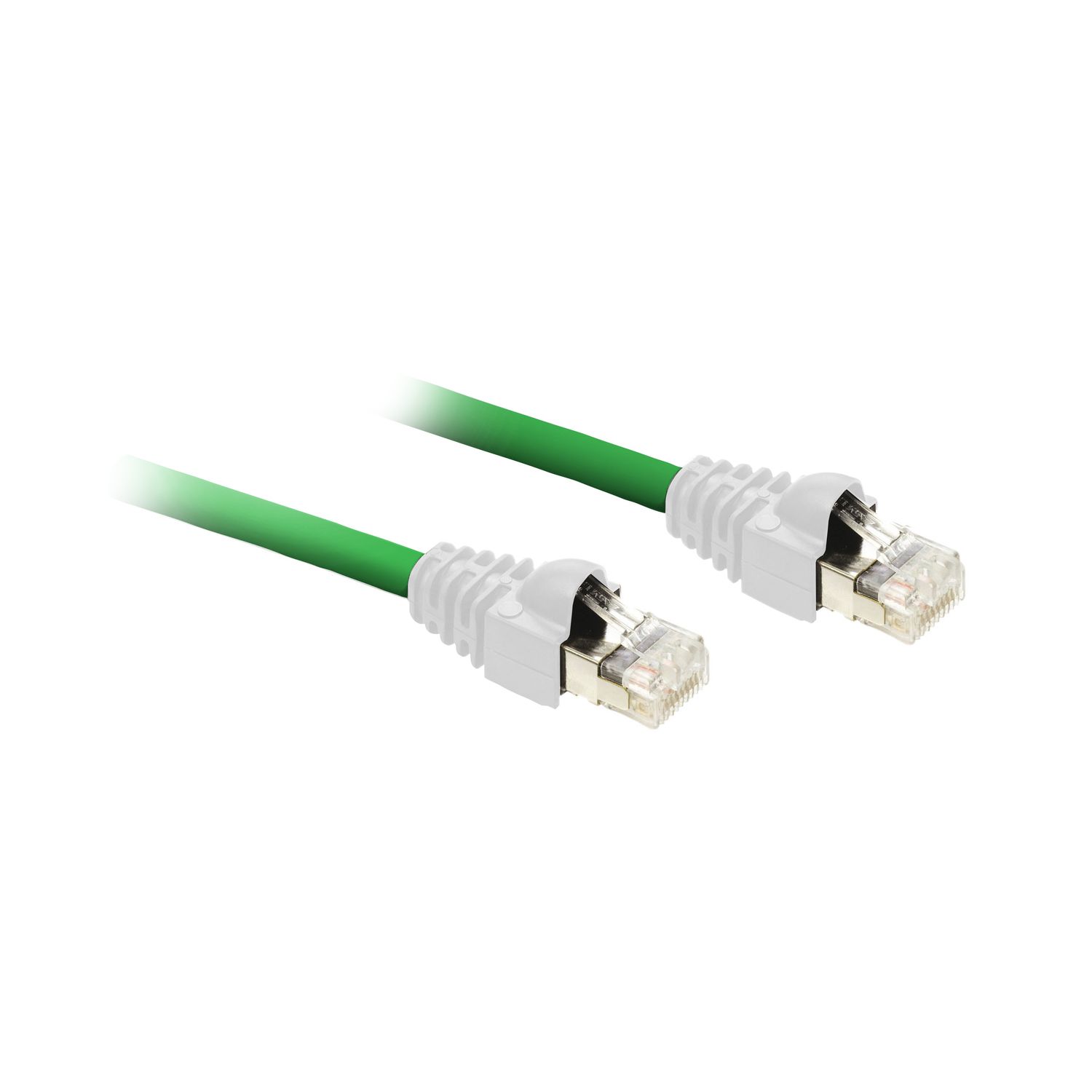

cable, Modicon Networking, ethernet cable, shielded twisted pair, 2 ends in rugged RJ45, UL, 2 m

$241.07
Available for Shipping : 10-Dec-2024
cable, Modicon Networking, ethernet cable, shielded twisted pair, 2 ends in rugged RJ45, UL, 2 m
Manufacturer: Schneider Electric
This product is part of the accessory/connection components for Modicon Switch. It is shielded twisted pair cable for connection to terminal equipment (DTE). This rugged cable comes with 2 RJ45 connectors and is specially designed for use in harsh industrial environments. It is compatible for UL market. This connector comes with IP20 degree of protection. The length of this cable is 2 meters. It conforms to EN 50173 class D, EIA/TIA-568 category CAT 5E, IEC 11801 class D, CMG FT4, UL 444 standards. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination Ethernet network
Accessory / separate part type connecting cable
Product or component type shielded twisted pair straight cable
Accessory / separate part category connection accessories
Cable length 2 m
Range of product ConneXium
Complementary
Cover material PVC
Communication network category 5e
Electrical connection 2 connectors, RJ45 straight connector with 8 pin(s)
AWG gauge AWG 24
Transmission support medium twisted shielded pairs cable
Marking UL
Environment
IP degree of protection IP20
Standards UL 444, CMG FT4, IEC 11801 class D, EIA/TIA-568 category CAT 5E, EN 50173 class D
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.000 cm
Package 1 Width 20.000 cm
Package 1 Length 22.000 cm
Package 1 Weight 126.000 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.810 kg
