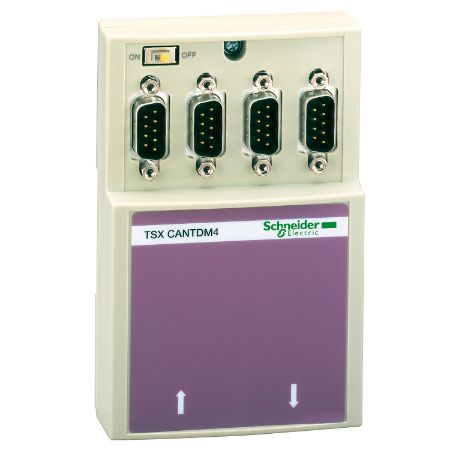

Picture of IP20 CANopen tap junction box - 1 screw terminal block and 4 SUB-D9
SKU:

TSXCANTDM4

IP20 CANopen tap junction box - 1 screw terminal block and 4 SUB-D9

$294.00 INC GST
Available for Shipping : 11-Feb-2025
IP20 CANopen tap junction box - 1 screw terminal block and 4 SUB-D9
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
User guide
Instruction sheet
Product Page Link
Product Data Sheet

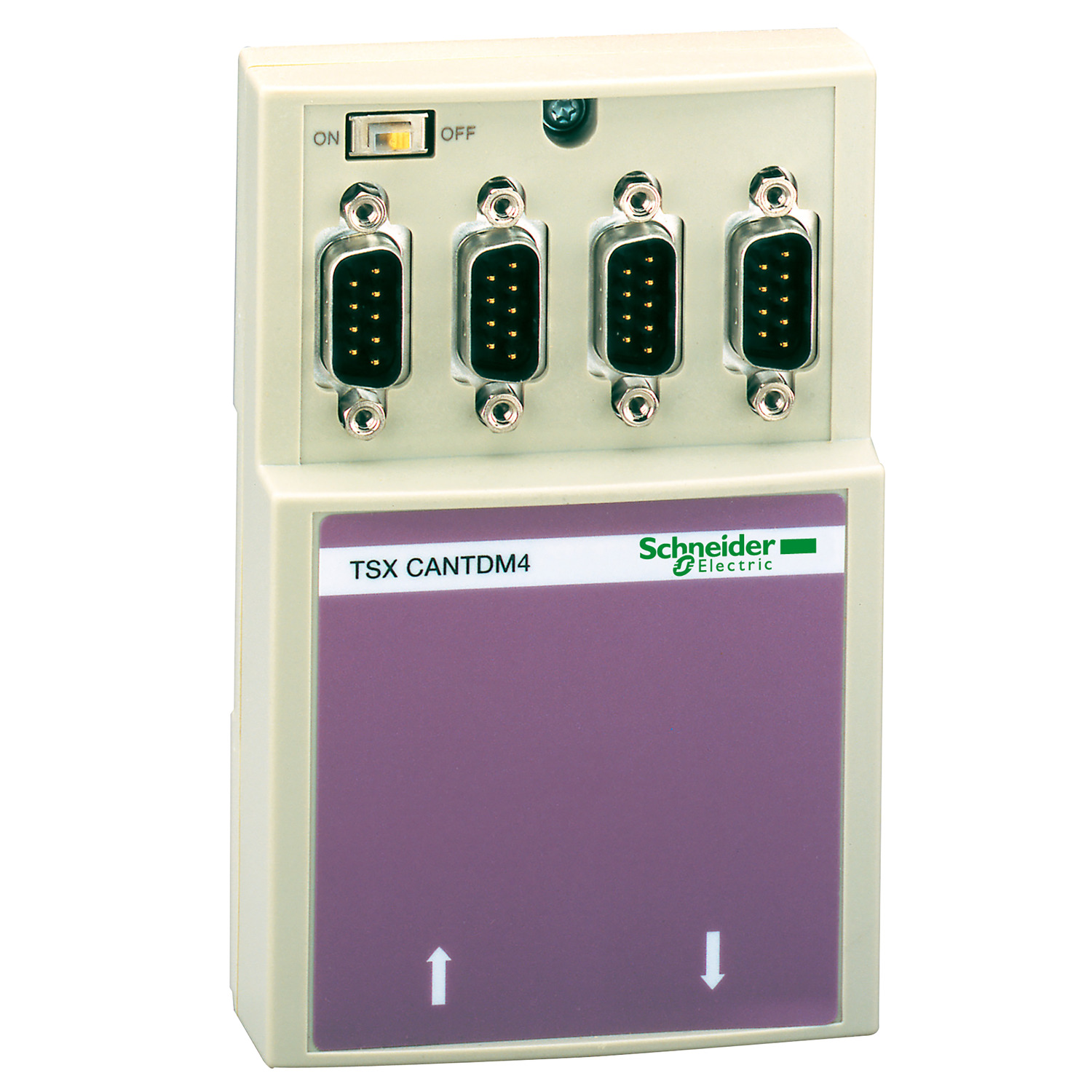

This connecting cable is part of the Modicon Premium range, an offer of PLC for process applications, high availability and safety solutions. It supports up to 4 CAN devices to be connected to the CANopen bus. This jbox features one screw terminal block for connecting the trunk cables and 4 SUB-D9 male connectors. The junction box allows easy connection for CANopen devices. CAN signals from incoming and outgoing cables and the four SUB-D 9 are interconnected inside the box. It is an IP20 rated product. This box is a compact system particularly at ease in extended architectures, as it can serve up to 16 distributed racks in real time without repeater. It supports 5 IEC languages as standard (LD, ST, FBD, SFC, IL) This tap junction box serves to connect CANopen buses for Modicon M340 and Premium ranges. This tap junction box may be screwed onto a plate or snapped on a DIN rail. Modicon Premium products build a high-level multitasking system. Modicon Premium products are specially designed for complex and special machines, manufacturing processes, and infrastructure.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination CANopen bus
IP degree of protection IP20
Accessory / separate part type tap junction box, line terminator
Bus type CANopen
Accessory / separate part category connection accessories
Electrical connection screw terminal, 4 connectors male SUB-D 9
Range of product CANopen
Complementary
Net weight 0.196 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 8.500 cm
Package 1 Length 13.500 cm
Package 1 Weight 193.000 g
Unit Type of Package 2 2
Number of Units in Package 2 32
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.638 kg
