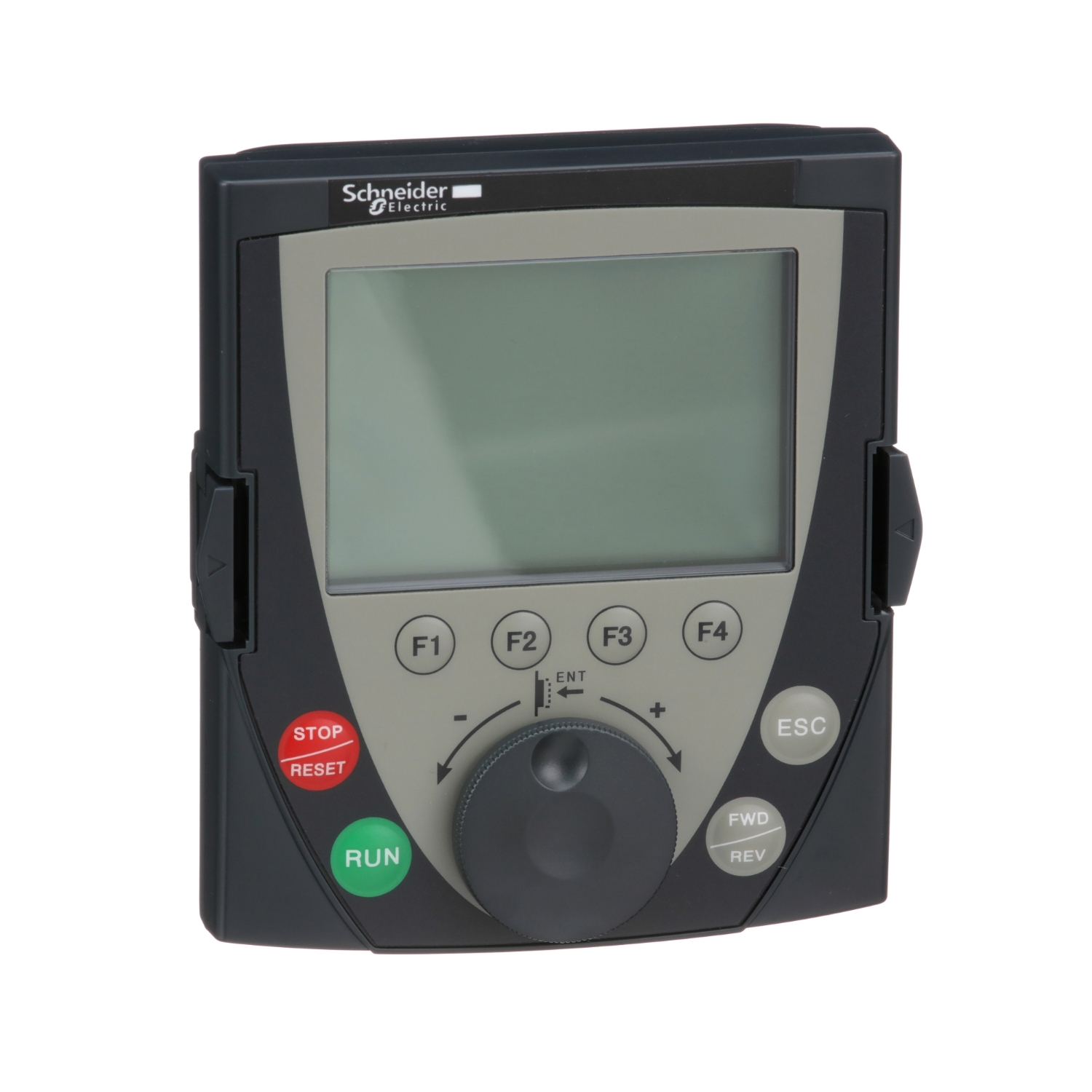

Picture of remote graphic terminal, Altivar, 240 x 160pixels, IP54
SKU:

VW3A1101

remote graphic terminal, Altivar, 240 x 160pixels, IP54

$327.17 INC GST
Available for Shipping : 04-Feb-2025
Product Selector
remote graphic terminal, Altivar, 240 x 160pixels, IP54
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Declaration of conformity
Product environmental
User guide
Product Page Link
Product Data Sheet
This remote terminal is an option for variable speed drives of Altivar range. It is a dialogue option for the variable speed drive. Its protection index is IP54. This terminal is used to locate the Human-Machine Interface of the Altivar drive remotely on the door of an enclosure. Its maximum operating temperature is 50 °C. It provides a pixel resolution of 240 x 160 pixels. It weighs 180g. It is used to control, adjust and configure the drive, display the current values (motor, input/output values, etc), save and download configurations, 4 configuration files can be saved. A remote-mounting cordset VW3A1104Rxx is also required, to be ordered separately.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination variable speed drive
IP degree of protection IP54
Accessory / separate part category display and signalling accessories
Range of product Altivar
Accessory / separate part type display terminal
Range compatibility Altivar 71Q, Altivar 61Q, Altivar 71, Altivar 212, Altivar 312 Solar, Altivar Machine ATV320, Altivar 32, Altivar Lift, Altivar 61, Altivar 312
Product specific application to display the current values, to save and download configurations, to control, adjust and configure the drive
Complementary
User language Chinese, German, Spanish, French, English, Italian
Messages display capacity 8 lines
Mounting location on the door of an enclosure
Net weight 0.145 kg
Pixel resolution 240 x 160
Environment
Ambient air temperature for operation -15-50 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 16.500 cm
Package 1 Length 23.000 cm
Package 1 Weight 275.000 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 2.413 kg
Unit Type of Package 3 3
Number of Units in Package 3 56
Package 3 Height 77.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 28.420 kg

Related products

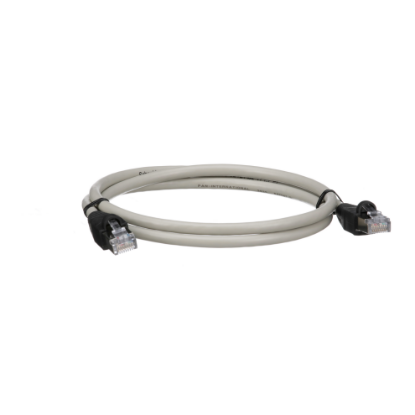

Picture of Altivar 71, Remote cable, 1m, for graphic display terminal

Altivar 71, Remote cable, 1m, for graphic display terminal

VW3A1104R10
$27.80 INC GST
View Detail
Picture of remote cable, Altivar, Lexium, 10m, for graphic display terminal

remote cable, Altivar, Lexium, 10m, for graphic display terminal

VW3A1104R100
$77.78 INC GST
View Detail
Picture of Altivar 71, Remote cable, 3m, for graphic display terminal

Altivar 71, Remote cable, 3m, for graphic display terminal

VW3A1104R30
$40.56 INC GST
View Detail

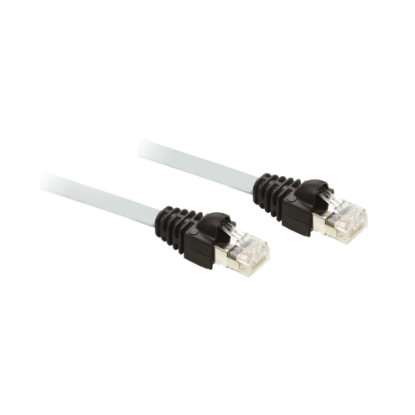

Picture of remote cable, Altivar, Lexium, 5m, for graphic display terminal
