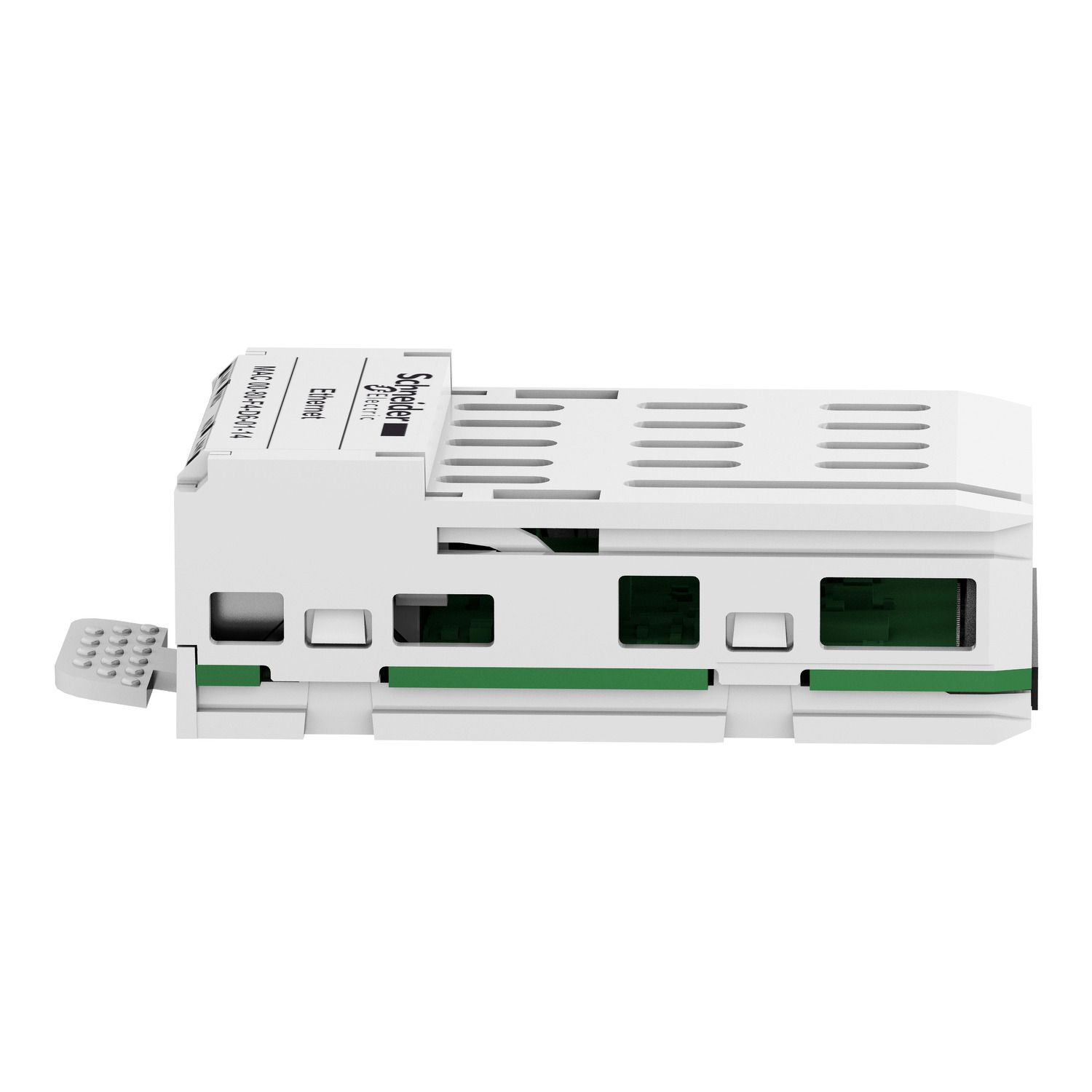

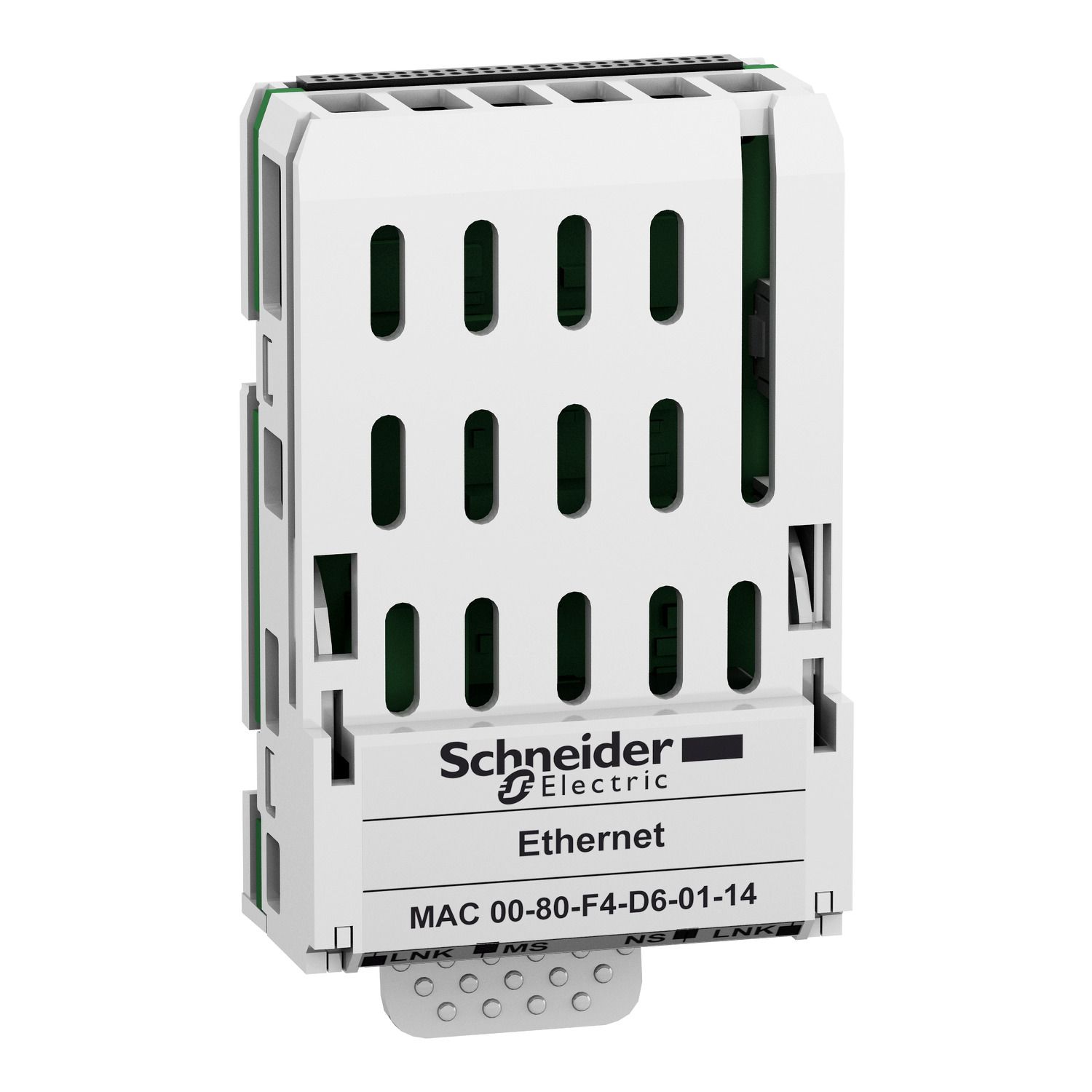

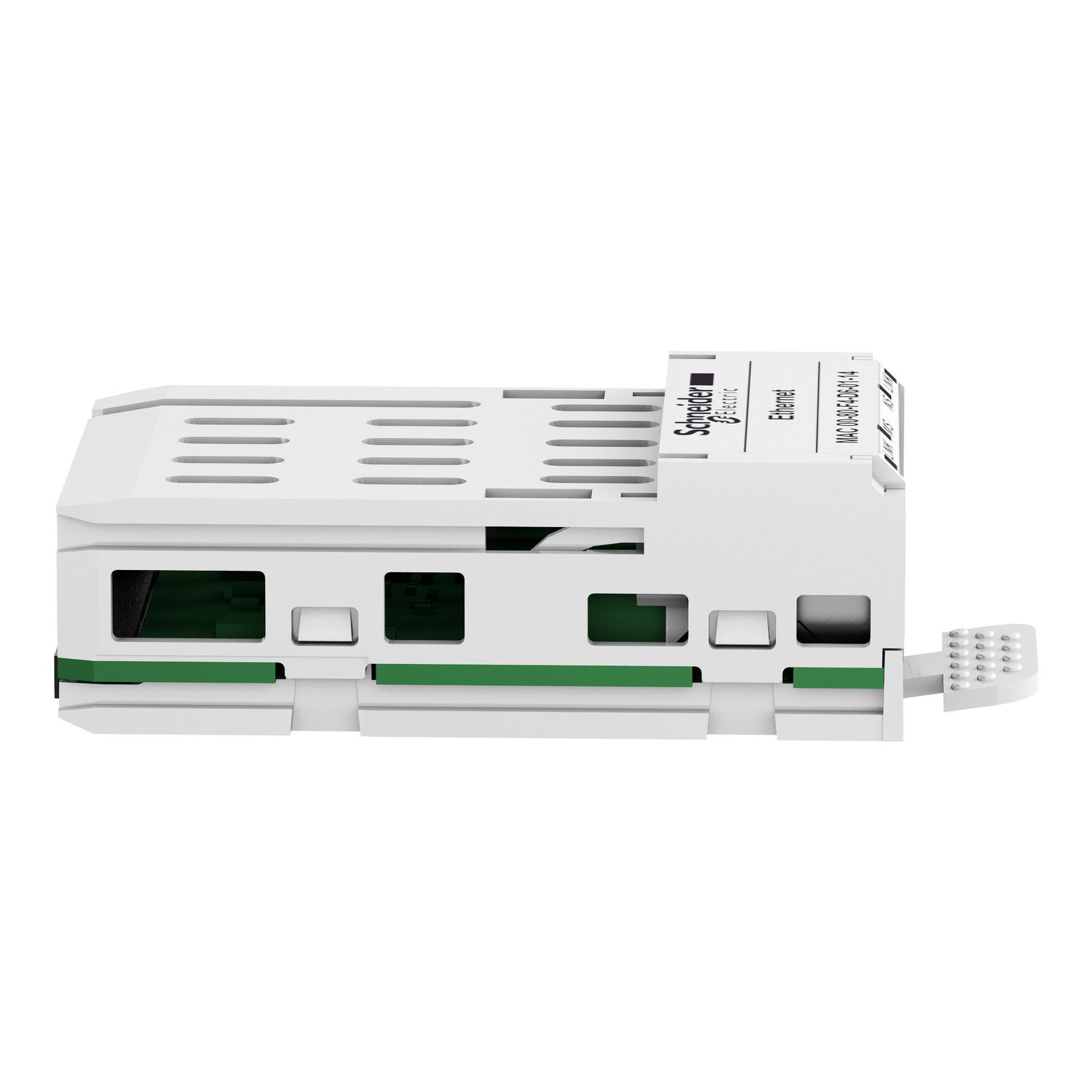

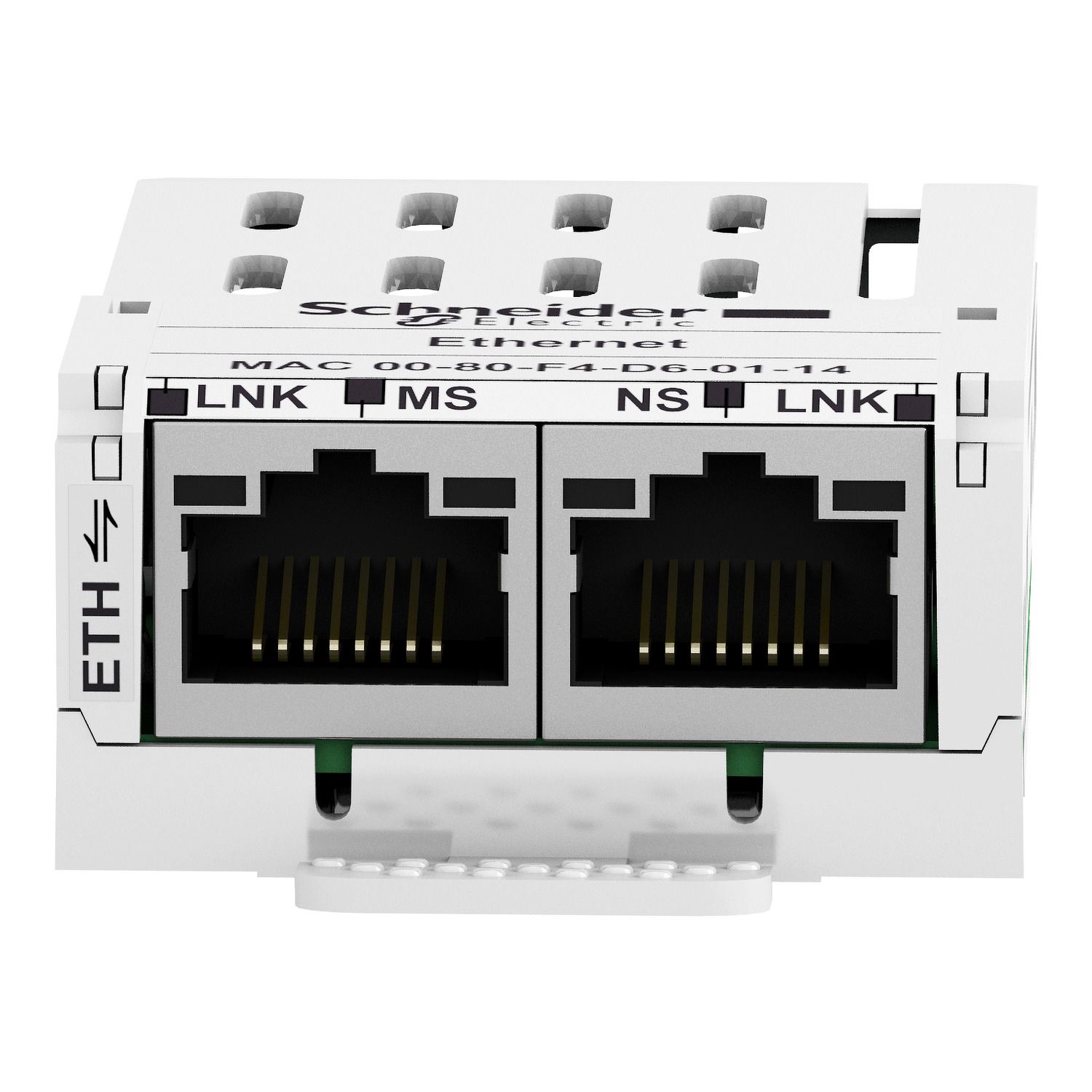

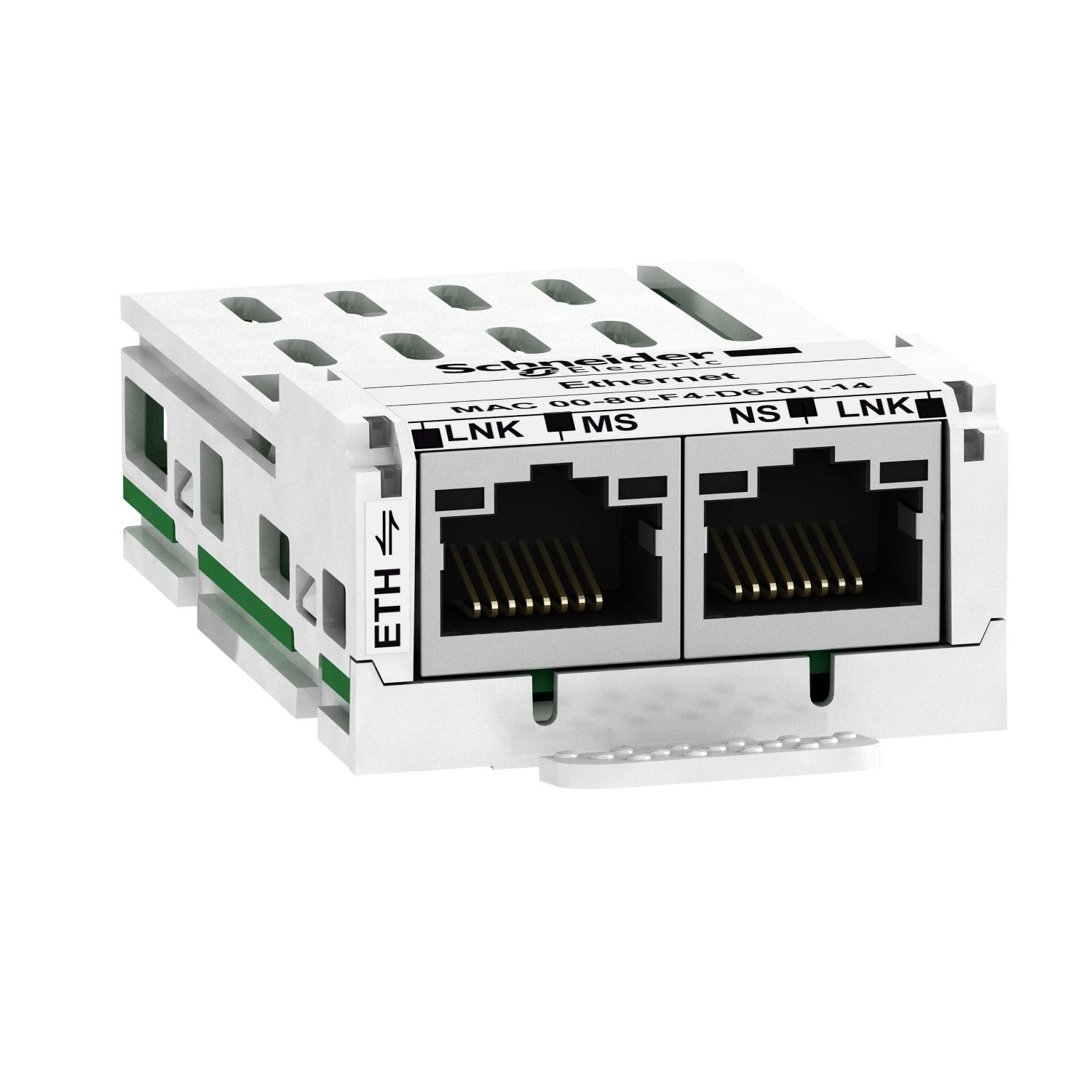

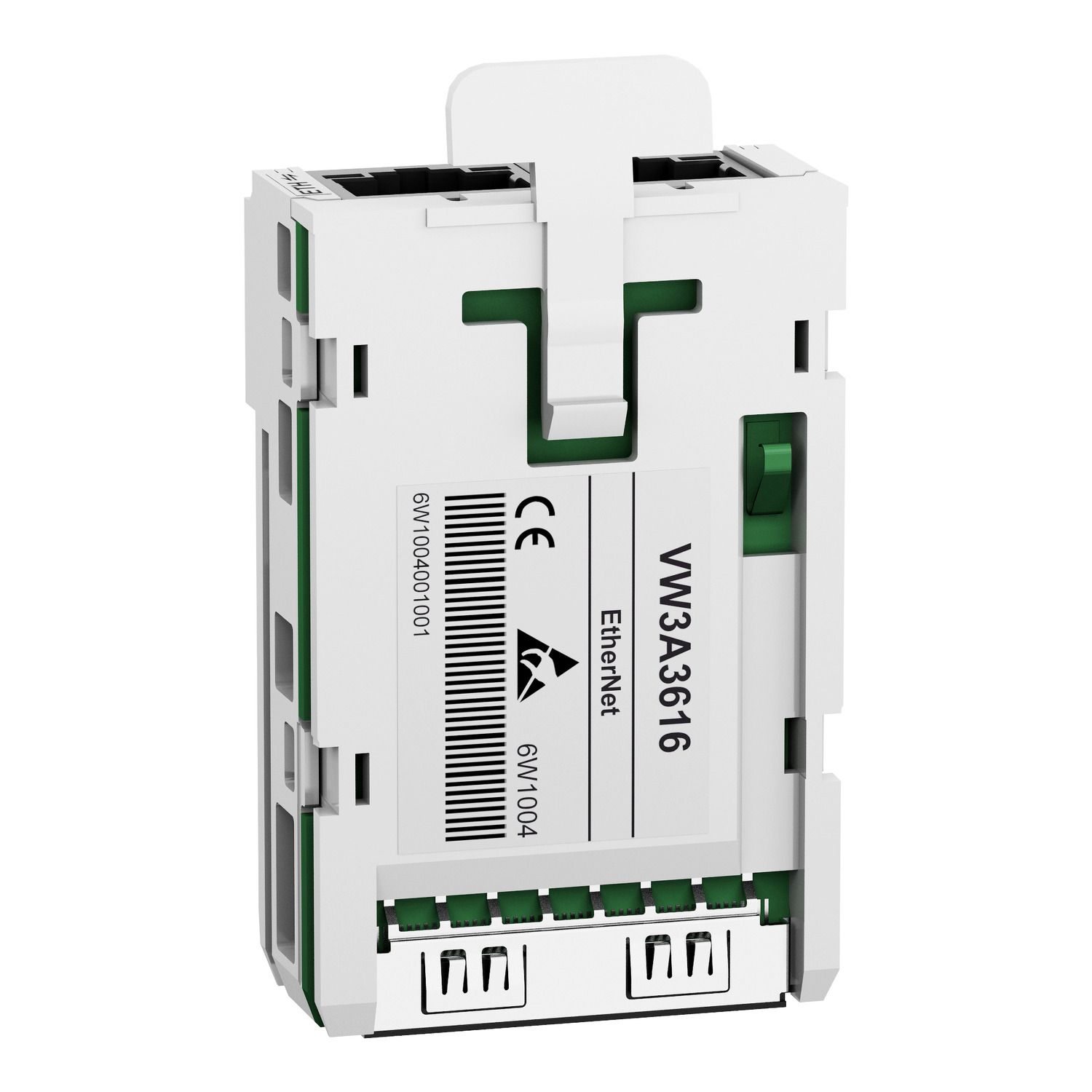

Picture of Lexium 32, Ethernet TCP/IP communication module
SKU:

VW3A3616

Lexium 32, Ethernet TCP/IP communication module

$312.89
Available for Shipping : 24-Nov-2024
Product Selector
Lexium 32, Ethernet TCP/IP communication module
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
User guide
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet
This Altivar Ethernet TCP/IP communication module has 2 ports with RJ45 connectors. It is compatible with Altivar Machine ATV320, Lexium 32 and Altivar 32. Removable module allows last minute decisions on drive communication protocol and thus facilitates installation project management.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part category communication accessories
Range of product Altivar
Product or component type communication module
Complementary
Product compatibility Lexium 32M
Range compatibility Lexium 32, Altivar 32, Altivar Machine ATV320
Display type 1 LED for Modbus TCP port activity, 1 LED for Ethernet port activity, 1 LED for NS (Network Status), 1 LED for MS (Module Status)
Exchange mode half duplex and full duplex
Addressing IP addressing manual, BOOTP or DHCP
Transmission rate 10/100 Mbps
Communication port protocol EtherNet/IP, Modbus TCP
Communication service fixed communication monitoring adjusted by Ethernet IP scanner adaptor (Master) for Ethernet IP, Master/Slave hierarchy ODVA AC drive profile and CiA 402 profile for Ethernet IP, SNMP agent for Ethernet IP, communication monitoring for Modbus TCP, I/O scanner : read/write, 6 words maximum for Modbus TCP, diagnostics (08) for Modbus TCP, read device identification (43) for Modbus TCP, read/write multiple registers (23) for Modbus TCP, write multiple registers (16), 63 words max for Modbus TCP, write single register (06) for Modbus TCP, read input registers (04), 63 words max for Modbus TCP, read holding registers (03), 63 words max for Modbus TCP, FDR Agent for Ethernet IP/Modbus TCP, up to 8 connections (includes connections of Modbus TCP/Ethernet IP) for Ethernet IP/Modbus TCP
Net weight 0.3 kg
Electrical connection 1 connector RJ45, Modbus TCP, 1 connector RJ45, EtherNet/IP
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.200 cm
Package 1 Width 6.100 cm
Package 1 Length 9.000 cm
Package 1 Weight 60.000 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.590 kg
