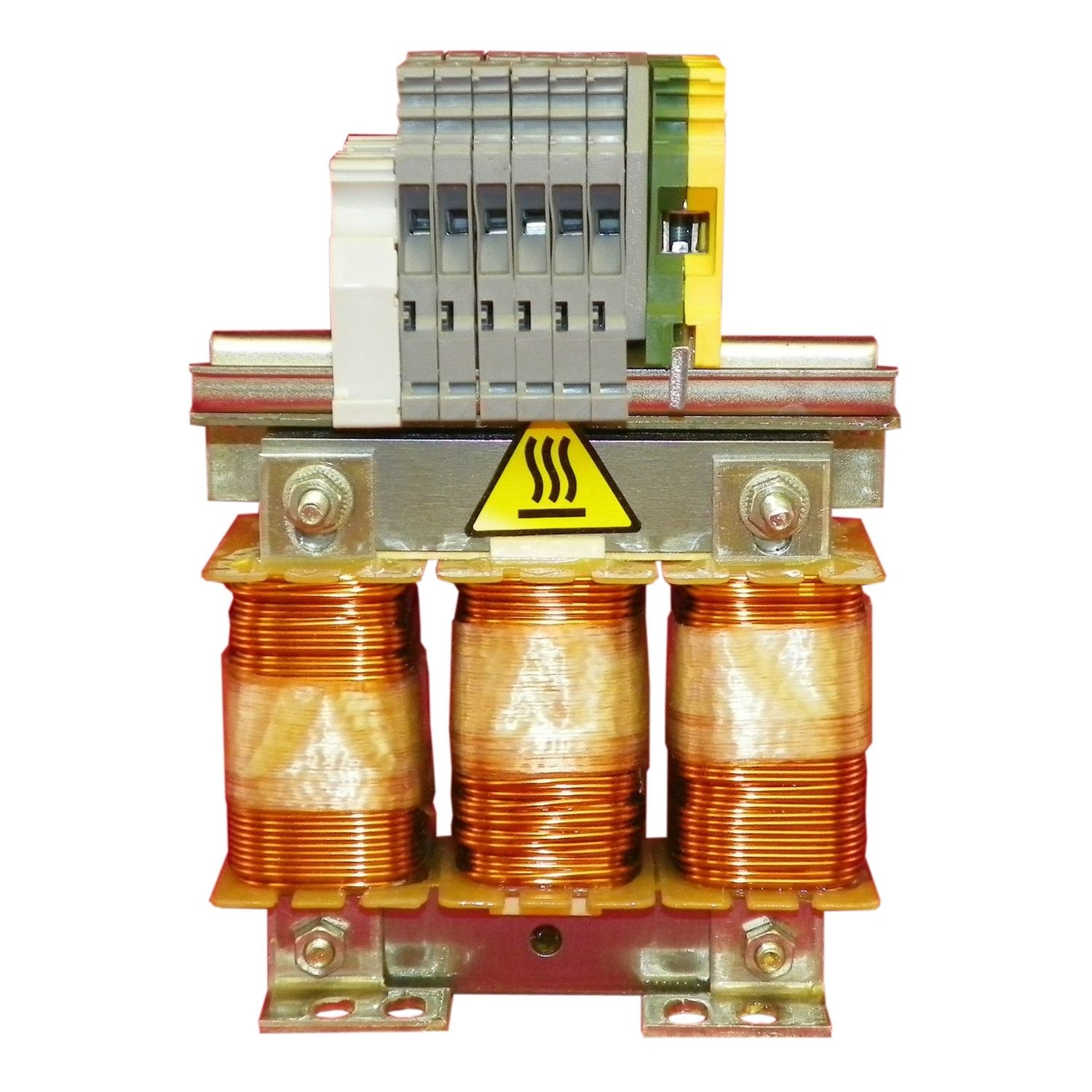

Picture of line/motor choke - 10 mH - 4 A - 3 phases - 45 W - for variable speed drive
SKU:

VW3A4551

line/motor choke - 10 mH - 4 A - 3 phases - 45 W - for variable speed drive

$399.18
Available for Shipping : 10-Dec-2024
Product Selector
line/motor choke - 10 mH - 4 A - 3 phases - 45 W - for variable speed drive
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 4A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 10mH. It weighs 1.5kg and its dimensions are, 100mm wide, 135mm high, 60mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.

Products specifications

Attribute name Attribute value
Main
Device application reduction of current harmonics
Range compatibility Easy Altivar 310L, Altivar 12, Altivar 71, Altivar Machine ATV320, Altivar Machine ATV340, Easy Altivar 310, Lexium 62, Altivar 31C, Altivar Process ATV600, Altivar 312 Solar, Altivar 32, Altivar Process ATV900, Altivar 312, Altivar 61
[In] rated current 4 A
Electrical connection terminal 2.5 mm² / AWG 12, 0.4-0.6 N.m
Product compatibility variable speed drive ATV310L motor: 5.5 kW, variable speed drive ATV310L motor: 4.0 kW, variable speed drive ATV310L motor: 3.0 kW, variable speed drive ATV310L motor: 2.2 kW, variable speed drive ATV310L motor: 1.5 kW, variable speed drive ATV310L motor: 0.75 kW, variable speed drive ATV930 motor: 600 V - three phase - line choke - 3 hp - 1 per drive, variable speed drive ATV630 motor: 600 V - three phase - line choke - 3 hp - 1 per drive, variable speed drive ATV930 motor: 4 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV930 motor: 3 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV930 motor: 2.2 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV630 motor: 4 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV630 motor: 3 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV630 motor: 2.2 kW 500...690 V - three phase - line choke - 1 per drive, variable speed drive ATV320 motor: 2.2 kW 525...600 V - three phase - line choke - 1 per drive, variable speed drive ATV320 motor: 1.5 kW 525...600 V - three phase - line choke - 1 per drive, variable speed drive ATV320 motor: 0.75 kW 525...600 V - three phase - line choke - 1 per drive, variable speed drive ATV320 motor: 0.75 kW 200...240 V - three phase - line choke - 1 per drive, variable speed drive ATV320 motor: 0.55 kW 200...240 V - three phase - line choke - 1 per drive, variable speed drive ATV320 motor: 0.37 kW 200...240 V - three phase - line choke - 1 per drive, variable speed drive ATV320 motor: 0.18 kW 200...240 V - three phase - line choke - 1 per drive, variable speed drive ATV320 motor: 1.5 kW 380...500 V - three phase - line choke - 1 per drive, variable speed drive ATV320 motor: 1.1 kW 380...500 V - three phase - line choke - 1 per drive, variable speed drive ATV320 motor: 0.75 kW 380...500 V - three phase - line choke - 1 per drive, variable speed drive ATV320 motor: 0.55 kW 380...500 V - three phase - line choke - 1 per drive, variable speed drive ATV320 motor: 0.37 kW 380...500 V - three phase - line choke - 1 per drive, variable speed drive ATV340 motor: 1.5 kW 380...480 V - line choke - 1 per drive, variable speed drive ATV340 motor: 0.75 kW 380...480 V - line choke - 1 per drive, variable speed drive ATV310 motor: 0.75 kW - line choke - 1 per drive, variable speed drive ATV310 motor: 0.37 kW - line choke - 1 per drive, ATV31CU15N4 - line choke - 1 per drive, ATV31CU11N4 - line choke - 1 per drive, ATV31C075N4 - line choke - 1 per drive, ATV31C055N4 - line choke - 1 per drive, ATV31C037N4 - line choke - 1 per drive, ATV71HU22S6X - line choke - 1 per drive, ATV71HU15S6X - line choke - 1 per drive, ATV61HU22S6X - line choke - 1 per drive, ATV71WU15N4 - line choke - 1 per drive, ATV71W075N4 - line choke - 1 per drive, ATV71PU15N4Z - line choke - 1 per drive, ATV71P075N4Z - line choke - 1 per drive, ATV71HU30Y - line choke - 1 per drive, ATV71HU22Y - line choke - 1 per drive, ATV71HU15N4 - line choke - 1 per drive, ATV71H075N4 - line choke - 1 per drive, ATV71H075M3 - line choke - 1 per drive, ATV71H037M3 - line choke - 1 per drive, ATV61WU15N4C - line choke - 1 per drive, ATV61WU15N4 - line choke - 1 per drive, ATV61W075N4C - line choke - 1 per drive, ATV61W075N4 - line choke - 1 per drive, ATV61HU30Y - line choke - 1 per drive, ATV61HU15N4 - line choke - 1 per drive, ATV61H075N4 - line choke - 1 per drive, ATV61H075M3 - line choke - 1 per drive, ATV32HU15N4 - line choke - 1 per drive, ATV32HU11N4 - line choke - 1 per drive, ATV32H075N4 - line choke - 1 per drive, ATV32H055N4 - line choke - 1 per drive, ATV32H037N4 - line choke - 1 per drive, ATV312HU15S6 - line choke - 1 per drive, ATV312HU15N4 - line choke - 1 per drive, ATV312HU11N4 - line choke - 1 per drive, ATV312H075S6 - line choke - 1 per drive, ATV312H075N4 - line choke - 1 per drive, ATV312H075M3 - line choke - 1 per drive, ATV312H055N4 - line choke - 1 per drive, ATV312H055M3 - line choke - 1 per drive, ATV312H037N4 - line choke - 1 per drive, ATV312H037M3 - line choke - 1 per drive, ATV312H018M3 - line choke - 1 per drive, ATV12P055M2 - motor choke - 1 per drive, ATV12P037M3 - motor choke - 1 per drive, ATV12P037M2 - motor choke - 1 per drive, ATV12P037F1 - motor choke - 1 per drive, ATV12H055M2 - motor choke - 1 per drive, ATV12H037M3 - motor choke - 1 per drive, ATV12H037M2 - motor choke - 1 per drive, ATV12H037F1 - motor choke - 1 per drive, ATV12H018M3 - motor choke - 1 per drive, ATV12H018M2 - motor choke - 1 per drive, ATV12H018F1 - motor choke - 1 per drive
Value of inductance 10 mH
Network number of phases three phase
Product or component type line/motor choke
Range of product Altivar
Thermal losses 45 W
Complementary
Supply frequency 50...60 Hz
Maximum voltage drop at rated load 5 %
Depth 60 mm
Width 100 mm
Max current 1.65 x nominal current (duration = 60 s)
Minimum clearance distance 5.5 mm IEC 60664
Electrical insulation class class F
Leakage distance 11.5 mm conforming to IEC 60664
Net weight 1.5 kg
Height 135 mm
Environment
Operating altitude 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without current derating
IP degree of protection terminals: IP20, choke: IP00
Ambient air temperature for storage -25-70 °C
Pollution degree 2 conforming to EN 50178
Relative humidity 0-95 %
Vibration resistance 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
Environmental characteristic 3S1 conforming to IEC 721-3-3, 3C2 conforming to IEC 721-3-3, 3B1 conforming to IEC 721-3-3
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation 0-45 °C (without current derating), 45-55 °C (with current derating of 2 % per °C)
Standards EN 50178, IEC 60076 (with HD398), VDE 0160 level 1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.000 cm
Package 1 Width 20.000 cm
Package 1 Length 21.000 cm
Package 1 Weight 1.527 kg
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 47.000 kg
