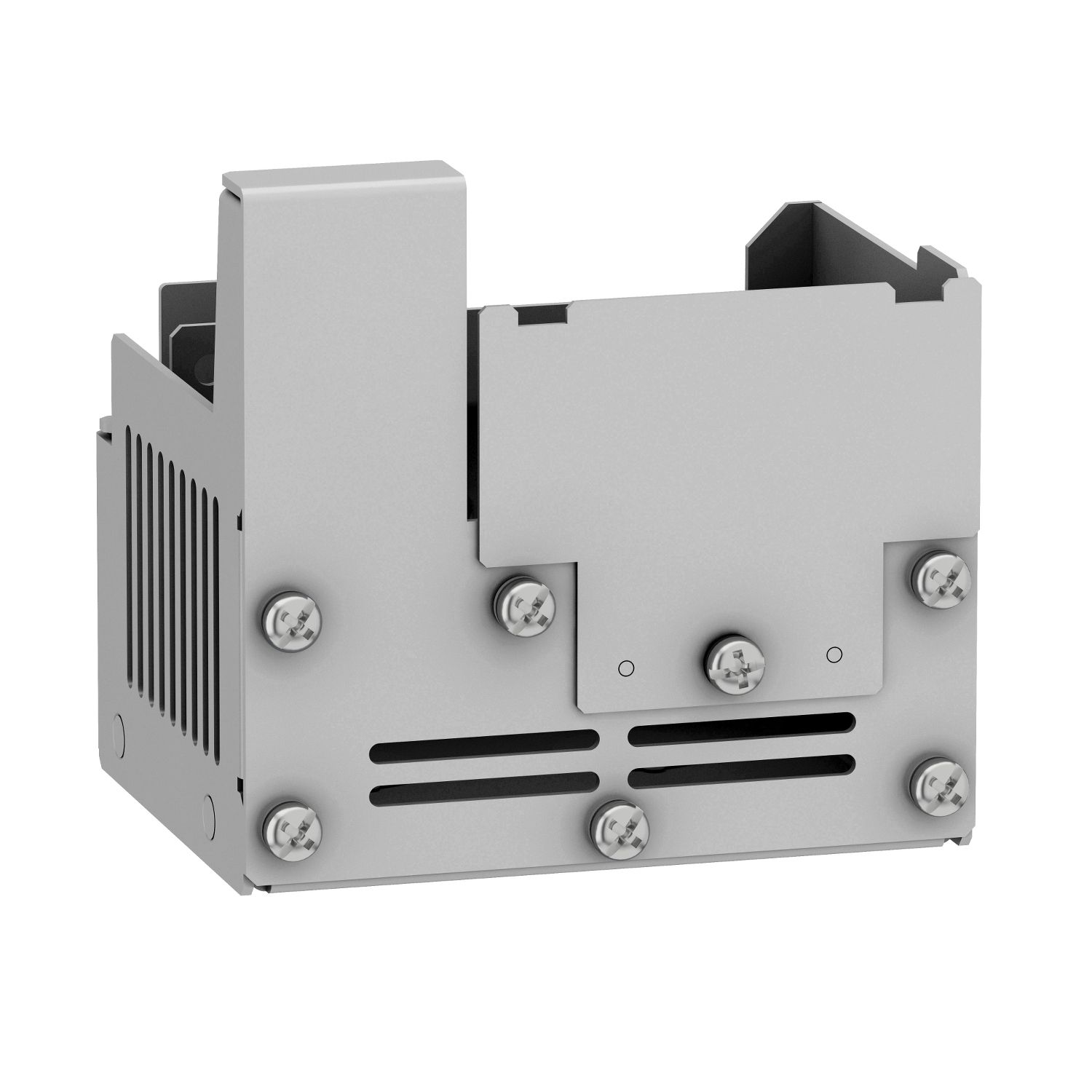

Picture of kit for UL type 1 conformity, Altivar machine ATV320, mounted under variable speed drive ATV320 S2F
SKU:

VW3A95813

kit for UL type 1 conformity, Altivar machine ATV320, mounted under variable speed drive ATV320 S2F

$121.63
Available for Shipping : 19-Jan-2025
kit for UL type 1 conformity, Altivar machine ATV320, mounted under variable speed drive ATV320 S2F
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet
This UL conformity kit is part of the Altivar Machine ATV320 range, an offer of drives designed for Original Equipment Manufacturers (OEMs). This optional kit enables your Altivar variable speed drive to meet UL type 1 requirements. Its frame size is 2C. Thanks to this kit, cables can be directly connected to the drive via tubes or cable glands. The shielding is connected inside the kit. It weighs 0.480kg (1.058lb). This kit can be used to ensure UL Type 1 conformity even when the drive is mounted directly on a wall outside the enclosure. It is compatible with ATV320-C drives, rated at 1.1kW, 1.5kW, 0.55kW, or 2.2kW to feed 3-phase motors from 200V to 240V. The kit is delivered in one package including fixing accessories. This kit is mounted to the lower part of the drive. The Altivar Machine ATV320 series focus on easy integration for simple and advanced machine requirements with proven motor control and connectivity. ATV320 drives are specifically designed for material handling, packaging, textiles, hoisting, mechanical actuators, and material working.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination variable speed drive
Accessory / separate part type kit for UL type 1 conformity
Accessory / separate part category mounting and fixing accessories
Product compatibility variable speed drive ATV320...C at 2.2 kW, 200...240 V, three phase, variable speed drive ATV320...C at 1.5 kW, 200...240 V, three phase, variable speed drive ATV320...C at 1.1 kW, 200...240 V, three phase
Range of product Altivar
Complementary
Kit composition mechanical device
Range compatibility Altivar Machine ATV320
Mounting location underside of drive
Environment
Standards UL Type 1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17.7 cm
Package 1 Width 18.1 cm
Package 1 Length 18.4 cm
Package 1 Weight 850.0 g

Related products

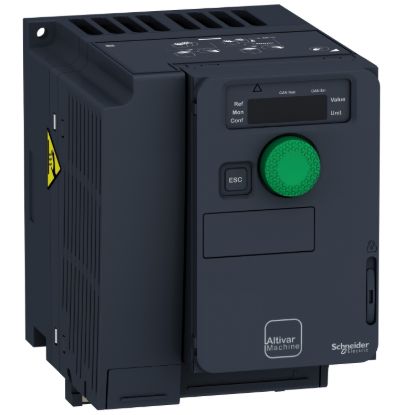

Picture of variable speed drive, Altivar Machine ATV320, 1.1kW, 200 to 240V, 3 phases, compact

variable speed drive, Altivar Machine ATV320, 1.1kW, 200 to 240V, 3 phases, compact

ATV320U11M3C
$666.94
View Detail
