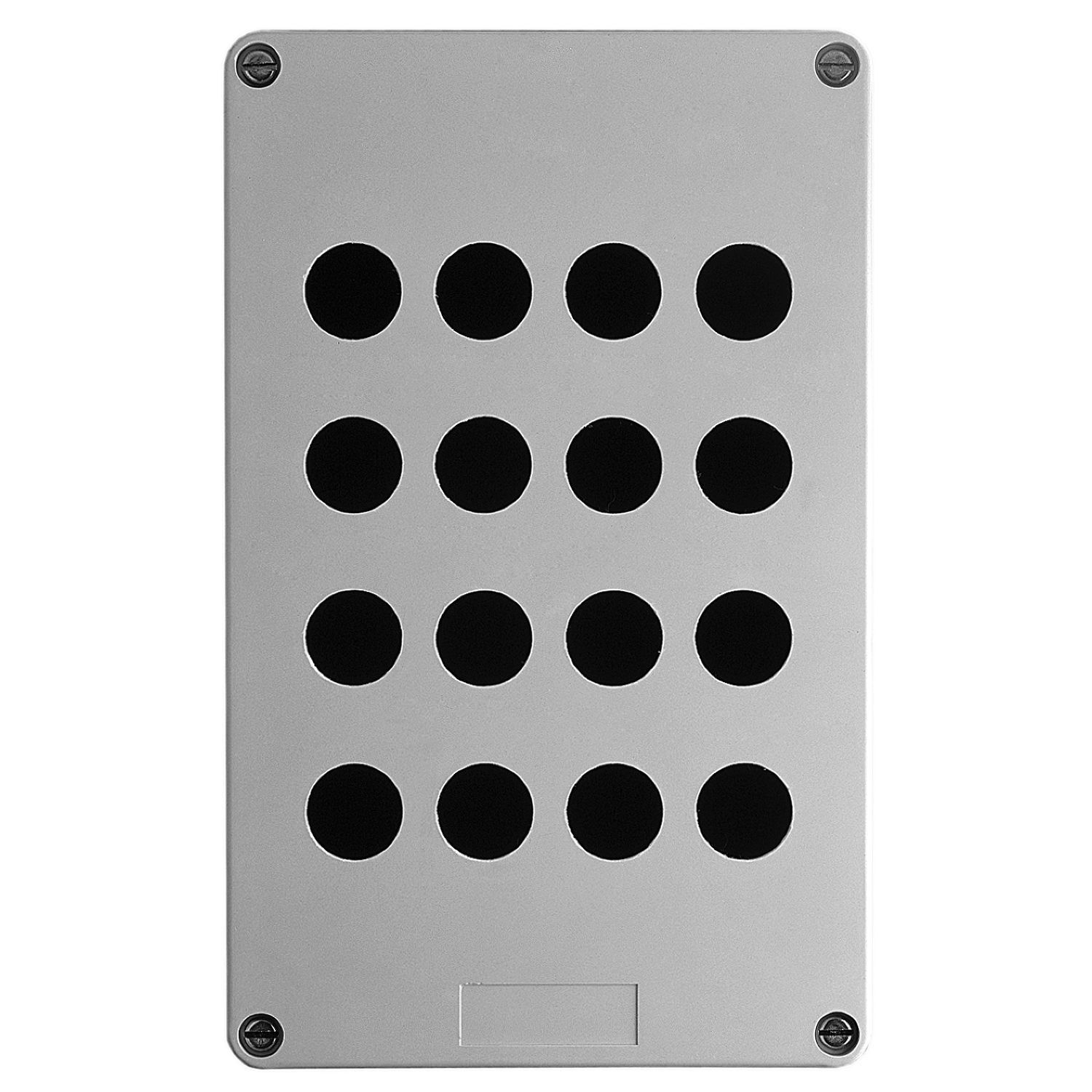

Picture of Empty control station without hinges, Harmony XAP, plastic, grey, 16 cut outs, 22mm, 151 x 241 x 83mm
SKU:

XAPA3116

Empty control station without hinges, Harmony XAP, plastic, grey, 16 cut outs, 22mm, 151 x 241 x 83mm

Old price: $363.55 INC GST
$283.57 INC GST
Available for Shipping : 12-Jan-2026
Empty control station without hinges, Harmony XAP, plastic, grey, 16 cut outs, 22mm, 151 x 241 x 83mm
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Environmental Disclosure
Instruction sheet
Catalog
Product Page Link
Product Data Sheet
This Harmony XAPA3116 is an empty control station plastic 16 openings in 4 columns. It is part of the range Harmony XAP, XB2 SL metal enclosures, for Harmony XB4.

Products specifications

Attribute name Attribute value
Main
Device short name XAPA
Resistance to chemical agents high resistant to sea water, high resistant to petrol, high resistant to oils and greases, high resistant to mineral salts, high resistant to diesel, high resistant to bases, high resistant to all solvents, high resistant to acids
Usable depth 83 mm
Number of cut-out 16 cut-outs
Colour of cover grey
IP degree of protection IP69K, IP69 conforming to NF C 20-010, IP65 conforming to IEC 60529
Colour of base of enclosure grey
Range of product Harmony XAP
Material glass reinforced polyester
Product front plate size 151 x 241 mm
Product or component type empty control station without hinges
Cable entry undrilled
Device mounting flush
Product destination for Ø 22 mm control and signalling units
Complementary
Compatibility code XAPA
Number of vertical rows 4
Flame retardance VO conforming to UL 94, M3 conforming to CSTB
Net weight 0.82 kg
Environment
Protective treatment TC, TH
Fire resistance 960 °C conforming to IEC 92, 850 °C conforming to NF C 20-455
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -40-70 °C
Overvoltage category class II conforming to NF C 20-030, class II conforming to IEC 60536
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.000 cm
Package 1 Width 16.600 cm
Package 1 Length 24.400 cm
Package 1 Weight 988.000 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.445 kg
