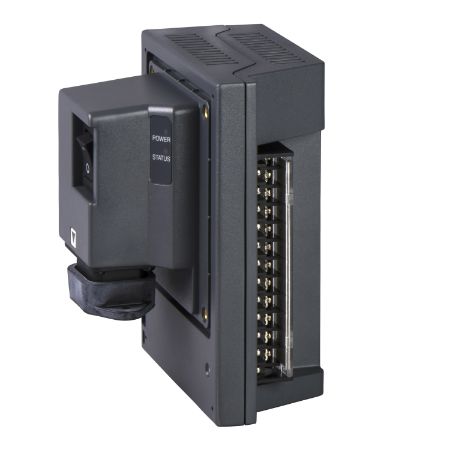

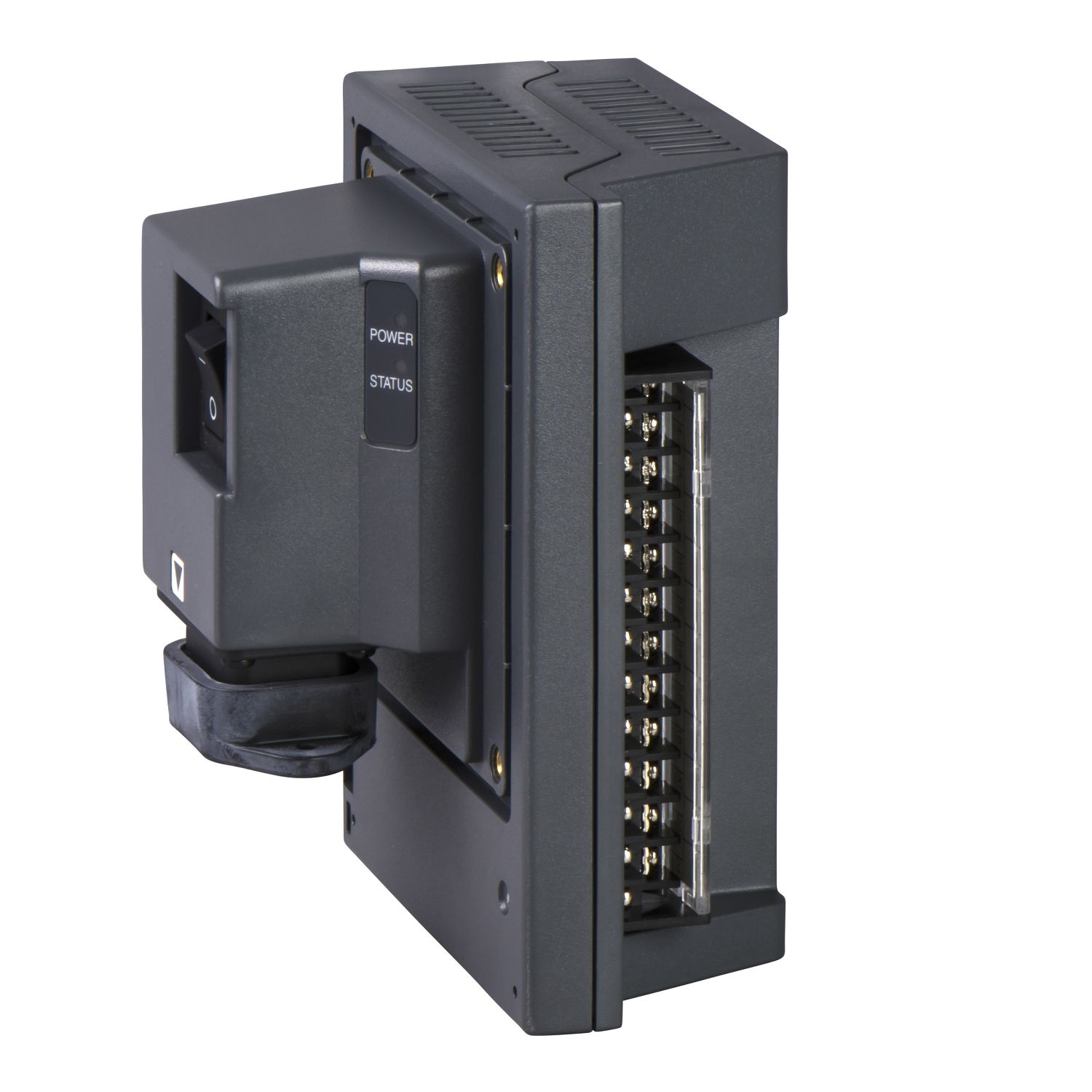

Picture of junction box for advanced hand-held terminal
SKU:

XBTZGJBOX

junction box for advanced hand-held terminal

Please Contact Sales to buy this Product. click here
junction box for advanced hand-held terminal
  • Enables connection on the Ethernet or Modbus network at any point where it is installed
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
CAD
Product environmental
User guide
End of life manual
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
This Magelis XBTZ is a junction box for XBTGH touchscreen advanced hand-held panel. It enables 24V dc power supply to XBTGH terminal and connection of various safety inputs/outputs. It also enables connection on multiprotocol serial link (9-way SUB-D) or Ethernet TCP/IP (RJ45). It can be mounted on 35 mm symmetrical DIN rail.

Products specifications

Attribute nameAttribute value
Main
Range of productMagelis XBTGH
Product specific applicationfor XBTGH advanced hand-held panel
Product or component typejunction box
Complementary
Supply voltage limits19.2-28.8 V
Fixing modeclip-on, mounting on 35 mm symmetrical DIN rail, by 4 M4 screws, mounting on 1.5 to 10 mm thick panel
MarkingCE
Power consumption in W6.3 W
[Us] rated supply voltage24 V DC
Port Ethernet10BASE-T/100BASE-TX
Enclosure materialPPT
Inrush current30 A
Electrical connectionscrew terminal block 24 inputs/outputs, 1 male connector SUB-D 9 RS232C/RS422/RS485 <= 115.2 kbits/s COM1 serial link, 1 connector RJ45 Ethernet TCP/IP, 1 connector 24-pin connector hand-held panel
Environment
Resistance to fast transients2 kV conforming to IEC 61000-4-4 level 3
Resistance to electrostatic discharge6 kV conforming to IEC 61000-4-2 level 3
Relative humidity0-90 % without condensation or dripping water
Ambient air temperature for storage-20-60 °C
IP degree of protectionIP65 (front panel), IP20 (rear panel)
Immunity to microbreaks10 ms
Resistance to electromagnetic fields10 V/m conforming to IEC 61000-4-3
Ambient air temperature for operation0-50 °C
Operating altitude<= 2000 m
Vibration resistance3.5 mm (f = 5-9 Hz), 1 gn (f = 9-150 Hz)
Shock resistance15 gn for 11 ms conforming to IEC 60068-2-27
StandardsUL 508, IEC 61000-6-2, EN 61131-2, FCC Class A
Product certificationsC-Tick, cULus
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height17.000 cm
Package 1 Width22.500 cm
Package 1 Length27.000 cm
Package 1 Weight1.184 kg
Unit Type of Package 22
Number of Units in Package 22
Package 2 Height30.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight2.900 kg

Related products

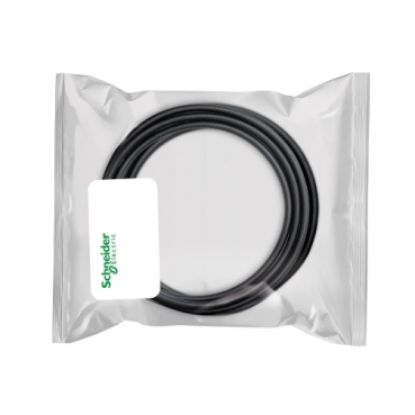

Picture of interface cable - L = 10 m - between advanced hand-held panel and junction box
