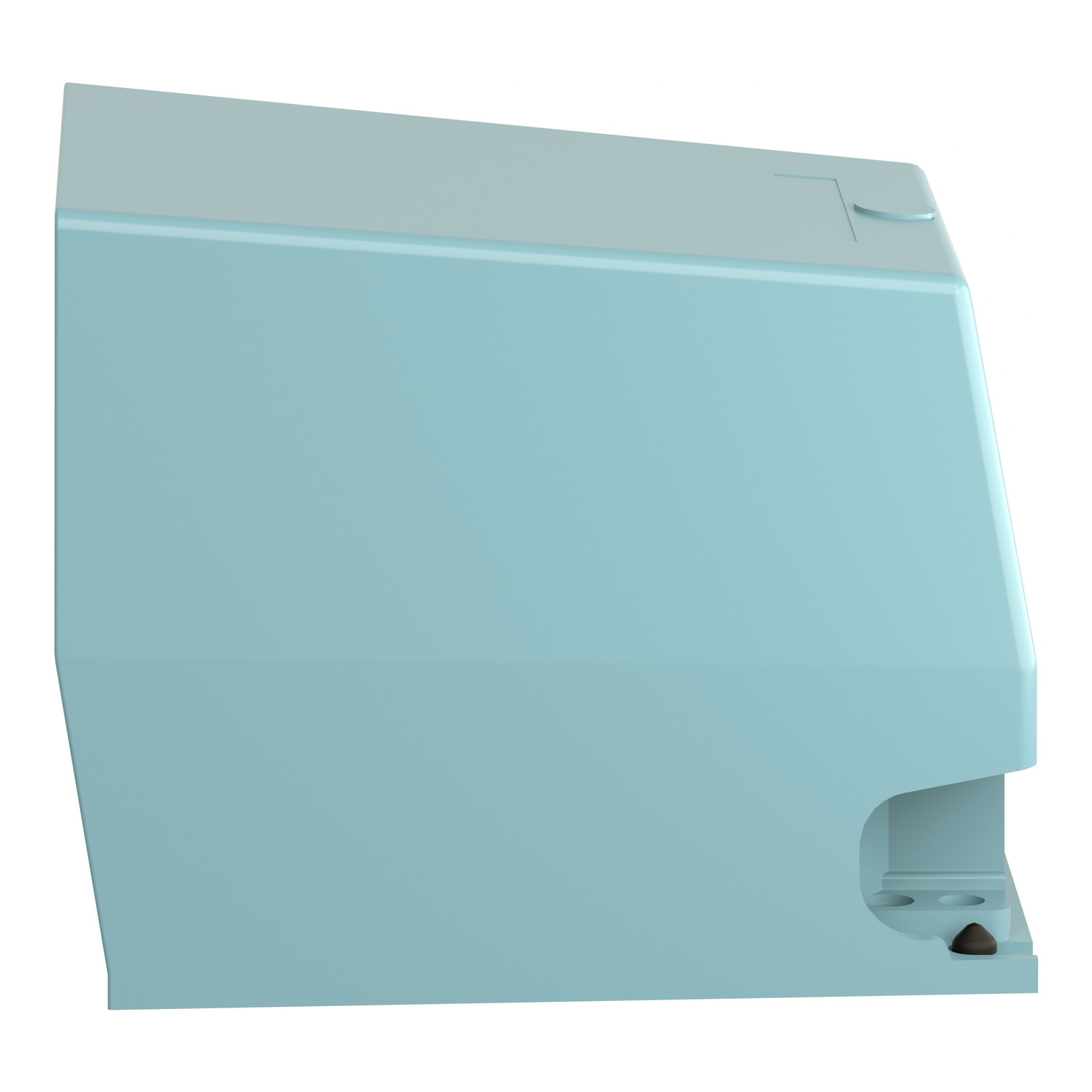

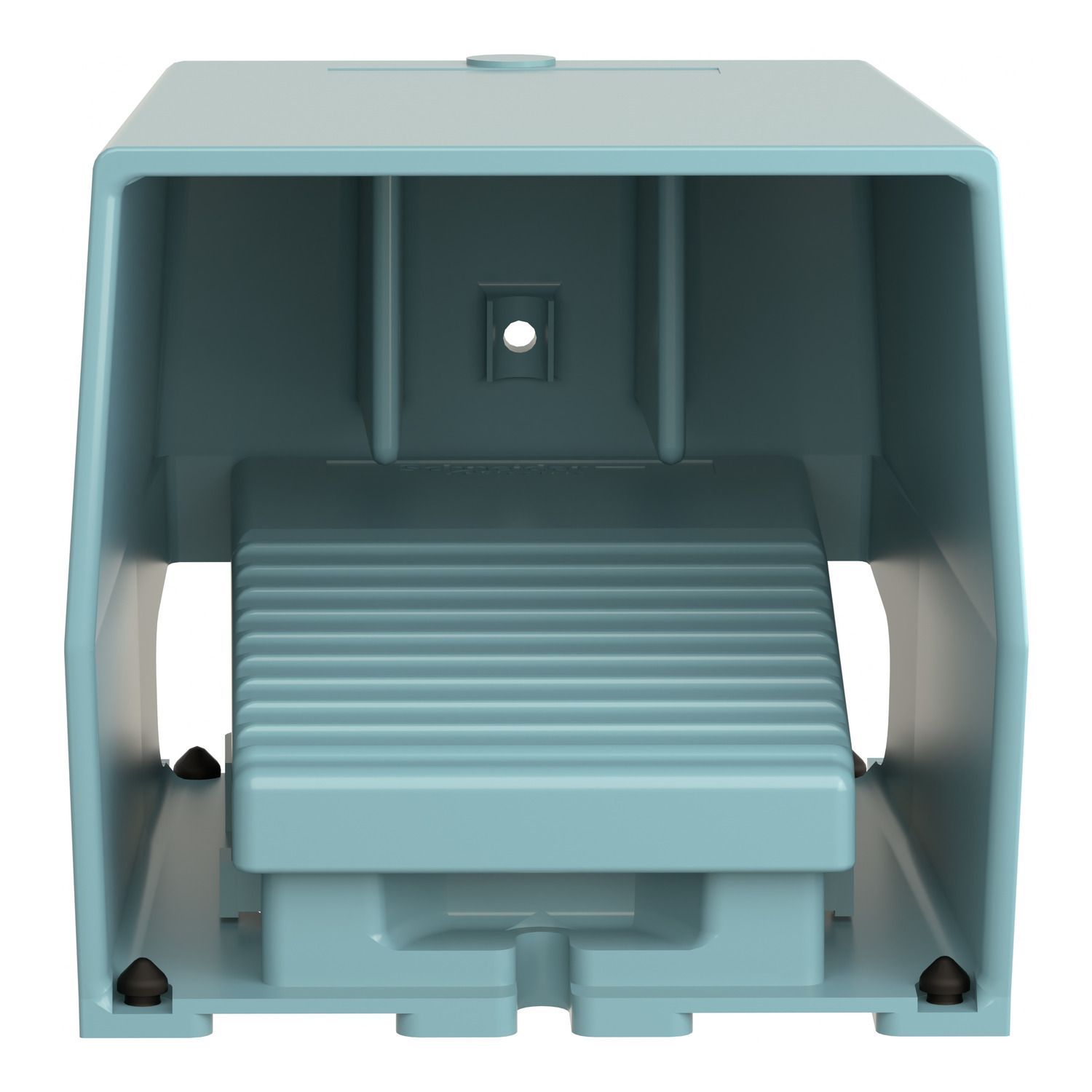

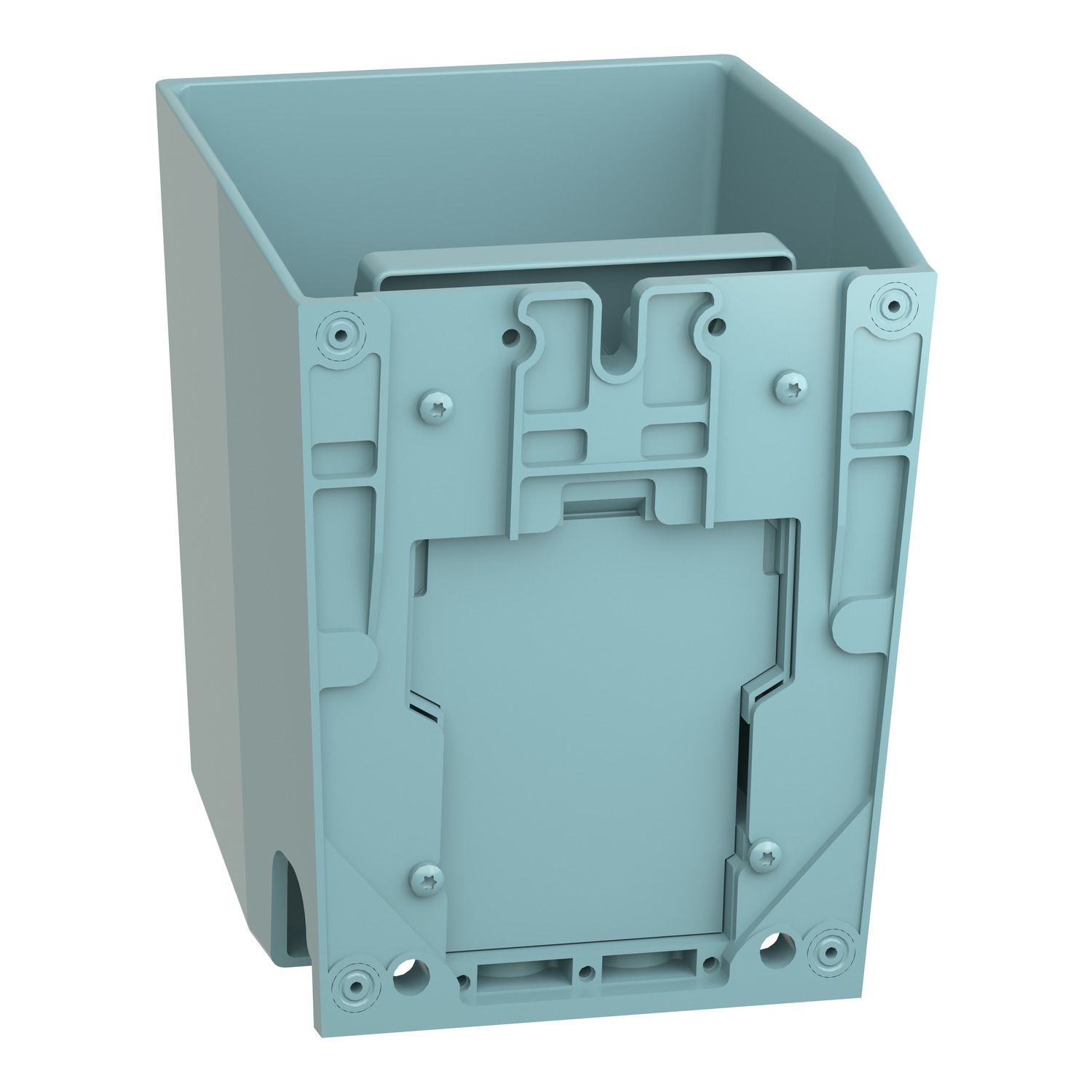

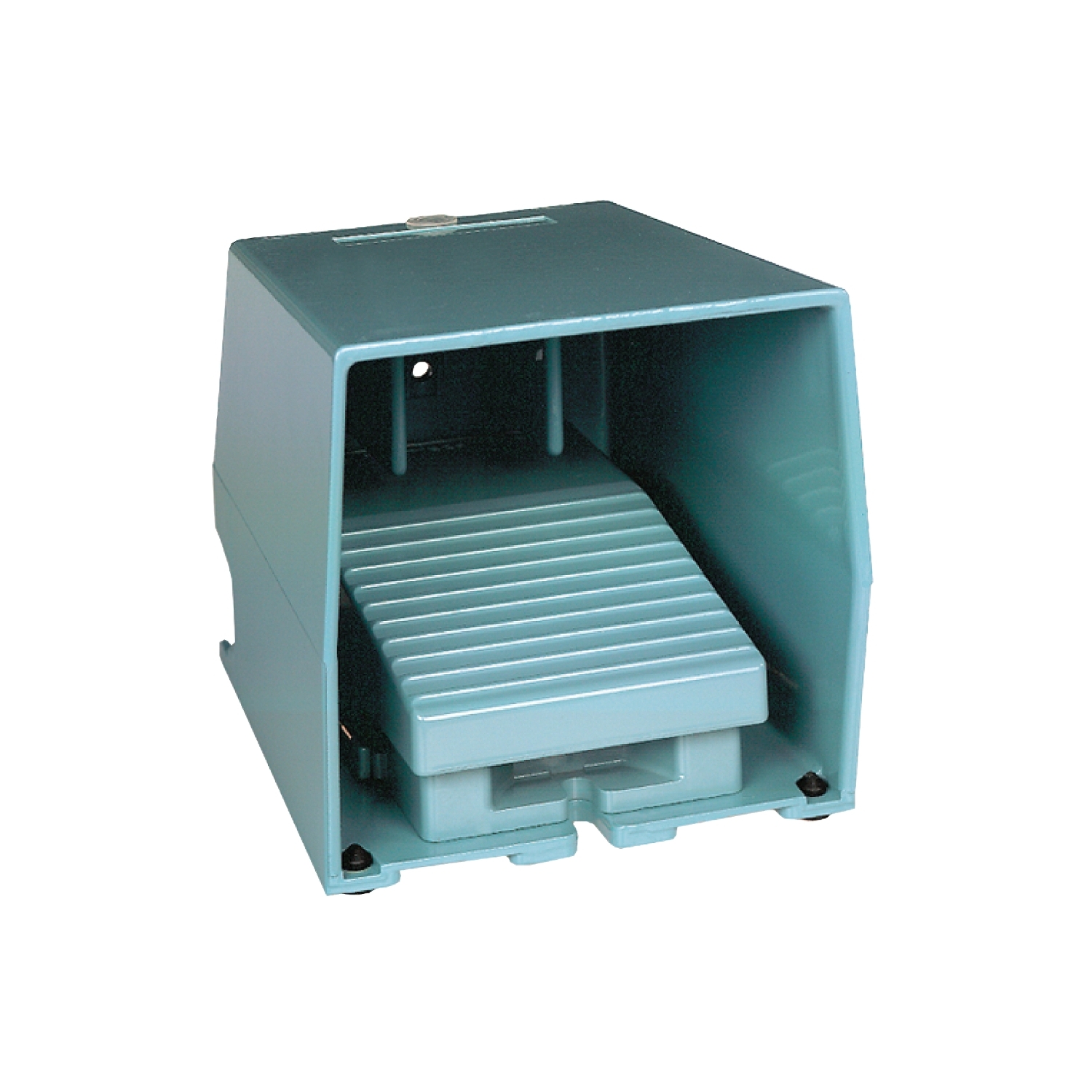

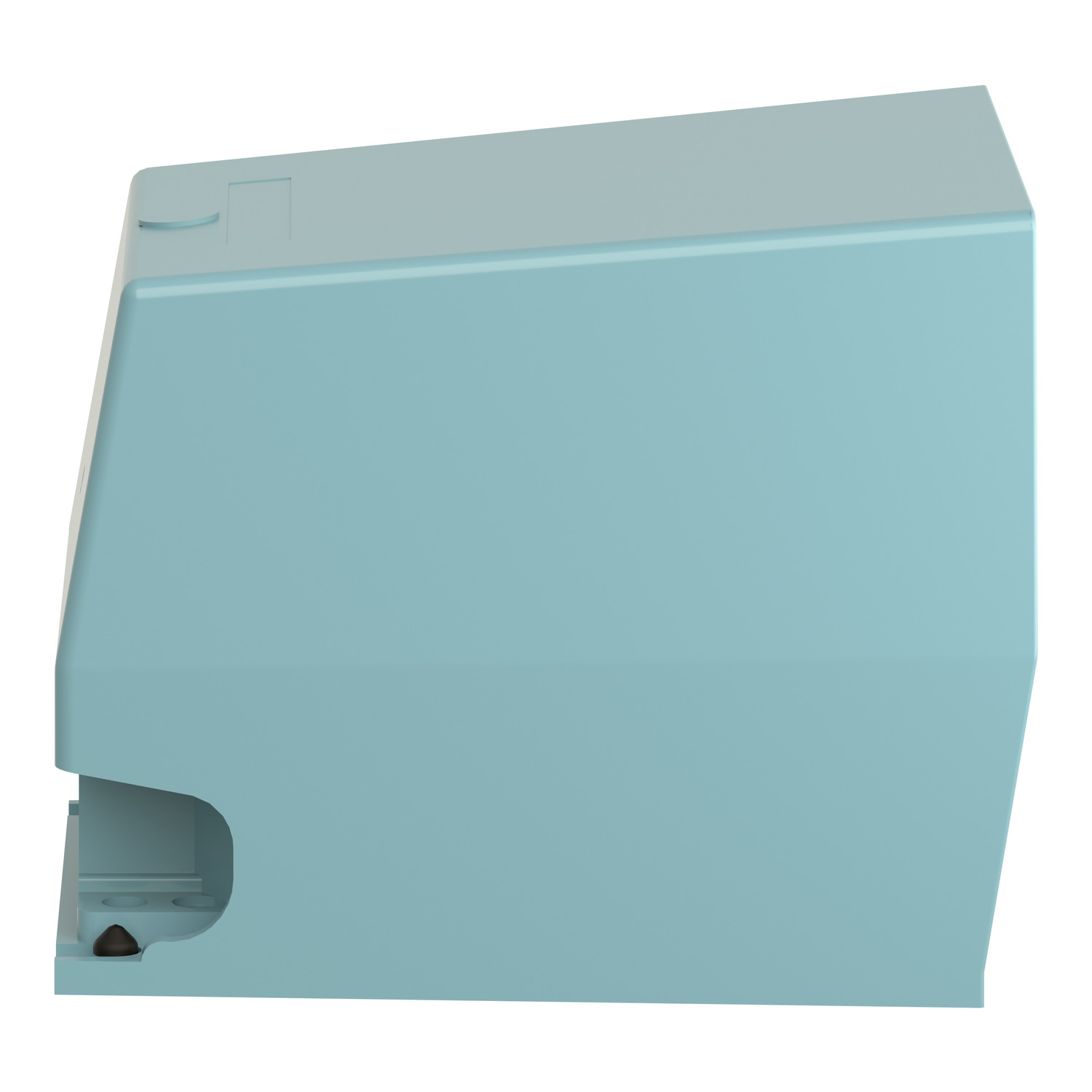

Picture of Single foot switch, Harmony XPE, metal, blue, with cover, 2 steps, 2 contacts 1NC+NO, IP66
Picture of Single foot switch, Harmony XPE, metal, blue, with cover, 2 steps, 2 contacts 1NC+NO, IP66
Picture of Single foot switch, Harmony XPE, metal, blue, with cover, 2 steps, 2 contacts 1NC+NO, IP66
Picture of Single foot switch, Harmony XPE, metal, blue, with cover, 2 steps, 2 contacts 1NC+NO, IP66
Picture of Single foot switch, Harmony XPE, metal, blue, with cover, 2 steps, 2 contacts 1NC+NO, IP66
Picture of Single foot switch, Harmony XPE, metal, blue, with cover, 2 steps, 2 contacts 1NC+NO, IP66
Picture of Single foot switch, Harmony XPE, metal, blue, with cover, 2 steps, 2 contacts 1NC+NO, IP66
Picture of Single foot switch, Harmony XPE, metal, blue, with cover, 2 steps, 2 contacts 1NC+NO, IP66
SKU:

XPEM611

Single foot switch, Harmony XPE, metal, blue, with cover, 2 steps, 2 contacts 1NC+NO, IP66

$970.88
Available for Shipping : 24-Nov-2024
Single foot switch, Harmony XPE, metal, blue, with cover, 2 steps, 2 contacts 1NC+NO, IP66
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet

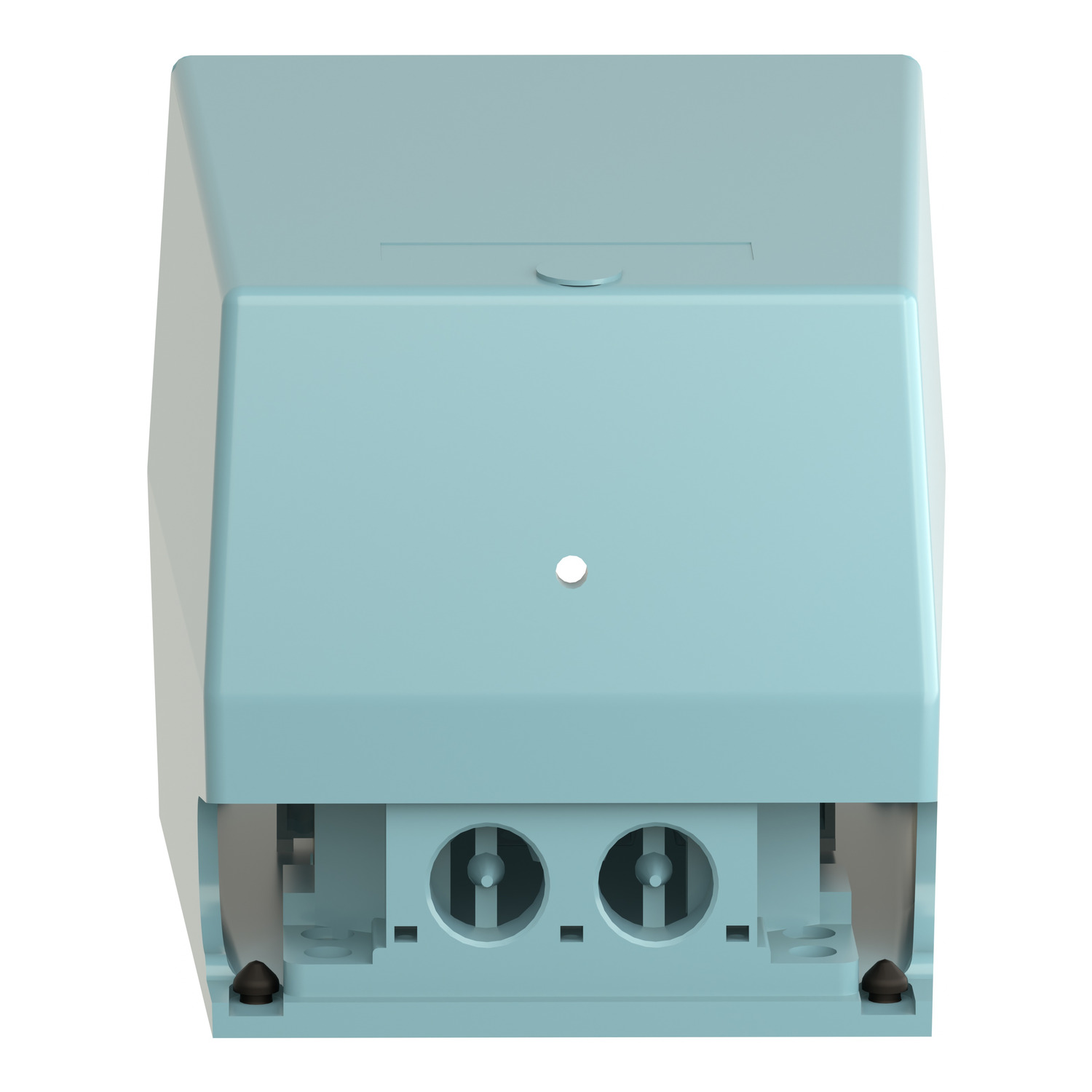

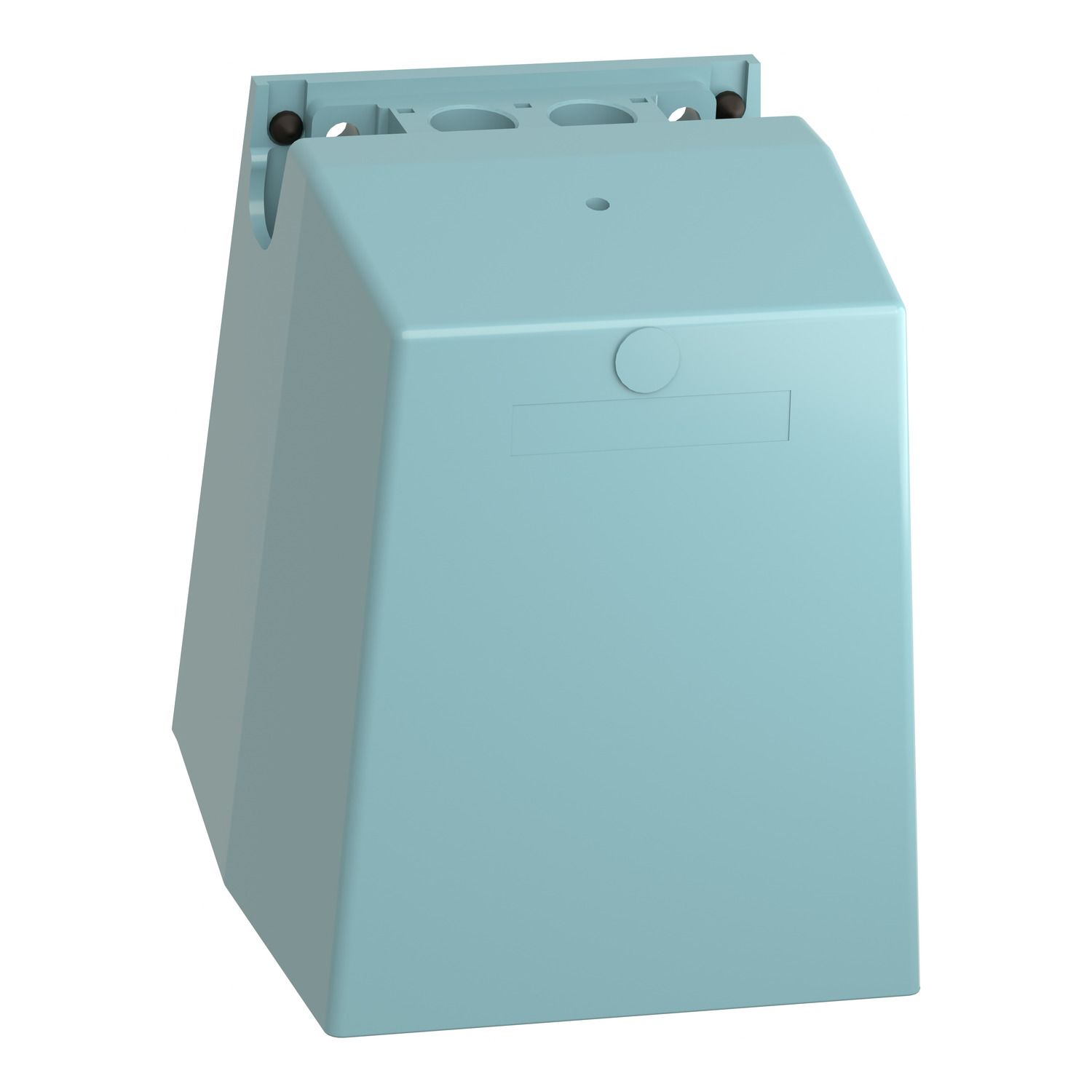

This Harmony XPEM611 is a single foot switch. Its degree of protection is IP66. It has a cover, metallic material, blue color, 2 NC + 2 NO. It is part of the range Harmony XPE foot switches - Control and signaling units for safety applications.

Products specifications

Attribute name Attribute value
Main
Device short name XPEM
Foot switch type single foot switch
Provided equipment cover
Contact operation 2 steps
Colour blue
Range of product Harmony XPE
Contacts type and composition 2 NC + 2 NO
Trigger mechanism without trigger mechanism
Material metal
Product or component type foot switch
Complementary
Compatibility code XPEM
Mechanical durability 15000000 cycles
[Ie] rated operational current 0.27 A, 250 V, DC-13, Q300 conforming to IEC 60947-5-1 appendix A, 3 A, 240 V, AC-15, A300
Maximum resistance across terminals 25 MOhm conforming to NF C 93-050 method A, 25 MOhm conforming to IEC 60255-7 category 3
Rated operational power in W 7 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 48 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 4 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 120 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 10 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 24 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Cable entry 2 entries tapped for Pg 16 cable gland
[Ui] rated insulation voltage 300 V conforming to CSA C22.2 No 14, 300 V conforming to UL 508, 500 V (pollution degree 3) conforming to VDE 0110 group C, 500 V (pollution degree 3) conforming to NF C 20-040 group C, 500 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals screw clamp terminal, <= 2 x 1.5 mm² with or without cable end, screw clamp terminal, <= 1 x 2.5 mm² with or without cable end
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 2.42 kg
Positive opening with conforming to IEC 60947-5-1 appendix K
Short-circuit protection 10 A cartridge fuse type gG conforming to VDE 0660-200, 10 A cartridge fuse type gG conforming to IEC 60947-5-1
Environment
Protective treatment TC
Ambient air temperature for storage -40-70 °C
IP degree of protection IP669 conforming to IEC 60529, IP66 conforming to IEC 60529
Shock resistance 20 gn conforming to IEC 60068-2-27, 150 gn conforming to NF E 09-031
Ambient air temperature for operation -25-70 °C
Overvoltage category class I conforming to NF C 20-030, class I conforming to IEC 61140
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Standards NF E 09-031
Product certifications CSA, FIMKO
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.500 cm
Package 1 Width 16.500 cm
Package 1 Length 20.000 cm
Package 1 Weight 2.514 kg
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 88.120 kg
