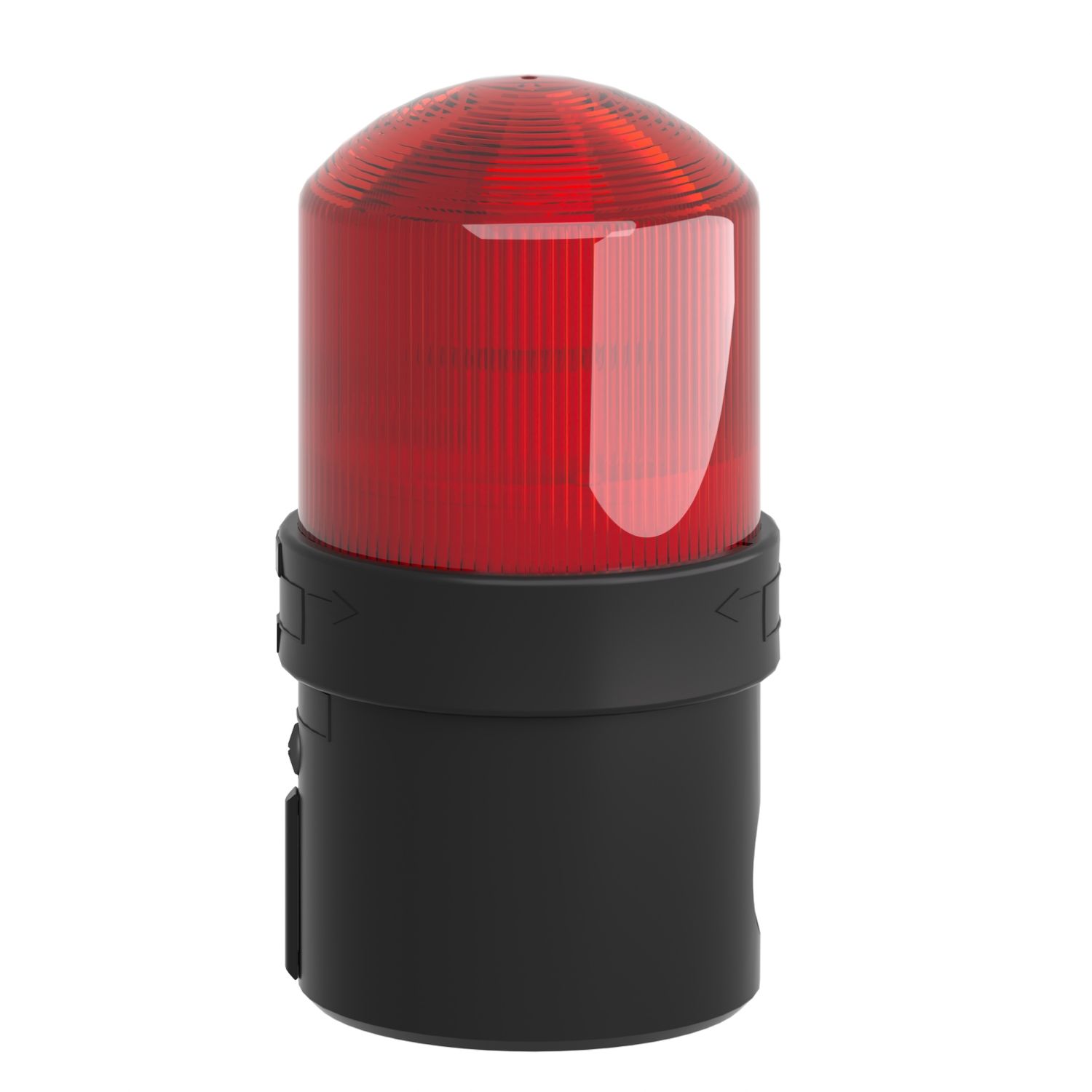

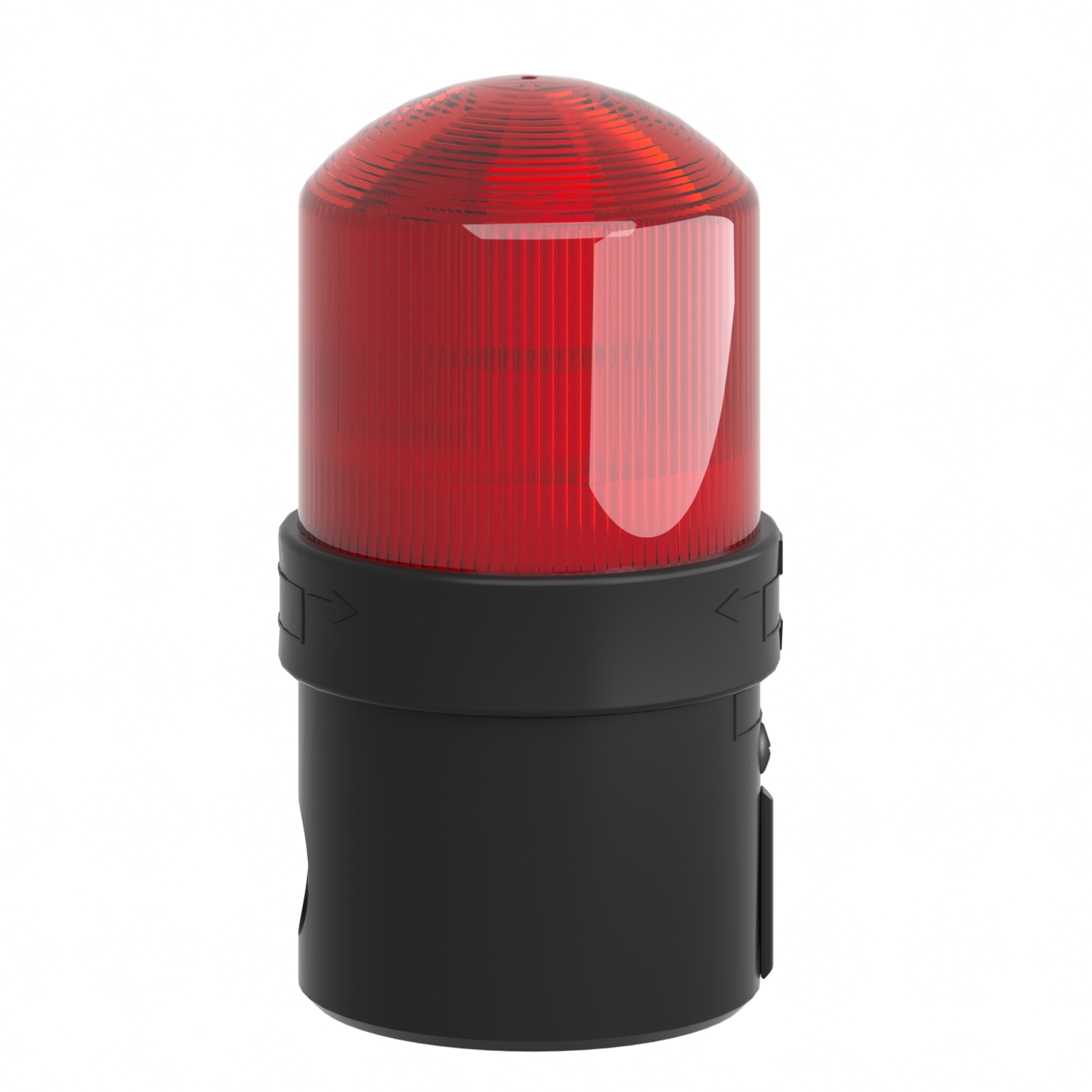

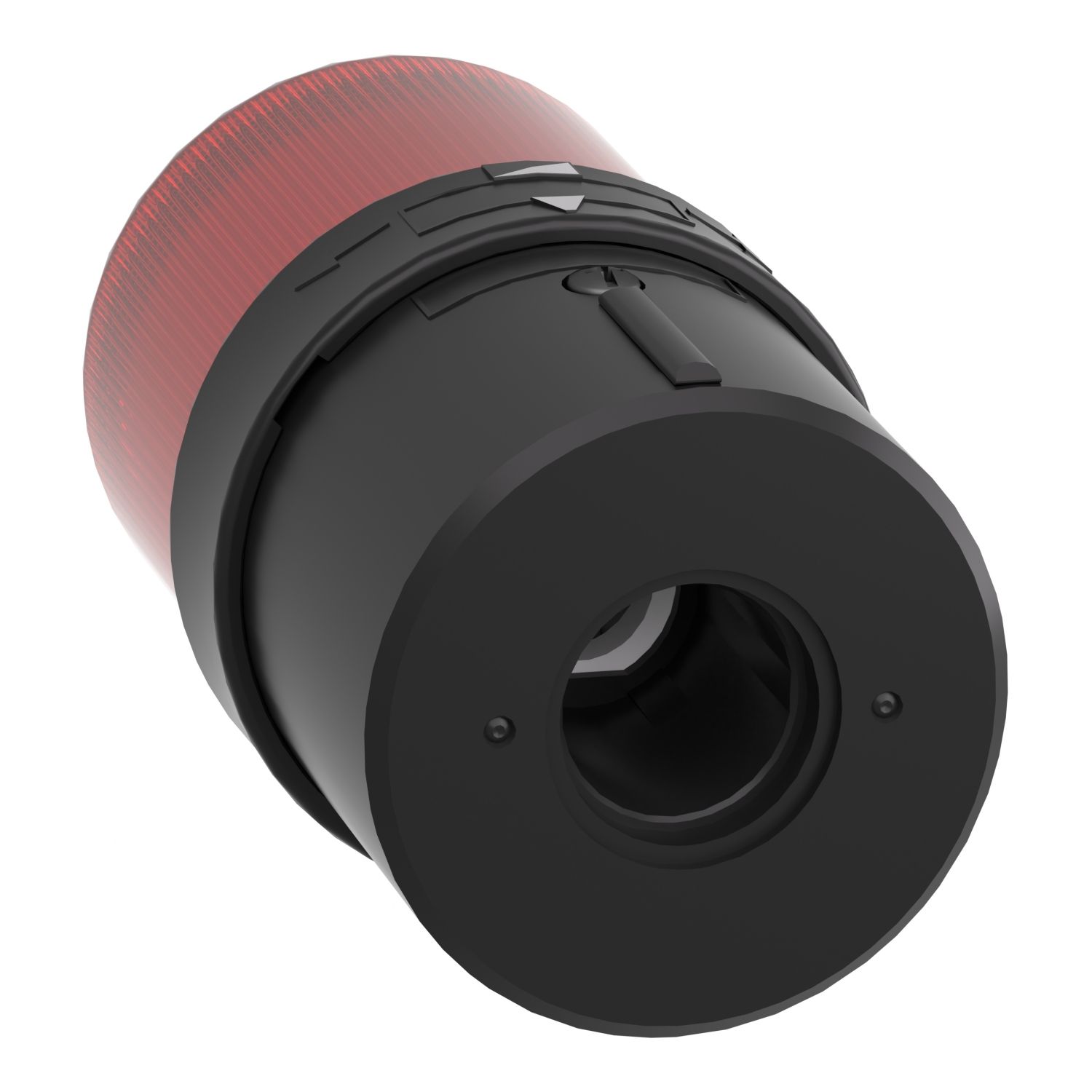

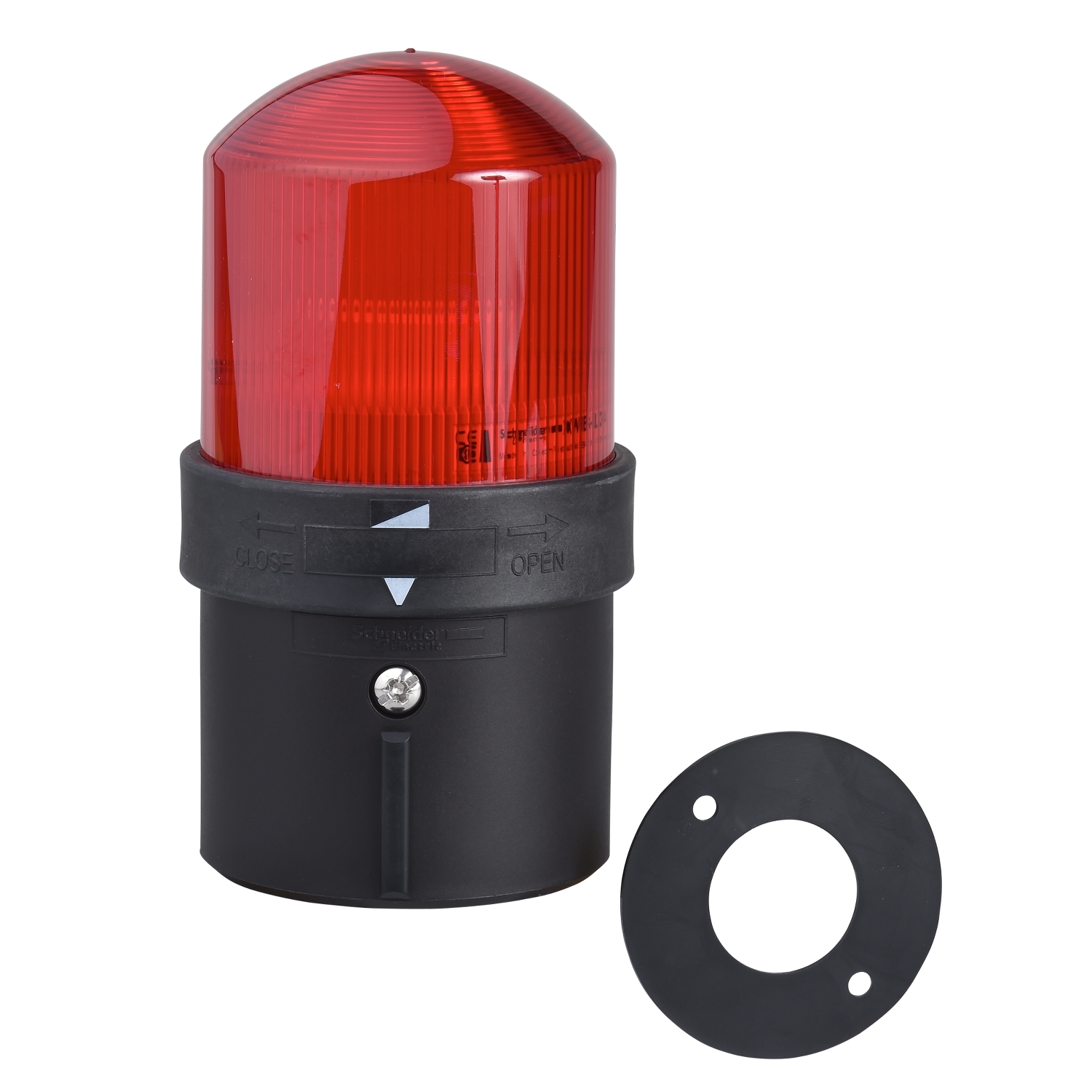

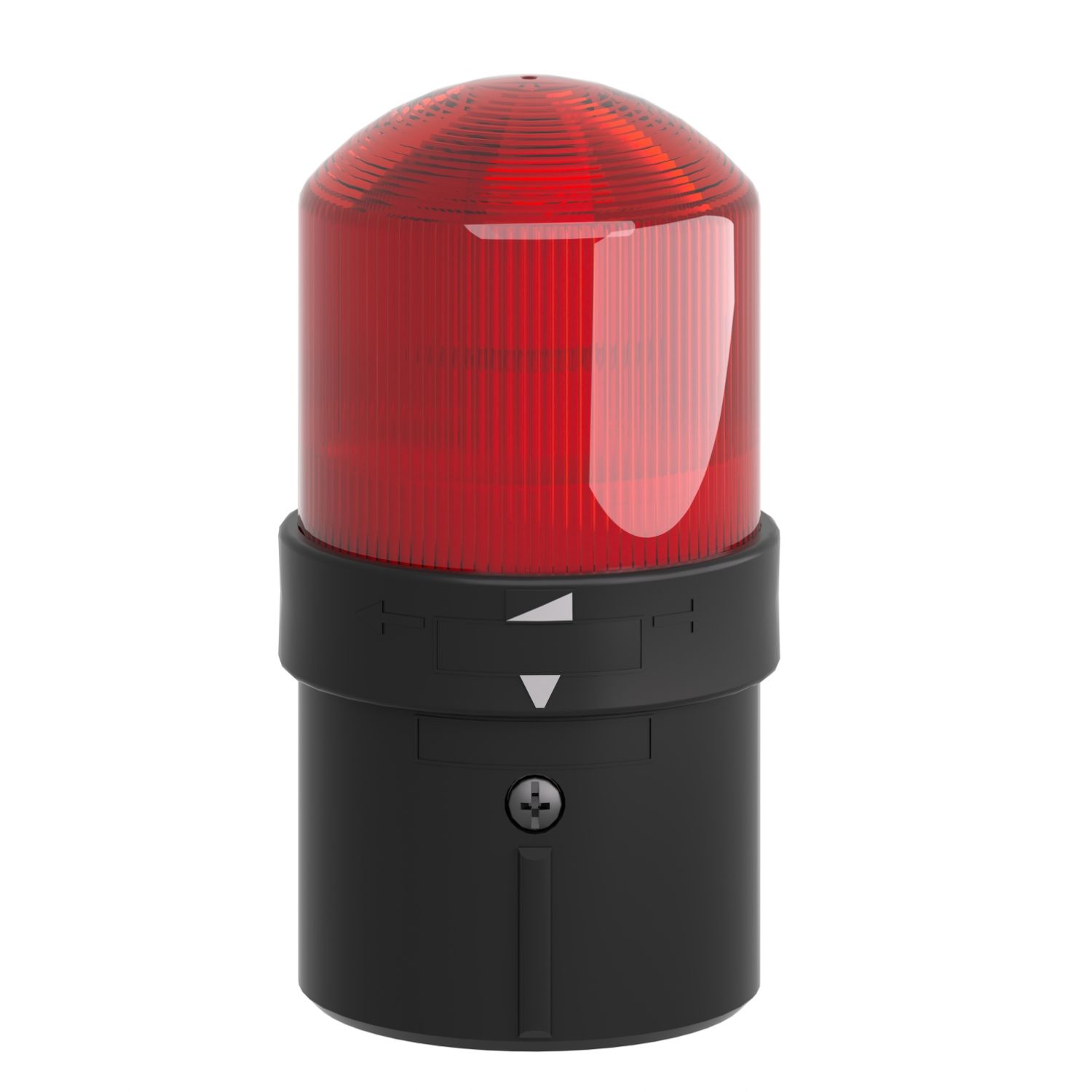

Picture of Illuminated complete beacon, Harmony XVB Universal, plastic, red, 70mm, steady, incandescent with BA15d base, lt 250V

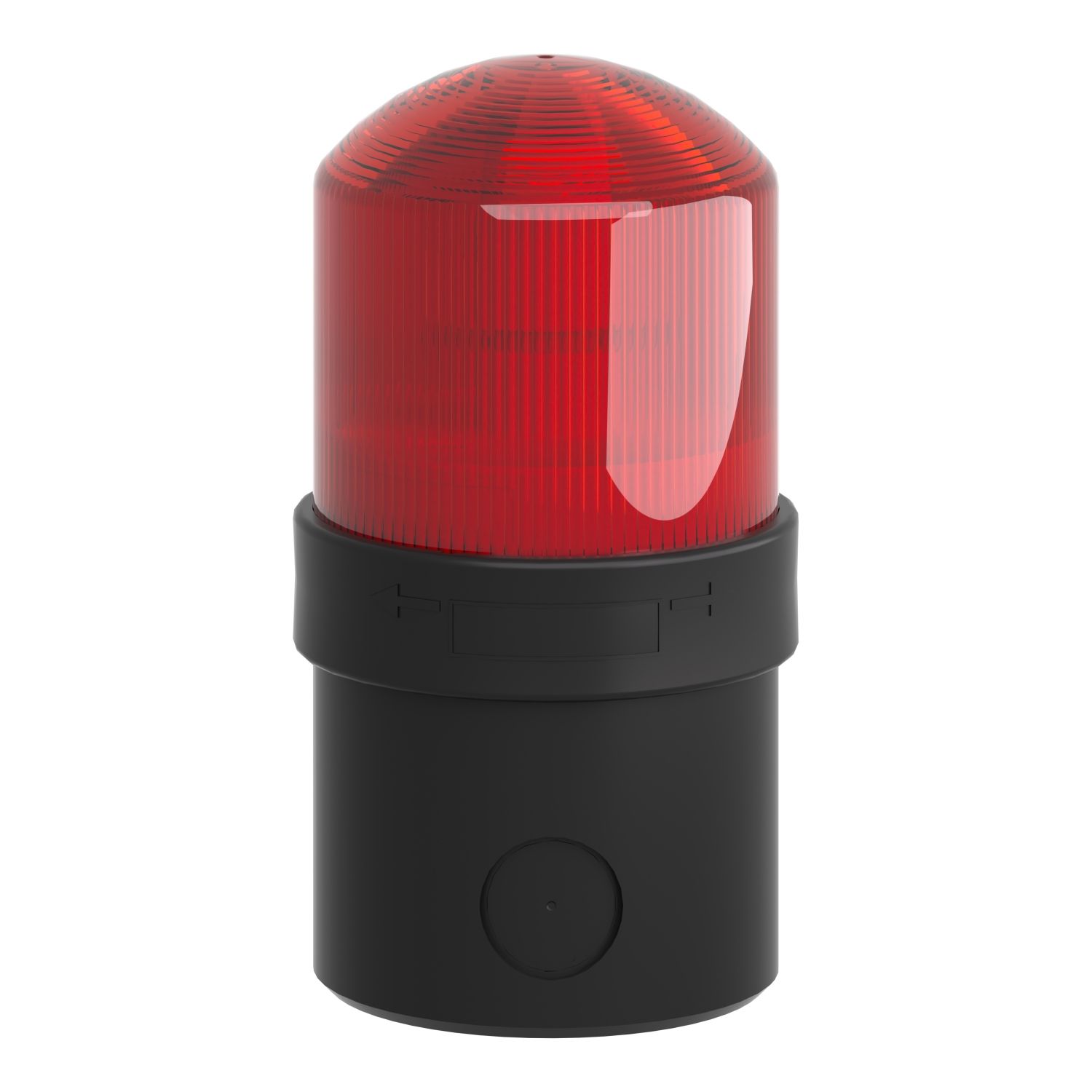

Picture of Illuminated complete beacon, Harmony XVB Universal, plastic, red, 70mm, steady, incandescent with BA15d base, lt 250V
Picture of Illuminated complete beacon, Harmony XVB Universal, plastic, red, 70mm, steady, incandescent with BA15d base, lt 250V
Picture of Illuminated complete beacon, Harmony XVB Universal, plastic, red, 70mm, steady, incandescent with BA15d base, lt 250V
Picture of Illuminated complete beacon, Harmony XVB Universal, plastic, red, 70mm, steady, incandescent with BA15d base, lt 250V
Picture of Illuminated complete beacon, Harmony XVB Universal, plastic, red, 70mm, steady, incandescent with BA15d base, lt 250V
Picture of Illuminated complete beacon, Harmony XVB Universal, plastic, red, 70mm, steady, incandescent with BA15d base, lt 250V
SKU:

XVBL34

Illuminated complete beacon, Harmony XVB Universal, plastic, red, 70mm, steady, incandescent with BA15d base, lt 250V

$173.42
Product Selector
Illuminated complete beacon, Harmony XVB Universal, plastic, red, 70mm, steady, incandescent with BA15d base, lt 250V
Be the first to review this product
Manufacturer: Schneider Electric
Estimated Delivery Date: 18-Oct-2024
Image of product
Product environmental
Image of product
Catalogue
Declaration of conformity
Image of product
CAD
Image of product
Instruction sheet
Image of product
Product Page Link
Product Data Sheet

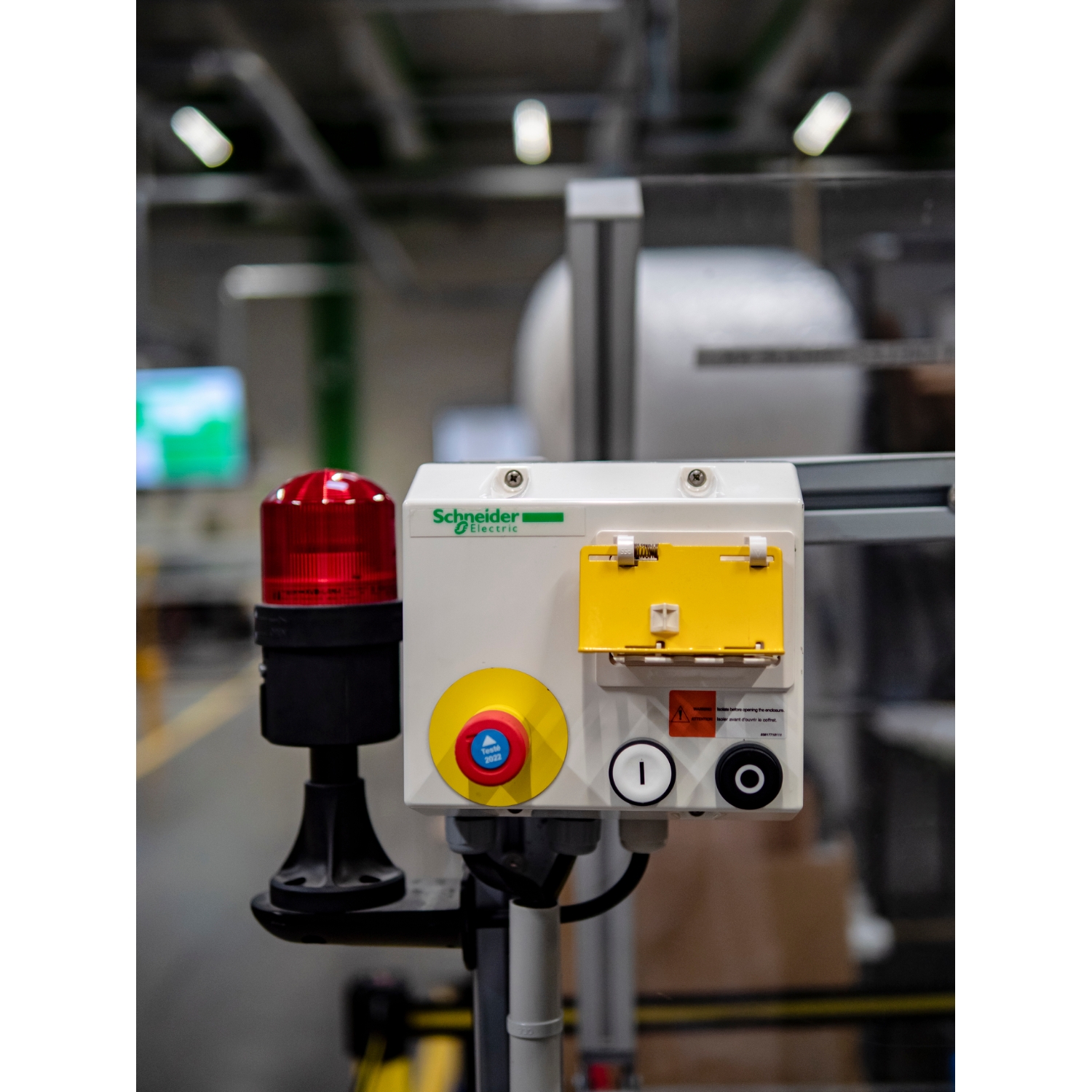

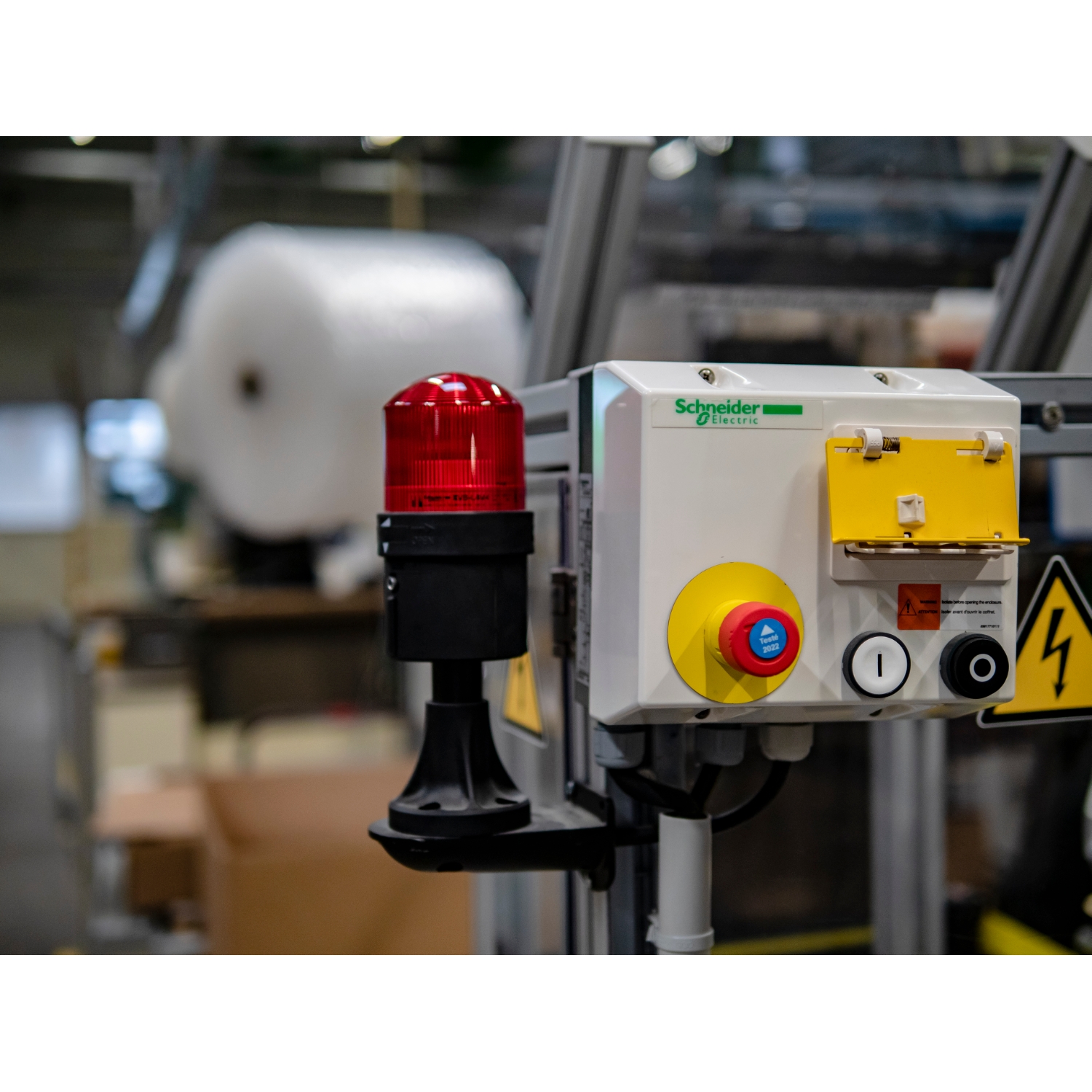

This illuminated complete beacon is designed as lighting accessory for tower light. Its integral LED offers a steady light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.

Products specifications

Attribute nameAttribute value
Main
[Us] rated supply voltage<= 250 V
Materialpolycarbonate: illuminated unit, glass reinforced polyamide: base unit
Bulb typeprotected LED, incandescent with BA 15d base
Signalling typesteady
Maximum power dissipation in W7 W
Component nameXVBL
Product or component typecomplete beacon
Light sourcebulb not included, red
Mounting diameter70 mm
Range of productHarmony XVB Universal
Beacon or indicator bank unit typeilluminated unit, base unit direct or tube fixing
Complementary
CAD overall depth70 mm
CAD overall width70 mm
Nominal voltage limit0.85...1.1 Un conforming to IEC 60947-5-1
[Ui] rated insulation voltage250 V conforming to IEC 60947-1
Connections - terminalsscrew clamp terminals, <= 1 x 1.5 mm² with cable end
CAD overall height139 mm
[Uimp] rated impulse withstand voltage4 kV conforming to IEC 60947-1
Net weight0.26 kg
Terminals description ISO n°1(GND)GROUND, (COM-1)PW
Environment
Protective treatmentTC
Electrical shock protection classclass II on base unit conforming to IEC 61140, class I on support tube conforming to IEC 61140
NEMA degree of protectionType 4X conforming to UL (indoor)
Ambient air temperature for storage-40-70 °C
IP degree of protectionIP66 on base unit conforming to IEC 60529, IP65 on fixing base XVBZ0. conforming to IEC 60529
Pollution degree2
StandardsIEC 60947-5-1
Ambient air temperature for operation-25-70 °C: incandescent, -25-50 °C: LED
Product certificationsUL 508, CSA C22-2 No 14, EAC, CCC
Packing Units
Unit Type of Package 11
Number of Units in Package 11
Package 1 Height8.0 cm
Package 1 Width8.0 cm
Package 1 Length14.8 cm
Package 1 Weight261.0 g
Unit Type of Package 22
Number of Units in Package 218
Package 2 Height30.0 cm
Package 2 Width30.0 cm
Package 2 Length40.0 cm
Package 2 Weight5.166 kg

Related products

Picture of Harmony XVB, Fixing base for modular tower lights, plastic, Ø70, 780mm black aluminium support tube + black fixing plate

Harmony XVB, Fixing base for modular tower lights, plastic, Ø70, 780mm black aluminium support tube + black fixing plate

XVBZ04
$95.51
View Detail

Harmony XVB, Fixing base for modular tower lights, plastic, Ø70, 80mm black aluminium support tube + black fixing plate

XVBZ02
$71.75
View Detail

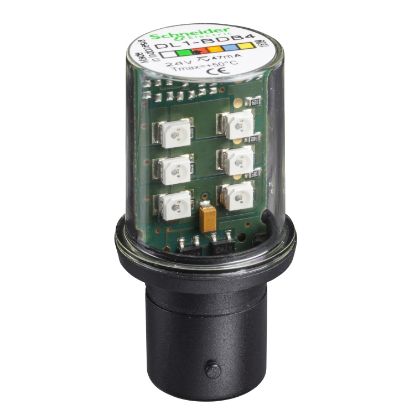

Picture of LED bulb, Harmony XVB, BA 15d, red, steady light, 24V AC/DC

LED bulb, Harmony XVB, BA 15d, red, steady light, 24V AC/DC

DL1BDB4
$159.56
View Detail

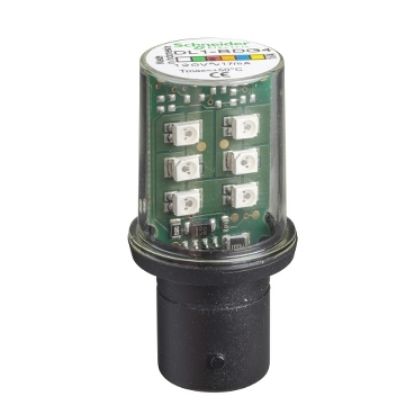

Picture of LED bulb, Harmony XVB, BA 15d, red, steady light, 120V AC
