SKU:

XVGU3SWV

USB configurable monolithic tower light, Harmony XVGU, multi color programmable lights 60mm, steady/flashing LED buzzer

$737.28
Available for Shipping : 01-Jan-2025
USB configurable monolithic tower light, Harmony XVGU, multi color programmable lights 60mm, steady/flashing LED buzzer
Manufacturer: Schneider Electric

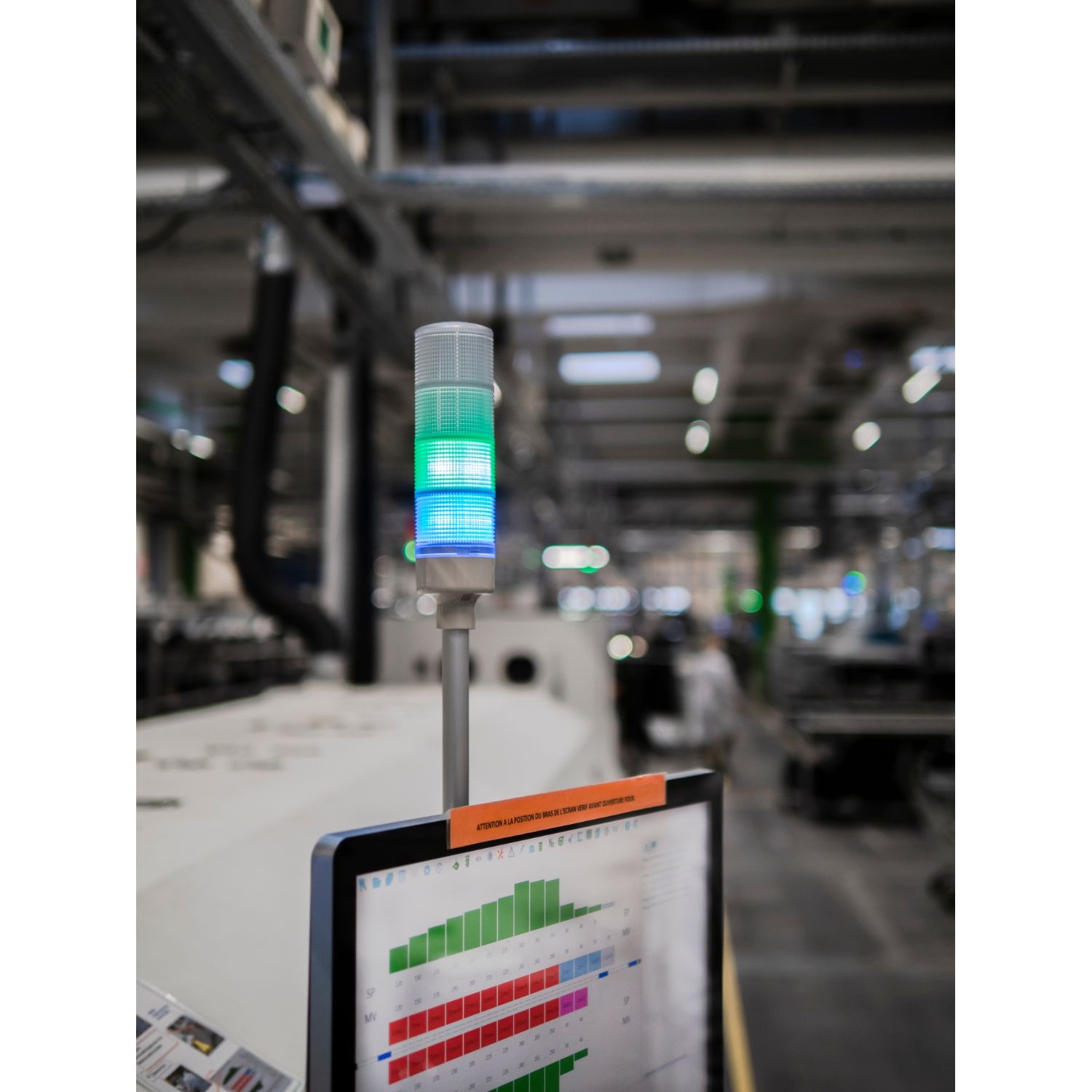

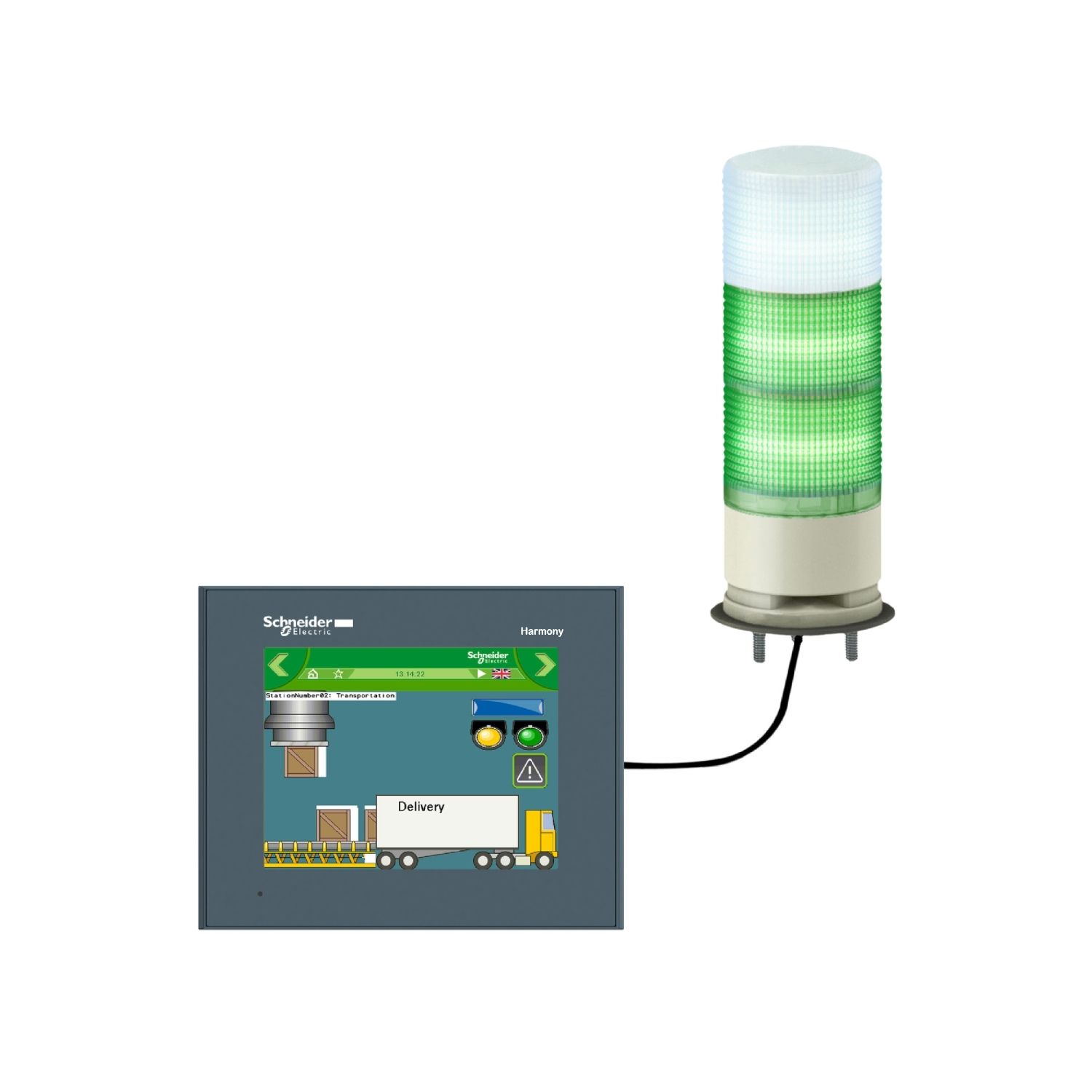

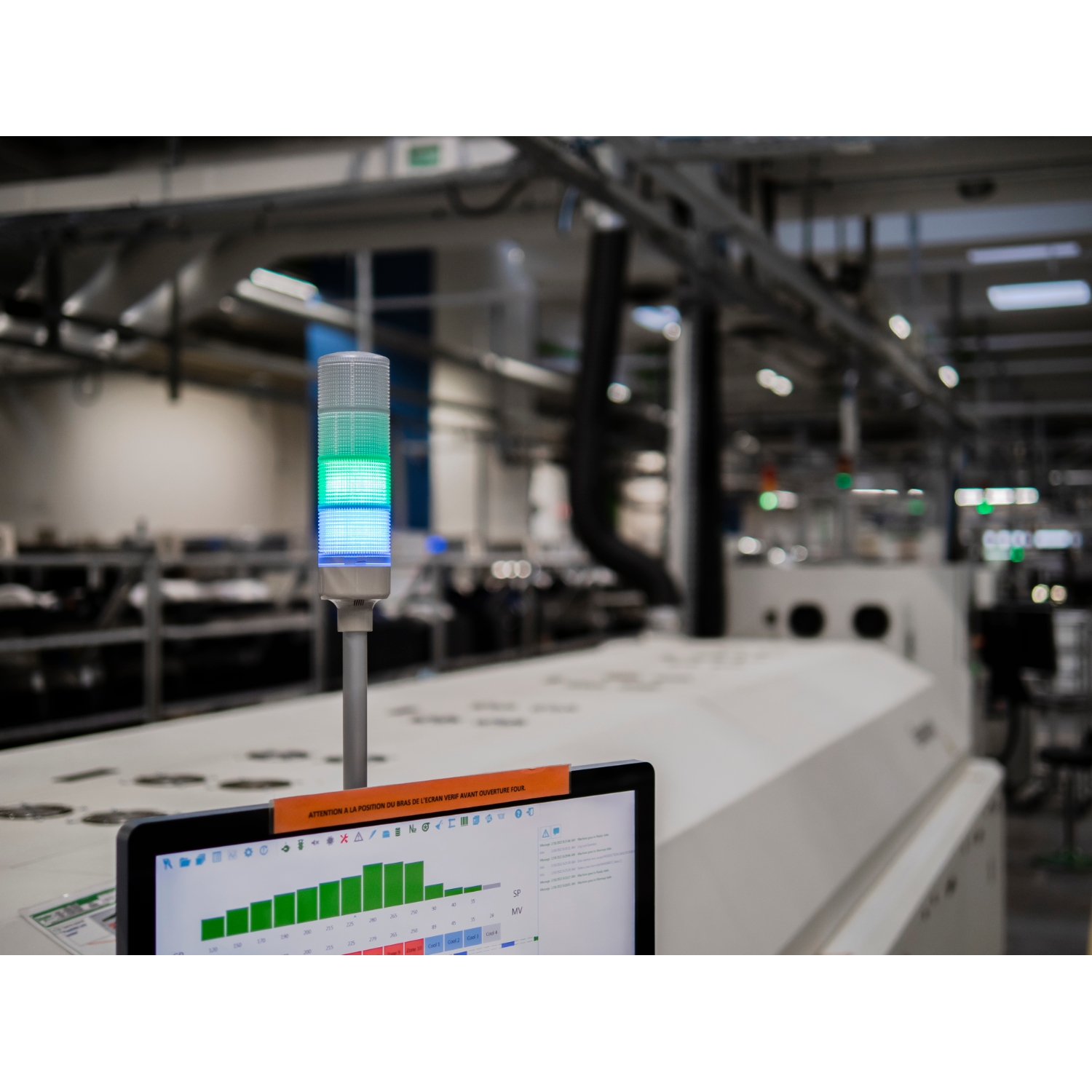

This XVGU multi-color USB programmable tower light has 3 tiers, whose color and flashing scheme can be independantly configured within the HMI application. It is designed to connect directly with Magelis HMI using a USB connection and clearly display the status of your machines in applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It offers configurable color combinations, flashing patterns and buzzer sounds. Included 82dB loud buzzer for alerting on critical machine statuses. Adjustable flashing schemes to allow for more advanced alerting to workfloor staff around the machine.

Products specifications

Attribute name Attribute value
Main
Indicator bank base type base with integrated buzzer
Sound signalling buzzer
Beacon or indicator bank unit type 3 illuminated units
Noise level 82-82 dB (2 tone buzzer) at 1 m
Component name XVGU
Product or component type USB configurable monolithic tower light
Light source LED steady or flashing multi-colour
Mounting diameter 60 mm
Range of product Harmony XVGU
Complementary
[Us] rated supply voltage 5 V DC
Flashing frequency 1 Hz with flashing LED unit, 2 Hz with flashing LED unit
Material PC: globe
Sound frequency 3800 Hz, 2700 Hz
Product compatibility XBTGH, XBTGC2., XBTGC1., XBTGK...., XBTGT...., HMIGTO, Vijeo Designer 4.6 indoor use only
Connector type USB type A female
Light block color clear/clear/clear
Current consumption 400 mA
Net weight 0.3 kg
Power consumption in W 2 W
Device mounting direct mounting
Environment
IP degree of protection IP54
Electrical shock protection class class I
Ambient air temperature for storage -35-70 °C
Standards IEC 61000-6-4, IEC 61000-6-2
Ambient air temperature for operation 0-55 °C
Product certifications UL 508, RCM, CE, cUL, GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.9 cm
Package 1 Width 7.9 cm
Package 1 Length 31.1 cm
Package 1 Weight 350.0 g
Unit Type of Package 2 2
Number of Units in Package 2 21
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 8.6 kg
Unit Type of Package 3 3
Number of Units in Package 3 84
Package 3 Height 80 cm
Package 3 Width 80 cm
Package 3 Length 60 cm
Package 3 Weight 42.908 kg
