SKU:

XVS14MMW

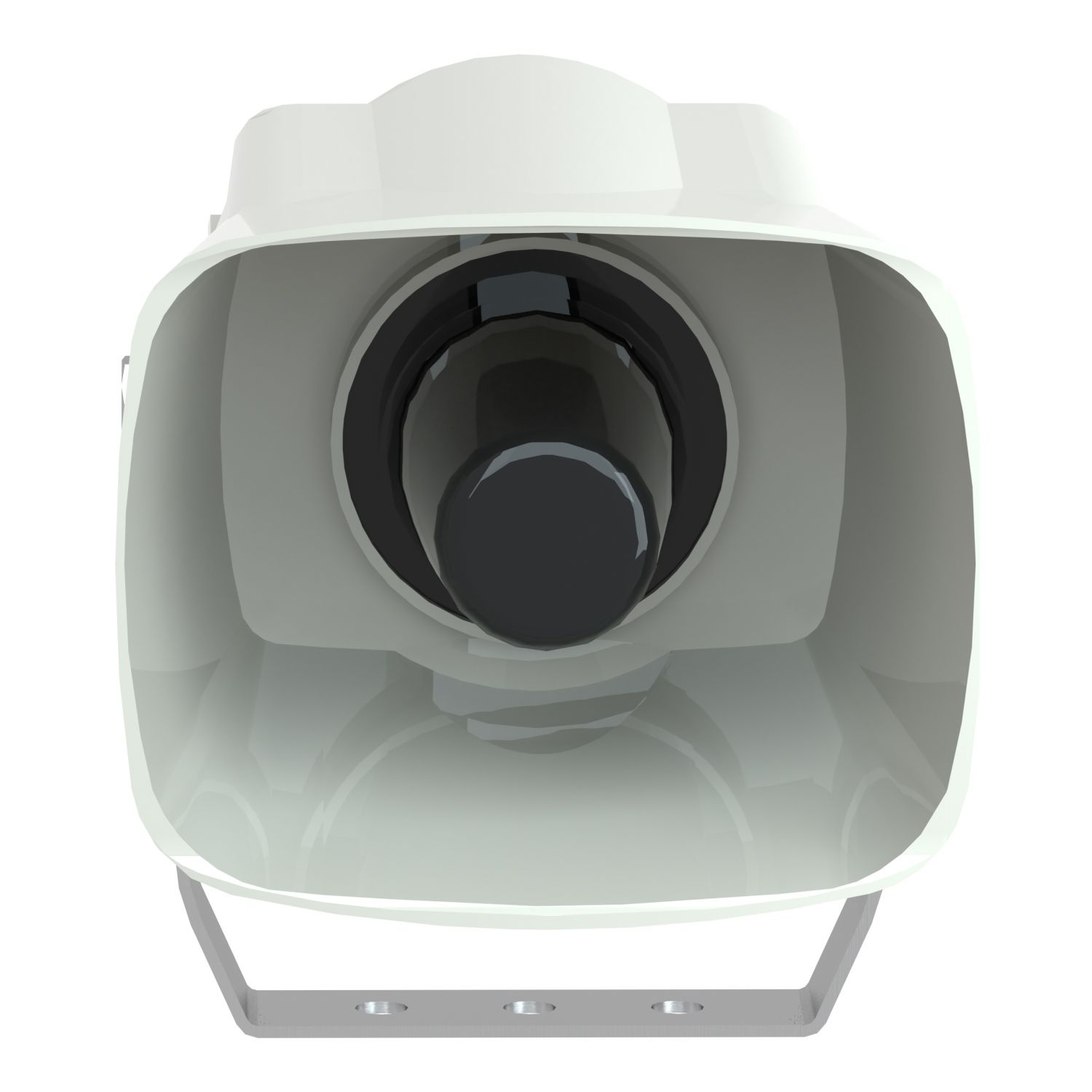

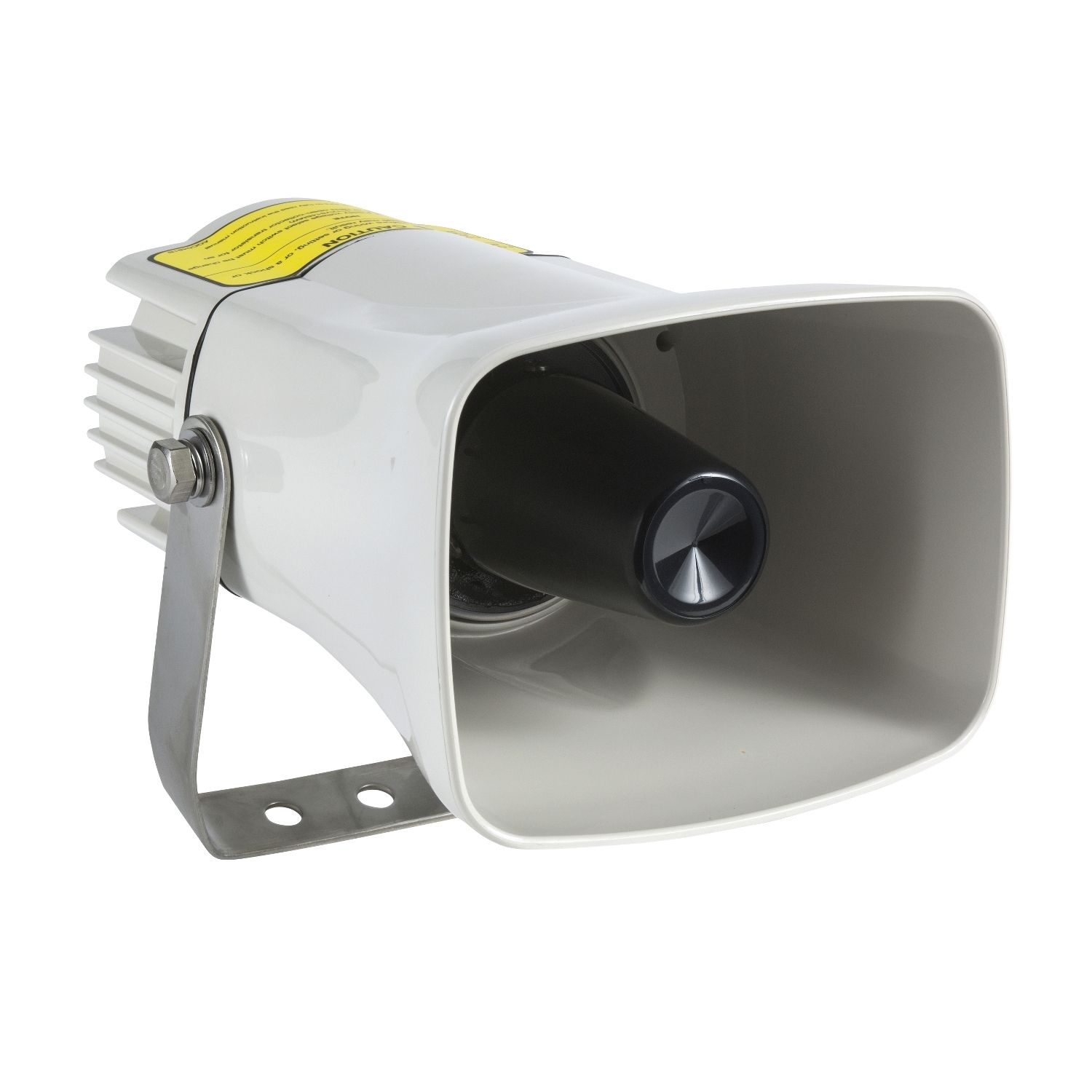

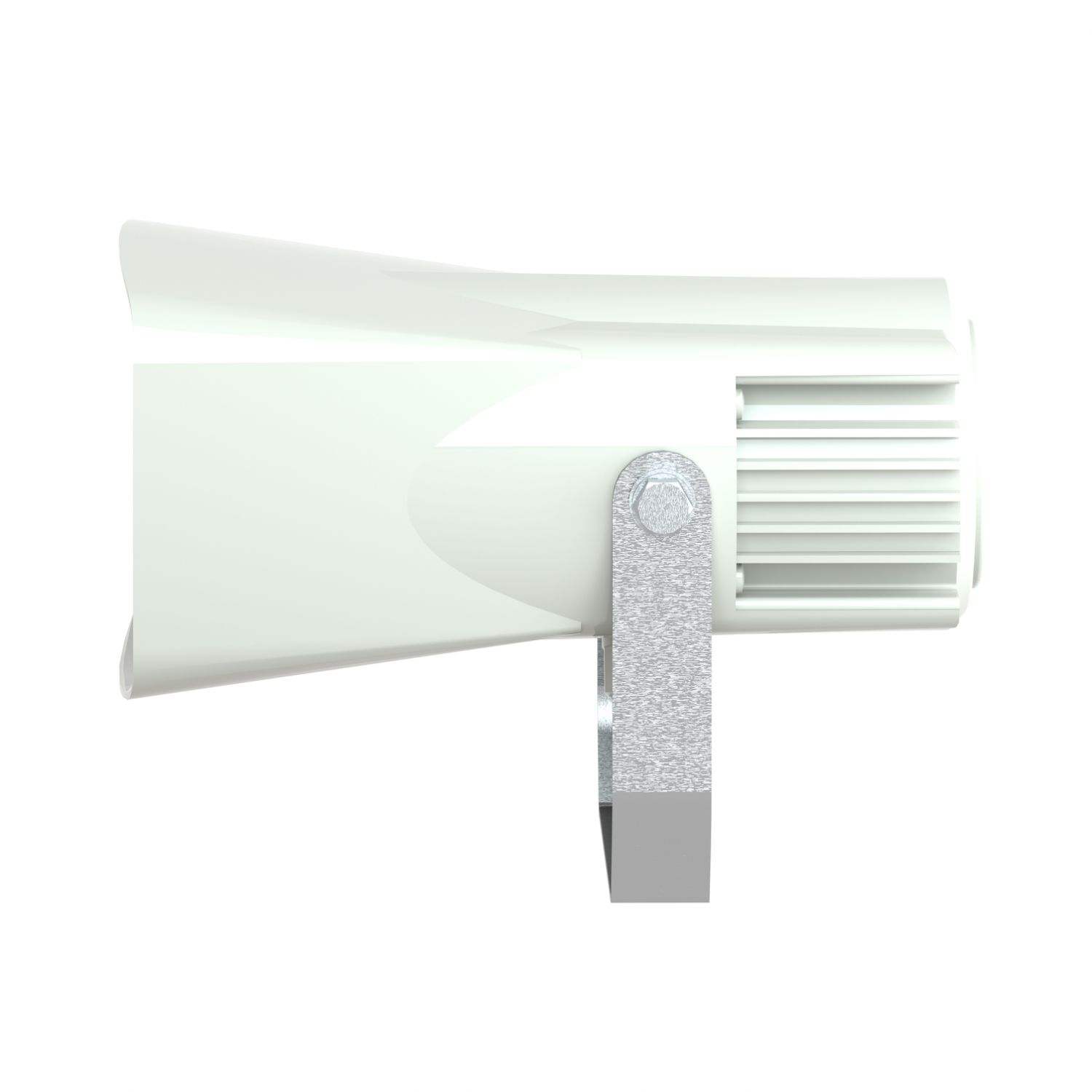

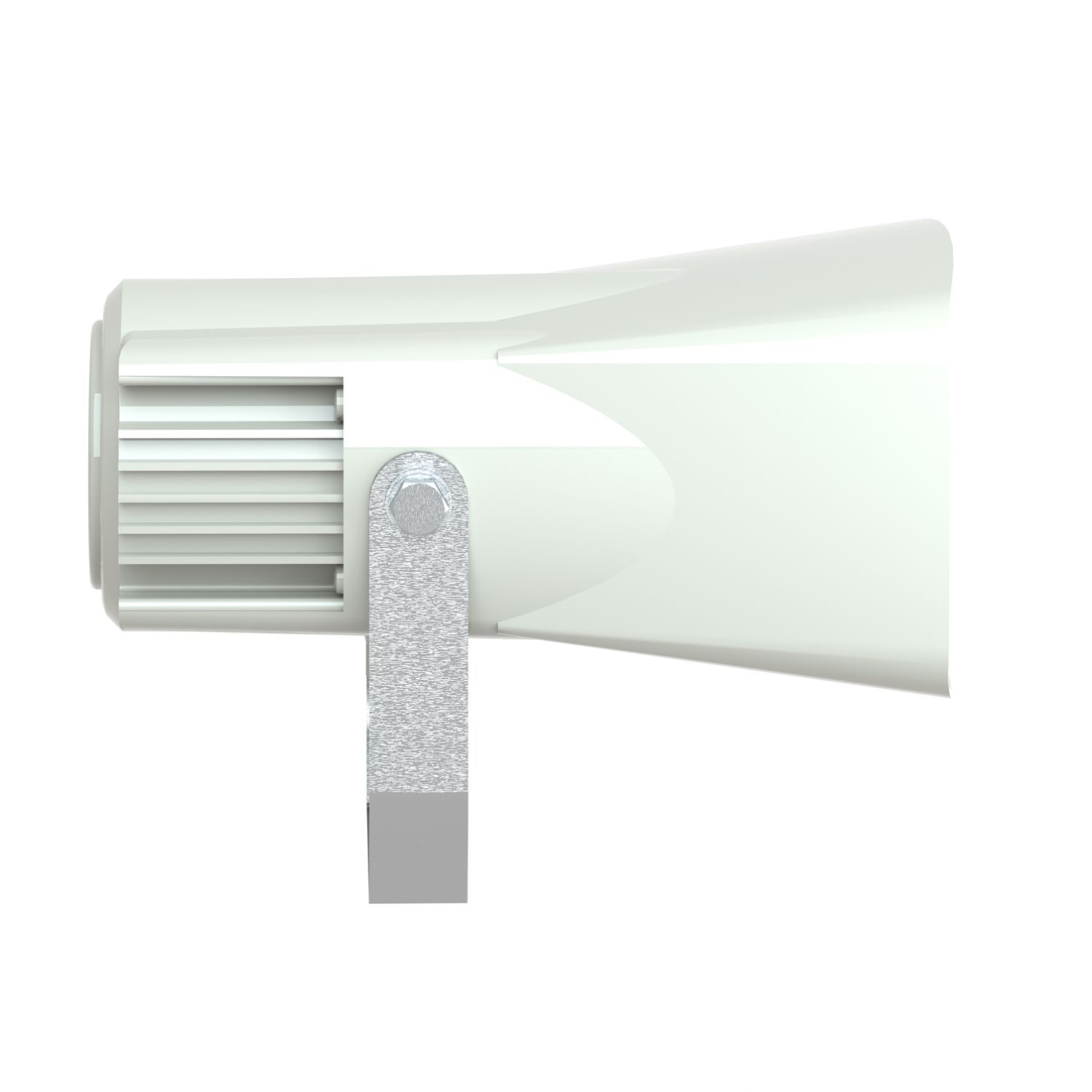

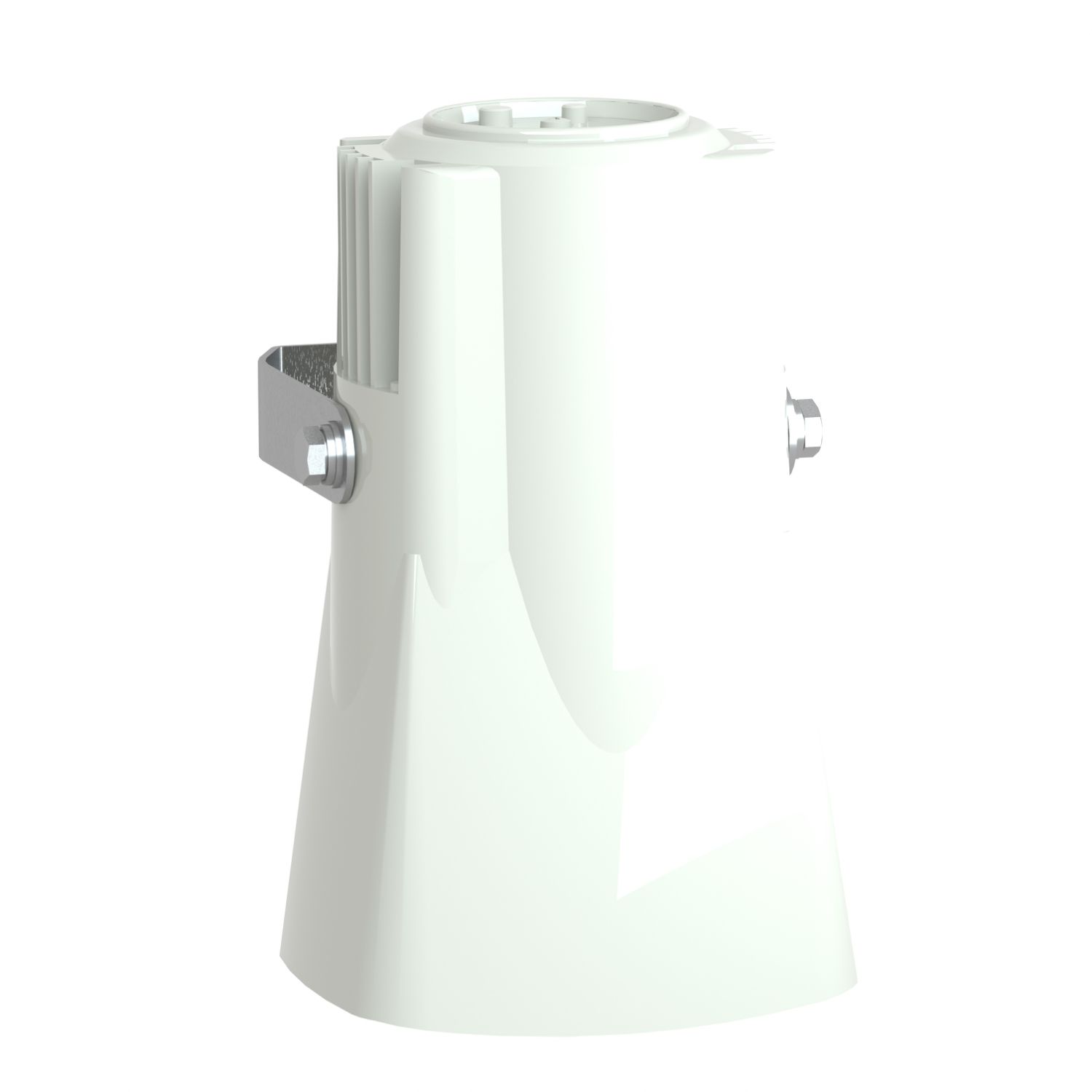

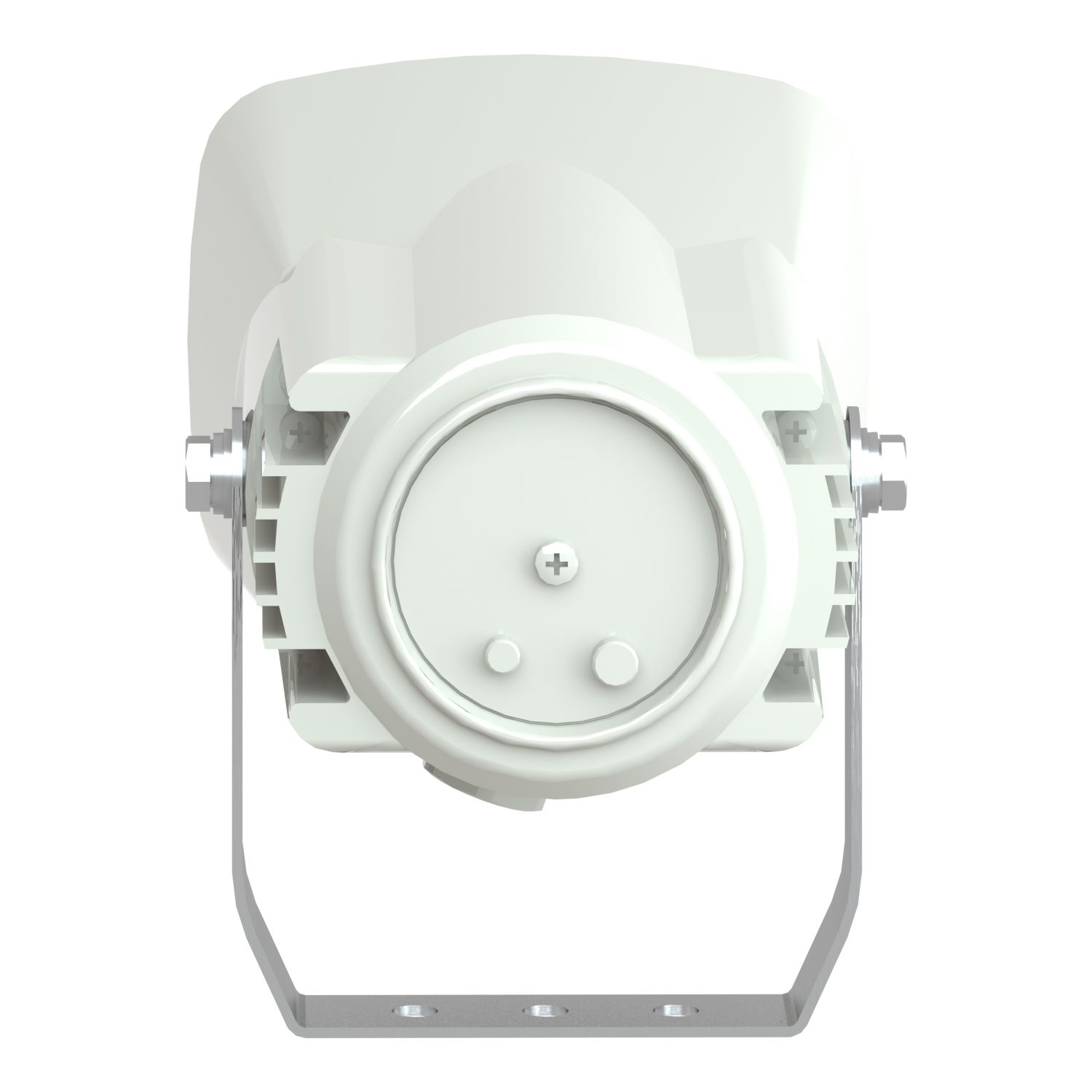

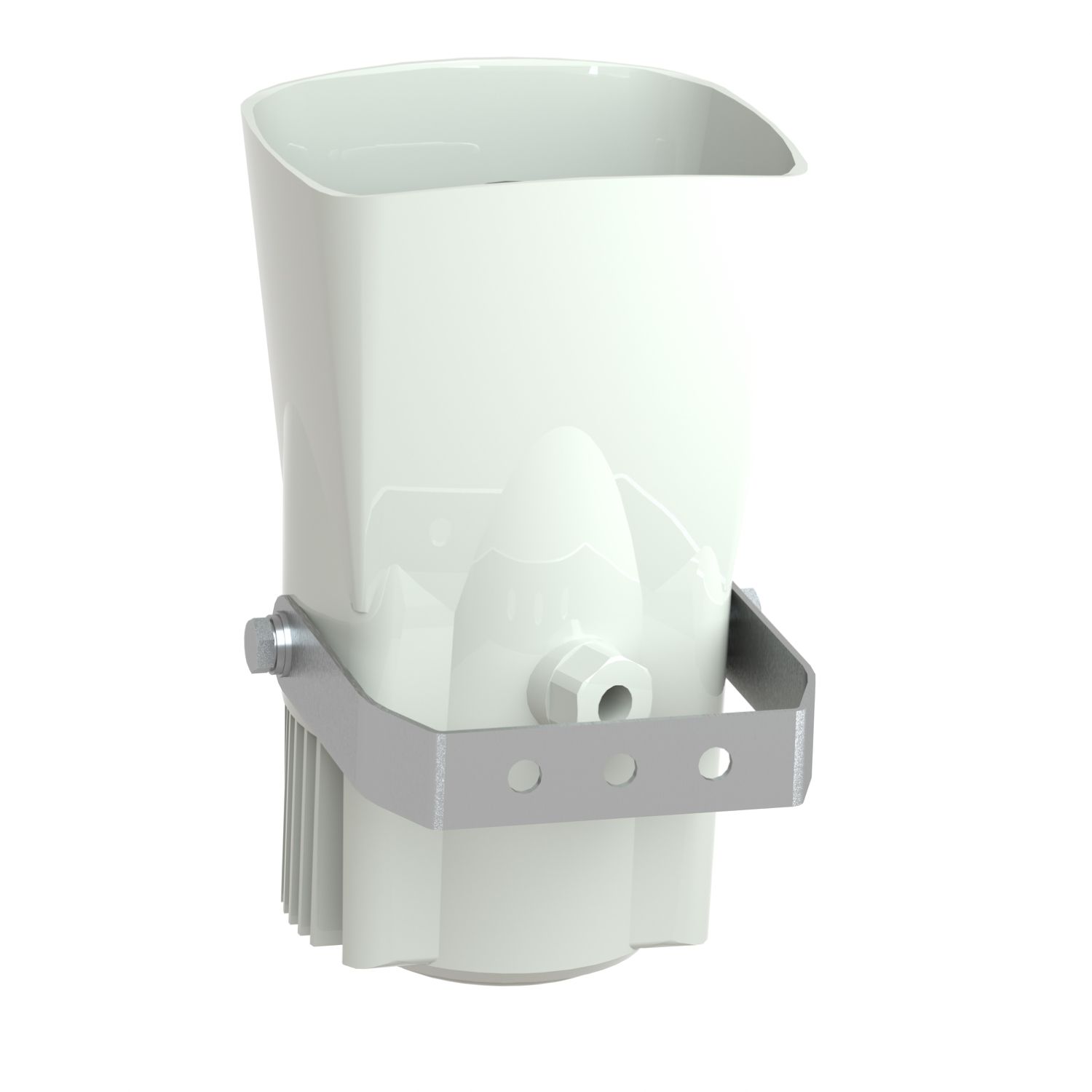

Multisound siren, Harmony XVS, prewired, white colour, 0...105dB, 43tones, 240V AC

Old price: $439.89 INC GST
$343.11 INC GST
Available for Shipping : 24-Feb-2026
Multisound siren, Harmony XVS, prewired, white colour, 0...105dB, 43tones, 240V AC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 24-Feb-2026
Catalog
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
This white multi-sound siren is part of the range Harmony type XVS multi sound sirens and alarms. It is supplied complete and pre-cabled. Supply voltage is 240V AC and degree of protection is IP 53. It features a sound with continuous or intermittent tone that can be adjusted from 0 to 105dB at 1m and 43 tones. It is designed for long distance indication of the operating status of a machine. It is used mainly on conveyor belts, automated industrial trucks and on the doors of electrical control panels.

Products specifications

Attribute name Attribute value
Main
Device short name XVS
Range of product Harmony XVS
Product or component type multisound siren
Complementary
Compatibility code XVS
Electrical connection cable: 6.5-8.5 mm, 0.52-0.52 mm² / AWG 20 (power circuit), cable: 6.5-8.5 mm, 0.33-0.33 mm² / AWG 22 (signalling circuit)
Colour white
Marking CE
Height 114 mm
Depth 223 mm
Width 140 mm
Material PC (polycarbonate)/ABS (acrylonitrile butadiene-styrene): back, PC (polycarbonate)/ABS (acrylonitrile butadiene-styrene): front, PC (polycarbonate): back cover
[Uimp] rated impulse withstand voltage 4 kV
Net weight 1.2 kg
Current consumption 50 mA at 240 V
Fixing mode 3 holes Ø 9 mm
Mounting support bracket
Environment
Protective treatment TC
[Us] rated supply voltage 240 V AC
Noise level 0-105 dB (continuous or intermittent tone) at 1 m
Ambient air temperature for storage -35-70 °C
IP degree of protection IP53 conforming to IEC 60529
Ambient air temperature for operation -10-50 °C
Overvoltage category class II conforming to IEC 61140
Signalling type 43 tones siren
Standards IEC 61000-6-2, EN 60947-01, IEC 60947-5-1, IEC 61000-6-3
Product certifications UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.5 cm
Package 1 Width 15.5 cm
Package 1 Length 27.5 cm
Package 1 Weight 1.55 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 10.676 kg
