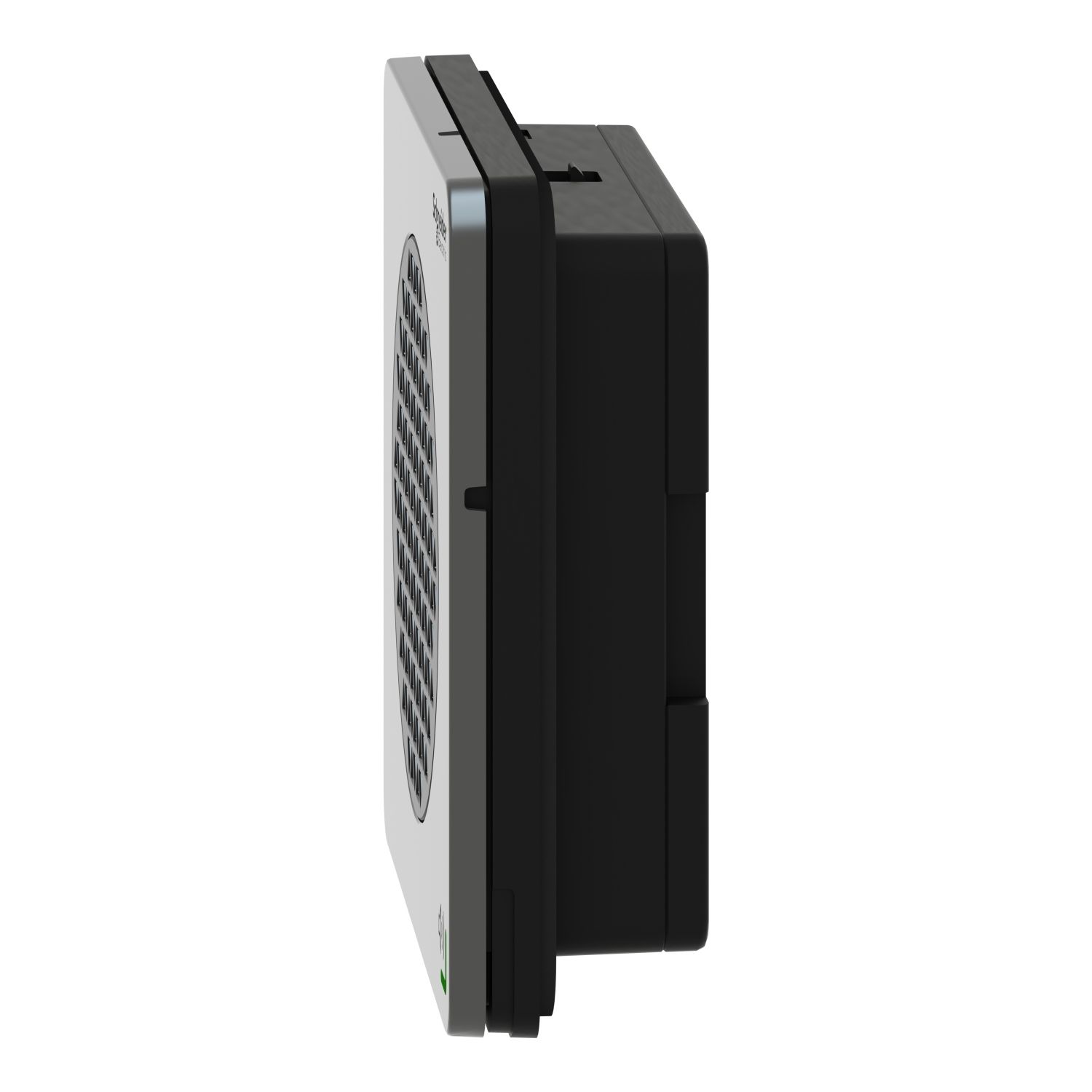

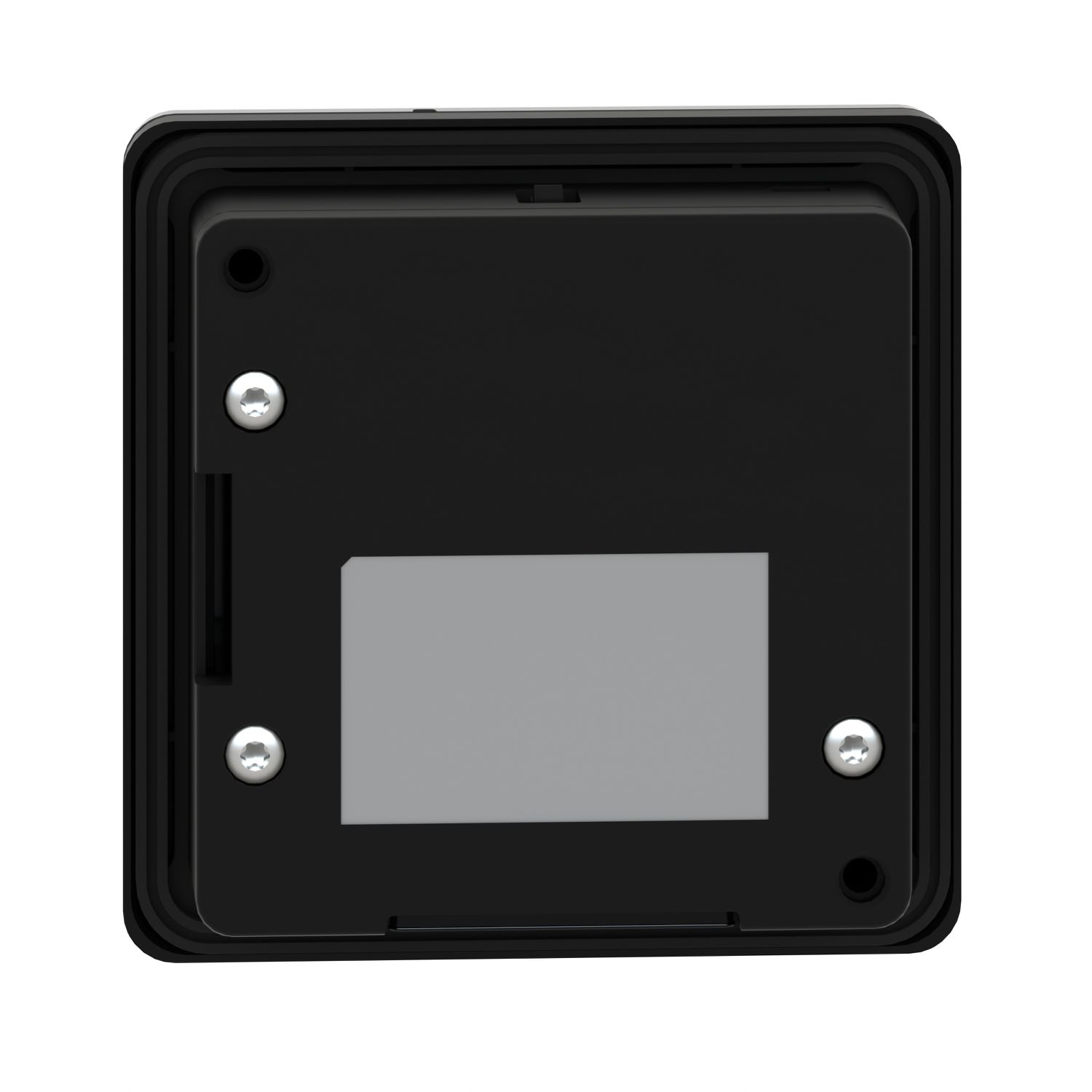

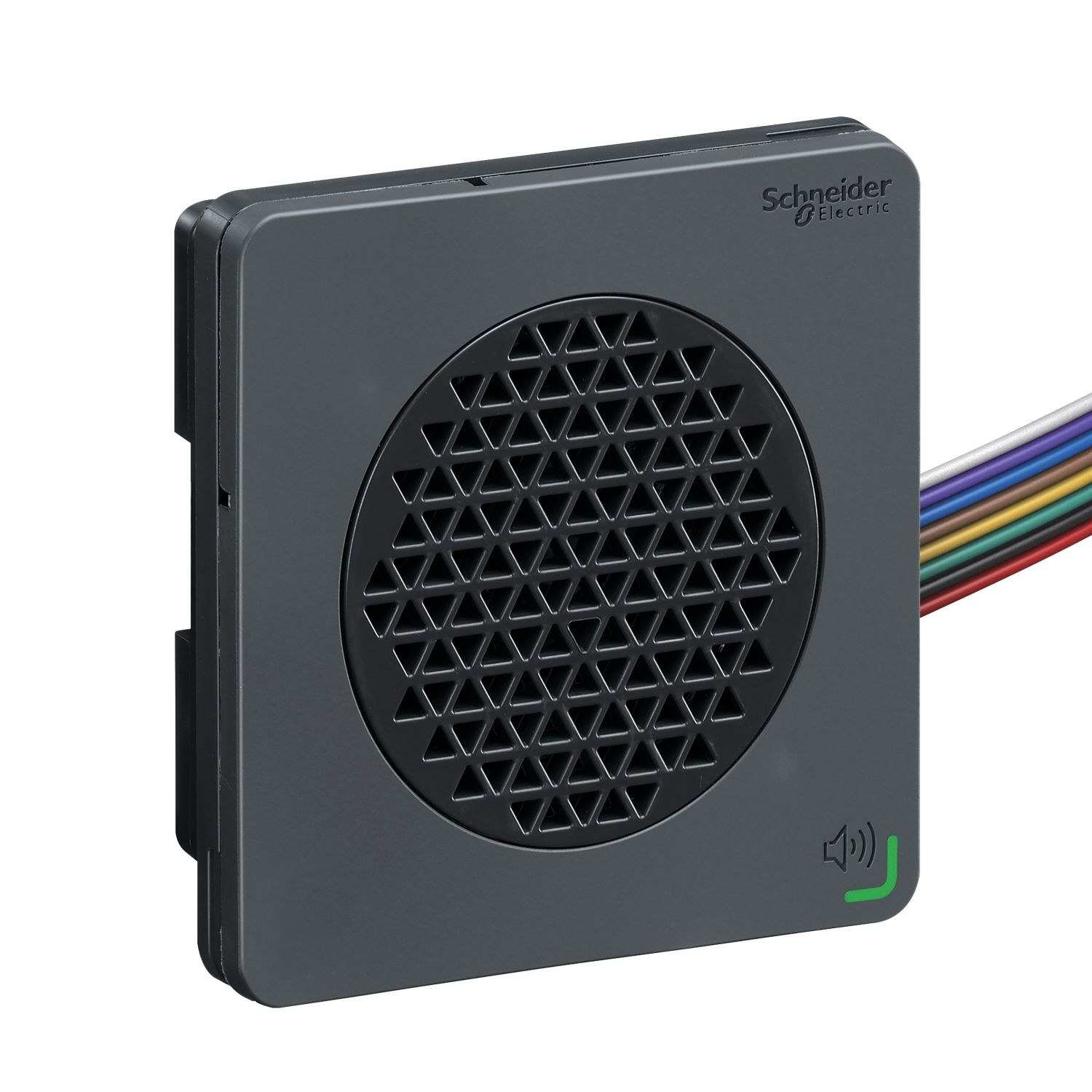

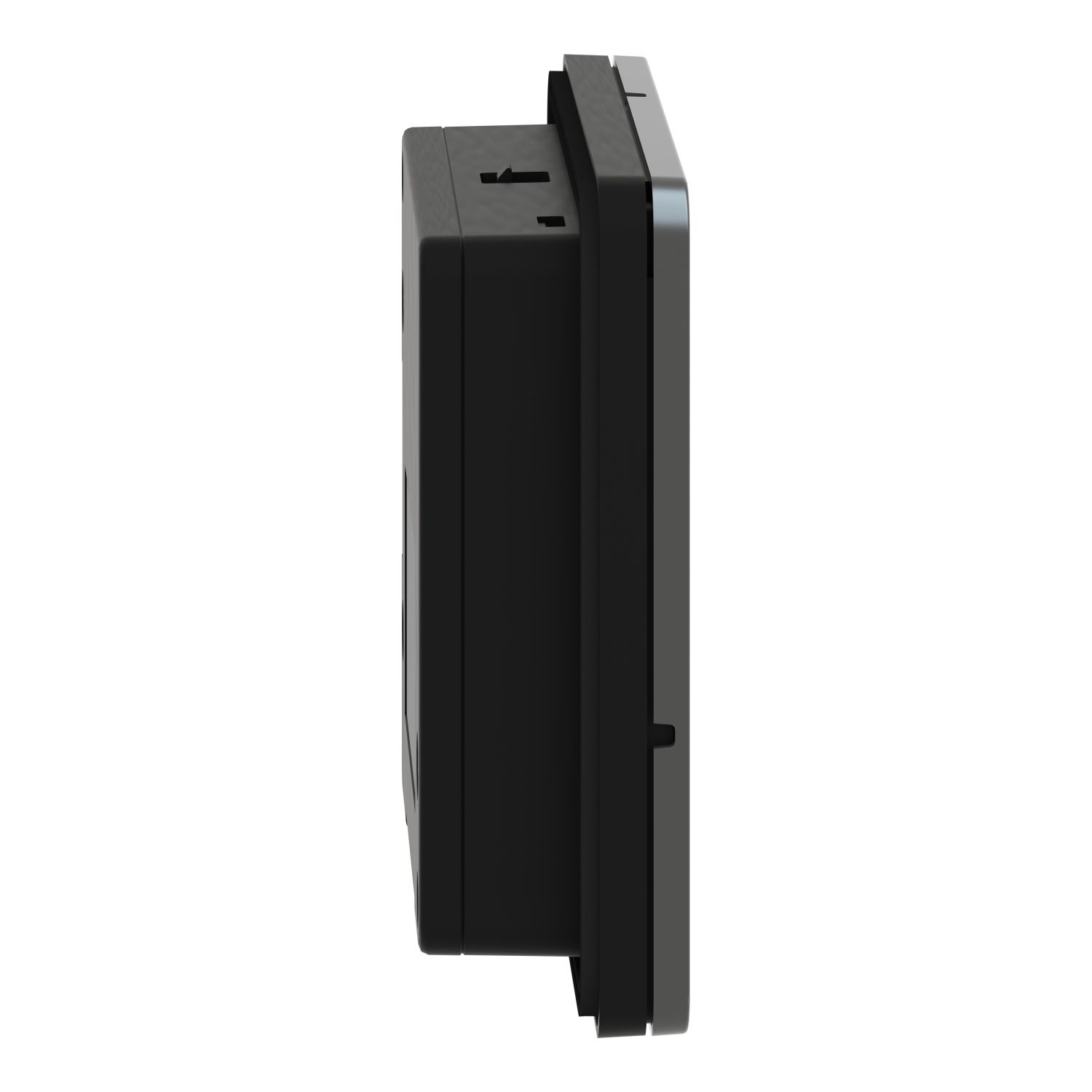

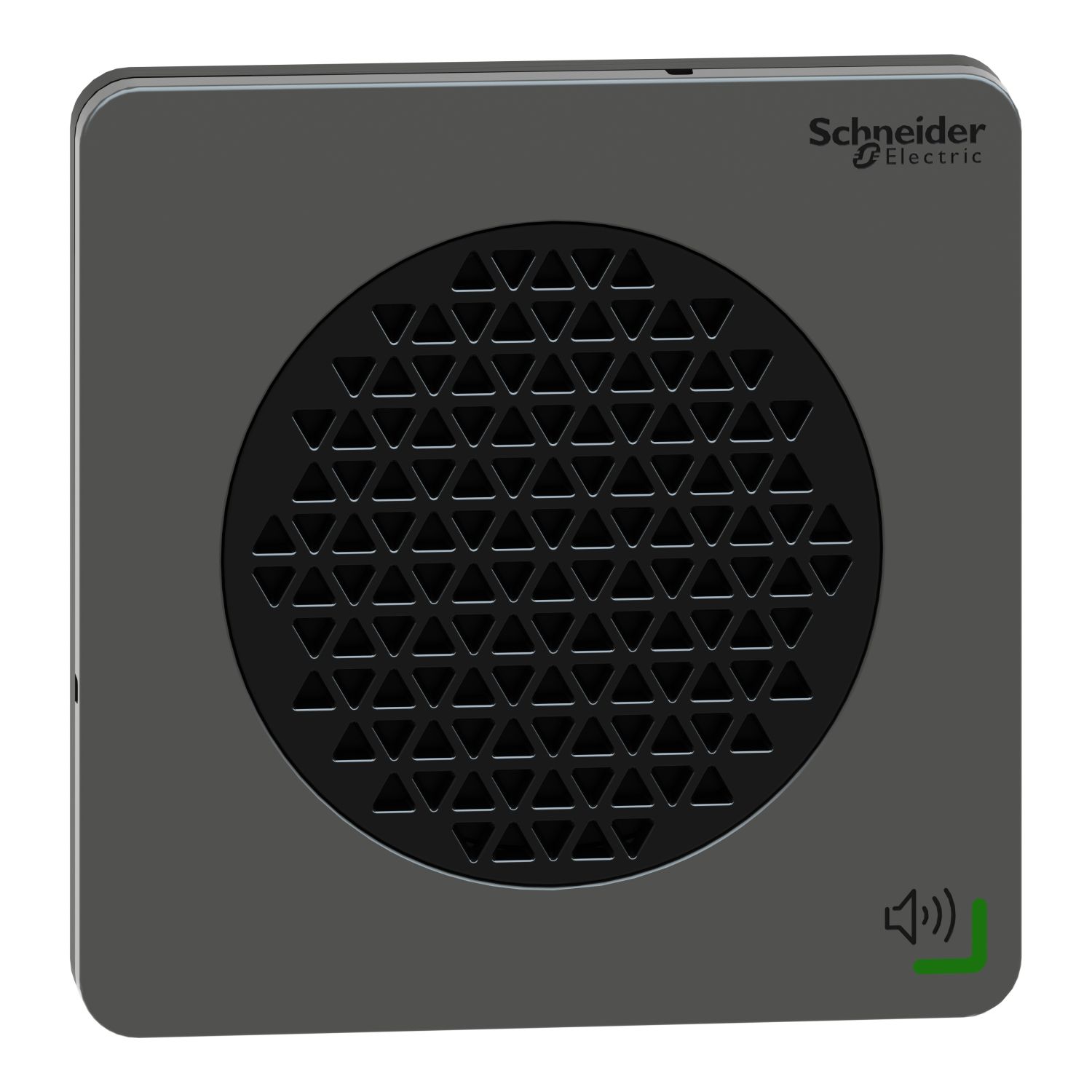

Picture of Editable voice alarms, Harmony XVS, black, mounting 72mm DIN rail, PNP, 12...24V DC
SKU:

XVSV7BBP

Editable voice alarms, Harmony XVS, black, mounting 72mm DIN rail, PNP, 12...24V DC

$249.06 INC GST
Available for Shipping : 27-Feb-2025
Editable voice alarms, Harmony XVS, black, mounting 72mm DIN rail, PNP, 12...24V DC
Be the first to review this product
Manufacturer: Schneider Electric
Brochure
Product environmental
Catalogue
End of life manual
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This editable electronic alarm is an accessory designed as an audible and signaling unit for custom assembly. It has a voice signal and its sound acoustic level is adjustable. It has a DIN72 connector and is dust resistant, impact resistant, high pressure washer resistant, vibration resistant, corrosion resistant thanks to its IP69 / IP67, IP66 protection, making it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name XVSV
Beacon or indicator bank unit type sound unit
Product or component type editable electronic alarm
Range of product Harmony XVS
Complementary
[Ue] rated operational voltage 10...30 V DC
Associated fuse rating 1 A
Device application subway, packaging, printing
Depth 24.9 mm
Width 80 mm
Material NBR (nitrile butadiene rubber), TPE (thermoplastic elastomer): front panel, PC (polycarbonate): back cover, PC (polycarbonate): body
Assembly style ready assembled
Overvoltage category class II conforming to EN/IEC 61140
Colour dark grey
[Us] rated supply voltage 12...24 V DC
Current consumption 75 mA at 24 V DC
Input type binary: 63 channel input, bit: 6 channel input
[Uimp] rated impulse withstand voltage 2.5 kV conforming to IEC 60947-1
Net weight 0.142 kg
Marking CE
[Ui] rated insulation voltage 250 V
Mounting diameter 80 mm
Power consumption in W 1.8 W
Mounting support 72 mm DIN rail
Clamping connection capacity <= 1 x 1.5 mm²
Inrush current 30 A
Height 80 mm
Environment
Protective treatment TC
Relative humidity 35-85 % without condensation
Noise level 0-89 dB (stop or suppress) at 1 m
Ambient air temperature for storage -20-60 °C
Signalling type adjustable vocal sound
Vibration resistance 7 gn
IP degree of protection wall mounted: IP20, panel mounted: IP65 conforming to EN/IEC 60529
Pollution degree 2
Standards EN/IEC 60947-5-1
Ambient air temperature for operation -10-55 °C
Discrete output type PNP
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.5 cm
Package 1 Width 13.0 cm
Package 1 Length 7.0 cm
Package 1 Weight 318.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 3.635 kg
Unit Type of Package 3 3
Number of Units in Package 3 160
Package 3 Height 75 cm
Package 3 Width 40 cm
Package 3 Length 80 cm
Package 3 Weight 75.88 kg
