SKU:

ZBRA2

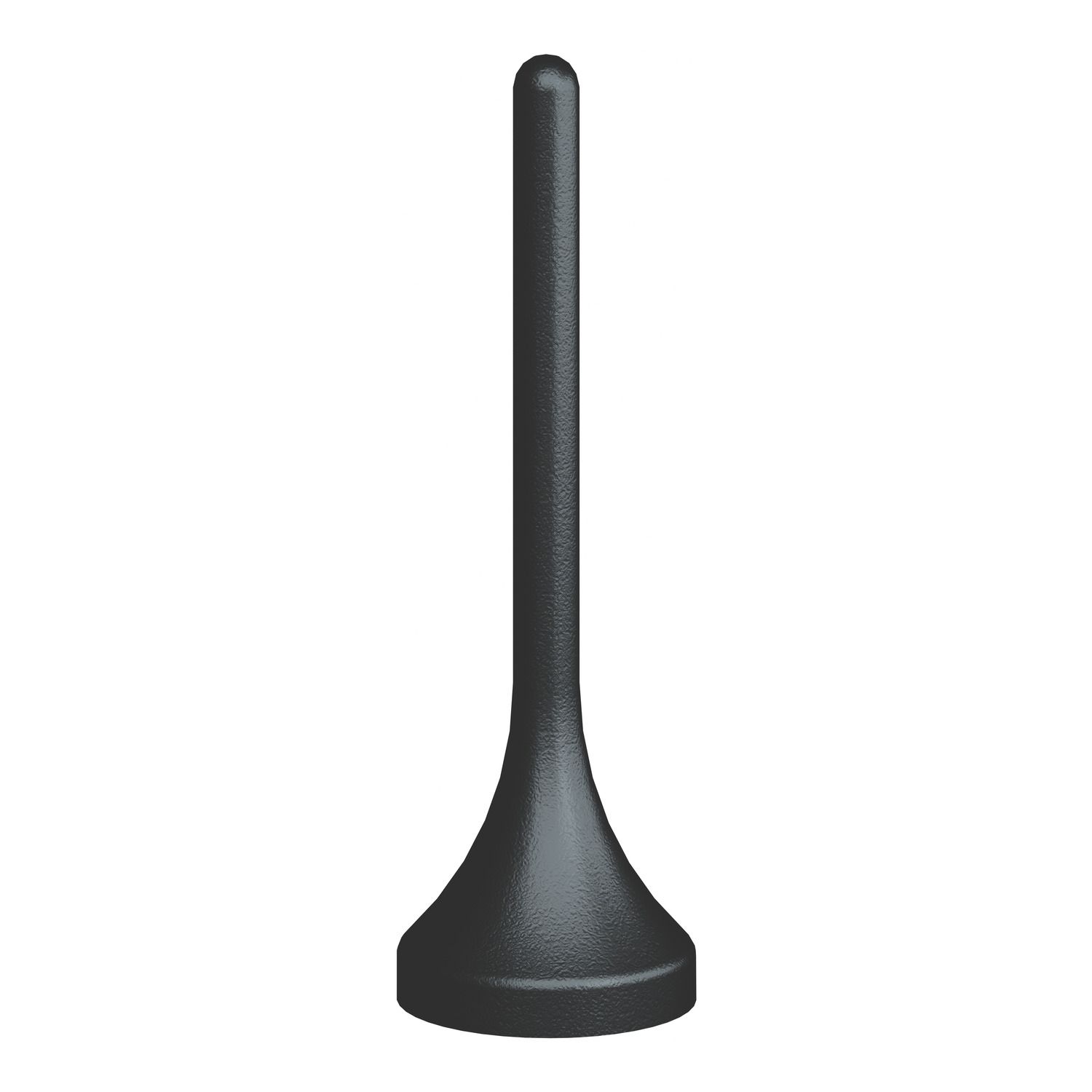

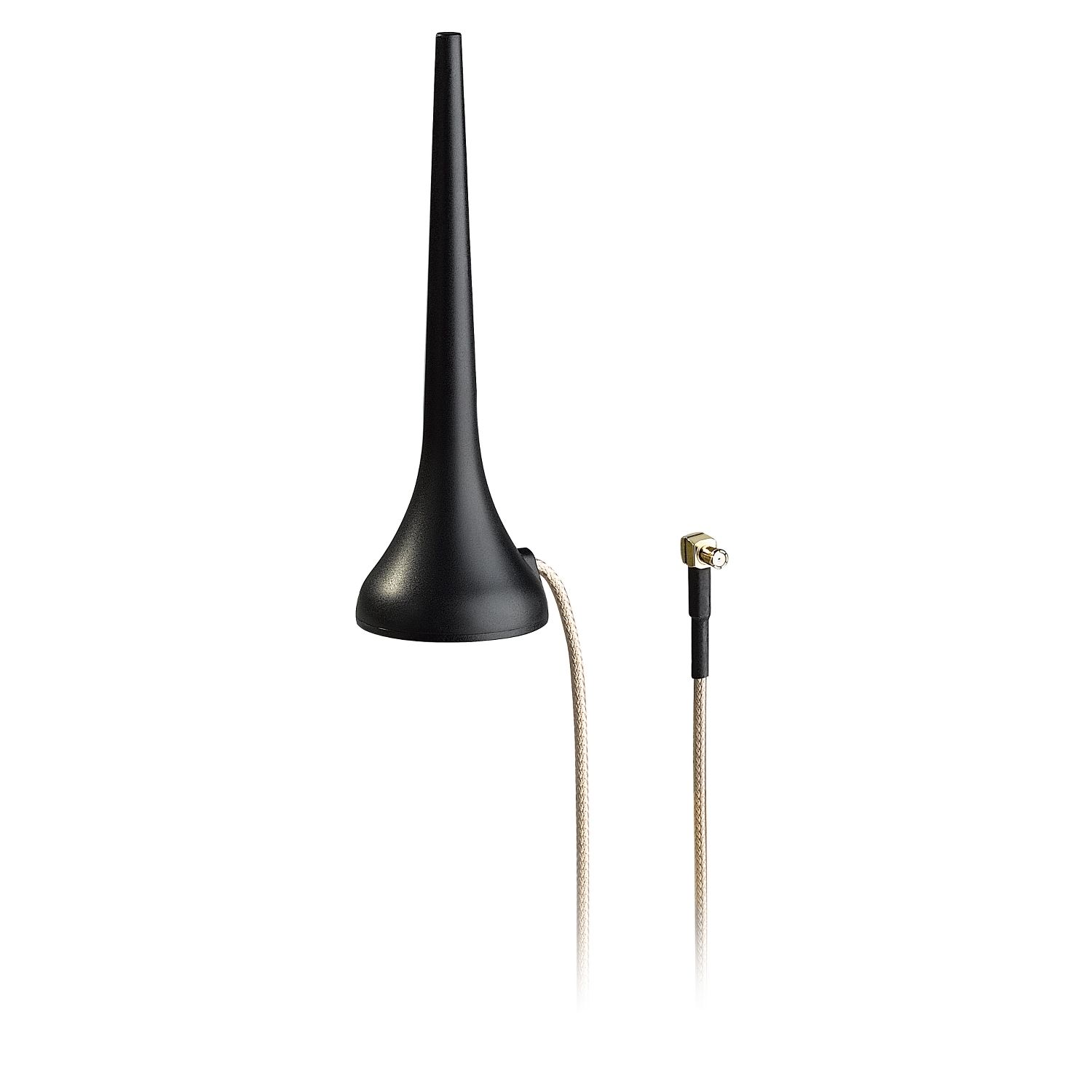

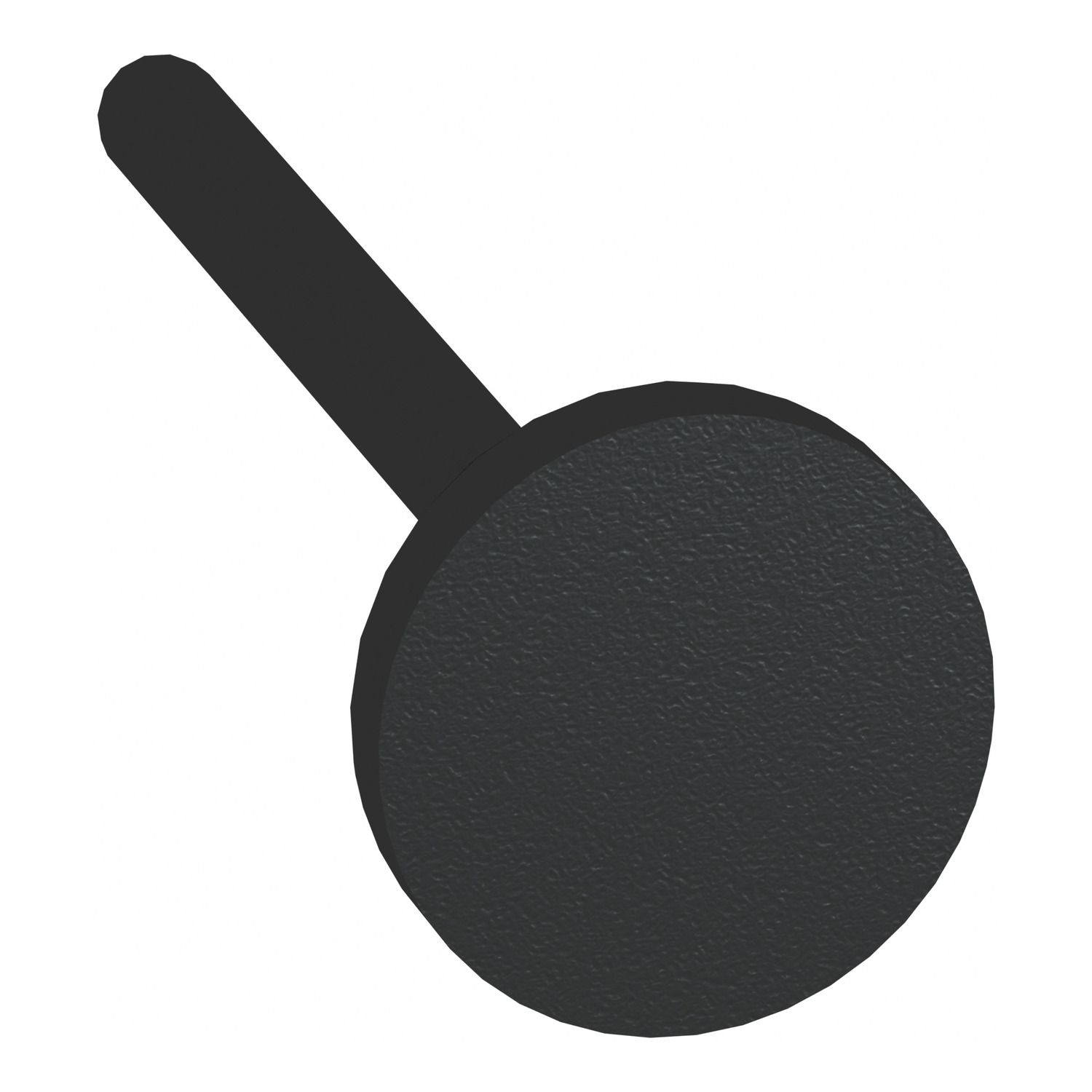

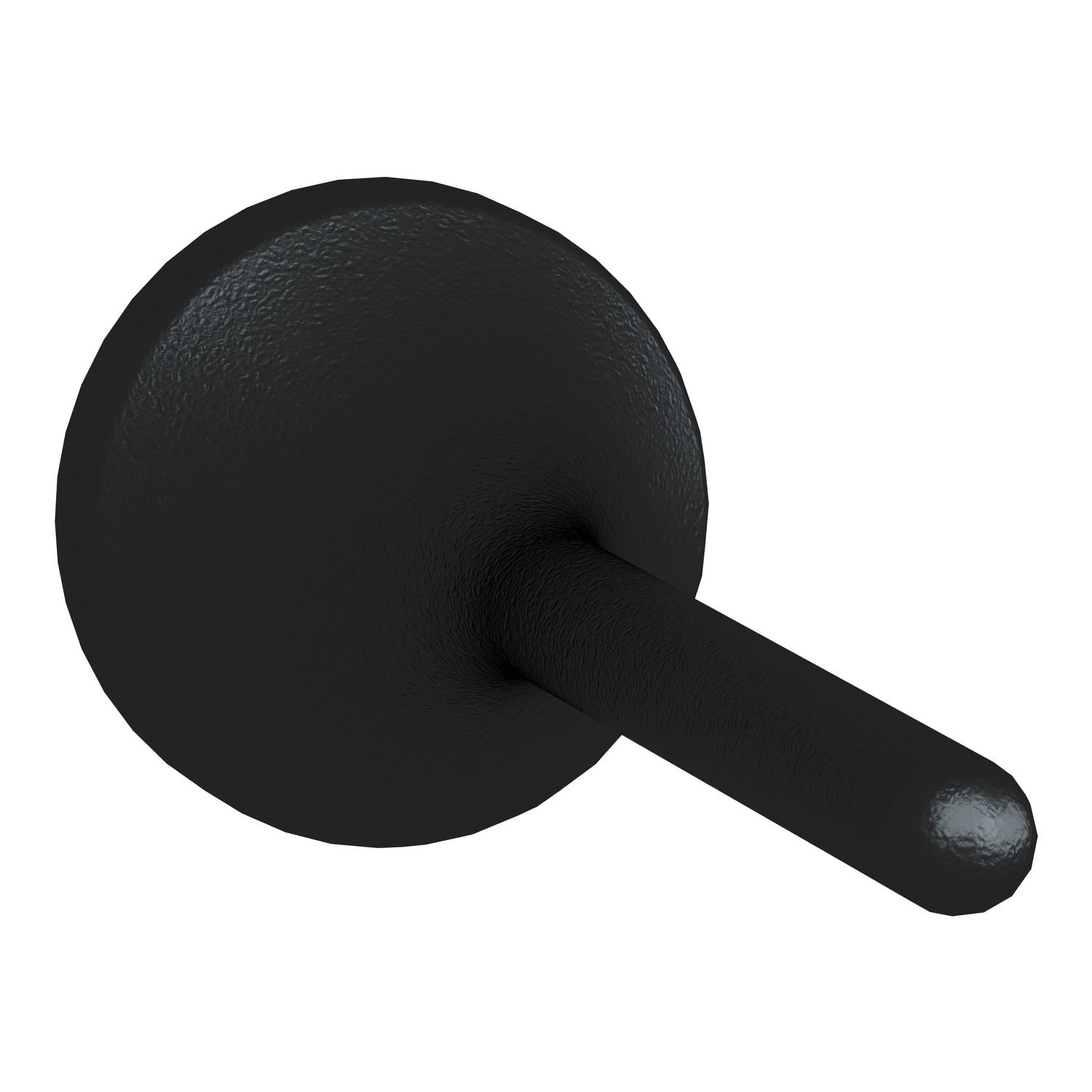

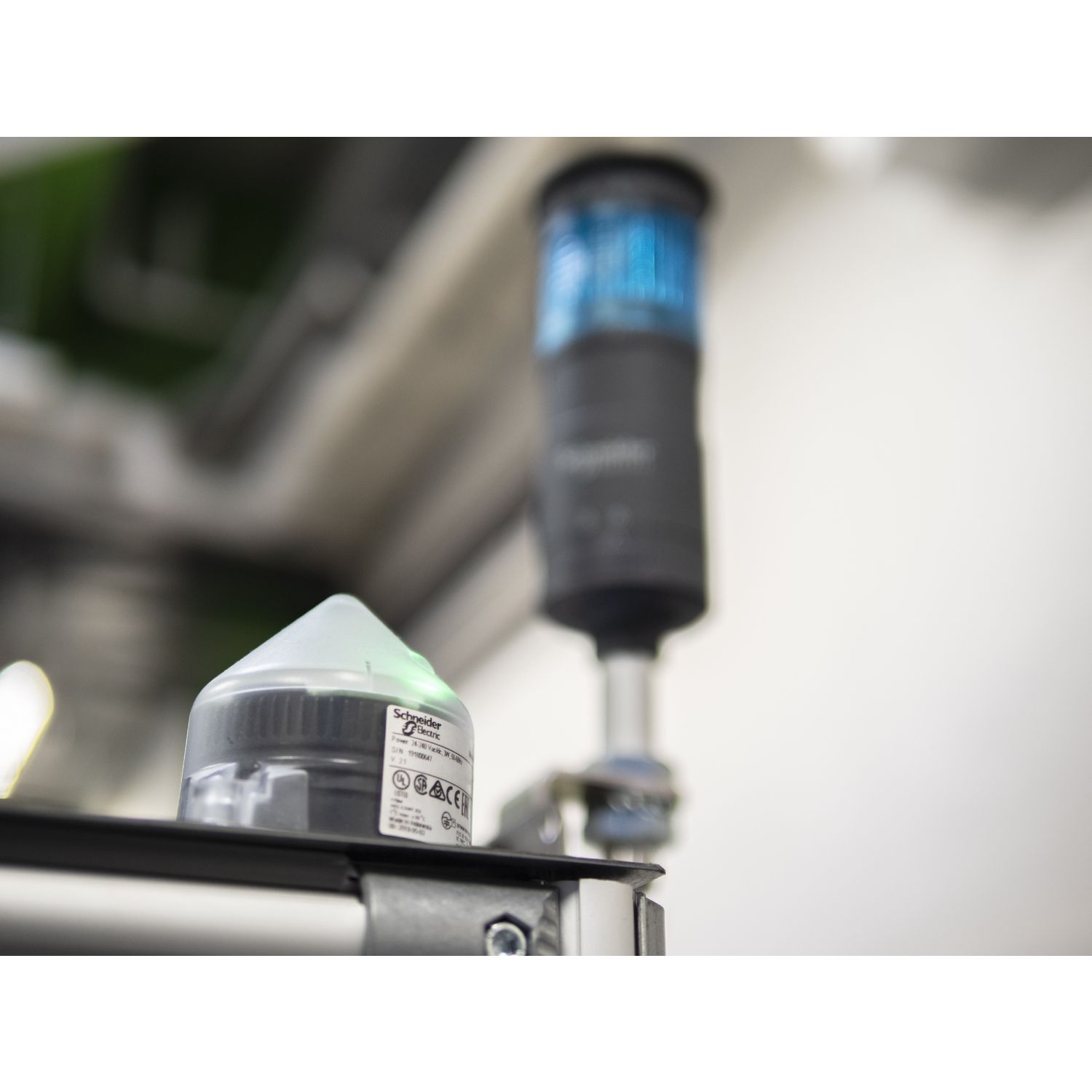

External antenna for harmony Hub ZBRN1 and ZBRN2, Harmony XB5R, 2m cable, 1 radio frequency connector

$89.65
Available for Shipping : 24-Nov-2024
External antenna for harmony Hub ZBRN1 and ZBRN2, Harmony XB5R, 2m cable, 1 radio frequency connector
Manufacturer: Schneider Electric
This wireless and batteyless transceiver provides an ergonomic interface for controlling your machines It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly

Products specifications

Attribute name Attribute value
Main
Device short name ZBRA
Product or component type wireless and batteryless range
Colour of base of enclosure black (RAL 9011)
Range of product Harmony XB5R
Product destination wireless access point
Complementary
Kit composition antenna with cable 2 m
Input impedance 50 Ohm
Maximum sensing distance 100 m access point in free field
Connector type MCX female
Net weight 0.04 kg
Communication port protocol Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4
Antenna gain 3 dBi at 83-100 Hz
Environment
Electrical shock protection class class II conforming to IEC 61140
Relative humidity 90-90 % at -20-55 °C, without condensation conforming to ETSI EN 300 440-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.0 cm
Package 1 Width 10.0 cm
Package 1 Length 22.0 cm
Package 1 Weight 54.0 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.036 kg
