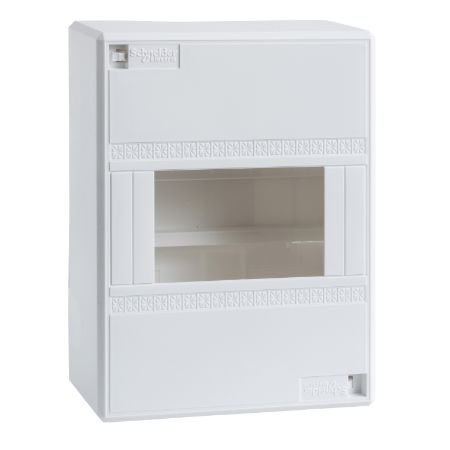

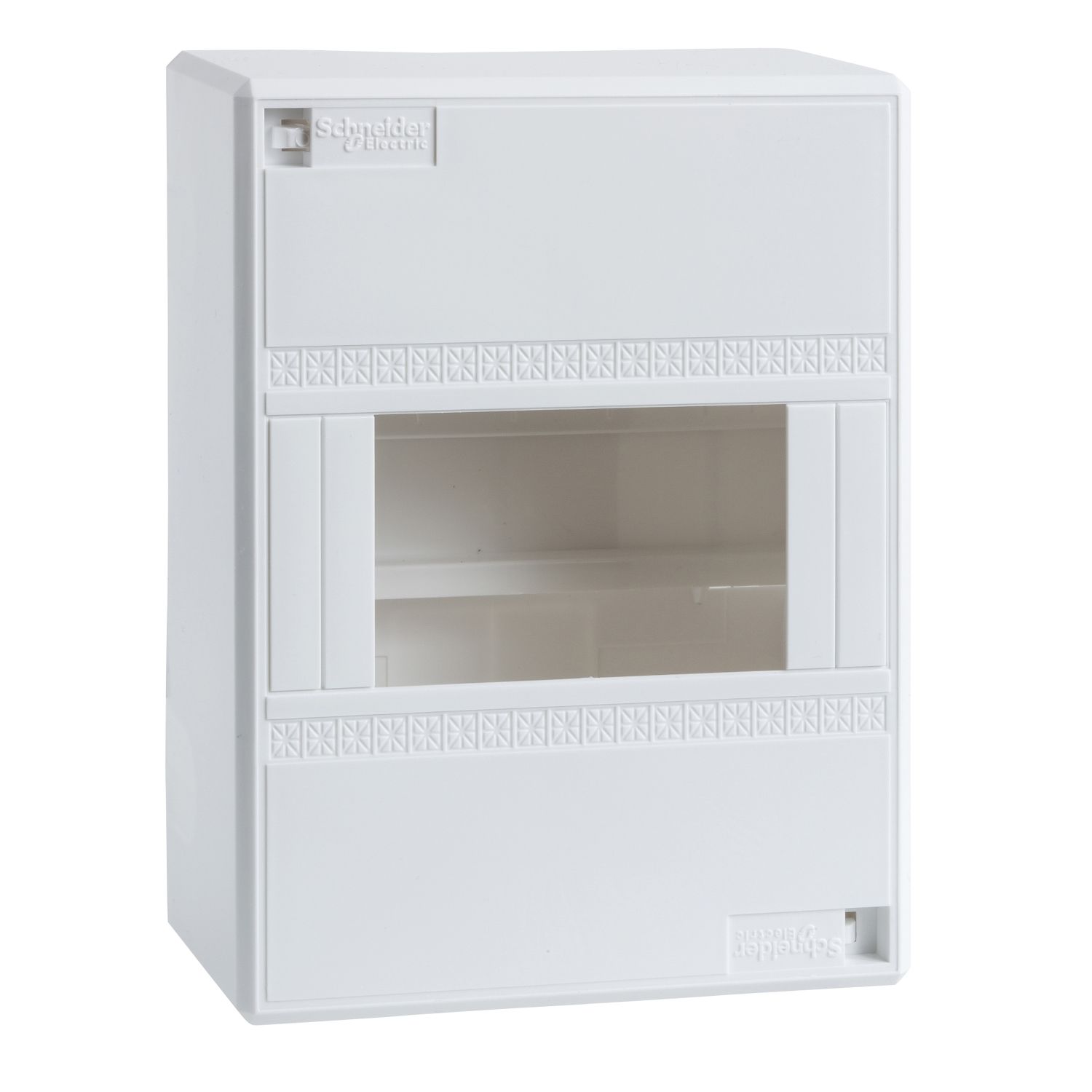

Picture of mini Opale surface enclosure - IP 30 - 1 x 8 modules - without door
SKU:

13398

mini Opale surface enclosure - IP 30 - 1 x 8 modules - without door

$61.72
Available for Shipping : 24-Nov-2024
Product Selector
mini Opale surface enclosure - IP 30 - 1 x 8 modules - without door
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Product environmental
Product Page Link
Product Data Sheet
This Mini Opale product is a surface distribution enclosure. The door is not provided with the enclosure. It is composed of 1 row of 8 modules of 18mm. The IP degree of protection is IP30.

Products specifications

Attribute name Attribute value
Main
Colour enclosure: white (RAL 9003)
Number of 18 mm modules per row 8
Enclosure type distribution enclosure
Range of product Mini Opale
Provided equipment 2 x terminal block
Product or component type enclosure
Standards IEC 60529, EN 50102
Complementary
Enclosure material enclosure: self-extinguishing material
Width 155 mm
Enclosure mounting surface
Depth 65 mm
Internal depth 60 mm
Mounting plate description without mounting plate
Distribution block outgoers 6 x 10 mm², 2 x 16 mm²
Height 160 mm
Type of rail DIN
9 mm pitches 16
Total number of 18 mm modules 8
Number of horizontal rows 1
[In] rated current 63 A
Number of terminal blocks 2 with 4 outgoers
Environment
IP degree of protection IP30 conforming to IEC 60529
IK degree of protection IK07 conforming to EN 50102
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.000 cm
Package 1 Width 15.500 cm
Package 1 Length 16.000 cm
Package 1 Weight 220.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 32.500 cm
Package 2 Width 17.000 cm
Package 2 Length 35.000 cm
Package 2 Weight 2.421 kg
Unit Type of Package 3 3
Number of Units in Package 3 420
Package 3 Height 113.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 113.682 kg
