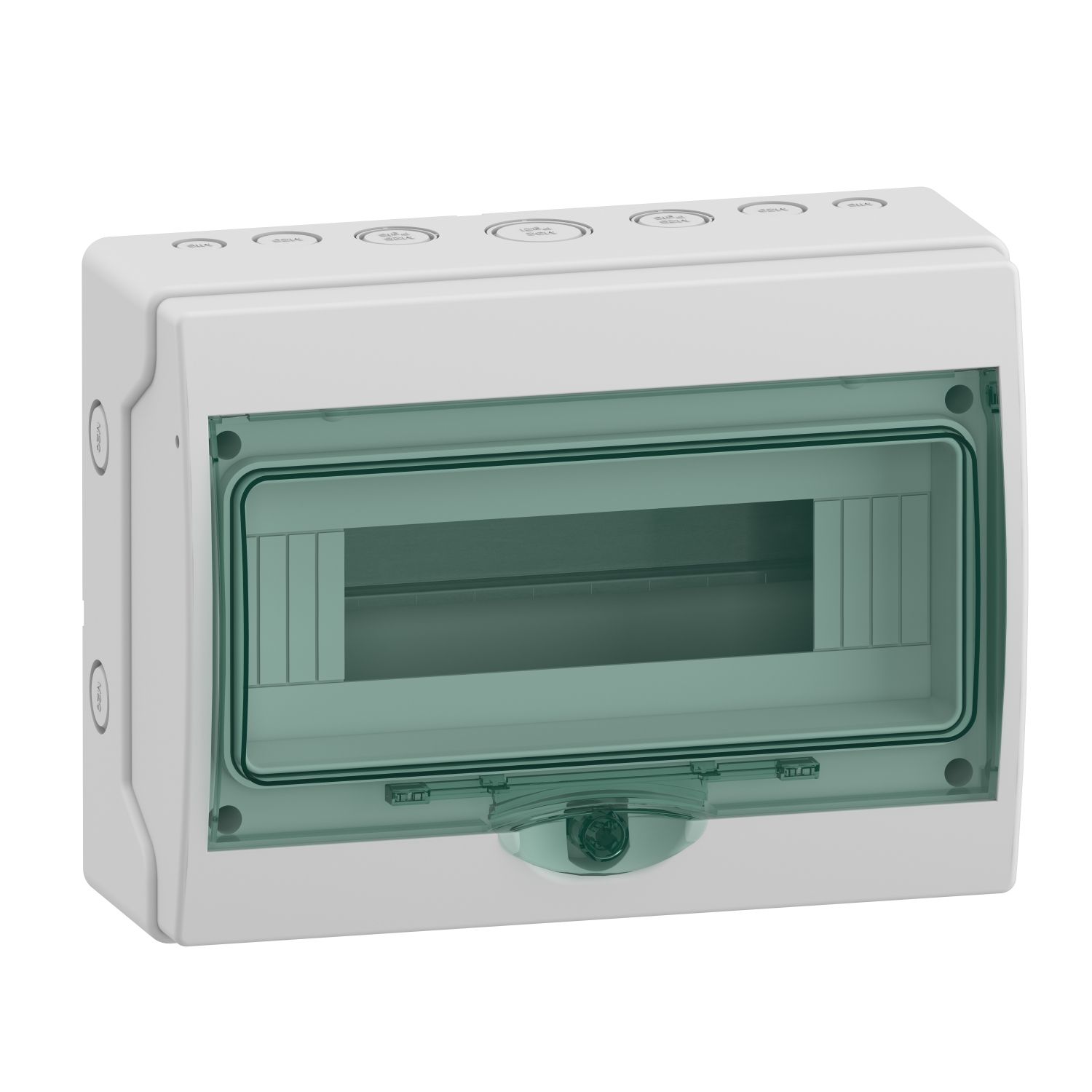

Picture of Mini enclosure for modular device, Mureva Enclosure, 1x12 modules, without terminal block
SKU:

13979

Mini enclosure for modular device, Mureva Enclosure, 1x12 modules, without terminal block

$141.84
Available for Shipping : 24-Nov-2024
Product Selector
Mini enclosure for modular device, Mureva Enclosure, 1x12 modules, without terminal block
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalogue
Product environmental
Product Page Link
Product Data Sheet
This Kaedra weatherproof enclosure is a surface mounted mini enclosure for modular device. It is composed of 1 row of 12 modules of 18mm. It can accomodate all types of modular switchgear. This enclosure is dedicated to indoor and outdoor waterproof installation. The IP degree of protection is IP65. It is provided with a transparent green door. The colour of the enclosure is light grey (RAL 7035). It is intended for installation in residential, small buildings and industry. The cables can enter by the top or the bottom of the enclosure via 7 pre-cutouts. It is equipped with a back plate and a front cover with notch. It is provided with DIN rail. There are no terminal block and no terminal block support. A marking kit are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The dissipated power is 19W. The In rated current is up to 63A. This product complies with IEC 61439-3 standard. The dimensions are (W) 267mm x (H) 200mm x (D) 112mm. The material is a self-extinguishing polymer material. Its resistance to flames and to abnormal heat is 650°C as per IEC 60695-2-1. It is ultraviolet resistant. The IK degree of protection is IK09. The operating temperature is -25°C to 60°C.

Products specifications

Attribute name Attribute value
Main
Range Mureva
Enclosure type mini enclosure for modular device
Mounting plate description slotted
Product name Mureva Enclosure
Product or component type weatherproof enclosure
Complementary
Colour enclosure: light grey (RAL 7035), door: transparent green
Enclosure material self-extinguishing polymer
Width 267 mm
Enclosure mounting surface
Number of 18 mm modules per row 12
Power dissipation in W 19 W
Electrical insulation class class II, double insulation
Depth 112 mm
Type of front cover transparent
Internal depth 56 mm
Locking options description optional keylock
Market segment small commercial, residential
Height 200 mm
Type of rail DIN
Number of pre-cutouts PG ISO 7
Provided equipment 1 marking kit
9 mm pitches 24
Total number of 18 mm modules 12
Number of horizontal rows 1
[In] rated current 63 A
Environment
Fire resistance 650 °C conforming to IEC 60695-2-1
IP degree of protection IP65 conforming to IEC 60529
Ambient air temperature for operation -25-60 °C
Overvoltage category II
IK degree of protection IK09 conforming to EN 50102
Environmental characteristic ultraviolet degradation test conforming to ISO 4892-2:2013, UV resistant: class 3 conforming to ISO 4582:2010
Standards EN 50262, IEC 61439-3, IEC 60670, IEC 60695-2-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.4 cm
Package 1 Width 20.0 cm
Package 1 Length 26.6 cm
Package 1 Weight 810.0 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 22.0 cm
Package 2 Width 34.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.5 kg
Unit Type of Package 3 3
Number of Units in Package 3 96
Package 3 Height 80.0 cm
Package 3 Width 80.0 cm
Package 3 Length 120.0 cm
Package 3 Weight 99.48 kg

Related products

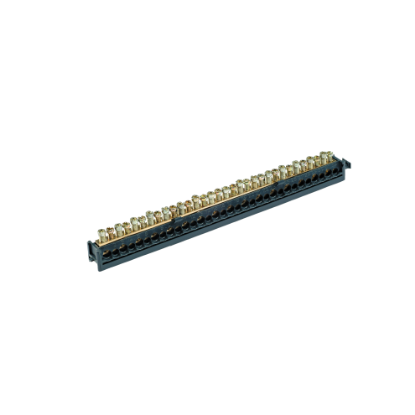

Picture of distribution terminal block - 80 A - 32 holes
