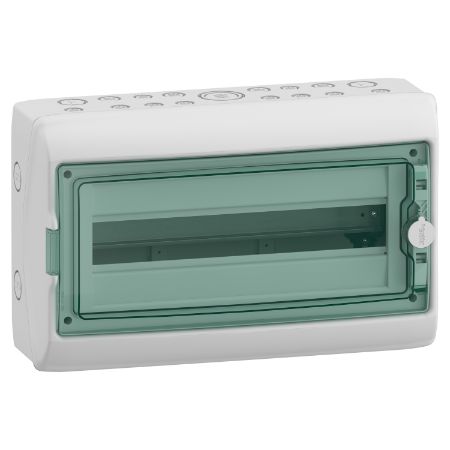

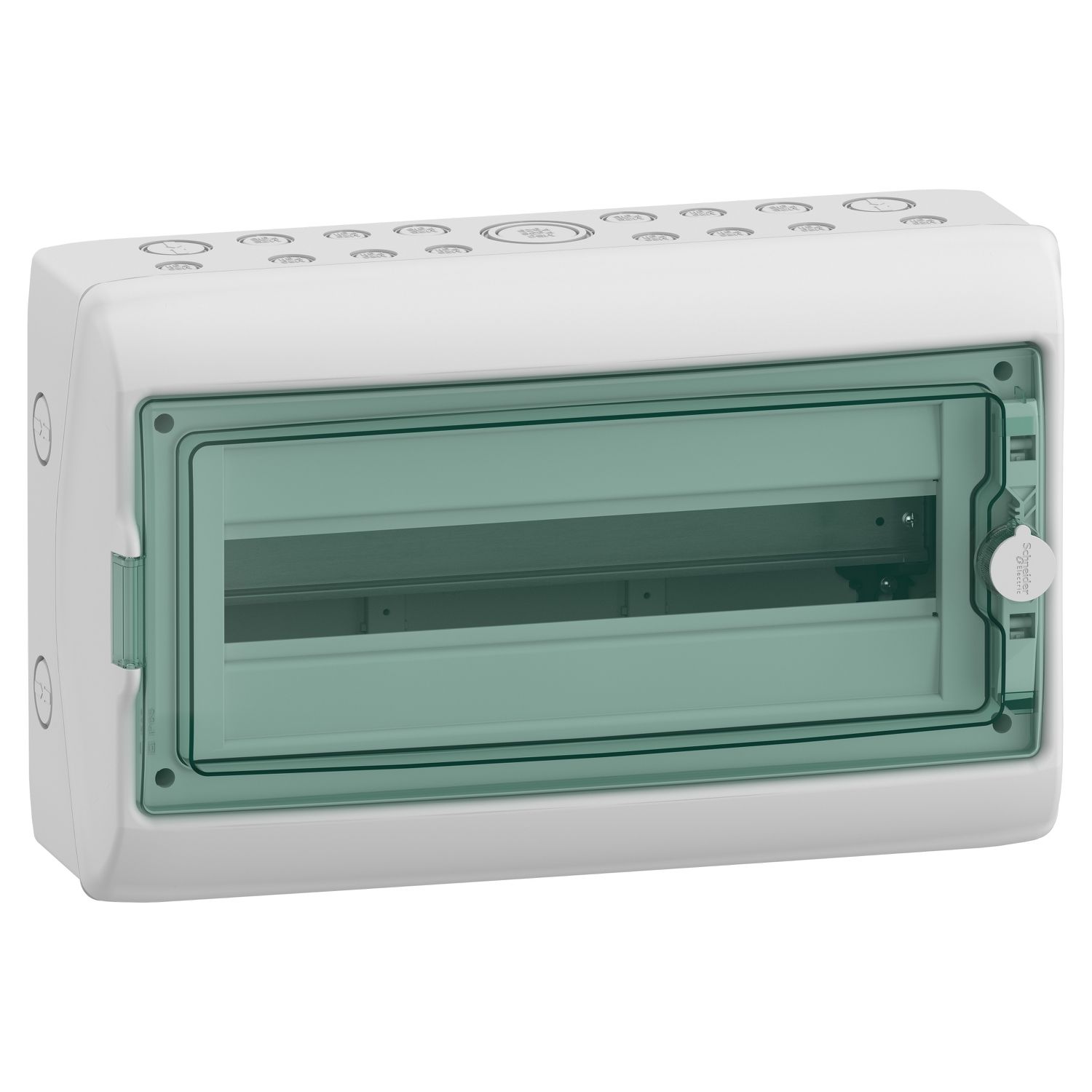

Picture of Enclosure for modular device, Mureva Enclosure, 1x18 modules, earth terminal block
SKU:

13982

Enclosure for modular device, Mureva Enclosure, 1x18 modules, earth terminal block

$233.52 INC GST
Available for Shipping : 11-Feb-2025
Product Selector
Enclosure for modular device, Mureva Enclosure, 1x18 modules, earth terminal block
Be the first to review this product
Manufacturer: Schneider Electric
Technical illustration
Catalogue
Product environmental
Product Page Link
Product Data Sheet

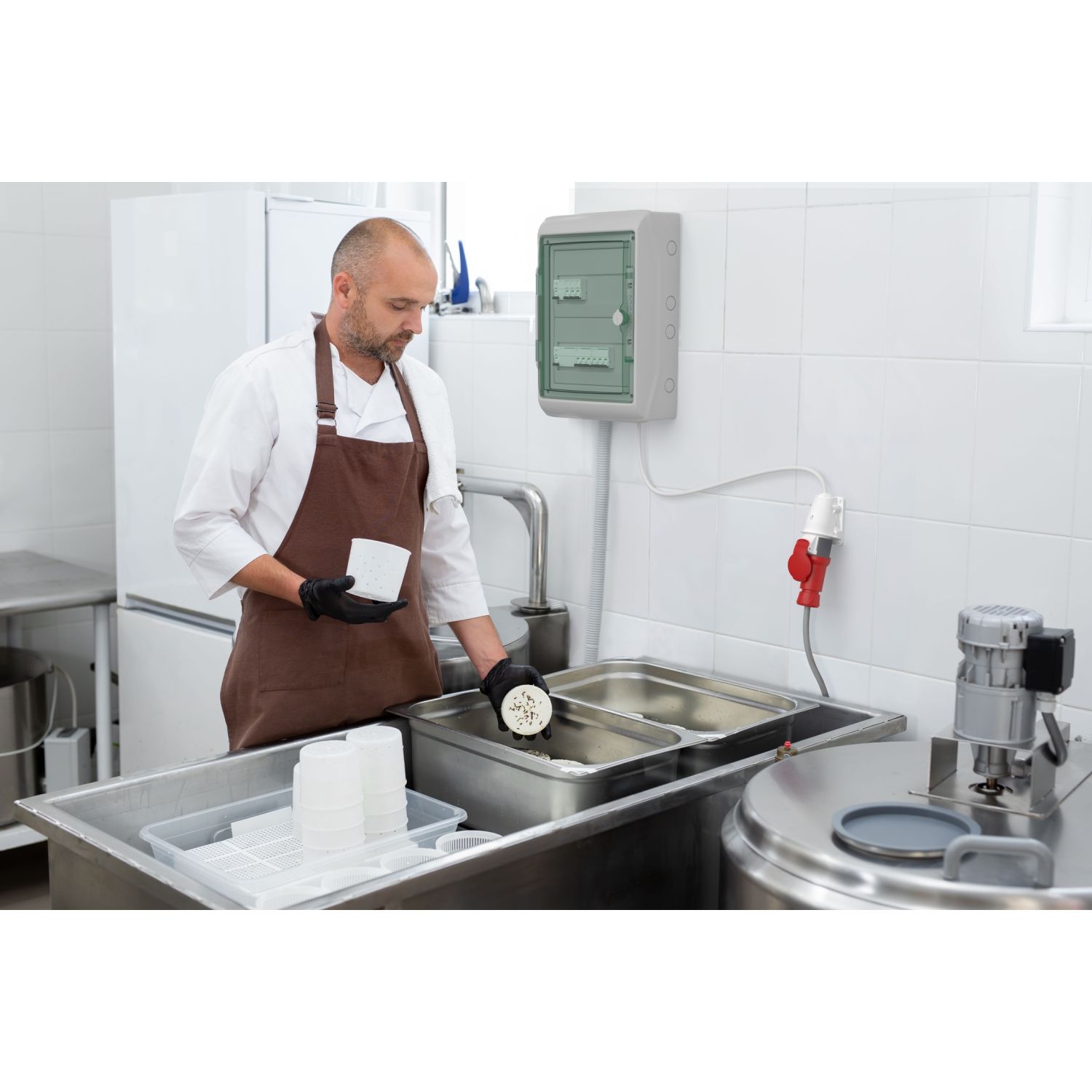

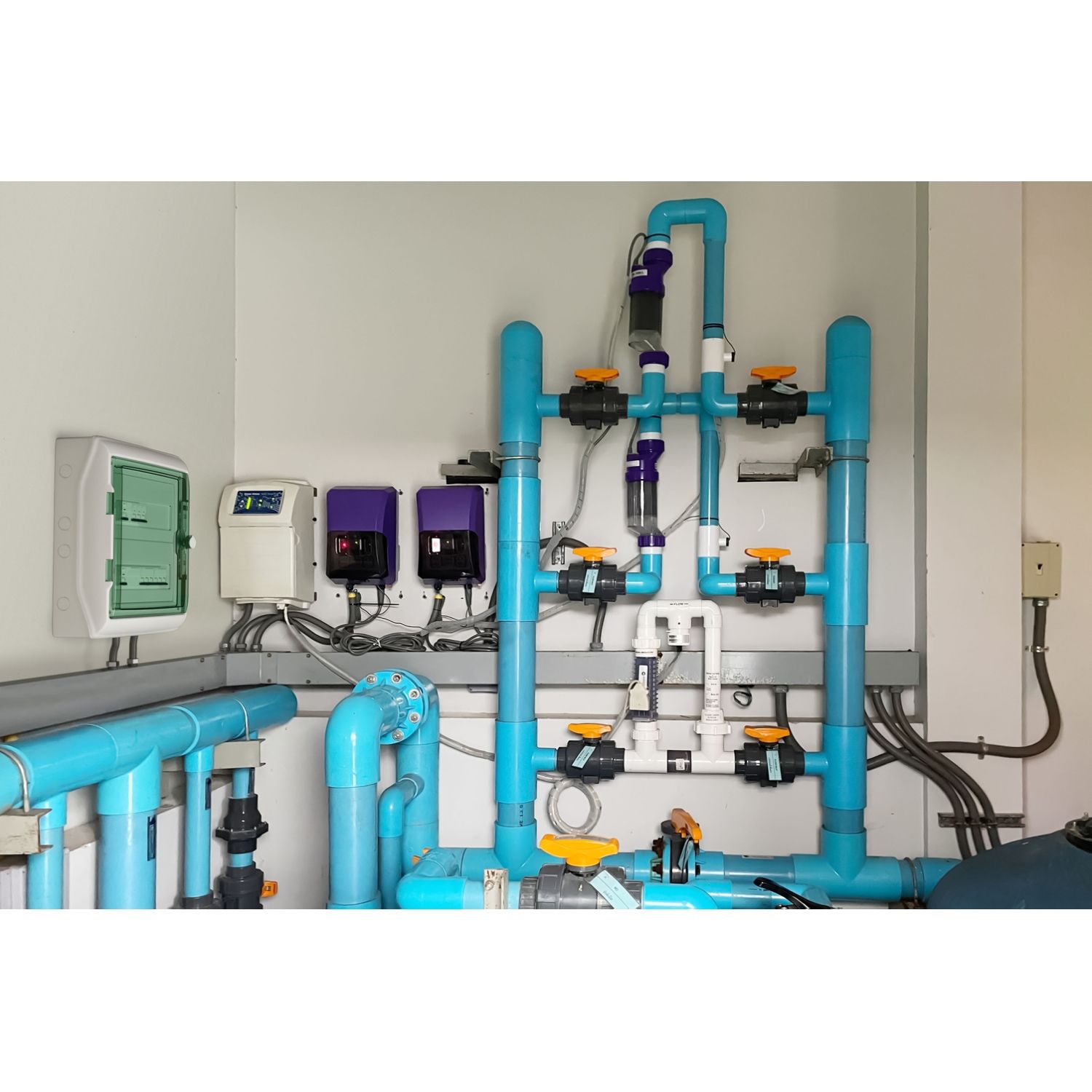

This Kaedra weatherproof enclosure is a surface mounted enclosure for modular device. It is composed of 1 row of 18 modules of 18mm. It can accomodate all types of modular switchgear. The IP degree of protection is IP65. This enclosure is dedicated to indoor or outdoor waterproof installation. It is provided with a transparent green door. The colour of the enclosure is light grey (RAL 7035). It is intended for installation in residential, small buildings and industry. The cables can enter by the top or the bottom of the enclosure via 17 pre-cutouts. It is equipped with a back plate and a front cover with notch. It is provided with DIN rail. It comes with 1 terminal block with 4 outgoers and 1 with 16 outgoers for a total of 20 outgoers (10x10mm² + 10x16mm²). A marking kit are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The dissipated power is 34W. The In rated current is up to 90A. This product complies with IEC 61439-3 standard. The dimensions are (W) 448mm x (H) 280mm x (D) 160mm. The material is a self-extinguishing polymer material. Its resistance to flames and to abnormal heat is 650°C as per IEC 60695-2-1. It is ultraviolet resistant. The IK degree of protection is IK09. The operating temperature is -25°C to 60°C.

Products specifications

Attribute name Attribute value
Main
Range Mureva
Enclosure type enclosure for modular device
Mounting plate description slotted
Product name Mureva Enclosure
Product or component type weatherproof enclosure
Complementary
Colour enclosure: light grey (RAL 7035), door: transparent green
Enclosure material self-extinguishing polymer
Width 448 mm
Enclosure mounting surface
Number of 18 mm modules per row 18
Power dissipation in W 34 W
Electrical insulation class double insulation, class II
Depth 160 mm
Type of front cover reversible, transparent
Internal depth 88 mm
Locking options description optional keylock
Targeted country Spain
Market segment residential, small commercial
Distribution block outgoers 11 x 16 mm² + 11 x 10 mm²
Height 280 mm
Type of rail DIN
Number of pre-cutouts PG ISO 17
Provided equipment 1 terminal block support, 1 terminal block 22 holes, 1 wiring strap, 1 marking kit
9 mm pitches 36
Total number of 18 mm modules 18
Number of horizontal rows 1
[In] rated current 90 A
Number of terminal blocks 1 earth (screw connection) with 22 outgoers
Environment
Fire resistance 650 °C conforming to IEC 60695-2-1
IP degree of protection IP65 conforming to IEC 60529
Ambient air temperature for operation -25-60 °C
Overvoltage category II
IK degree of protection IK09 conforming to EN 50102
Environmental characteristic ultraviolet degradation test conforming to ISO 4892-2:2013, UV resistant: class 3 conforming to ISO 4582:2010
Standards IEC 60695-2-1, IEC 61439-3, EN 50262, IEC 60670
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17.000 cm
Package 1 Width 29.500 cm
Package 1 Length 46.800 cm
Package 1 Weight 2.510 kg
Unit Type of Package 2 2
Number of Units in Package 2 36
Package 2 Height 80.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 102.720 kg
